NCP145-BEXYK (2012)
Toyota Porte/Spade

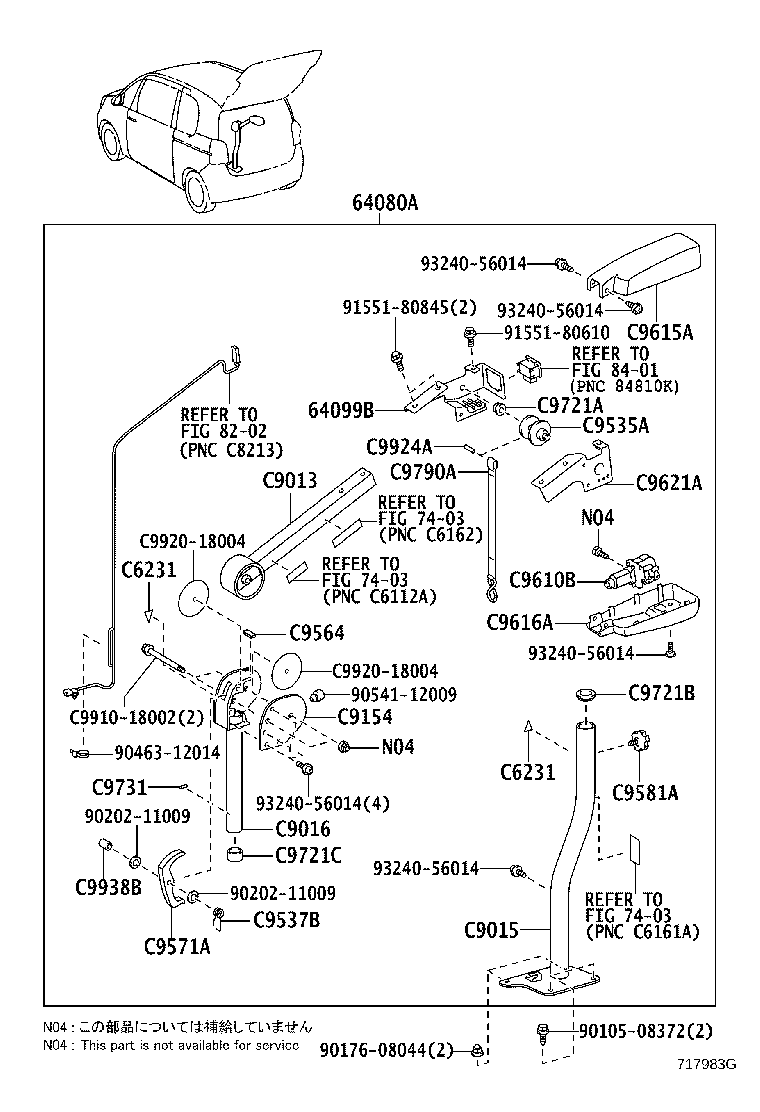

ILLUST NO. 1 OF 3(1207-1607)NCP145..X ; (1207- )NCP141,NSP140..F,X ; (1507-1607)NSP141..F,X
ｸﾙﾏｲｽﾖｳ ｼｭｳﾉｳ ｿｳﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64080A - ARM ASSY, POWER LIFT | ||||
| 64080-52030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 64080-52030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 64099B - BASE SUB-ASSY, POWER LIFT ARM GUIDE | ||||
| 64099-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 64099-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C6231 - MARK, SIDE | ||||
| C6231-18010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
2 | ||
| C6231-18010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| C6231 - MARK, SIDE | ||||
| C6231-18010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
2 | ||
| C6231-18010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| C9013 - ARM SUB-ASSY, POWER LIFT, NO.1 | ||||
| C9013-52030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C9013-52030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9015 - POST SUB-ASSY, POWER LIFT | ||||
| C9015-52040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9015-52040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C9016 - POST SUB-ASSY, POWER LIFT, INNER | ||||
| C9016-52030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C9016-52030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9154 - SUPPORT, POWER LIFT ARM HINGE | ||||
| C9154-D1060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C9154-D1060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9535A - PULLEY, POWER LIFT | ||||
| C9535-D1060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C9535-D1060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9537B - SPRING, POWER LIFT RETURN | ||||
| C9537-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C9537-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9564 - PROTECTOR, POWER LIFT CYLINDER COVER | ||||
| C9564-18010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C9564-18010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9571A - LEVER, POWER LIFT ARM LOCK | ||||
| C9571-18010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C9571-18010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9581A - HANDLE, POWER LIFT LOCK | ||||
| C9581-D1030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9581-D1030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C9610B - MOTOR ASSY, POWER LIFT | ||||
| C9610-18030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9610-18030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C9615A - COVER, POWER LIFT MOTOR, NO.1 | ||||
| C9615-12020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C9615-12020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9616A - COVER, POWER LIFT MOTOR, NO.2 | ||||
| C9616-12010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C9616-12010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9621A - BASE, POWER LIFT MOTOR | ||||
| C9621-D1020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C9621-D1020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9721A - BEARING, NO.2 WINCH, NO.1 | ||||
| C9721-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C9721-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9721B - BEARING, NO.2 WINCH, NO.2 | ||||
| C9721-D1070 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C9721-D1070 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9721C - BEARING, NO.2 WINCH, NO.3 | ||||
| C9721-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9721-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C9731 - PIN, WINCH ROLLER, NO.1 | ||||
| C9731-D1050 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9731-D1050 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C9790A - BELT ASSY, WINCH | ||||
| C9790-18020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9790-18020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C9924A - PIN | ||||
| C9924-18001 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9924-18001 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C9938B - COLLAR | ||||
| C9938-18020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9938-18020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| Common parts | ||||
| 90105-08372 | ||||
| 90176-08044 | ||||
| 90202-11009 | ||||
| 90463-12014 | ||||
| 90541-12009 | ||||
| 91551-80610 | ||||
| 91551-80845 | ||||
| 93240-56014 | ||||
| C9910-18002 | ||||
| C9920-18004 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8202 | ||||
| 8401 | ||||

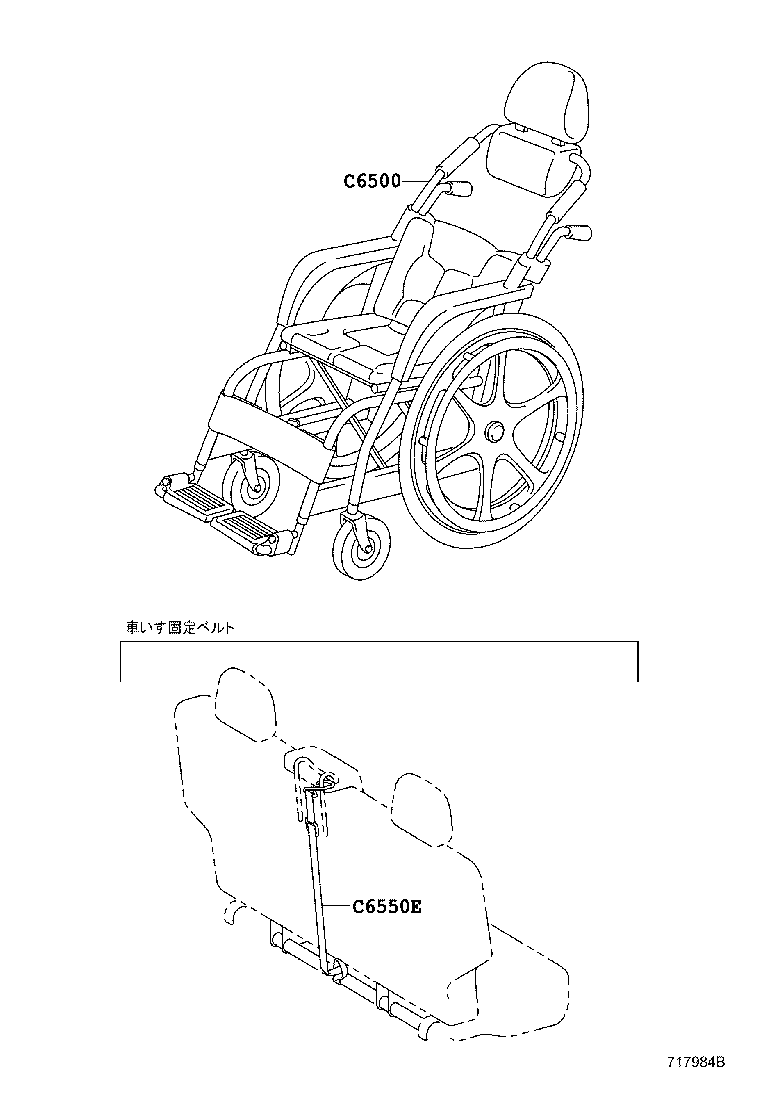

ILLUST NO. 2 OF 3(1207- )NCP14#,NSP140 ; (1507- )NSP141
ｳｪﾙｷｬﾌﾞﾖｳ ｼｭﾄﾞｳｼｷｸﾙﾏｲｽ(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| C6500 - WHEEL CHAIR ASSY | ||||
| C7950-18010 |
NCP14#,NSP140..CBU 車いす−有り |
1 | ||
| C6550E - BELT ASSY, WHEEL CHAIR SET, NO.2 | ||||
| C6550-52040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C6550-52040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C6550-52040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式) |
1 | ||
| C6550-52040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||

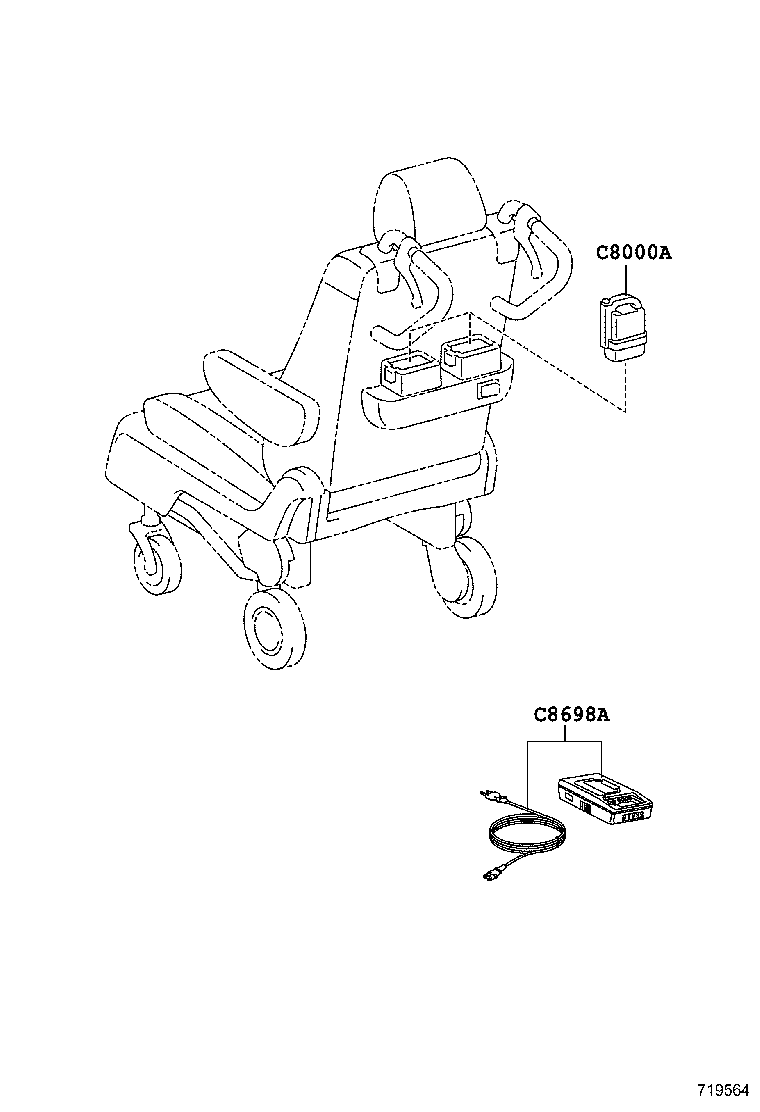

ILLUST NO. 3 OF 3(1207-1507)NCP145..X ; (1207-1507)NCP141,NSP140..F,X ; (1507- )NSP141..F,X
ﾃﾞﾝﾄﾞｳｼｷﾀﾞｯﾁｬｸｼｰﾄﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| C8000A - BATTERY | ||||
| C8000-22010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 予備ﾊﾞｯﾃﾘ−ｳｪﾙｷｬﾌﾞ用×1 |
1 | ||

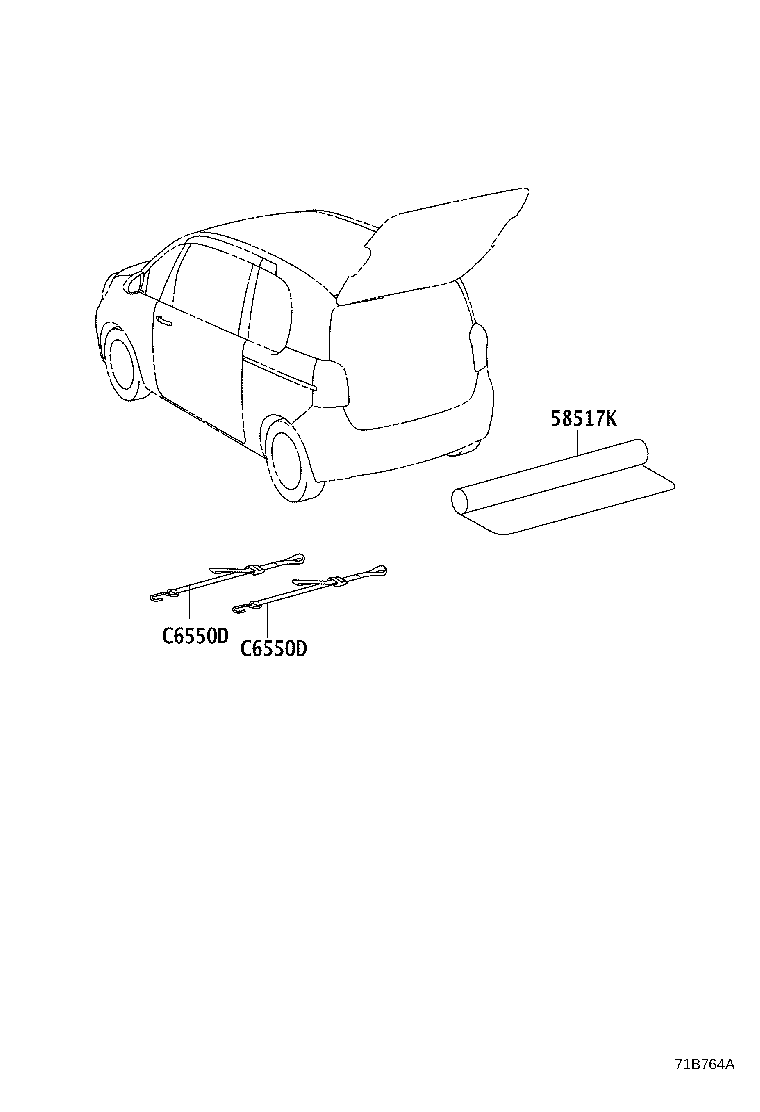

(1207- )F,X
ｶﾞｰﾄﾞﾏｯﾄ,ｸﾙﾏｲｽｺﾃｲﾍﾞﾙﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58517K - MAT, GUARD | ||||
| 58517-13010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 58517-13010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 58517-13010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 58517-13010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式) |
1 | ||
| C6550D - BELT ASSY, WHEEL CHAIR SET, NO.1 | ||||
| C6550-52050 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| C6550-52050 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| C6550D - BELT ASSY, WHEEL CHAIR SET, NO.1 | ||||
| C6550-52050 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| C6550-52050 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
