NCP145-BEXYK (2012)
Toyota Porte/Spade

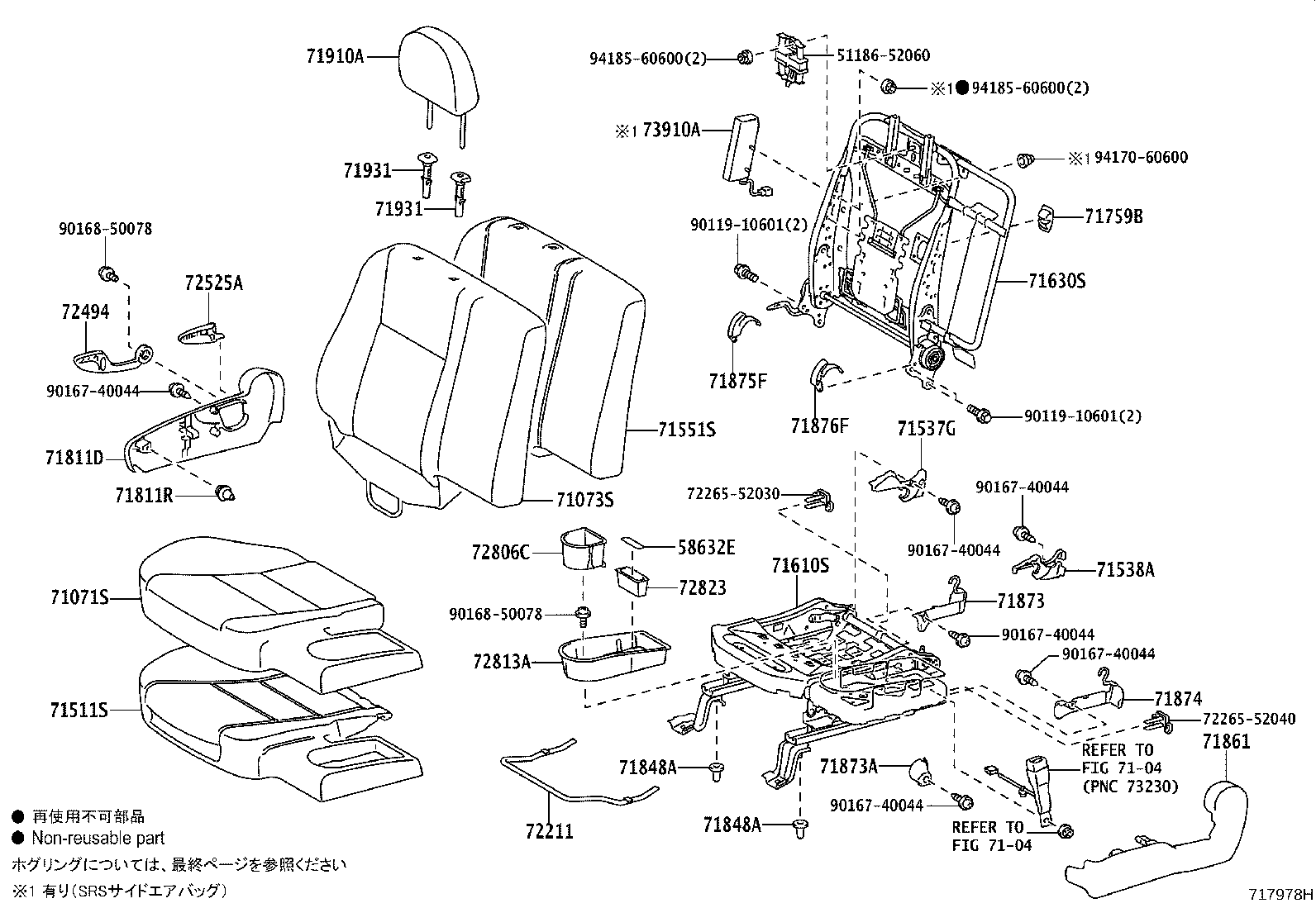

ILLUST NO. 1 OF 3(1207-1507)F,G,V,X
ｳﾝﾃﾝｾｷ ｾﾊﾟﾚｰﾄﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-52Q50E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 71071-52S10C0 |
NCP14#..SPADE..F..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM4# |
1 | ||
| 71071-52Q60C0 |
NCP14#..SPADE..F..CBU BLACK,TRIM4# |
1 | ||
| 71071-52Q70A0 |
NCP14#..Y FROMAGE,TRIM0# |
1 | ||
| 71071-52S00E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71071-52Q60A0 |
NCP14#..F..CBU FROMAGE,TRIM0# |
1 | ||
| 71071-52S00E0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71071-52S00E0 |
NCP14#,NSP140..(V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM4# |
1 | ||
| 71071-52S00E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71071-52S10A0 |
NCP14#..F..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,FROMAGE,TRIM0# |
1 | ||
| 71071-52S00E0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71071-52Q70C0 |
NCP14#..Y BLACK,TRIM4# |
1 | ||
| 71071-52Q60C0 |
NCP145..SPADE..F BLACK,TRIM40 |
1 | ||
| 71071-52Q60C1 |
NCP14#..SPADE..F..CBU BLACK,TRIM44 |
1 | ||
| 71071-52S20C0 |
NCP14#..Y SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM4# |
1 | ||
| 71071-52S20A0 |
NCP14#..Y SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,FROMAGE,TRIM0# |
1 | ||
| 71071-52S10C0 |
NCP145..SPADE..F SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM40 |
1 | ||
| 71071-52S10C1 |
NCP14#..SPADE..F..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM44 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-52S80C2 |
NCP14#..SPADE..F..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM4# |
1 | ||
| 71073-52S70C1 |
NCP14#..SPADE..F..CBU BLACK,TRIM4# |
1 | ||
| 71073-52S50E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 71073-52S60E1 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71073-52S80A1 |
NCP14#..F..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,FROMAGE,TRIM0# |
1 | ||
| 71073-52S70A0 |
NCP14#..F..CBU FROMAGE,TRIM0# |
1 | ||
| 71073-52S60E1 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71073-52S60E1 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71073-52S60E1 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71073-52T00C3 |
NCP14#..Y SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM4# |
1 | ||
| 71073-52S60E1 |
NCP14#,NSP140..(V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM4# |
1 | ||
| 71073-52S90C1 |
NCP14#..Y BLACK,TRIM4# |
1 | ||
| 71073-52T00A2 |
NCP14#..Y SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,FROMAGE,TRIM0# |
1 | ||
| 71073-52S90A0 |
NCP14#..Y FROMAGE,TRIM0# |
1 | ||
| 71073-52S70C1 |
NCP145..SPADE..F BLACK,TRIM40 |
1 | ||
| 71073-52S80C3 |
NCP14#..SPADE..F..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM44 |
1 | ||
| 71073-52S70C2 |
NCP14#..SPADE..F..CBU BLACK,TRIM44 |
1 | ||
| 71073-52S80C2 |
NCP145..SPADE..F SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM40 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-52750 |
NCP14#..Y |
1 | ||
| 71511-52740 |
NCP14#,NSP140..(F,G,V,X)..CBU |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-47010A3 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71537-47010C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-47010C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71538-47010A3 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-52C00 |
NCP14#,NSP140..(V,X)..CBU |
1 | ||
| 71551-52C10 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 71551-52C10 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 71551-52C10 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 71551-52C30 |
NCP14#..(F,G)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 71551-52C10 |
NCP14#,NSP140..(V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 71551-52C10 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 71551-52C50 |
NCP14#..Y SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 71551-52C20 |
NCP14#..(F,G)..CBU |
1 | ||
| 71551-52C40 |
NCP14#..Y |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-52200 |
NCP14#..Y |
1 | ||
| 71610-52190 |
NCP14#,NSP140..(F,G,V,X)..CBU |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52590 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 71630-52590 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 71630-52590 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 71630-52590 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 71630-52580 |
NCP14#,NSP140..(V,X)..CBU |
1 | ||
| 71630-52590 |
NCP14#,NSP140..(V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 71630-52610 |
NCP14#..(F,G)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 71630-52600 |
NCP14#..(F,G)..CBU |
1 | ||
| 71630-52630 |
NCP14#..Y SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 71630-52620 |
NCP14#..Y |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-B2020A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71759-B2020C0 |
NCP14#..(F,G,Y)..CBU BLACK,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-68020A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71811-68020C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 71769-47020 |
NCP14#,NSP140..CBU |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-68010 |
NCP14#,NSP140..CBU |
2 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-68010 |
NCP14#,NSP140..CBU |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52290A0 |
NCP14#..Y FROMAGE,TRIM0# |
1 | ||
| 71861-52290C0 |
NCP14#..Y BLACK,TRIM4# |
1 | ||
| 71861-68010A0 |
NCP14#..F..CBU FROMAGE,TRIM0# |
1 | ||
| 71861-68010C0 |
NCP14#,NSP140..(F,G,V,X)..CBU BLACK,TRIM4# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 71769-47020 |
NCP14#,NSP140..(F,G,V,X)..CBU |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47040 |
NCP14#,NSP140..CBU |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-68020 |
NCP14#,NSP140..CBU |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-D1010C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71873-D1010C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71874-47040 |
NCP14#,NSP140..CBU |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-47030A2 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71875-47030C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-47030A2 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71876-47030C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52E50E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 71910-52E60C0 |
NCP145..SPADE..F BLACK,TRIM4# |
1 | ||
| 71910-52E60A0 |
NCP14#..F..CBU FROMAGE,TRIM0# |
1 | ||
| 71910-52E70C0 |
NCP14#..Y BLACK,TRIM4# |
1 | ||
| 71910-52E60C0 |
NCP145..SPADE..F BLACK,TRIM40 |
1 | ||
| 71910-52E70A0 |
NCP14#..Y FROMAGE,TRIM0# |
1 | ||
| 71910-52E60C2 |
NCP14#..SPADE..F..CBU BLACK,TRIM44 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71931-42020C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71930-47020C0 |
NCP14#,NSP140..CBU ﾛｯｸ付,BLACK,TRIM4# |
1 | ||
| 71930-47020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ付,FROMAGE,TRIM0# |
1 | ||
| 71930-52030C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71931-42020C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71931-47020C0 |
NCP14#,NSP140..CBU ﾛｯｸ無,BLACK,TRIM4# |
1 | ||
| 71931-47020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ無,FROMAGE,TRIM0# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71931-42020C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71930-47020C0 |
NCP14#,NSP140..CBU ﾛｯｸ付,BLACK,TRIM4# |
1 | ||
| 71930-47020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ付,FROMAGE,TRIM0# |
1 | ||
| 71930-52030C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71931-42020C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71931-47020C0 |
NCP14#,NSP140..CBU ﾛｯｸ無,BLACK,TRIM4# |
1 | ||
| 71931-47020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ無,FROMAGE,TRIM0# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-68020 |
NCP14#,NSP140..CBU |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-68010C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 72494-68010A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 72525-47010A2 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 71877-68010C0 |
NCP14#..(F,G)..CBU BLACK,TRIM4# |
1 | ||
| 71877-68010A0 |
NCP14#..F..CBU FROMAGE,TRIM0# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72810-52180A0 |
NCP14#..F..CBU FROMAGE,TRIM0# |
1 | ||
| 72810-52180C0 |
NCP14#..F..CBU BLACK,TRIM4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-52260 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 73910-52260 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 73910-52260 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 73910-52260 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 73910-52260 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| Common parts | ||||
| 51186-52060 | ||||
| 72265-52030 | ||||
| 72265-52040 | ||||
| 72702-28080 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90201-15015 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 1 OF 3(1207-1507)Y
ｳﾝﾃﾝｾｷ ﾍﾞﾝﾁﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58632E - COVER, SEAT FLOOR BOX | ||||
| 58632-52010A0 |
NCP14#..Y FROMAGE,TRIM0# |
1 | ||
| 58632-52010C0 |
NCP14#..Y BLACK,TRIM4# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-52Q50E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 71071-52S10C0 |
NCP14#..SPADE..F..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM4# |
1 | ||
| 71071-52Q60C0 |
NCP14#..SPADE..F..CBU BLACK,TRIM4# |
1 | ||
| 71071-52Q70A0 |
NCP14#..Y FROMAGE,TRIM0# |
1 | ||
| 71071-52S00E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71071-52Q60A0 |
NCP14#..F..CBU FROMAGE,TRIM0# |
1 | ||
| 71071-52S00E0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71071-52S00E0 |
NCP14#,NSP140..(V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM4# |
1 | ||
| 71071-52S00E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71071-52S10A0 |
NCP14#..F..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,FROMAGE,TRIM0# |
1 | ||
| 71071-52S00E0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71071-52Q70C0 |
NCP14#..Y BLACK,TRIM4# |
1 | ||
| 71071-52Q60C0 |
NCP145..SPADE..F BLACK,TRIM40 |
1 | ||
| 71071-52Q60C1 |
NCP14#..SPADE..F..CBU BLACK,TRIM44 |
1 | ||
| 71071-52S20C0 |
NCP14#..Y SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM4# |
1 | ||
| 71071-52S20A0 |
NCP14#..Y SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,FROMAGE,TRIM0# |
1 | ||
| 71071-52S10C0 |
NCP145..SPADE..F SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM40 |
1 | ||
| 71071-52S10C1 |
NCP14#..SPADE..F..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM44 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-52S80C2 |
NCP14#..SPADE..F..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM4# |
1 | ||
| 71073-52S70C1 |
NCP14#..SPADE..F..CBU BLACK,TRIM4# |
1 | ||
| 71073-52S50E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 71073-52S60E1 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71073-52S80A1 |
NCP14#..F..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,FROMAGE,TRIM0# |
1 | ||
| 71073-52S70A0 |
NCP14#..F..CBU FROMAGE,TRIM0# |
1 | ||
| 71073-52S60E1 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71073-52S60E1 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71073-52S60E1 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71073-52T00C3 |
NCP14#..Y SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM4# |
1 | ||
| 71073-52S60E1 |
NCP14#,NSP140..(V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM4# |
1 | ||
| 71073-52S90C1 |
NCP14#..Y BLACK,TRIM4# |
1 | ||
| 71073-52T00A2 |
NCP14#..Y SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,FROMAGE,TRIM0# |
1 | ||
| 71073-52S90A0 |
NCP14#..Y FROMAGE,TRIM0# |
1 | ||
| 71073-52S70C1 |
NCP145..SPADE..F BLACK,TRIM40 |
1 | ||
| 71073-52S80C3 |
NCP14#..SPADE..F..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM44 |
1 | ||
| 71073-52S70C2 |
NCP14#..SPADE..F..CBU BLACK,TRIM44 |
1 | ||
| 71073-52S80C2 |
NCP145..SPADE..F SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM40 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-52750 |
NCP14#..Y |
1 | ||
| 71511-52740 |
NCP14#,NSP140..(F,G,V,X)..CBU |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-47010A3 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71537-47010C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-47010C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71538-47010A3 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-52C00 |
NCP14#,NSP140..(V,X)..CBU |
1 | ||
| 71551-52C10 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 71551-52C10 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 71551-52C10 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 71551-52C30 |
NCP14#..(F,G)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 71551-52C10 |
NCP14#,NSP140..(V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 71551-52C10 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 71551-52C50 |
NCP14#..Y SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 71551-52C20 |
NCP14#..(F,G)..CBU |
1 | ||
| 71551-52C40 |
NCP14#..Y |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-52200 |
NCP14#..Y |
1 | ||
| 71610-52190 |
NCP14#,NSP140..(F,G,V,X)..CBU |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52590 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 71630-52590 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 71630-52590 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 71630-52590 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 71630-52580 |
NCP14#,NSP140..(V,X)..CBU |
1 | ||
| 71630-52590 |
NCP14#,NSP140..(V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 71630-52610 |
NCP14#..(F,G)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 71630-52600 |
NCP14#..(F,G)..CBU |
1 | ||
| 71630-52630 |
NCP14#..Y SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 71630-52620 |
NCP14#..Y |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-B2020A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71759-B2020C0 |
NCP14#..(F,G,Y)..CBU BLACK,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-68020A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71811-68020C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 71769-47020 |
NCP14#,NSP140..CBU |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-68010 |
NCP14#,NSP140..CBU |
2 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-68010 |
NCP14#,NSP140..CBU |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52290A0 |
NCP14#..Y FROMAGE,TRIM0# |
1 | ||
| 71861-52290C0 |
NCP14#..Y BLACK,TRIM4# |
1 | ||
| 71861-68010A0 |
NCP14#..F..CBU FROMAGE,TRIM0# |
1 | ||
| 71861-68010C0 |
NCP14#,NSP140..(F,G,V,X)..CBU BLACK,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47040 |
NCP14#,NSP140..CBU |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-68020 |
NCP14#,NSP140..CBU |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-D1010C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71873-D1010C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71874-47040 |
NCP14#,NSP140..CBU |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-47030A2 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71875-47030C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-47030A2 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71876-47030C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52E50E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 71910-52E60C0 |
NCP145..SPADE..F BLACK,TRIM4# |
1 | ||
| 71910-52E60A0 |
NCP14#..F..CBU FROMAGE,TRIM0# |
1 | ||
| 71910-52E70C0 |
NCP14#..Y BLACK,TRIM4# |
1 | ||
| 71910-52E60C0 |
NCP145..SPADE..F BLACK,TRIM40 |
1 | ||
| 71910-52E70A0 |
NCP14#..Y FROMAGE,TRIM0# |
1 | ||
| 71910-52E60C2 |
NCP14#..SPADE..F..CBU BLACK,TRIM44 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71931-42020C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71930-47020C0 |
NCP14#,NSP140..CBU ﾛｯｸ付,BLACK,TRIM4# |
1 | ||
| 71930-47020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ付,FROMAGE,TRIM0# |
1 | ||
| 71930-52030C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71931-42020C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71931-47020C0 |
NCP14#,NSP140..CBU ﾛｯｸ無,BLACK,TRIM4# |
1 | ||
| 71931-47020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ無,FROMAGE,TRIM0# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71931-42020C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71930-47020C0 |
NCP14#,NSP140..CBU ﾛｯｸ付,BLACK,TRIM4# |
1 | ||
| 71930-47020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ付,FROMAGE,TRIM0# |
1 | ||
| 71930-52030C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71931-42020C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71931-47020C0 |
NCP14#,NSP140..CBU ﾛｯｸ無,BLACK,TRIM4# |
1 | ||
| 71931-47020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ無,FROMAGE,TRIM0# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-68020 |
NCP14#,NSP140..CBU |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-68010C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 72494-68010A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 72525-47010A2 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 72806C - HOLDER SUB-ASSY, FRONT SEAT CENTER ARMREST CUP | ||||
| 72806-52020A0 |
NCP14#..Y FROMAGE,TRIM0# |
1 | ||
| 72806-52020C0 |
NCP14#..Y BLACK,TRIM4# |
1 | ||
| 72813A - BOX, FRONT SEAT CENTER ARMREST | ||||
| 72813-52010A0 |
NCP14#..Y FROMAGE,TRIM0# |
1 | ||
| 72813-52010C0 |
NCP14#..Y BLACK,TRIM4# |
1 | ||
| 72823 - HOLDER, FR SEAT ARMREST CUP | ||||
| 72823-52010A0 |
NCP14#..Y FROMAGE,TRIM0# |
1 | ||
| 72823-52010C0 |
NCP14#..Y BLACK,TRIM4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-52260 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 73910-52260 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 73910-52260 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 73910-52260 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 73910-52260 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| Common parts | ||||
| 51186-52060 | ||||
| 72265-52030 | ||||
| 72265-52040 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 2 OF 3(1207-1507)
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-52R90E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71072-52Q10A0 |
NCP14#..F..CBU FROMAGE,TRIM0# |
1 | ||
| 71072-52Q00E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 71072-52Q10C0 |
NCP14#..SPADE..F..CBU BLACK,TRIM4# |
1 | ||
| 71072-52Q20C0 |
NCP14#..Y BLACK,TRIM4# |
1 | ||
| 71072-52R90E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 71072-52Q20A0 |
NCP14#..Y FROMAGE,TRIM0# |
1 | ||
| 71072-52Q10C0 |
NCP14#..SPADE..F..CBU BLACK,TRIM40 |
1 | ||
| 71072-52Q10C1 |
NCP14#..SPADE..F..CBU BLACK,TRIM44 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-52M50C0 |
NCP14#..SPADE..F..CBU BLACK,TRIM4# |
1 | ||
| 71074-52M60C1 |
NCP14#..SPADE..F..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM4# |
1 | ||
| 71074-52M30E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 71074-52M40E1 |
NCP14#,NSP140..(V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM4# |
1 | ||
| 71074-52M70C0 |
NCP14#..Y BLACK,TRIM4# |
1 | ||
| 71074-52M60A1 |
NCP14#..F..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,FROMAGE,TRIM0# |
1 | ||
| 71074-52M70A0 |
NCP14#..Y FROMAGE,TRIM0# |
1 | ||
| 71074-52M80C1 |
NCP14#..Y SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM4# |
1 | ||
| 71074-52N50E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 71074-52M50C1 |
NCP14#..SPADE..F..CBU BLACK,TRIM44 |
1 | ||
| 71074-52N50E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71074-52M60C1 |
NCP14#..SPADE..F..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM40 |
1 | ||
| 71074-52M50A0 |
NCP14#..F..CBU FROMAGE,TRIM0# |
1 | ||
| 71074-52M80A1 |
NCP14#..Y SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,FROMAGE,TRIM0# |
1 | ||
| 71074-52M60C2 |
NCP14#..SPADE..F..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM44 |
1 | ||
| 71074-52M50C0 |
NCP14#..SPADE..F..CBU BLACK,TRIM40 |
1 | ||
| 71109B - LEG SUB-ASSY, FRONT SEAT, LH | ||||
| 71109-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-52870 |
NCP14#,NSP140..CBU |
1 | ||
| 71120-52880 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 71120-D1280 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 71120-52871 |
NCP14#,NSP140..CBU |
1 | ||
| 71120-52881 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 71120-D1280 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 71139B - COVER, FRONT SEAT LEG, NO.2 | ||||
| 71139-52030A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71139-52030C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71149E - COVER, FRONT SEAT LEG, INNER (FOR LH SEAT) | ||||
| 71149-52020C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71149-52020A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71157B - WIRE, FRONT SEAT BACK,UPR NO.1 | ||||
| 71157-52080 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
2 | ||
| 71157B - WIRE, FRONT SEAT BACK,UPR NO.1 | ||||
| 71157-52080 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
2 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-52170 |
NCP14#,NSP140..CBU |
1 | ||
| 78735-D1050 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 78735-D1050 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-D1170 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 71552-52A40 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 71551-D1170 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 71552-52A30 |
NCP14#,NSP140..CBU |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-52030A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71706-52031C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71706-52030C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71706-52031A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71771A - BOARD, FRONT SEAT BACK | ||||
| 71771-52020A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71771-52021A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71771-52020C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71771-52021C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-D1120C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71812-52390A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71812-52390C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71812-D1120C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-D1080C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71811-52190C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71862-D1080C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71811-52190A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52310A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71874-52310C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52080A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71875-52080C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71875-D1020C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71875-D1020C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52080C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71876-D1030C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71876-D1030C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71876-52080A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71920-52010E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 71920-52030A0 |
NCP14#..Y FROMAGE,TRIM0# |
1 | ||
| 71920-52020A0 |
NCP14#..F..CBU FROMAGE,TRIM0# |
1 | ||
| 71920-52020C0 |
NCP14#..SPADE..F..CBU BLACK,TRIM40 |
1 | ||
| 71920-52030C0 |
NCP14#..Y BLACK,TRIM4# |
1 | ||
| 71920-52020C2 |
NCP14#..SPADE..F..CBU BLACK,TRIM44 |
1 | ||
| 71920-52020C0 |
NCP14#..SPADE..F..CBU BLACK,TRIM4# |
1 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-52030C0 |
NCP14#,NSP140..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM4# |
1 | ||
| 71931-42020A8 |
NCP14#..(F,Y)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),FROMAGE,TRIM0# |
1 | ||
| 71930-52030A7 |
NCP14#..(F,Y)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),FROMAGE,TRIM0# |
1 | ||
| 71931-42020C0 |
NCP14#,NSP140..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM4# |
1 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-52030C0 |
NCP14#,NSP140..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM4# |
1 | ||
| 71931-42020A8 |
NCP14#..(F,Y)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),FROMAGE,TRIM0# |
1 | ||
| 71930-52030A7 |
NCP14#..(F,Y)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),FROMAGE,TRIM0# |
1 | ||
| 71931-42020C0 |
NCP14#,NSP140..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM4# |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 72216A - LEVER, SEAT TRACK HANDLE CONTROL, LH | ||||
| 72216-52010A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0#,長さ=24.9 |
1 | ||
| 72216-52020A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0#,長さ=20 |
1 | ||
| 72216-52010C0 |
NCP14#,NSP140..CBU BLACK,TRIM4#,長さ=24.9 |
1 | ||
| 72216-52020C0 |
NCP14#,NSP140..CBU BLACK,TRIM4#,長さ=20 |
1 | ||
| 72506 - ARM SUB-ASSY, RECLINING ADJUSTER, CENTER LH | ||||
| 72506-52070 |
NCP14#,NSP140..CBU |
1 | ||
| 72507E - HANDLE SUB-ASSY, RECLINING RELEASE, NO.1 | ||||
| 72507-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-44050A0 |
NCP14#..F,Y FROMAGE,TRIM0# |
1 | ||
| 72526-52050A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 72526-44050C0 |
NCP14#,NSP140 BLACK,TRIM4# |
1 | ||
| 72526-52050C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 72557 - SPACER, RECLINING ADJUSTER | ||||
| 72557-46010 |
NCP14#,NSP140..CBU |
2 | ||
| 72557 - SPACER, RECLINING ADJUSTER | ||||
| 72557-46010 |
NCP14#,NSP140..CBU |
2 | ||
| 72558B - STOPPER, RECLINING (FRONT SEAT) | ||||
| 72558-44020 |
NCP14#,NSP140..CBU |
1 | ||
| 72558C - STOPPER, RECLINING, NO.1 | ||||
| 72558-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 72578 - PIN, FRONT SEAT BACK STOPPER | ||||
| 72578-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 72582 - BAR, RECLINING TORSION | ||||
| 72582-52050 |
NCP14#,NSP140..CBU NO.1 |
1 | ||
| 72582-52060 |
NCP14#,NSP140..CBU NO.2 |
1 | ||
| 72582 - BAR, RECLINING TORSION | ||||
| 72582-52050 |
NCP14#,NSP140..CBU NO.1 |
1 | ||
| 72582-52060 |
NCP14#,NSP140..CBU NO.2 |
1 | ||
| 72588 - BRACKET, FRONT SEAT BACK BOARD | ||||
| 72588-52020 |
NCP14#,NSP140..CBU 長さ=24.9 |
1 | ||
| 72588-52030 |
NCP14#,NSP140..CBU 長さ=20 |
1 | ||
| 72665D - COVER, FRONT SEAT BACK LOCK | ||||
| 72667-52030A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 72667-52030C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 72966C - PLATE, REAR SEAT TURN LOCK, NO.1 LH | ||||
| 72966-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 72993 - COVER, FRONT SEAT BACK | ||||
| 72993-46020A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 72993-46020C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 72993A - COVER, FRONT SEAT BACK | ||||
| 72993-46030A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 72993-46030C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 72994 - COVER, FRONT SEAT BACK | ||||
| 72994-46020C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 72994-46020A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 72994A - COVER, FRONT SEAT BACK | ||||
| 72994-46030A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 72994-46030C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-52240 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 78890A - CABLE ASSY, SUB-SEAT LOCK CONTROL | ||||
| 78890-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-52090 |
NCP14#,NSP140..CBU |
1 | ||
| 82711H - CLAMP, WIRING HARNESS | ||||
| 82711-2B660 |
NCP14#,NSP140..CBU |
1 | ||
| 82711-2B660 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
2 | ||
| Common parts | ||||
| 51186-52030 | ||||
| 51186-52050 | ||||
| 71441-52030 | ||||
| 72725-52010 | ||||
| 90084-16010 | ||||
| 90109-08310 | ||||
| 90151-40005 | ||||
| 90159-60523 | ||||
| 90167-40044 | ||||
| 90463-13003 | ||||
| 90523-04003 | ||||
| 91511-80820 | ||||
| 91512-B1020 | ||||
| 94150-10801 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
ILLUST NO. 1 OF 7(1207- )NCP14#,NSP140..F,X ; (1507- )F,X
ｼﾞｮｼｭｾｷ ﾘﾌﾄｱｯﾌﾟ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55359F - CUSHION, WELCAB SEAT | ||||
| 55359-12110 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| 55359-12110 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| 55359F - CUSHION, WELCAB SEAT | ||||
| 55359-12110 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| 55359-12110 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| 57457F - BRACKET, FRONT SEAT | ||||
| 57457-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 57457-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-52R90E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71072-52Q10A0 |
NCP14#..F..CBU FROMAGE,TRIM0# |
1 | ||
| 71072-52Q00E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 71072-52Q10C0 |
NCP14#..SPADE..F..CBU BLACK,TRIM4# |
1 | ||
| 71072-52Q20C0 |
NCP14#..Y BLACK,TRIM4# |
1 | ||
| 71072-52R90E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 71072-52Q20A0 |
NCP14#..Y FROMAGE,TRIM0# |
1 | ||
| 71072-52Q10C0 |
NCP14#..SPADE..F..CBU BLACK,TRIM40 |
1 | ||
| 71072-52Q10C1 |
NCP14#..SPADE..F..CBU BLACK,TRIM44 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-52M50C0 |
NCP14#..SPADE..F..CBU BLACK,TRIM4# |
1 | ||
| 71074-52M60C1 |
NCP14#..SPADE..F..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM4# |
1 | ||
| 71074-52M30E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 71074-52M40E1 |
NCP14#,NSP140..(V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM4# |
1 | ||
| 71074-52M70C0 |
NCP14#..Y BLACK,TRIM4# |
1 | ||
| 71074-52M60A1 |
NCP14#..F..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,FROMAGE,TRIM0# |
1 | ||
| 71074-52M70A0 |
NCP14#..Y FROMAGE,TRIM0# |
1 | ||
| 71074-52M80C1 |
NCP14#..Y SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM4# |
1 | ||
| 71074-52N50E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 71074-52M50C1 |
NCP14#..SPADE..F..CBU BLACK,TRIM44 |
1 | ||
| 71074-52N50E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 71074-52M60C1 |
NCP14#..SPADE..F..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM40 |
1 | ||
| 71074-52M50A0 |
NCP14#..F..CBU FROMAGE,TRIM0# |
1 | ||
| 71074-52M80A1 |
NCP14#..Y SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,FROMAGE,TRIM0# |
1 | ||
| 71074-52M60C2 |
NCP14#..SPADE..F..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM44 |
1 | ||
| 71074-52M50C0 |
NCP14#..SPADE..F..CBU BLACK,TRIM40 |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-52870 |
NCP14#,NSP140..CBU |
1 | ||
| 71120-52880 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 71120-D1280 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 71120-52871 |
NCP14#,NSP140..CBU |
1 | ||
| 71120-52881 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 71120-D1280 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 71138 - SPACER, FRONT SEAT SET | ||||
| 35469-D1030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| 35469-D1030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| 71138 - SPACER, FRONT SEAT SET | ||||
| 35469-D1030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| 35469-D1030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| 71315 - PLATE, FRONT SEAT HINGE | ||||
| 71315-D1050 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 71315-D1050 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-52170 |
NCP14#,NSP140..CBU |
1 | ||
| 78735-D1050 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 78735-D1050 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| 71537-26010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-D1170 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 71552-52A40 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 71551-D1170 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 71552-52A30 |
NCP14#,NSP140..CBU |
1 | ||
| 71708D - STRAP SUB-ASSY, SEAT COVER, LH | ||||
| 71708-28010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| 71708-28010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| 71769C - CLIP, FRONT SEAT CUSHION COVER | ||||
| 71769-60010B6 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,DK.GRAY |
2 | ||
| 71769-60010B6 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,DK.GRAY |
2 | ||
| 71769C - CLIP, FRONT SEAT CUSHION COVER | ||||
| 71769-60010B6 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,DK.GRAY |
2 | ||
| 71769-60010B6 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,DK.GRAY |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-D1120C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71812-52390A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71812-52390C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71812-D1120C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-D1080C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71811-52190C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71862-D1080C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71811-52190A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-D1010C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71873-D1010C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71874-47040 |
NCP14#,NSP140..CBU |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52080A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71875-52080C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71875-D1020C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71875-D1020C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 71875-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52080C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71876-D1030C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71876-D1030C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71876-52080A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-D1020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 71876-D1020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 71877E - COVER, SEAT ARMREST HOLE, LH | ||||
| 71877-D1010C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
2 | ||
| 71877-D1010C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
2 | ||
| 71877E - COVER, SEAT ARMREST HOLE, LH | ||||
| 71877-D1010C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
2 | ||
| 71877-D1010C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
2 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71920-52010E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 71920-52030A0 |
NCP14#..Y FROMAGE,TRIM0# |
1 | ||
| 71920-52020A0 |
NCP14#..F..CBU FROMAGE,TRIM0# |
1 | ||
| 71920-52020C0 |
NCP14#..SPADE..F..CBU BLACK,TRIM40 |
1 | ||
| 71920-52030C0 |
NCP14#..Y BLACK,TRIM4# |
1 | ||
| 71920-52020C2 |
NCP14#..SPADE..F..CBU BLACK,TRIM44 |
1 | ||
| 71920-52020C0 |
NCP14#..SPADE..F..CBU BLACK,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020C0 |
NCP14#,NSP140..CBU ﾛｯｸ無,BLACK,TRIM4# |
1 | ||
| 71930-52030C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71931-42020C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71930-47020C0 |
NCP14#,NSP140..CBU ﾛｯｸ付,BLACK,TRIM4# |
1 | ||
| 71930-47020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ付,FROMAGE,TRIM0# |
1 | ||
| 71930-52030C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71931-42020C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71931-47020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ無,FROMAGE,TRIM0# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020C0 |
NCP14#,NSP140..CBU ﾛｯｸ無,BLACK,TRIM4# |
1 | ||
| 71930-52030C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71931-42020C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71930-47020C0 |
NCP14#,NSP140..CBU ﾛｯｸ付,BLACK,TRIM4# |
1 | ||
| 71930-47020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ付,FROMAGE,TRIM0# |
1 | ||
| 71930-52030C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71931-42020C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71931-47020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ無,FROMAGE,TRIM0# |
1 | ||
| 72880A - ARMREST ASSY, FRONT SEAT, INNER RH | ||||
| 72880-D1E30E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 72880-D1E30E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72890-D1E30E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 72890-D1E30E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| C7111 - BRACKET, SEAT HOLDER, FRONT | ||||
| C7111-D1310 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7111-D1310 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| Common parts | ||||
| 78899-D1010 | ||||
| 90109-06322 | ||||
| 90109-10164 | ||||
| 90119-08C39 | ||||
| 90119-10918 | ||||
| 90201-15023 | ||||
| 90206-08038 | ||||
| 90467-10203 | ||||
| 93530-54010 | ||||
| 94542-01400 | ||||
| C2815-D1020 | ||||
| C6565-18010 | ||||
| C9916-40001 | ||||
| C9956-14004 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7455 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 4 OF 7(1207- )NCP14#,NSP140..F,X ; (1507- )F,X
ｼﾞｮｼｭｾｷ ﾘﾌﾄｱｯﾌﾟ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85820Z - MOTOR ASSY, POWER SEAT | ||||
| 85720-D1020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 85720-D1020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7159 - CUSHION, WELCAB SEAT LEG STOPPER | ||||
| C7159-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
8 | ||
| C7159-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
8 | ||
| C7159 - CUSHION, WELCAB SEAT LEG STOPPER | ||||
| C7159-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
8 | ||
| C7159-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
8 | ||
| C7159 - CUSHION, WELCAB SEAT LEG STOPPER | ||||
| C7159-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
8 | ||
| C7159-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
8 | ||
| C7159 - CUSHION, WELCAB SEAT LEG STOPPER | ||||
| C7159-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
8 | ||
| C7159-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
8 | ||
| C7159 - CUSHION, WELCAB SEAT LEG STOPPER | ||||
| C7159-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
8 | ||
| C7159-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
8 | ||
| C7159 - CUSHION, WELCAB SEAT LEG STOPPER | ||||
| C7159-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
8 | ||
| C7159-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
8 | ||
| C7159 - CUSHION, WELCAB SEAT LEG STOPPER | ||||
| C7159-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
8 | ||
| C7159-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
8 | ||
| C7159 - CUSHION, WELCAB SEAT LEG STOPPER | ||||
| C7159-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
8 | ||
| C7159-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
8 | ||
| C7192 - PLATE, SEAT HOLDER STOPPER, NO.1 | ||||
| C7192-D1030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7192-D1030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7192A - PLATE, SEAT HOLDER STOPPER, NO.2 | ||||
| C7192-D1110 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7192-D1110 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7230 - TRACK ASSY, WELCAB SEAT, NO.1 | ||||
| C7230-D1130 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7230-D1130 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7230A - TRACK ASSY, WELCAB SEAT, NO.2 | ||||
| C7230-D1140 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7230-D1140 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7401 - GUIDE SUB-ASSY, WELCAB SEAT, FRONT | ||||
| C7401-D1130 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7401-D1130 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7402 - GUIDE SUB-ASSY, WELCAB SEAT, REAR | ||||
| C7402-D1160 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7402-D1160 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7452 - ARM, WELCAB SEAT LINK, NO.2 | ||||
| C7452-D1150 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7452-D1150 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7453 - ARM, WELCAB SEAT LINK, NO.3 | ||||
| C7452-D1170 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7452-D1170 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7691 - CUSHION, SEAT FLAT, NO.1 RH | ||||
| C7691-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7691-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7996 - SPACER, TURN SEAT, NO.1 | ||||
| C7996-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
8 | ||
| C7996-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
8 | ||
| C7996 - SPACER, TURN SEAT, NO.1 | ||||
| C7996-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
8 | ||
| C7996-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
8 | ||
| C7996 - SPACER, TURN SEAT, NO.1 | ||||
| C7996-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
8 | ||
| C7996-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
8 | ||
| C7996 - SPACER, TURN SEAT, NO.1 | ||||
| C7996-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
8 | ||
| C7996-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
8 | ||
| C7996 - SPACER, TURN SEAT, NO.1 | ||||
| C7996-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
8 | ||
| C7996-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
8 | ||
| C7996 - SPACER, TURN SEAT, NO.1 | ||||
| C7996-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
8 | ||
| C7996-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
8 | ||
| C7996 - SPACER, TURN SEAT, NO.1 | ||||
| C7996-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
8 | ||
| C7996-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
8 | ||
| C7996 - SPACER, TURN SEAT, NO.1 | ||||
| C7996-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
8 | ||
| C7996-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
8 | ||
| C7996A - SPACER, TURN SEAT, NO.2 | ||||
| C7996-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
16 | ||
| C7996-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
16 | ||
| C7996A - SPACER, TURN SEAT, NO.2 | ||||
| C7996-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
16 | ||
| C7996-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
16 | ||
| C7996A - SPACER, TURN SEAT, NO.2 | ||||
| C7996-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
16 | ||
| C7996-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
16 | ||
| C7996A - SPACER, TURN SEAT, NO.2 | ||||
| C7996-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
16 | ||
| C7996-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
16 | ||
| C7996A - SPACER, TURN SEAT, NO.2 | ||||
| C7996-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
16 | ||
| C7996-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
16 | ||
| C7996A - SPACER, TURN SEAT, NO.2 | ||||
| C7996-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
16 | ||
| C7996-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
16 | ||
| C7996A - SPACER, TURN SEAT, NO.2 | ||||
| C7996-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
16 | ||
| C7996-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
16 | ||
| C7996A - SPACER, TURN SEAT, NO.2 | ||||
| C7996-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
16 | ||
| C7996-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
16 | ||
| C7996A - SPACER, TURN SEAT, NO.2 | ||||
| C7996-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
16 | ||
| C7996-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
16 | ||
| C7996A - SPACER, TURN SEAT, NO.2 | ||||
| C7996-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
16 | ||
| C7996-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
16 | ||
| C8291 - PROTECTOR, TECS WIRING HARNESS | ||||
| C8291-D1290 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,NO.3 |
1 | ||
| C8291-D1290 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,NO.3 |
1 | ||
| C8291-D1280 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,NO.2 |
1 | ||
| C8291-D1291 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,NO.3 |
1 | ||
| C8291-D1270 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,NO.1 |
1 | ||
| C8291-D1291 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,NO.3 |
1 | ||
| C8291-D1270 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,NO.1 |
1 | ||
| C8291-D1280 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,NO.2 |
1 | ||
| C8291 - PROTECTOR, TECS WIRING HARNESS | ||||
| C8291-D1290 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,NO.3 |
1 | ||
| C8291-D1290 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,NO.3 |
1 | ||
| C8291-D1280 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,NO.2 |
1 | ||
| C8291-D1291 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,NO.3 |
1 | ||
| C8291-D1270 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,NO.1 |
1 | ||
| C8291-D1291 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,NO.3 |
1 | ||
| C8291-D1270 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,NO.1 |
1 | ||
| C8291-D1280 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,NO.2 |
1 | ||
| C8417B - SWITCH, LIMIT, NO.3 | ||||
| C8417-D1140 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,車外ｽﾗｲﾄﾞ用 |
1 | ||
| C8417-D1140 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,車外ｽﾗｲﾄﾞ用 |
1 | ||
| C8419B - BRACKET, LIMIT SWITCH | ||||
| C8419-D1640 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C8419-D1640 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9642 - BRACKET, POWER LIFT MOTOR, NO.2 | ||||
| C9642-D1040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C9642-D1040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| Common parts | ||||
| 33546-20020 | ||||
| 33546-D1020 | ||||
| 82818-D1060 | ||||
| 90148-60055 | ||||
| 90157-60014 | ||||
| 90168-50040 | ||||
| 91551-80812 | ||||
| 91551-F0818 | ||||
| 93219-13005 | ||||
| 93219-13010 | ||||
| 93249-55010 | ||||
| 93313-13012 | ||||
| C3165-22010 | ||||
| C7451-D1141 | ||||
| C9229-D1050 | ||||
ILLUST NO. 5 OF 7(1207- )NCP14#,NSP140..F,X ; (1507- )F,X
ｼﾞｮｼｭｾｷ ﾘﾌﾄｱｯﾌﾟ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-28060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| 71537-28060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| 72275C - STOPPER, FRONT SEAT TRACK SLIDE | ||||
| 72275-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 72275-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 72275-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 72589A - CABLE, RECLINING REMOTE CONTROL | ||||
| 72589-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 72589-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C4109 - HOUSING SUB-ASSY, SLIDE DOOR LOCK, REAR | ||||
| C4109-D1020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C4109-D1020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7103 - PANEL SUB-ASSY, WELCAB SEAT LEG, NO.1 | ||||
| C7103-D1D60 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7103-D1D60 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7104 - PLATE SUB-ASSY, SEAT TURN | ||||
| C7104-D1260 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7104-D1260 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7158 - COVER, WELCAB SEAT LEG | ||||
| C7158-D1060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7158-D1060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7158A - CLIP, WELCAB SEAT LEG COVER | ||||
| 90467-05161C0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK |
3 | ||
| 90467-05161C0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK |
3 | ||
| C7160 - PANEL ASSY, SLIDE TABLE | ||||
| C7160-D1300 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7160-D1300 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7160A - CLIP, SLIDE TABLE PANEL | ||||
| 90467-05162C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK |
1 | ||
| 90467-05162C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK |
1 | ||
| C7192B - PLATE, SEAT HOLDER STOPPER, NO.3 | ||||
| C7192-D1270 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7192-D1270 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7252 - BRACKET, WELCAB SEAT TRACK STOPPER, NO.2 | ||||
| C7252-D1030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7252-D1030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7409 - BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.1 | ||||
| C7409-D1150 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7409-D1150 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7481 - ROD, WELCAB SEAT, NO.1 | ||||
| C7408-D1251 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7408-D1251 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7487 - PLATE, WELCAB SEAT ROD SUPPORT, NO.1 | ||||
| C7488-D1060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7488-D1060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C8299 - BRACKET, WELCAB SEAT HARNESS CONNECTOR | ||||
| C8299-D1580 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,NO.1 |
1 | ||
| C8299-D1580 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,NO.1 |
1 | ||
| C8299-D1630 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,NO.2 |
1 | ||
| C8299-D1630 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,NO.2 |
1 | ||
| C8340 - COMPUTER ASSY, WELCAB DEVICE CONTROL | ||||
| C8340-52040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C8340-52040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C8417 - SWITCH, LIMIT, NO.1 | ||||
| C8417-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,回転用 |
1 | ||
| C8417-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,回転用 |
1 | ||
| C8417C - SWITCH, LIMIT, NO.4 | ||||
| C8417-D1150 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,前後ｽﾗｲﾄﾞﾖｳ |
1 | ||
| C8417-D1150 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,前後ｽﾗｲﾄﾞﾖｳ |
1 | ||
| C8419D - BRACKET, LIMIT SWITCH, NO.1 | ||||
| C8419-D1650 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C8419-D1650 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C9604 - BRACKET SUB-ASSY, POWER LIFT MOTOR | ||||
| C9604-D1060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9604-D1060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C9610C - MOTOR ASSY, LIFT UP SEAT TURN | ||||
| 85820-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 85820-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C9610D - MOTOR ASSY, LIFT UP SEAT SLIDE | ||||
| 85820-50320 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 85820-50320 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9652A - CAP, POWER LIFT CYLINDER | ||||
| C9652-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C9652-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9654 - COLLAR, POWER LIFT CYLINDER | ||||
| C9654-D1040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C9654-D1040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| Common parts | ||||
| 62786-D1010 | ||||
| 82711-1A750 | ||||
| 82825-D1010 | ||||
| 88630-D1020 | ||||
| 90105-08145 | ||||
| 90105-10048 | ||||
| 90109-08067 | ||||
| 90119-06122 | ||||
| 90168-50040 | ||||
| 90179-12071 | ||||
| 90201-08466 | ||||
| 90206-12035 | ||||
| 90333-30002 | ||||
| 90541-06047 | ||||
| 91551-80608 | ||||
| 91551-80812 | ||||
| 91552-81025 | ||||
| 91671-80608 | ||||
| 93269-63016 | ||||
| 93313-13012 | ||||
| C9642-D1051 | ||||
| C9910-10010 | ||||
| C9914-40001 | ||||
| C9915-60011 | ||||
| C9916-05003 | ||||
| C9917-08008 | ||||
| C9920-12005 | ||||
ILLUST NO. 6 OF 7(1207- )NCP14#,NSP140..F,X ; (1507- )F,X
ｼﾞｮｼｭｾｷ ﾘﾌﾄｱｯﾌﾟ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52080E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.1 |
1 | ||
| 72129-52080E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.1 |
1 | ||
| 72129-D1060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 72129-52130E0 |
NCP145..F,Y PLUM,TRIM0#,4# |
1 | ||
| 72129-52090E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.2 |
1 | ||
| 72129-52090E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.2 |
1 | ||
| 72129-52130E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 72129-52130E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 72129-52130E0 |
NCP145..(G,X)..CBU PLUM,TRIM4# |
1 | ||
| 72129-52091E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.2 |
1 | ||
| 72129-D1060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 72129-52091E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.2 |
1 | ||
| 72129-52130E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 72129-52081E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.1 |
1 | ||
| 72129-52130E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 72129-52081E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.1 |
1 | ||
| 72129E - CLIP(FOR SEAT TRACK LOWER RAIL PROTECTOR) | ||||
| 90467-05162C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK |
2 | ||
| 90467-05162C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK |
2 | ||
| C3588 - BRACKET, SIDE RAIL, NO.2 LH | ||||
| C3588-D1020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C3588-D1020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7015 - PANEL SUB-ASSY, TURN TABLE | ||||
| C7015-D1241 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7015-D1241 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7015-D1242 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7015-D1242 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7137 - PLATE, FRONT SEAT TURN | ||||
| C7137-D1180 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| C7137-D1180 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| C7137 - PLATE, FRONT SEAT TURN | ||||
| C7137-D1180 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| C7137-D1180 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| C7137A - PLATE, FRONT SEAT TURN | ||||
| C7137-D1190 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7137-D1190 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7139 - BRACKET, HOOK | ||||
| C7139-D1290 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7139-D1290 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7159A - CUSHION, WELCAB SEAT LEG STOPPER, NO.1 | ||||
| C7159-D1250 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| C7159-D1250 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| C7159A - CUSHION, WELCAB SEAT LEG STOPPER, NO.1 | ||||
| C7159-D1250 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| C7159-D1250 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| C7192C - PLATE, SEAT HOLDER STOPPER, NO.4 | ||||
| C7192-D1280 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7192-D1280 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7196 - COVER, TURN TABLE, NO.1 | ||||
| C7196-D1320 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7196-D1320 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7230B - TRACK ASSY, WELCAB SEAT, NO.3 | ||||
| C7230-D1200 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| C7230-D1200 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| C7230B - TRACK ASSY, WELCAB SEAT, NO.3 | ||||
| C7230-D1200 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| C7230-D1200 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| C7417 - PLATE, WELCAB SEAT ARM GUIDE, FRONT | ||||
| C7417-D1170 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| C7417-D1170 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| C7417 - PLATE, WELCAB SEAT ARM GUIDE, FRONT | ||||
| C7417-D1170 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| C7417-D1170 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| C7481A - ROD, WELCAB SEAT, NO.2 | ||||
| C7408-D1170 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7408-D1170 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7488 - PLATE, WELCAB SEAT ROD SUPPORT, NO.2 | ||||
| C7488-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7488-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C8291 - PROTECTOR, TECS WIRING HARNESS | ||||
| C8291-D1290 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,NO.3 |
1 | ||
| C8291-D1290 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,NO.3 |
1 | ||
| C8291-D1280 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,NO.2 |
1 | ||
| C8291-D1291 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,NO.3 |
1 | ||
| C8291-D1270 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,NO.1 |
1 | ||
| C8291-D1291 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,NO.3 |
1 | ||
| C8291-D1270 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,NO.1 |
1 | ||
| C8291-D1280 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,NO.2 |
1 | ||
| C8417A - SWITCH, LIMIT, NO.2 | ||||
| C8417-D1130 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,ｼｰﾄ昇降用 |
1 | ||
| C8417-D1130 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,ｼｰﾄ昇降用 |
1 | ||
| C8419A - BRACKET, LIMIT SWITCH | ||||
| C8419-D1630 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C8419-D1630 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C9025 - PIN SUB-ASSY, LIFT ARM LINK | ||||
| C9025-D1040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C9025-D1040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9535 - PULLEY, POWER LIFT | ||||
| C9535-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| C9535-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| C9535 - PULLEY, POWER LIFT | ||||
| C9535-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| C9535-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| C9589 - SPRING, PLATFORM LOCK HANDLE | ||||
| C9589-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C9589-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9610 - MOTOR ASSY, POWER LIFT | ||||
| C9610-D1181 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C9610-D1181 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9641 - BRACKET, POWER LIFT MOTOR, NO.1 | ||||
| C9641-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C9641-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9641A - BRACKET, POWER LIFT MOTOR, NO.1 | ||||
| C9641-D1090 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C9641-D1090 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9654A - COLLAR, POWER LIFT CYLINDER | ||||
| C9654-58040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C9654-58040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9658 - PLATE, POWER LIFT CYLINDER ROD | ||||
| C9658-22070 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| C9658-22070 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| C9658 - PLATE, POWER LIFT CYLINDER ROD | ||||
| C9658-22070 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| C9658-22070 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| C9938 - BUSH | ||||
| C9938-20019 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C9938-20019 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| Common parts | ||||
| 90105-10048 | ||||
| 90109-08067 | ||||
| 90119-08520 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90201-10092 | ||||
| 90480-13012 | ||||
| 91551-80812 | ||||
| 91551-F0818 | ||||
| 93240-A8010 | ||||
| 93249-55010 | ||||
| 93260-56008 | ||||
| 93313-13012 | ||||
| 94130-61000 | ||||
| 94185-61000 | ||||
| C7250-D1040 | ||||
| C9911-06010 | ||||
ILLUST NO. 7 OF 7(1207- )NCP14#,NSP140..F,X ; (1507- )F,X
ｼﾞｮｼｭｾｷ ﾘﾌﾄｱｯﾌﾟ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58512K - CARPET, FLOOR, NO.2 | ||||
| 58512-52030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 58512-52030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 58543F - CARPET, STEP SIDE, RH | ||||
| 58543-D1010B0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,GRAY,TRIM4# |
1 | ||
| 58543-D1010B0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,GRAY,TRIM4# |
1 | ||
| 58544F - CARPET, STEP SIDE, LH | ||||
| 58544-D1010B0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,GRAY,TRIM4# |
1 | ||
| 58544-D1010B0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,GRAY,TRIM4# |
1 | ||
| 71139G - COVER, FRONT SEAT LEG | ||||
| 71139-D1100C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71139-D1100C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71148A - COVER, FR SEAT LEG, OUTER | ||||
| 71148-52030C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71148-52030C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71149A - COVER, FRONT SEAT LEG, LH | ||||
| 71149-52040C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71149-52040C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 71149F - COVER, FRONT SEAT LEG, INNER | ||||
| 71149-D1210C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 71149-D1210C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-52240 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 72120-52200 |
NCP145..CBU |
1 | ||
| 72120-52240 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 72120-52240 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 72120-52240 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式) |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-52360 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 72140-52360 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 72140-52310 |
NCP145..CBU |
1 | ||
| 72140-52360 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式) |
1 | ||
| 72140-52360 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 72585 - BRACKET, SEAT BELT HANGER, RH | ||||
| 72585-52010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 72585-52010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 79076D - CLIP, SEAT LEG COVER | ||||
| 90467-05161C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
14 | ||
| 90467-05161C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
14 | ||
| 79076D - CLIP, SEAT LEG COVER | ||||
| 90467-05161C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
14 | ||
| 90467-05161C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
14 | ||
| 79076D - CLIP, SEAT LEG COVER | ||||
| 90467-05161C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
14 | ||
| 90467-05161C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
14 | ||
| 79076D - CLIP, SEAT LEG COVER | ||||
| 90467-05161C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
14 | ||
| 90467-05161C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
14 | ||
| 79076D - CLIP, SEAT LEG COVER | ||||
| 90467-05161C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
14 | ||
| 90467-05161C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
14 | ||
| 79076D - CLIP, SEAT LEG COVER | ||||
| 90467-05161C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
14 | ||
| 90467-05161C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
14 | ||
| 79076E - CLIP, SEAT LEG COVER | ||||
| 90467-07055C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
7 | ||
| 90467-07055C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
7 | ||
| 79076E - CLIP, SEAT LEG COVER | ||||
| 90467-07055C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
7 | ||
| 90467-07055C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
7 | ||
| 79105C - LEG SUB-ASSY, FRONT SEAT | ||||
| 79105-52020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 79105-52020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 79107K - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 79107-52020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 79107-52020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7120 - LEG, WELCAB SEAT, NO.1 | ||||
| C7120-D1A00 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7120-D1A00 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7122 - GUARD, WELCAB SEAT LEG | ||||
| C7122-52010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7122-52010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| Common parts | ||||
| 90119-10578 | ||||
| 90179-10212 | ||||
| 91673-80816 | ||||
| 93260-56008 | ||||
| Linked diagrams | ||||
| 7403 | ||||
ILLUST NO. 2 OF 7(1207- )NCP14#,NSP140..F,X ; (1507- )F,X
ｼﾞｮｼｭｾｷ ﾘﾌﾄｱｯﾌﾟ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-28060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| 71537-28060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-D1020C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 72265-D1020C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 72265C - CLIP, SEAT TRACK UPPER RAIL COVER | ||||
| 90467-06020C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
2 | ||
| 90467-06020C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
2 | ||
| 78988B - COVER, FRONT SEAT FOOTREST, NO.1 | ||||
| 78987-D1010C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 78987-D1010C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 78988C - COVER, FRONT SEAT FOOTREST, NO.2 | ||||
| 78988-D1040C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 78988-D1040C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| C7119 - PROTECTOR, WELCAB SEAT HOLDER | ||||
| C7119-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| C7119-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| C7119 - PROTECTOR, WELCAB SEAT HOLDER | ||||
| C7119-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| C7119-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| C7986B - COVER, FRONT SEAT TURN GUARD | ||||
| C7986-D1260C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| C7986-D1260C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| C7986C - CLIP, FRONT SEAT TURN GUARD COVER, NO.1 | ||||
| 90467-05164C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
3 | ||
| 90467-05164C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
3 | ||
| C7986C - CLIP, FRONT SEAT TURN GUARD COVER, NO.1 | ||||
| 90467-05164C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
3 | ||
| 90467-05164C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
3 | ||
| C7986C - CLIP, FRONT SEAT TURN GUARD COVER, NO.1 | ||||
| 90467-05164C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
3 | ||
| 90467-05164C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
3 | ||
| C8340 - COMPUTER ASSY, WELCAB DEVICE CONTROL | ||||
| C8340-52040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C8340-52040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| Common parts | ||||
| 90119-10578 | ||||
| 90168-40074 | ||||
| 90179-10212 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8202 | ||||
| 8401 | ||||
(1207- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
ILLUST NO. 3 OF 3(1207- )
ﾌｨｯﾃｨﾝｸﾞﾊﾟｰﾂ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58594 - MOULDING, FLOOR CARPET, NO.2 | ||||
| 58595-52050E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58595-52050E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 58594 - MOULDING, FLOOR CARPET, NO.2 | ||||
| 58595-52050E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58595-52050E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 58595C - MOULDING, FLOOR CARPET, NO.1 | ||||
| 58595-52080E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58595-52080E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 58595C - MOULDING, FLOOR CARPET, NO.1 | ||||
| 58595-52080E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58595-52080E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 58595E - MOULDING, FLOOR CARPET, NO.4 | ||||
| 58595-52060E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
2 | ||
| 58595-52060E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
2 | ||
| 58595E - MOULDING, FLOOR CARPET, NO.4 | ||||
| 58595-52060E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
2 | ||
| 58595-52060E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
2 | ||
| 58595E - MOULDING, FLOOR CARPET, NO.4 | ||||
| 58595-52060E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
2 | ||
| 58595-52060E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
2 | ||
| 58595E - MOULDING, FLOOR CARPET, NO.4 | ||||
| 58595-52060E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
2 | ||
| 58595-52060E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
2 | ||
| 58595F - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-52070E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 58595-52070E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58595F - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-52070E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 58595-52070E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 71139A - COVER, FRONT SEAT LEG, NO.1 | ||||
| 71139-52020C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 71139-52020A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT) | ||||
| 71148-52020A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71148-52020C1 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-52240 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 72120-52200 |
NCP145..CBU |
1 | ||
| 72120-52240 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 72120-52240 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 72120-52240 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式) |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-52240 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 72120-52200 |
NCP145..CBU |
1 | ||
| 72120-52240 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 72120-52240 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 72120-52240 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式) |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-52030A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 72123-52030C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-52020A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 72127-52020C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52080E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.1 |
1 | ||
| 72129-52080E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.1 |
1 | ||
| 72129-D1060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 72129-52130E0 |
NCP145..F,Y PLUM,TRIM0#,4# |
1 | ||
| 72129-52090E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.2 |
1 | ||
| 72129-52090E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.2 |
1 | ||
| 72129-52130E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 72129-52130E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 72129-52130E0 |
NCP145..(G,X)..CBU PLUM,TRIM4# |
1 | ||
| 72129-52091E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.2 |
1 | ||
| 72129-D1060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 72129-52091E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.2 |
1 | ||
| 72129-52130E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 72129-52081E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.1 |
1 | ||
| 72129-52130E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 72129-52081E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.1 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52080E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.1 |
1 | ||
| 72129-52080E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.1 |
1 | ||
| 72129-D1060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 72129-52130E0 |
NCP145..F,Y PLUM,TRIM0#,4# |
1 | ||
| 72129-52090E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.2 |
1 | ||
| 72129-52090E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.2 |
1 | ||
| 72129-52130E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 72129-52130E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 72129-52130E0 |
NCP145..(G,X)..CBU PLUM,TRIM4# |
1 | ||
| 72129-52091E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.2 |
1 | ||
| 72129-D1060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 72129-52091E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.2 |
1 | ||
| 72129-52130E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 72129-52081E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.1 |
1 | ||
| 72129-52130E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 72129-52081E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.1 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52080E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.1 |
1 | ||
| 72129-52080E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.1 |
1 | ||
| 72129-D1060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 72129-52130E0 |
NCP145..F,Y PLUM,TRIM0#,4# |
1 | ||
| 72129-52090E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.2 |
1 | ||
| 72129-52090E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.2 |
1 | ||
| 72129-52130E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 72129-52130E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 72129-52130E0 |
NCP145..(G,X)..CBU PLUM,TRIM4# |
1 | ||
| 72129-52091E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.2 |
1 | ||
| 72129-D1060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 72129-52091E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.2 |
1 | ||
| 72129-52130E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 72129-52081E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.1 |
1 | ||
| 72129-52130E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 72129-52081E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.1 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52080E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.1 |
1 | ||
| 72129-52080E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.1 |
1 | ||
| 72129-D1060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 72129-52130E0 |
NCP145..F,Y PLUM,TRIM0#,4# |
1 | ||
| 72129-52090E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.2 |
1 | ||
| 72129-52090E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.2 |
1 | ||
| 72129-52130E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 72129-52130E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 72129-52130E0 |
NCP145..(G,X)..CBU PLUM,TRIM4# |
1 | ||
| 72129-52091E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.2 |
1 | ||
| 72129-D1060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 72129-52091E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.2 |
1 | ||
| 72129-52130E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 72129-52081E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.1 |
1 | ||
| 72129-52130E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 72129-52081E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.1 |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52050E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.1 |
1 | ||
| 72129-52050E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.1 |
1 | ||
| 72129-52140E0 |
NCP145..F,Y PLUM,TRIM0#,4# |
1 | ||
| 72129-52060E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.2 |
1 | ||
| 72129-52060E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.2 |
1 | ||
| 72129-52061E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.2 |
1 | ||
| 72129-52051E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.1 |
1 | ||
| 72129-52140E0 |
NCP145..(G,X)..CBU PLUM,TRIM4# |
1 | ||
| 72129-52140E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 72129-52140E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 72129-52140E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 72129-52051E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.1 |
1 | ||
| 72129-52061E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.2 |
1 | ||
| 72129-52140E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52050E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.1 |
1 | ||
| 72129-52050E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.1 |
1 | ||
| 72129-52140E0 |
NCP145..F,Y PLUM,TRIM0#,4# |
1 | ||
| 72129-52060E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.2 |
1 | ||
| 72129-52060E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.2 |
1 | ||
| 72129-52061E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.2 |
1 | ||
| 72129-52051E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.1 |
1 | ||
| 72129-52140E0 |
NCP145..(G,X)..CBU PLUM,TRIM4# |
1 | ||
| 72129-52140E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 72129-52140E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 72129-52140E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 72129-52051E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.1 |
1 | ||
| 72129-52061E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.2 |
1 | ||
| 72129-52140E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52050E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.1 |
1 | ||
| 72129-52050E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.1 |
1 | ||
| 72129-52140E0 |
NCP145..F,Y PLUM,TRIM0#,4# |
1 | ||
| 72129-52060E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.2 |
1 | ||
| 72129-52060E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.2 |
1 | ||
| 72129-52061E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.2 |
1 | ||
| 72129-52051E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.1 |
1 | ||
| 72129-52140E0 |
NCP145..(G,X)..CBU PLUM,TRIM4# |
1 | ||
| 72129-52140E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 72129-52140E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 72129-52140E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 72129-52051E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.1 |
1 | ||
| 72129-52061E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.2 |
1 | ||
| 72129-52140E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52050E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.1 |
1 | ||
| 72129-52050E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.1 |
1 | ||
| 72129-52140E0 |
NCP145..F,Y PLUM,TRIM0#,4# |
1 | ||
| 72129-52060E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.2 |
1 | ||
| 72129-52060E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.2 |
1 | ||
| 72129-52061E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.2 |
1 | ||
| 72129-52051E0 |
NCP145..(G,X)..CBU PLUM,TRIM4#,NO.1 |
1 | ||
| 72129-52140E0 |
NCP145..(G,X)..CBU PLUM,TRIM4# |
1 | ||
| 72129-52140E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 72129-52140E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 72129-52140E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 72129-52051E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.1 |
1 | ||
| 72129-52061E0 |
NCP145..F,Y PLUM,TRIM0#,4#,NO.2 |
1 | ||
| 72129-52140E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-52140A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 72137-52140C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-52360 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 72140-52360 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 72140-52310 |
NCP145..CBU |
1 | ||
| 72140-52360 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式) |
1 | ||
| 72140-52360 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-52360 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 72140-52360 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 72140-52310 |
NCP145..CBU |
1 | ||
| 72140-52360 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式) |
1 | ||
| 72140-52360 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52150 |
NCP145..CBU |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52150 |
NCP145..CBU |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-52190C0 |
NCP145..CBU BLACK,TRIM4# |
1 | ||
| 72157-52190A0 |
NCP145..F,Y FROMAGE,TRIM0# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-52190C0 |
NCP145..CBU BLACK,TRIM4# |
1 | ||
| 72157-52190A0 |
NCP145..F,Y FROMAGE,TRIM0# |
1 | ||
| 72275C - STOPPER, FRONT SEAT TRACK SLIDE | ||||
| 72275-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 72275-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 72275-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 72275C - STOPPER, FRONT SEAT TRACK SLIDE | ||||
| 72275-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 72275-D1120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 72275-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 79926 - COVER, SEAT LEG GARNISH | ||||
| 79926-52010A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 79926-52010C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 72702-52090 | ||||
| 91553-10820 | ||||
| 91673-80816 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8202 | ||||
ILLUST NO. 3 OF 7(1207- )NCP14#,NSP140..F,X ; (1507- )F,X
ｼﾞｮｼｭｾｷ ﾘﾌﾄｱｯﾌﾟ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53019A - SHUTTER SUB-ASSY, RADIATOR | ||||
| 53019-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 53019-D1100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 68332A - ROLLER, SLIDE DOOR, LOWER | ||||
| 68332-28040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| 68332-28040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| 68332A - ROLLER, SLIDE DOOR, LOWER | ||||
| 68332-28040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| 68332-28040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
2 | ||
| C7210 - FOOTREST ASSY, WELCAB SEAT | ||||
| C7210-D1190 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C7210-D1190 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7691A - CUSHION, SEAT FLAT, NO.2 RH | ||||
| C7691-D1050 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C7691-D1050 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C8284 - WIRE, POWER LIFT MAIN | ||||
| C8284-D1740 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C8284-D1740 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C8299 - BRACKET, WELCAB SEAT HARNESS CONNECTOR | ||||
| C8299-D1580 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,NO.1 |
1 | ||
| C8299-D1580 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,NO.1 |
1 | ||
| C8299-D1630 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,NO.2 |
1 | ||
| C8299-D1630 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,NO.2 |
1 | ||
| Common parts | ||||
| 90154-60027 | ||||
| 90157-60014 | ||||
| 90464-00620 | ||||
| 90982-09008 | ||||
| 90982-09011 | ||||
| 91511-80616 | ||||
| 91551-80610 | ||||
| 91551-80812 | ||||
| 91671-80608 | ||||
| 91671-F0820 | ||||
| C3165-D1020 | ||||
| C7025-D1150 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
