NCP145-BEXYK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1207- )NCP145

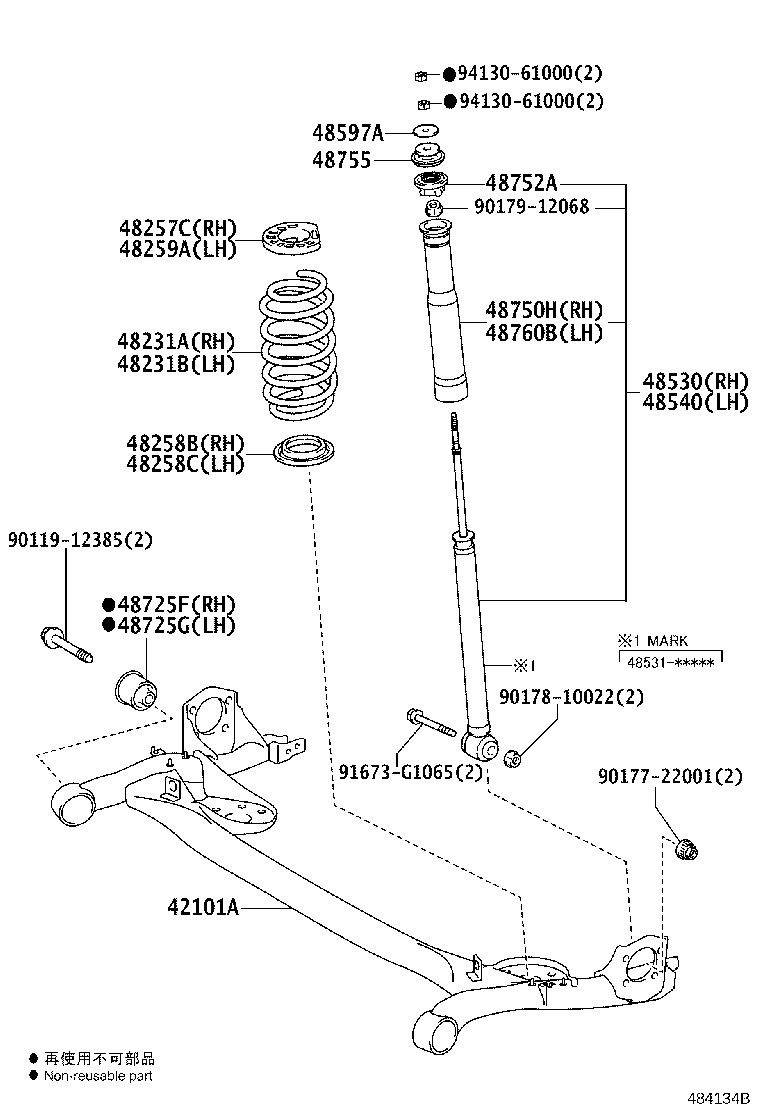

Click highlighted areas on diagram

diagram 42101A 48231A 48231B 48257C 48258B 48258C 48259A 48530 48540 48597A 48725F 48725G 48750H 48752A 48755 48760B 9011912385 9017722001 9017810022 9017912068 91673G1065 9413061000 9413061000
Part # Description Qty Price
42101A - BEAM SUB-ASSY, REAR AXLE
42101-52152

NCP145..CBU

 1
48231A - SPRING, COIL, REAR RH
48231-52G80

NCP145..CBU

 1
48231B - SPRING, COIL, REAR LH
48231-52G80

NCP145..CBU

 1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-52010

NCP14#,NSP140..CBU

 1
48258B - INSULATOR, REAR COIL SPRING, LOWER RH
48258-52030

NCP14#,NSP140..CBU

 1
48258C - INSULATOR, REAR COIL SPRING, LOWER LH
48258-52030

NCP14#,NSP140..CBU

 1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-52010

NCP14#,NSP140..CBU

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-52J50

NCP145..CBU

ﾏｰｸ 48531−52120

 1
48530-52J51

NCP145..CBU

ﾏｰｸ 48531−52121

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-52J50

NCP145..CBU

ﾏｰｸ 48531−52120

 1
48530-52J51

NCP145..CBU

ﾏｰｸ 48531−52121

 1
48597A - RETAINER, REAR SHOCK ABSORBER CUSHION
90201-10320

NCP14#,NSP140..CBU

 2
48725F - BUSH, REAR AXLE CARRIER, RH
48725-52130

NCP145..CBU

 1
48725G - BUSH, REAR AXLE CARRIER, LH
48725-52130

NCP145..CBU

 1
48750H - SUPPORT ASSY, REAR SUSPENSION, RH
48750-52110

NCP145..CBU

 1
48750-52220

NCP145..CBU

 1
48752A - STOPPER, REAR SUSPENSION SUPPORT
48752-52020

NCP145..CBU

 2
48755 - SUPPORT, REAR SUSPENSION
48755-52010

NCP14#,NSP140..CBU

 2
48760B - SUPPORT ASSY REAR SUSPENSION, LH
48750-52220

NCP145..CBU

 1
48750-52110

NCP145..CBU

 1
Common parts
90119-12385
90177-22001
90178-10022
90179-12068
91673-G1065
94130-61000
