NCP145-BEXYK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

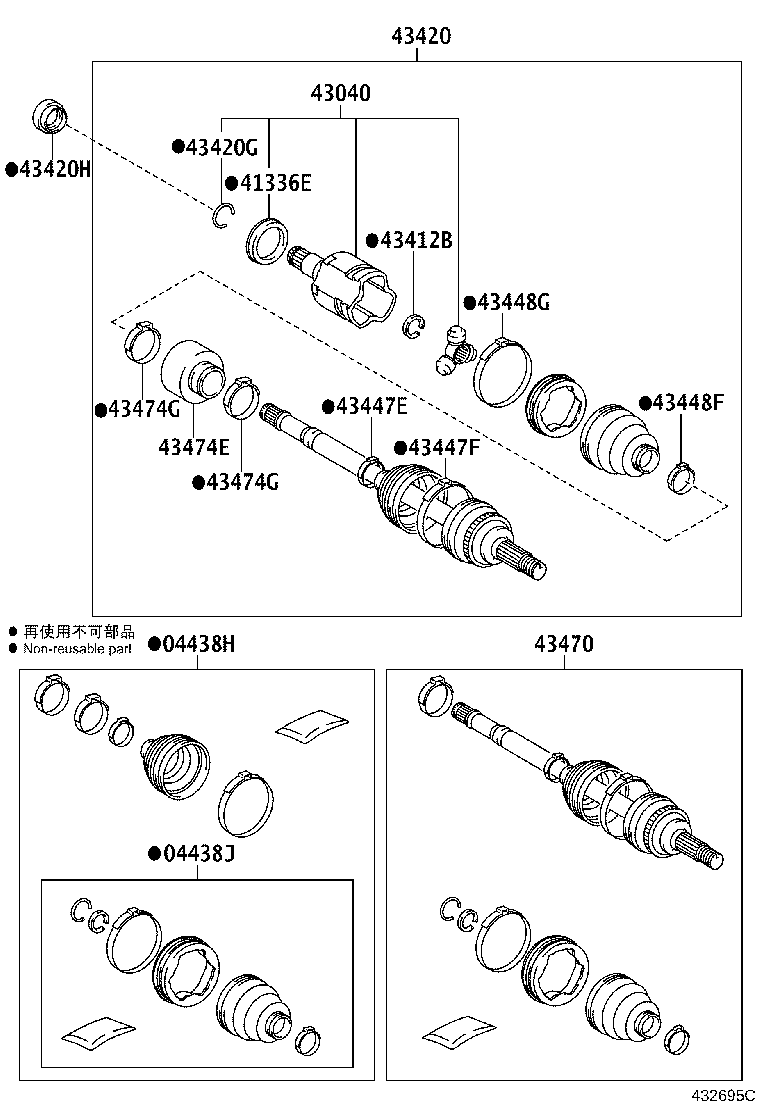

ILLUST NO. 2 OF 2(1207- )NCP145

Click highlighted areas on diagram

LH

diagram 04438H 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43470 43474E 43474G 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-52860

NCP145..CBU

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-12A00

NCP145..CBU

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-12060

NCP145..CBU

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-12120

NCP145..CBU

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-12070

NCP145..CBU

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-52271

NCP145..CBU

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-27005

NCP145..CBU

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-35068

NCP145..CBU

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-52260

NCP14#,NSP140..CBU

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-52250

NCP14#,NSP140..CBU

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12230

NCP145..CBU

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12180

NCP145..CBU

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-59785

NCP145..CBU

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-12200

NCP145..CBU

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

NCP14#..CBU

 2
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

NCP14#..CBU

 2

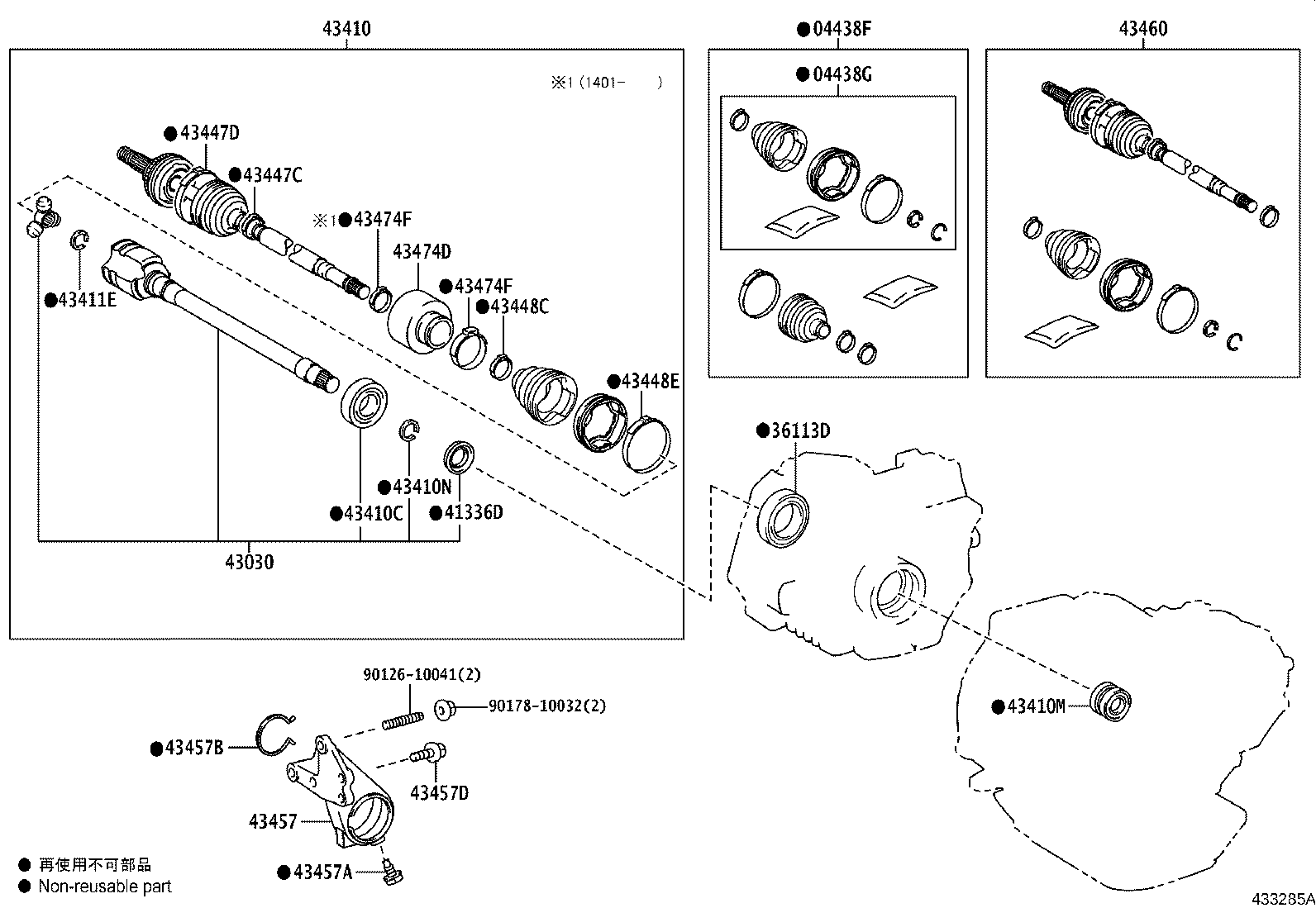

ILLUST NO. 1 OF 2(1207- )NCP145

Click highlighted areas on diagram

RH

diagram 04438F 04438G 36113D 41336D 43030 43410 43410C 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43457 43457A 43457B 43457D 43460 43474D 43474F 43474F 9012610041 9017810032
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-12751

NCP145..CBU

 1
04427-12750

NCP145..CBU

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-12410

NCP145..CBU

 1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-35056

NCP145..CBU

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-52020

NCP145..CBU

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-12131

NCP145..CBU

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-52260

NCP145..CBU

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36006

NCP145..CBU

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90316-28003

NCP145..CBU

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-33008

NCP145..CBU

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-12070

NCP145..CBU

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-52260

NCP14#,NSP140..CBU

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-52250

NCP14#,NSP140..CBU

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12230

NCP145..CBU

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12180

NCP145..CBU

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-52010

NCP145..CBU

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461

NCP145..CBU

*10−1.25PX19.8−8.3

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002

NCP145..CBU

 1
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-10381

NCP145..CBU

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-59666

NCP145..CBU

 1
43470-59667

NCP145..CBU

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-12160

NCP145..CBU

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

NCP145..CBU

 1
42345-14010

NCP145..CBU

 2
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

NCP145..CBU

 1
42345-14010

NCP145..CBU

 2
Common parts
90126-10041
90178-10032
