NCP145-BEXXK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1207- )

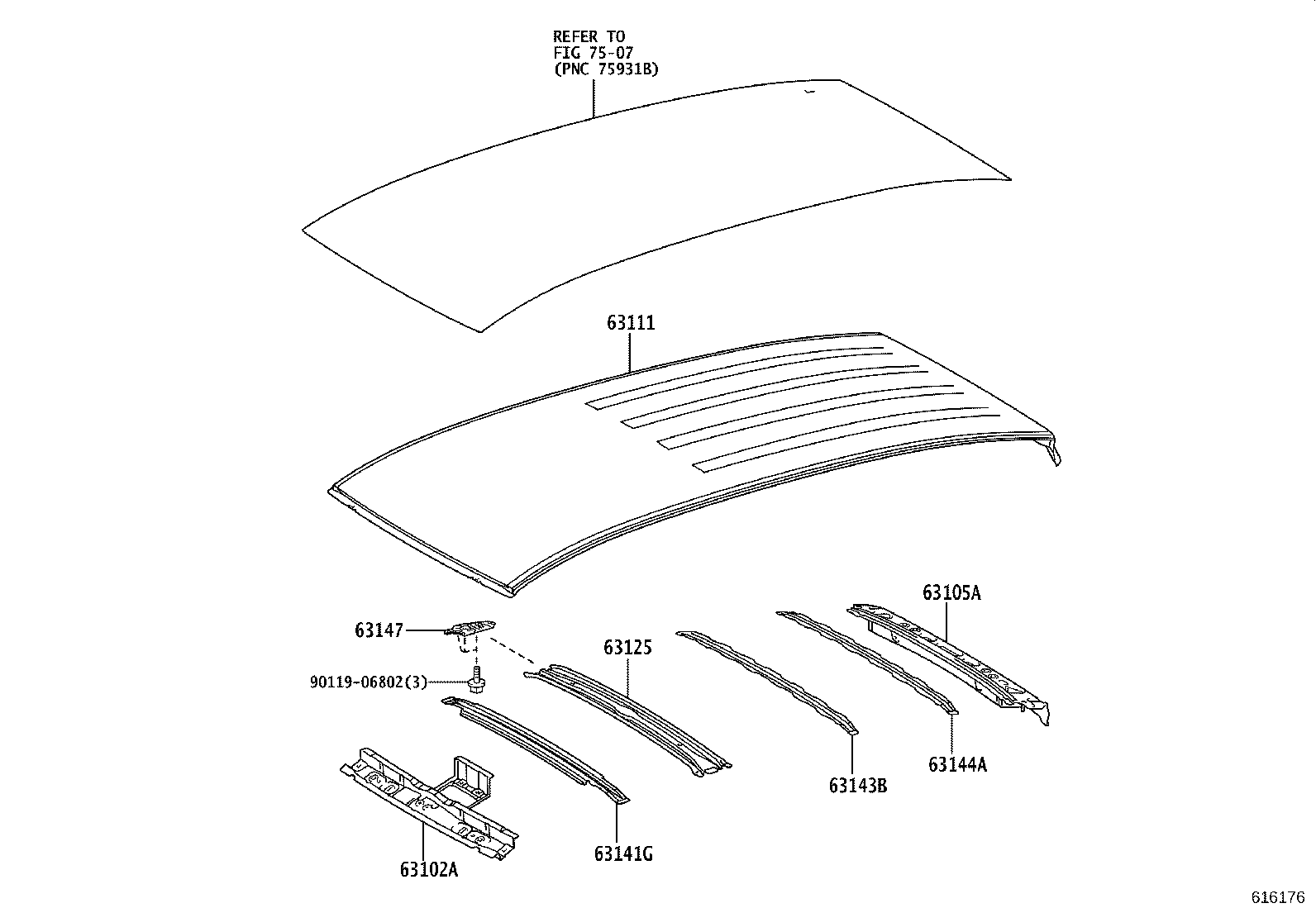

Click highlighted areas on diagram

diagram 63102A 63105A 63111 63125 63141G 63143B 63144A 63147 7507 9011906802
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-52210

NCP14#,NSP140..CBU

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-52180

NCP14#,NSP140..CBU

 1
63111 - PANEL, ROOF
63111-52430

NCP14#,NSP140..CBU

 1
63125 - REINFORCEMENT, ROOF PANEL, NO.2
63103-52130

NCP14#,NSP140..CBU

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63142-52100

NCP14#,NSP140..CBU

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63144-52160

NCP14#,NSP140..CBU

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63145-52080

NCP14#,NSP140..CBU

 1
63147 - BRACKET, ROOF PANEL REINFORCEMENT
63147-52110

NCP14#,NSP140..CBU

 1
Common parts
90119-06802
Linked diagrams
7507
