NCP145-BEXXK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1207- )NCP14#

Click highlighted areas on diagram

K310F,K312

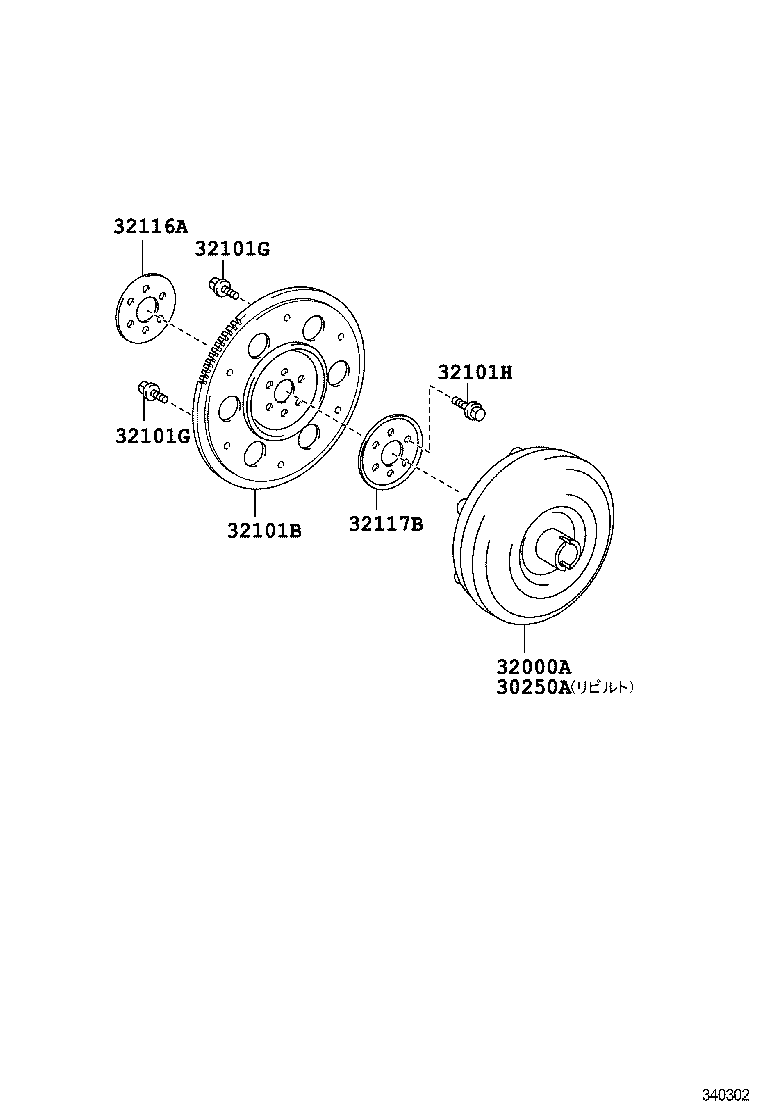

diagram 30250A 32000A 32101B 32101G 32101G 32101H 32116A 32117B
Part # Description Qty Price
32000A - CONVERTER ASSY, TORQUE
32000-12410

NCP145..CBU

 1
32101B - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-52021

NCP14#..CBU

 1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-08498

NCP14#,NSP140..CBU

*8−1.25PX12−8

 5
90109-08113

NCP14#,NSP140..CBU

*8−1.25PX12−8.4

 1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-08498

NCP14#,NSP140..CBU

*8−1.25PX12−8

 5
90109-08113

NCP14#,NSP140..CBU

*8−1.25PX12−8.4

 1
32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10048

NCP14#..CBU

 6
32116A - SPACER, DRIVE PLATE, FRONT
32116-52030

NCP14#..CBU

 1
32117B - SPACER, DRIVE PLATE, REAR
32117-52030

NCP14#..CBU

 1
