NCP145-BEXXK (2012)
Toyota Porte/Spade
Production
Jul 2012
-
Jul 2015
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

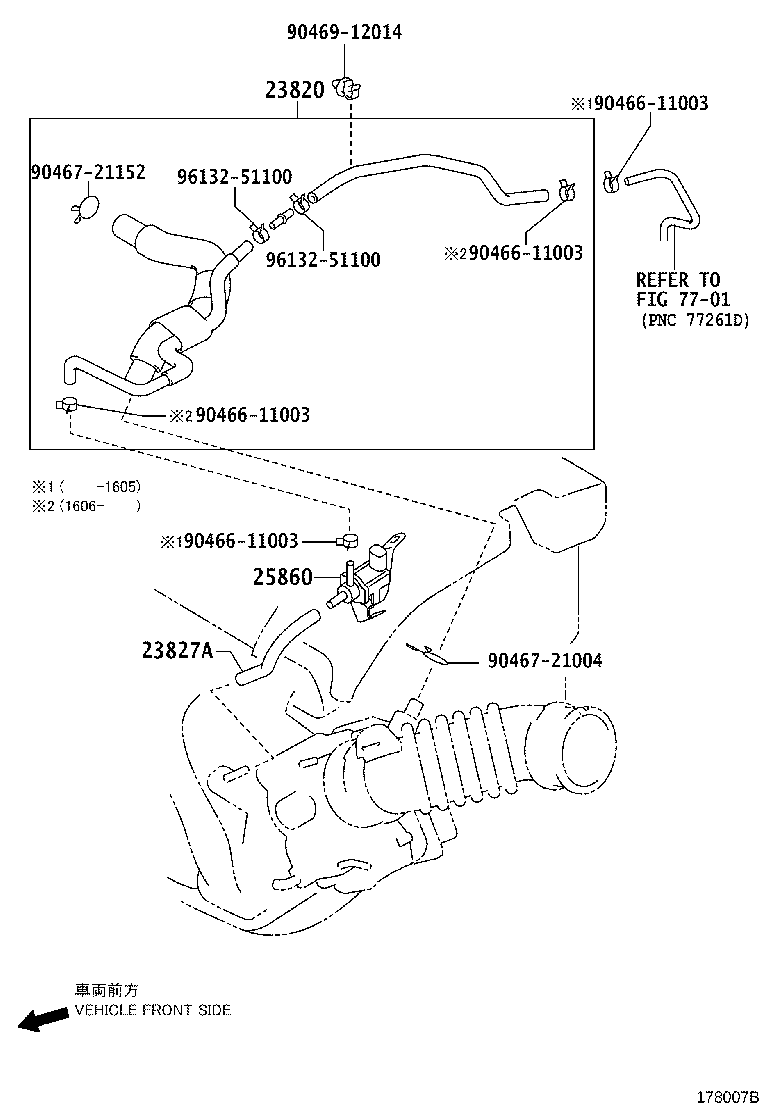

(1207-1301)1NZFE..NCP145
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23820 - HOSE ASSY, FUEL VAPOR FEED | ||||
| 23820-21090 |
1NZFE..NCP145 |
1 | ||
| 23820-21210 |
1NZFE..NCP145..CBU |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-21150 |
1NZFE..NCP14#..CBU |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-21070 |
1NZFE..NCP14#..CBU |
1 | ||
| Common parts | ||||
| 90466-11003 | ||||
| 90467-21004 | ||||
| 90467-21152 | ||||
| 90469-12014 | ||||
| Linked diagrams | ||||
| 7701 | ||||

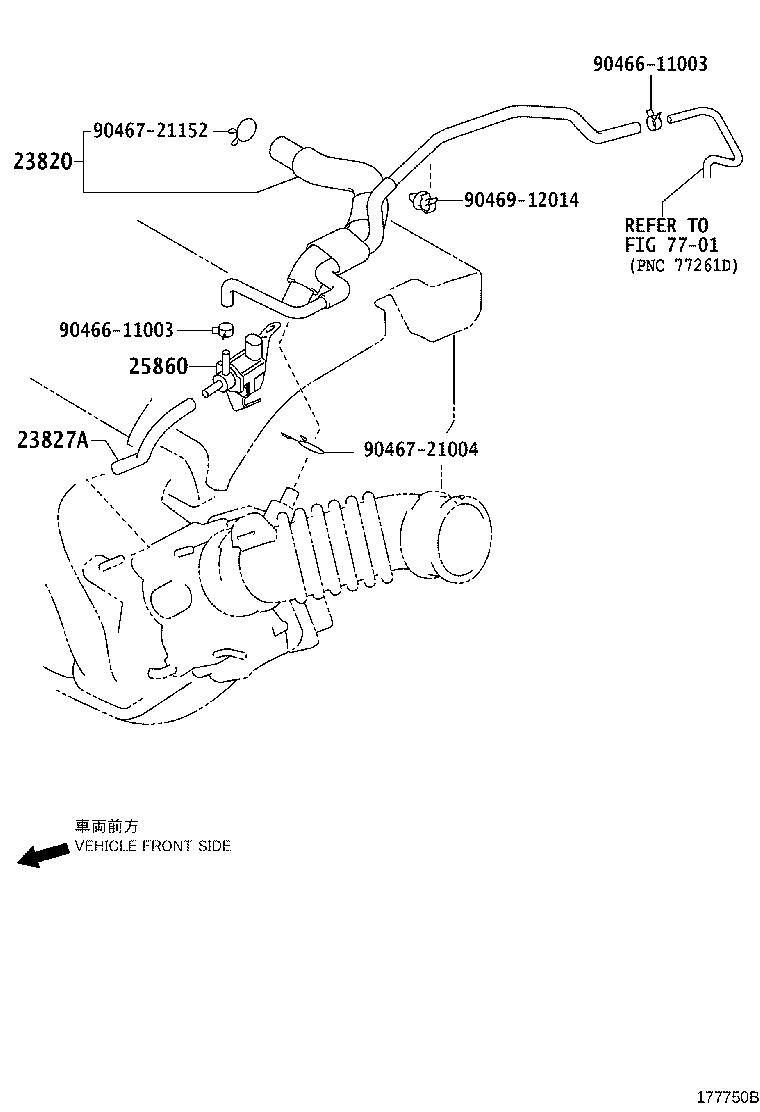

(1301- )1NZFE..NCP145
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23820 - HOSE ASSY, FUEL VAPOR FEED | ||||
| 23820-21090 |
1NZFE..NCP145 |
1 | ||
| 23820-21210 |
1NZFE..NCP145..CBU |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-21150 |
1NZFE..NCP14#..CBU |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-21070 |
1NZFE..NCP14#..CBU |
1 | ||
| Common parts | ||||
| 90466-11003 | ||||
| 90467-21004 | ||||
| 90467-21152 | ||||
| 90469-12014 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 7701 | ||||
