NCP145-AEXXK (2012)
Toyota Porte/Spade
ILLUST NO. 3 OF 3(1207-1507)NCP141,NSP140 ; (1207- )NCP145 ; (1507- )NSP141
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-52130 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88625-47021 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88625-47021 |
NCP14#,NSP140..PORTE..(F,X,Y)..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88625-47021 |
NCP14#,NSP140..PORTE..(F,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
NCP14#,NSP140..CBU |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
NCP14#,NSP140..CBU |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||

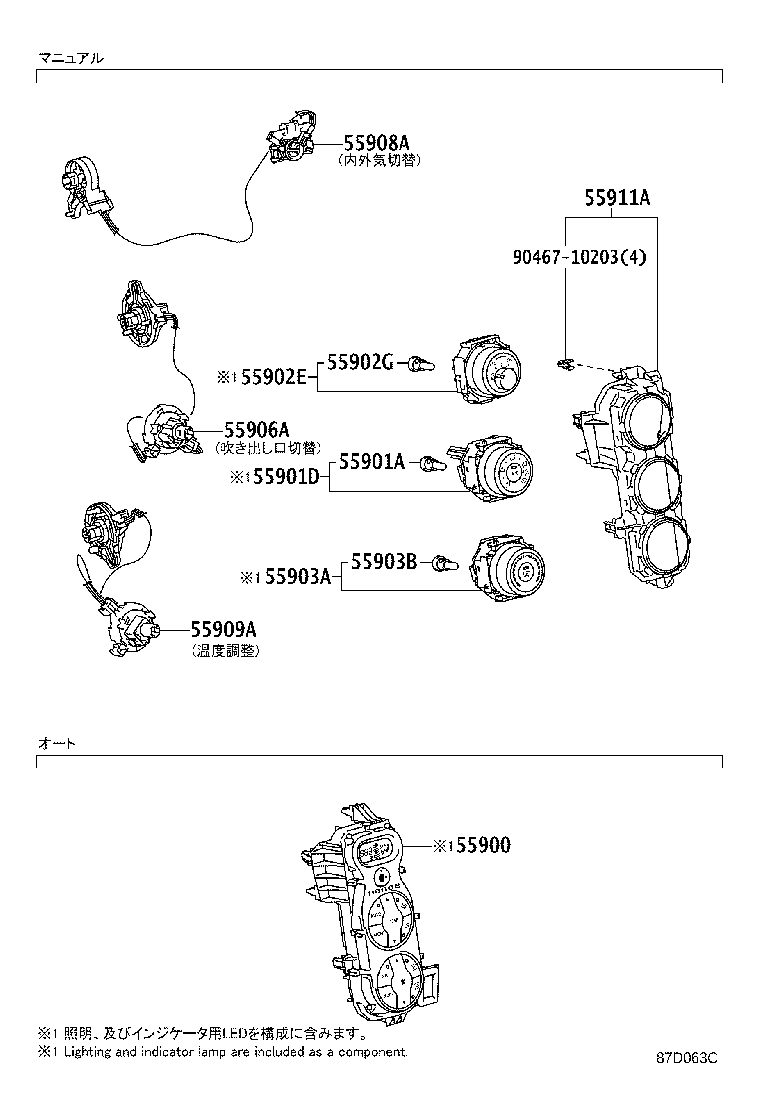

ILLUST NO. 1 OF 3(1207-1507)NCP141,NSP140 ; (1207- )NCP145 ; (1507- )NSP141
ｺﾝﾄﾛｰﾙﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-52790 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 55901A - BULB, HEATER CONTROL SUB-ASSY, NO.1 | ||||
| 90010-01142 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 90010-01142 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 55901D - CONTROL SUB-ASSY, HEATER, NO.1 | ||||
| 55901-52230 |
NCP14#,NSP140..(V,X)..CBU |
1 | ||
| 55901-52370 |
NCP14#..(F,Y)..CBU |
1 | ||
| 55902E - CONTROL SUB-ASSY, HEATER, NO.2 | ||||
| 55902-52180 |
NCP14#,NSP140..(V,X)..CBU |
1 | ||
| 55902-52210 |
NCP14#..(F,Y)..CBU |
1 | ||
| 55902G - BULB, HEATER CONTROL SUB-ASSY, NO.2 | ||||
| 90010-01142 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 90010-01142 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 55903A - CONTROL SUB-ASSY, HEATER, NO.3 | ||||
| 55903-52231 |
NCP14#,NSP140..(V,X)..CBU |
1 | ||
| 55903-52620 |
NCP14#,NSP140..(V,X)..CBU 寒冷地仕様 |
1 | ||
| 55903-52640 |
NCP14#..(F,Y)..CBU 寒冷地仕様 |
1 | ||
| 55903-52700 |
NCP14#..(F,Y)..CBU |
1 | ||
| 55903B - BULB, HEATER CONTROL SUB-ASSY, NO.3 | ||||
| 90010-01142 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 90010-01142 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 90010-01142 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-52132 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 55906-52132 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-52130 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 55908-52130 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-52120 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 55909-52120 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 55911A - BASE, HEATER CONTROL | ||||
| 55911-52020 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||

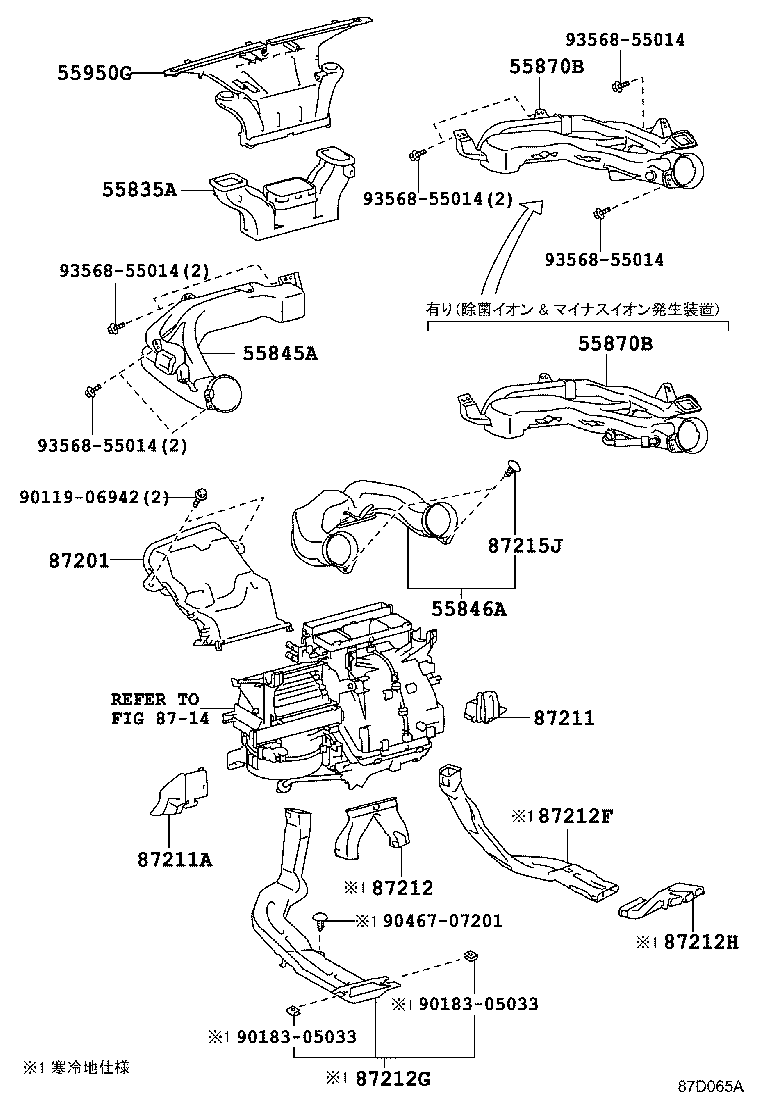

ILLUST NO. 2 OF 3(1207-1507)NCP141,NSP140 ; (1207- )NCP145 ; (1507- )NSP141
ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55830-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-52140 |
NCP14#,NSP140..CBU |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 55870B - DUCT ASSY, HEATER TO REGISTER | ||||
| 55870-52050 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 55843-52400 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 55870B - DUCT ASSY, HEATER TO REGISTER | ||||
| 55843-52400 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 55870-52050 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-52210 |
NCP14#,NSP140..CBU |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-52110 |
NCP14#,NSP140..CBU |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-52160 |
NCP14#,NSP140..CBU |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-52150 |
NCP14#,NSP140..CBU |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87215-52050 |
NCP14#,NSP140..CBU 寒冷地仕様 |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87212-52100 |
NCP14#,NSP140..CBU 寒冷地仕様 |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87213-52060 |
NCP14#,NSP140..CBU 寒冷地仕様 |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87216-52060 |
NCP14#,NSP140..CBU 寒冷地仕様 |
1 | ||
| 87215J - CLIP (FOR AIR REAR DUCT) | ||||
| 90467-05162B0 |
NCP14#,NSP140..CBU DK.GRAY |
2 | ||
| Common parts | ||||
| 90119-06942 | ||||
| 90183-05033 | ||||
| 90467-07201 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8714 | ||||
