NCP145-AEXXK (2012)
Toyota Porte/Spade

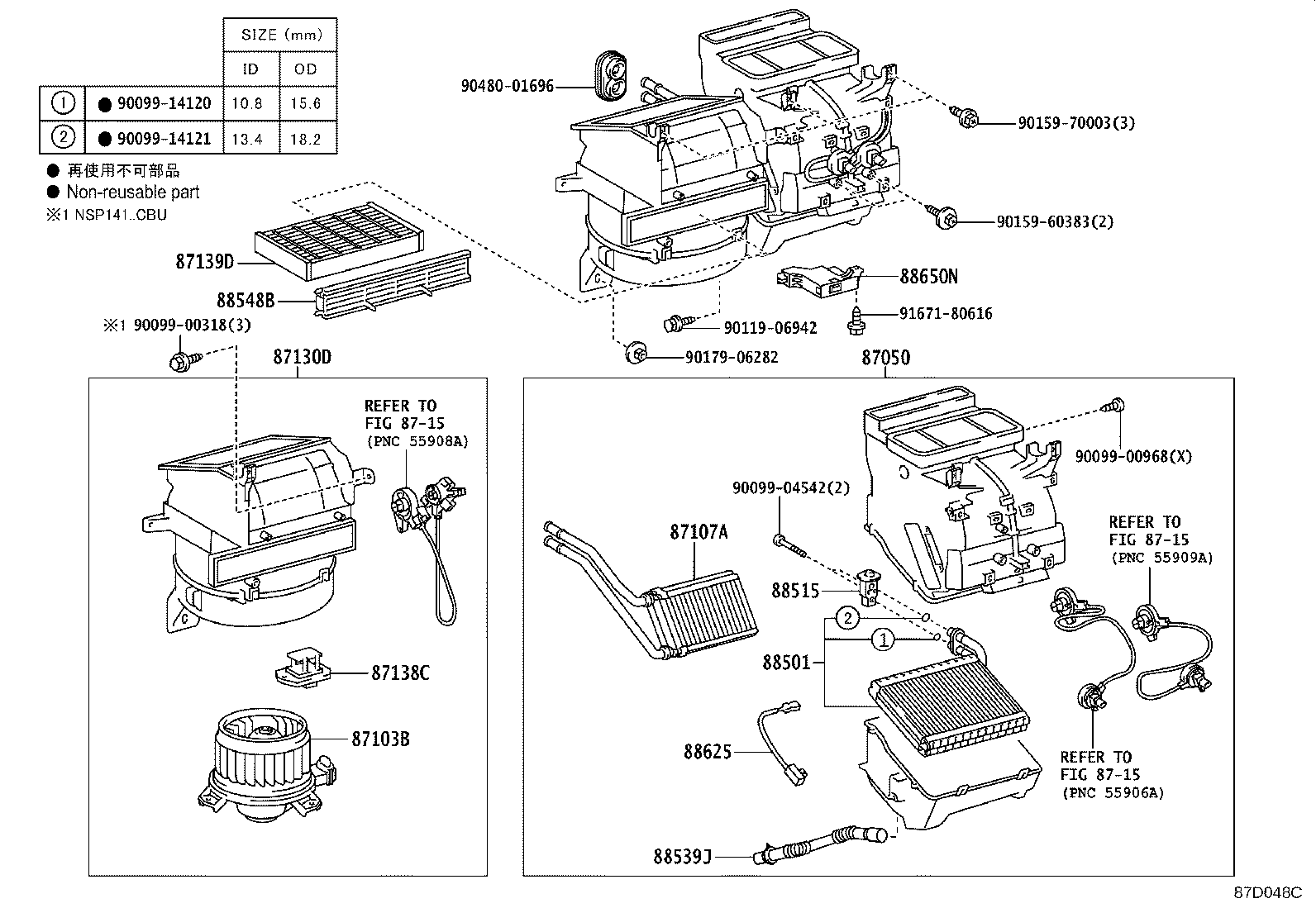

(1207-1507)NCP141,NSP140..F,V,X,Y ; (1207- )NCP145..F,X,Y ; (1507- )NSP141..F
ﾏﾆｭｱﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-52151 |
NCP14#,NSP140..(F,V,X,Y)..CBU 寒冷地仕様 |
1 | ||
| 87050-52161 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87050-52131 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 87050-52141 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52132 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87103-52121 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 87103-52132 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52061 |
NCP14#,NSP140..CBU |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-52050 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 87130-52061 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87130-52061 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52030 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-50100 |
NCP14#,NSP140..CBU 脱臭ﾌｨﾙﾀ |
1 | ||
| 87139-52040 |
NCP14#,NSP140..CBU 花粉ﾌｨﾙﾀ |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52103 |
NCP14#,NSP140..CBU |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-68010 |
NCP14#,NSP140..CBU |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
NCP14#,NSP140..CBU |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-52870 |
NCP14#,NSP140..(F,V,X,Y)..CBU 寒冷地仕様 |
1 | ||
| 88650-52850 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88650-52850 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88650-52860 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06942 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90480-01696 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||

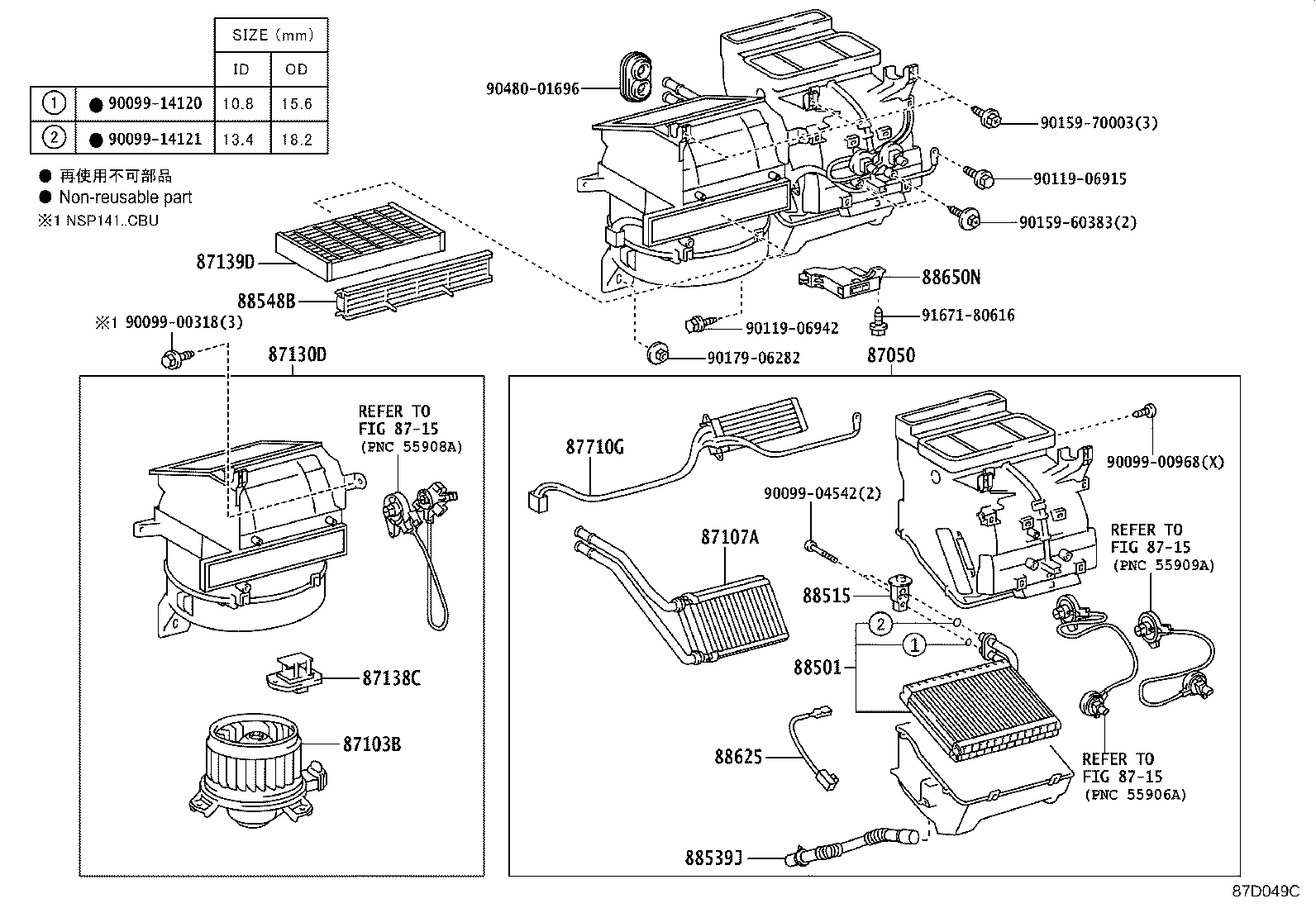

(1207-1507)NCP141,NSP140..F,V,X,Y ; (1207- )NCP145..F,X,Y ; (1507- )NSP141..F
ﾏﾆｭｱﾙ---ｶﾝﾚｲﾁｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-52151 |
NCP14#,NSP140..(F,V,X,Y)..CBU 寒冷地仕様 |
1 | ||
| 87050-52161 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87050-52131 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 87050-52141 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52132 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87103-52121 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 87103-52132 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52061 |
NCP14#,NSP140..CBU |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-52050 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 87130-52061 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87130-52061 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52030 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-50100 |
NCP14#,NSP140..CBU 脱臭ﾌｨﾙﾀ |
1 | ||
| 87139-52040 |
NCP14#,NSP140..CBU 花粉ﾌｨﾙﾀ |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-52060 |
NCP14#,NSP140..CBU 寒冷地仕様 |
1 | ||
| 87710-52060 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52103 |
NCP14#,NSP140..CBU |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-68010 |
NCP14#,NSP140..CBU |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
NCP14#,NSP140..CBU |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-52870 |
NCP14#,NSP140..(F,V,X,Y)..CBU 寒冷地仕様 |
1 | ||
| 88650-52850 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88650-52850 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88650-52860 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06915 | ||||
| 90119-06942 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90480-01696 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||

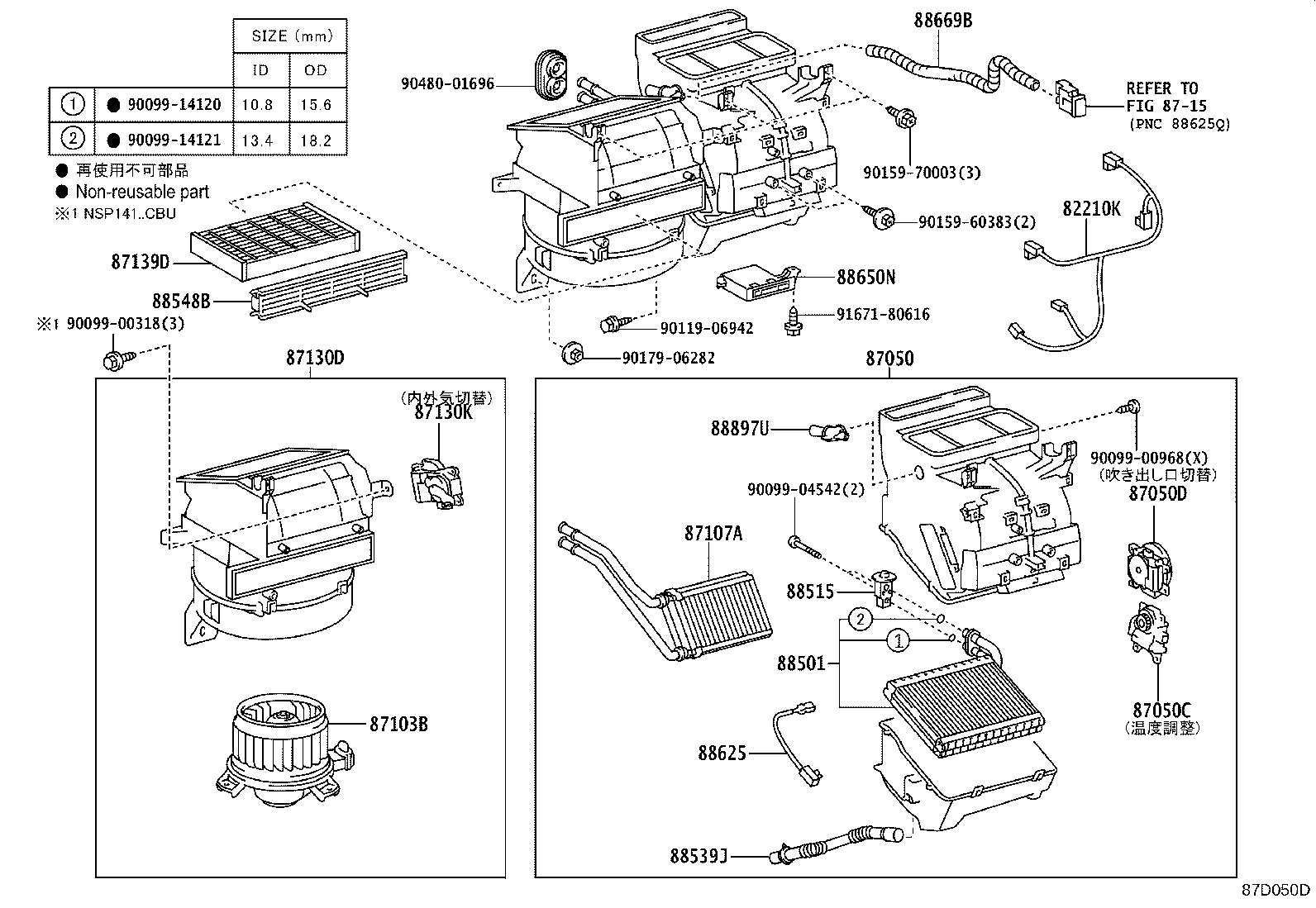

(1207-1507)NCP141,NSP140..F,G,X,Y ; (1207- )NCP145 ; (1507- )NSP141..F,G,X,Y
ｵｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-52030 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-52151 |
NCP14#,NSP140..(F,V,X,Y)..CBU 寒冷地仕様 |
1 | ||
| 87050-52161 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87050-52131 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 87050-52141 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-52080 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87106-52080 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-52090 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87106-52090 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52132 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87103-52121 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 87103-52132 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52061 |
NCP14#,NSP140..CBU |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-52050 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 87130-52061 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87130-52061 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-52100 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87106-52100 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-50100 |
NCP14#,NSP140..CBU 脱臭ﾌｨﾙﾀ |
1 | ||
| 87139-52040 |
NCP14#,NSP140..CBU 花粉ﾌｨﾙﾀ |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52103 |
NCP14#,NSP140..CBU |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-68010 |
NCP14#,NSP140..CBU |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
NCP14#,NSP140..CBU |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-52870 |
NCP14#,NSP140..(F,V,X,Y)..CBU 寒冷地仕様 |
1 | ||
| 88650-52850 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88650-52850 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88650-52860 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-52080 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88669-52080 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-32090 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88897-32090 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06942 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90480-01696 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||

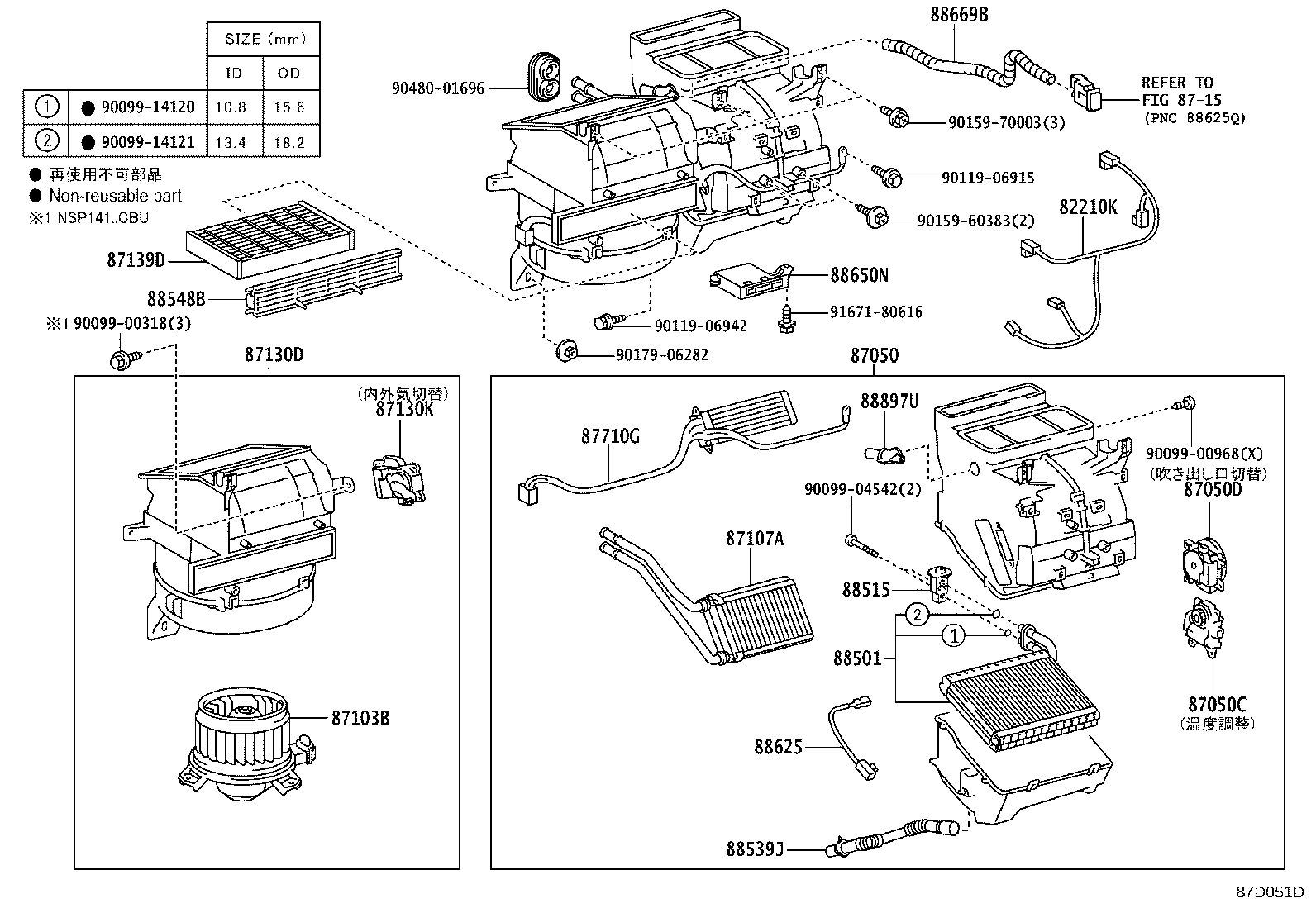

(1207-1507)NCP141,NSP140..F,G,X,Y ; (1207- )NCP145 ; (1507- )NSP141..F,G,X,Y
ｵｰﾄ---ｶﾝﾚｲﾁｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-52030 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-52151 |
NCP14#,NSP140..(F,V,X,Y)..CBU 寒冷地仕様 |
1 | ||
| 87050-52161 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87050-52131 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 87050-52141 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-52080 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87106-52080 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-52090 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87106-52090 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52132 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87103-52121 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 87103-52132 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52061 |
NCP14#,NSP140..CBU |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-52050 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 87130-52061 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87130-52061 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-52100 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87106-52100 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-50100 |
NCP14#,NSP140..CBU 脱臭ﾌｨﾙﾀ |
1 | ||
| 87139-52040 |
NCP14#,NSP140..CBU 花粉ﾌｨﾙﾀ |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-52060 |
NCP14#,NSP140..CBU 寒冷地仕様 |
1 | ||
| 87710-52060 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52103 |
NCP14#,NSP140..CBU |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-68010 |
NCP14#,NSP140..CBU |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
NCP14#,NSP140..CBU |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-52870 |
NCP14#,NSP140..(F,V,X,Y)..CBU 寒冷地仕様 |
1 | ||
| 88650-52850 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88650-52850 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88650-52860 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-52080 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88669-52080 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-32090 |
NCP14#,NSP140..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 88897-32090 |
NCP14#,NSP140..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06915 | ||||
| 90119-06942 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90480-01696 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
