NCP145-AEXXK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1207-1507)NCP141,NSP140 ; (1207- )NCP145 ; (1507- )NSP141

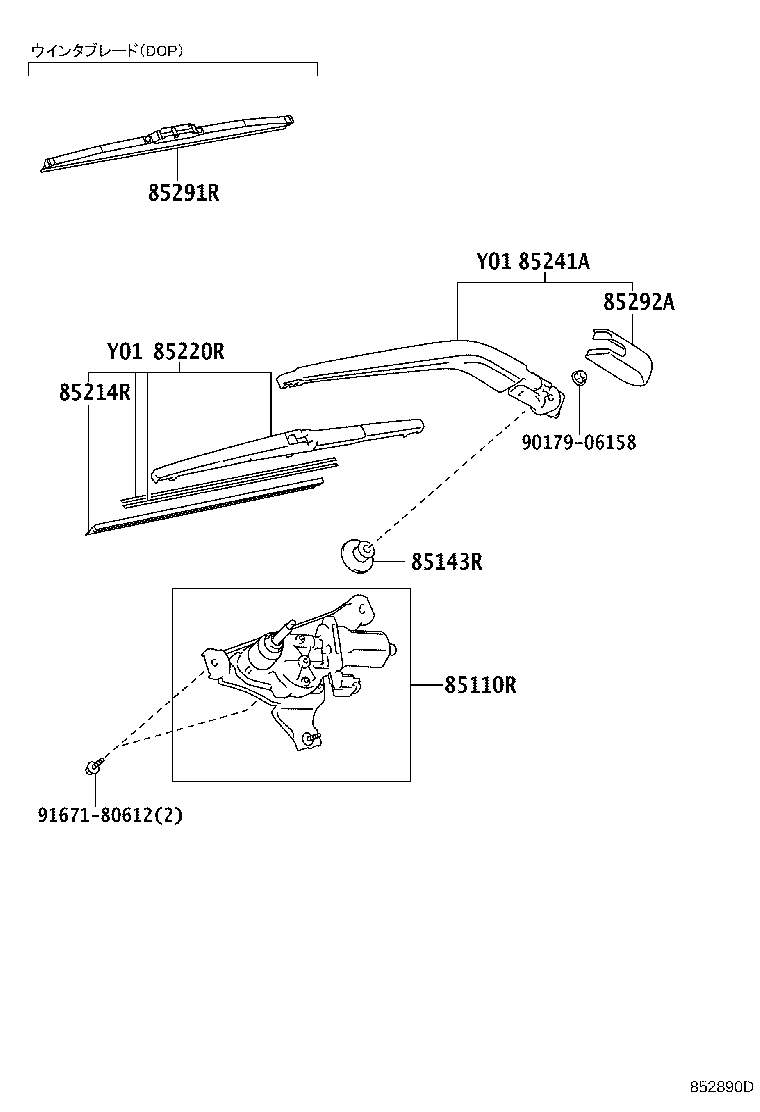

Click highlighted areas on diagram

diagram 85110R 85143R 85214R 85220R 85241A 85291R 85292A 9017906158 9167180612
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-52250

NCP14#,NSP140..CBU

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-52020

NCP14#,NSP140..CBU

 1
85214R - RUBBER, REAR WIPER
85214-30280

NCP14#,NSP140..CBU

 1
85220R - BLADE ASSY, REAR WIPER
85242-52100

NCP14#,NSP140..CBU

 1
85241A - ARM, REAR WIPER
85241-52210

NCP14#,NSP140..CBU

 1
85291R - BLADE,REAR WIPER, WINTER
85291-52120

NCP14#,NSP140..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-42010

NCP14#,NSP140..CBU

 1
Common parts
90179-06158
91671-80612
