NCP145-AEXXK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

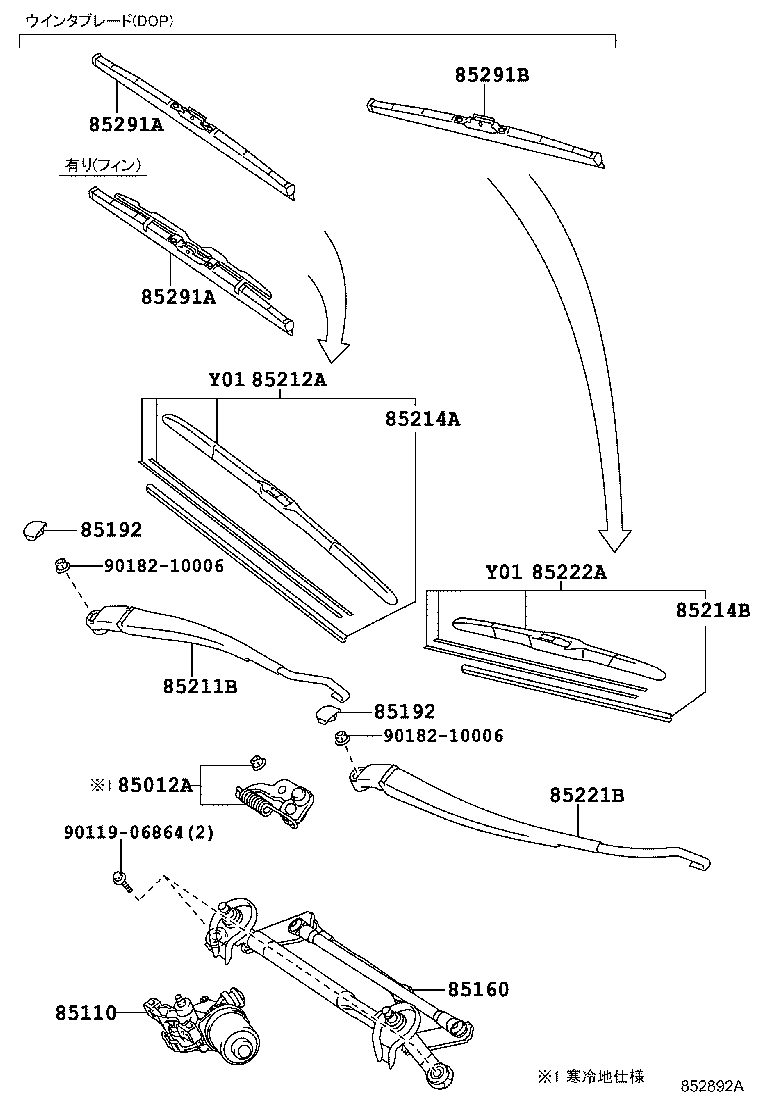

ILLUST NO. 2 OF 2(1207-1507)NCP141,NSP140 ; (1207- )NCP145 ; (1507- )NSP141

Click highlighted areas on diagram

diagram 85012A 85110 85160 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291A 85291B 9011906864 9018210006 9018210006
Part # Description Qty Price
85012A - CRANK SUB-ASSY, FRONT WIPER
85012-50010

NCP14#,NSP140..CBU

寒冷地仕様

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-52711

NCP14#,NSP140..CBU

 1
85110-52710

NCP14#,NSP140..CBU

 1
85110-52721

NCP14#,NSP140..CBU

寒冷地仕様

 1
85110-52712

NCP14#,NSP140..CBU

 1
85110-52720

NCP14#,NSP140..CBU

寒冷地仕様

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-52650

NCP14#,NSP140..CBU

 1
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010

NCP14#,NSP140..CBU

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010

NCP14#,NSP140..CBU

 2
85211B - ARM, FRONT WIPER, RH
85211-52470

NCP14#,NSP140..CBU

 1
85212A - BLADE, FR WIPER, RH
85212-52250

NCP14#,NSP140..CBU

 1
85214A - RUBBER, WIPER, RH
85214-68020

NCP14#,NSP140..CBU

 1
85214-52110

NCP14#,NSP140..CBU

 1
85214B - RUBBER, WIPER, LH
85214-68030

NCP14#,NSP140..CBU

 1
85221B - ARM, FRONT WIPER, LH
85221-52440

NCP14#,NSP140..CBU

 1
85222A - BLADE, FR WIPER, LH
85222-52220

NCP14#,NSP140..CBU

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-60091

NCP14#,NSP140..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)

 1
85291-47040

NCP14#,NSP140..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-60091

NCP14#,NSP140..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)

 1
85291-47040

NCP14#,NSP140..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-28120

NCP14#,NSP140..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
Common parts
90119-06864
90182-10006
