NCP145-AEXXK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1207- )F,G,X,Y

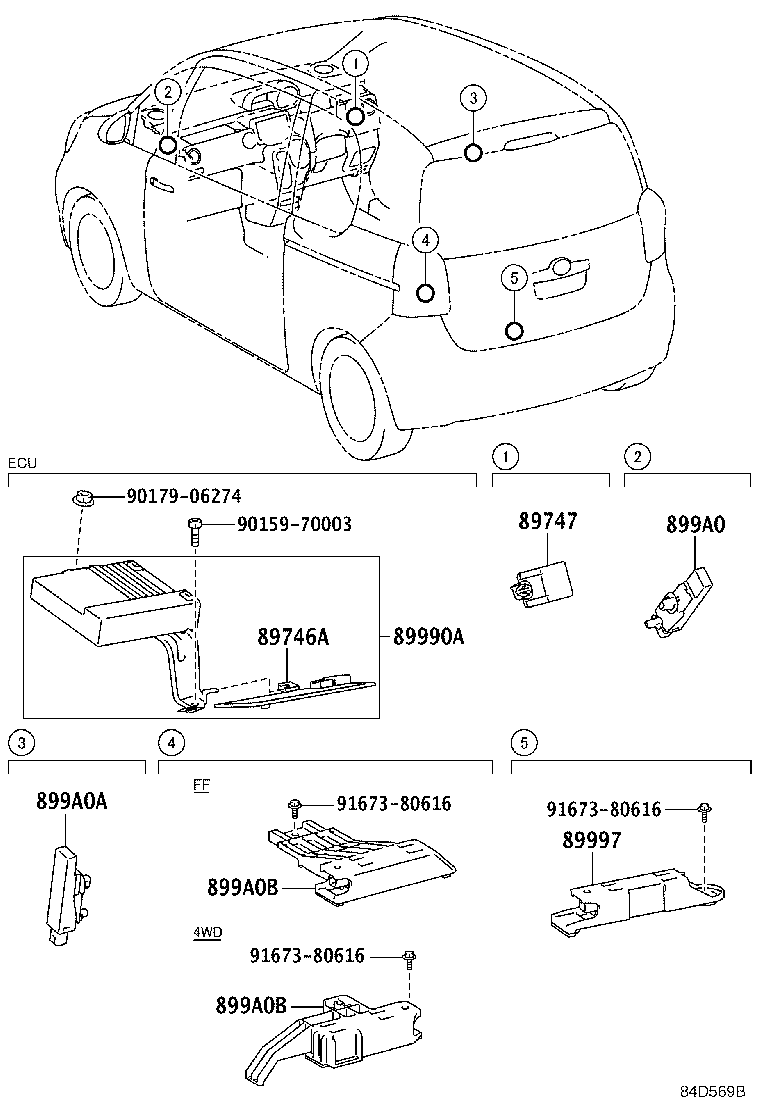

Click highlighted areas on diagram

ｱﾘ(ｽﾏｰﾄ ｴﾝﾄﾘ)

diagram 89746A 89747 89990A 89997 899A0 899A0A 899A0B 899A0B 9015970003 9017906274 9167380616 9167380616 9167380616
Part # Description Qty Price
89746A - HARNESS, ELECTRICAL KEY WIRE
89746-52170

NCP14#,NSP140..(F,G,X,Y)..CBU

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

NCP14#,NSP140..(F,G,X,Y)..CBU

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)

 1
89990A - COMPUTER ASSY, SMART KEY
89990-52350

NCP14#,NSP140..F,G,X,Y

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)

 1
89990-52352

NCP14#,NSP140..(F,G,X,Y)..CBU

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)

 1
89990-52351

NCP14#,NSP140..(F,G,X,Y)..CBU

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)

 1
89997 - ANTENNA, ELECTRICAL KEY
899A0-52110

NCP14#,NSP140..(F,G,X,Y)..CBU

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-52080

NCP14#,NSP140..(F,G,X,Y)..CBU

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-52080

NCP14#,NSP140..(F,G,X,Y)..CBU

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-52100

NCP145..CBU

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-52100

NCP145..CBU

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)

 1
Common parts
90159-70003
90179-06274
91673-80616

(1207- )

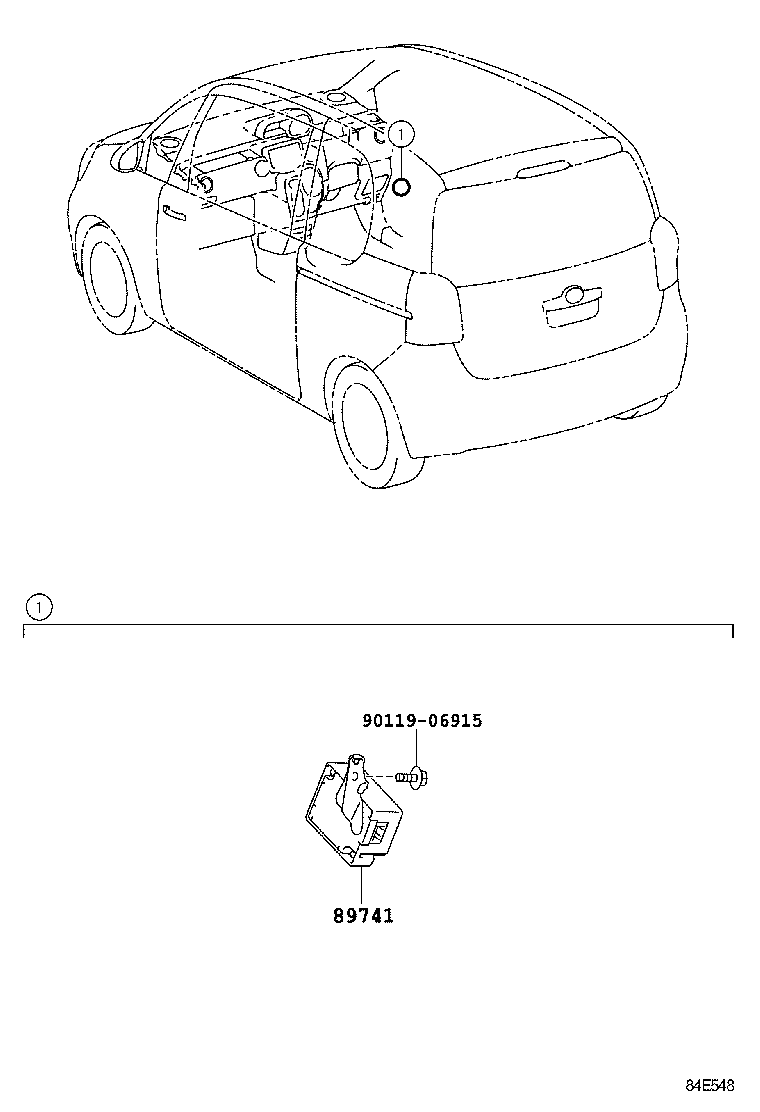

Click highlighted areas on diagram

diagram 89741 9011906915
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89741-52410

NCP14#,NSP140..CBU

 1
Common parts
90119-06915
