NCP145-AEXXK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1207- )NCP145

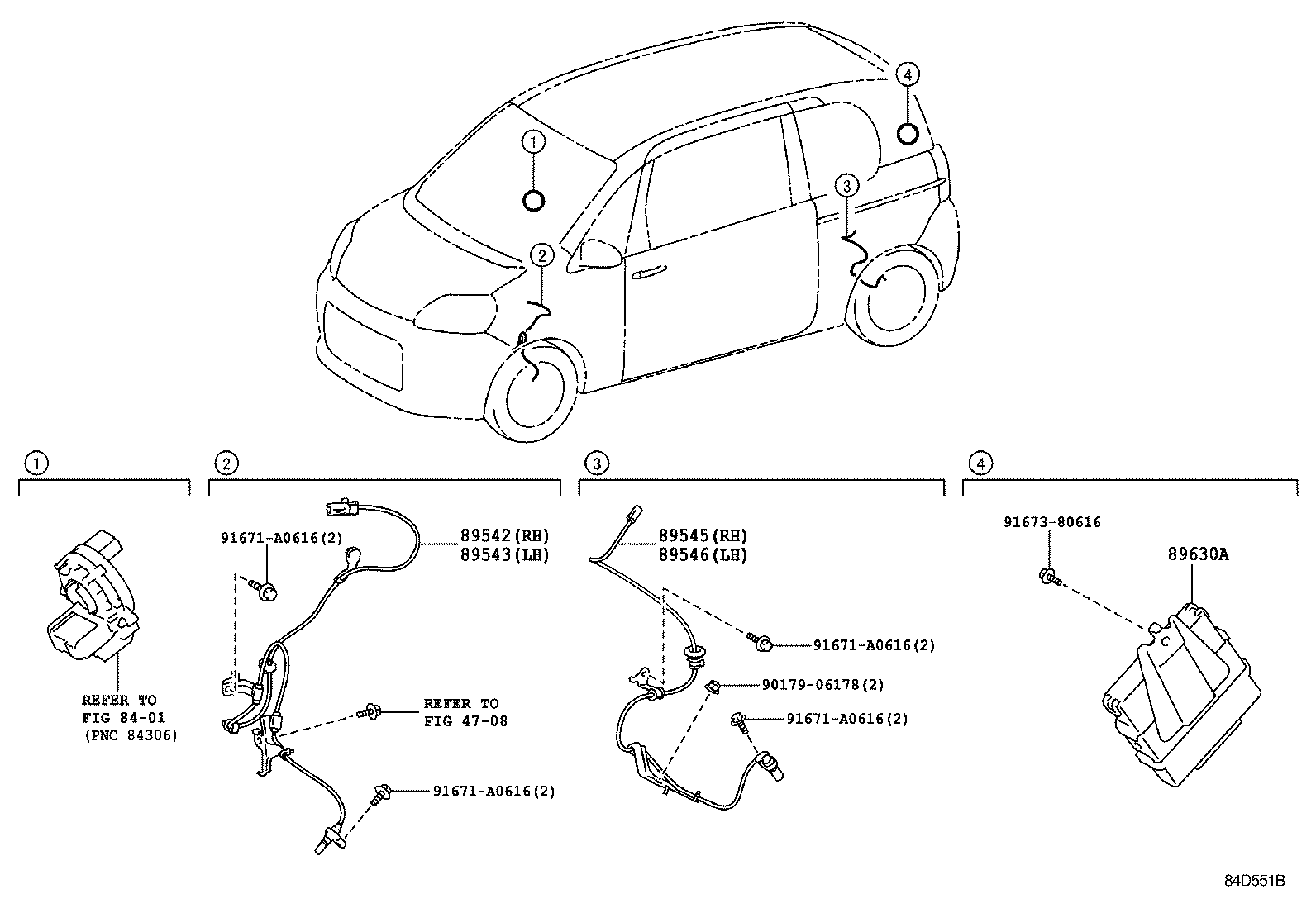

Click highlighted areas on diagram

diagram 4708 8401 89542 89543 89545 89546 89630A 9017906178 91671A0616 91671A0616 91671A0616 91671A0616 9167380616
Part # Description Qty Price
89542 - SENSOR, SPEED, FRONT RH
89542-52090

NCP14#,NSP140..CBU

 1
89542-52090

NCP14#,NSP140..CBU

 1
89543 - SENSOR, SPEED, FRONT LH
89543-52090

NCP14#,NSP140..CBU

 1
89543-52090

NCP14#,NSP140..CBU

 1
89545 - SENSOR, SPEED, REAR RH
89545-52050

NCP145..CBU

 1
89546 - SENSOR, SPEED, REAR LH
89546-52050

NCP145..CBU

 1
89630A - COMPUTER ASSY, 4WD
89630-52060

NCP145..CBU

 1
Common parts
90179-06178
91671-A0616
91673-80616
Linked diagrams
4708
8401
