NCP145-AEXXK (2012)
Toyota Porte/Spade

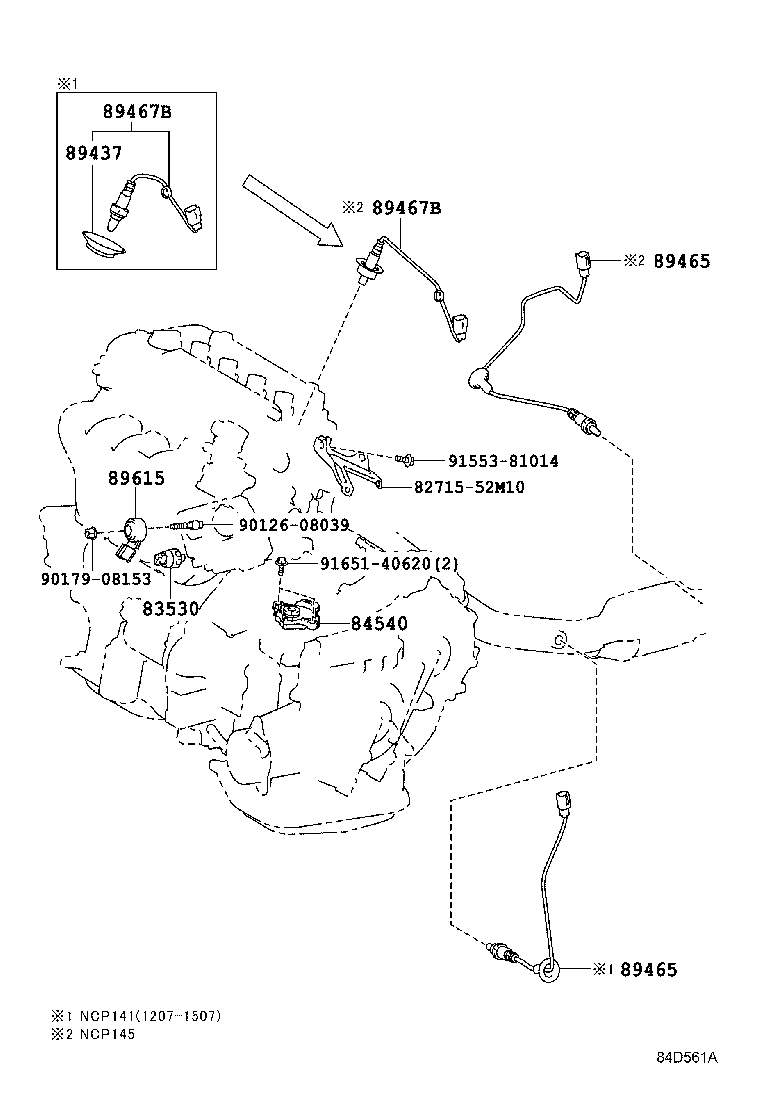

ILLUST NO. 1 OF10(1207- )NCP14#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
NCP14#,NSP140..CBU |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
NCP14#,NSP140..CBU |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52730 |
NCP145..CBU |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52730 |
NCP145..CBU |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52120 |
NCP145..CBU |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52120 |
NCP145..CBU |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 82715-52M10 | ||||
| 90126-08039 | ||||
| 90179-08153 | ||||
| 91553-81014 | ||||
| 91651-40620 | ||||

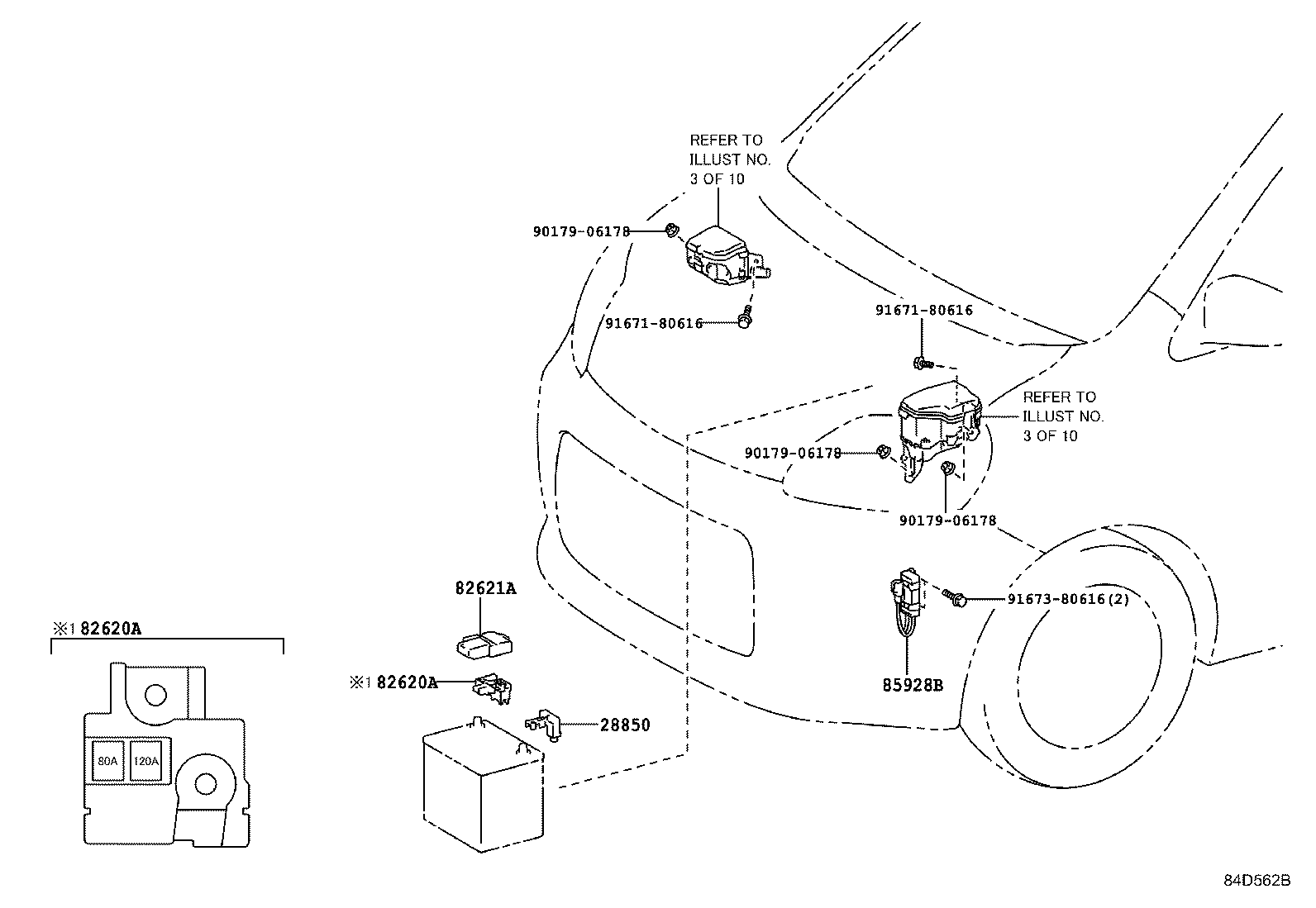

ILLUST NO. 2 OF10(1207-1507)
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-40010 |
1N#..NCP14#,NSP140..CBU |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52070 |
NCP14#,NSP140..CBU |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52070 |
NCP14#,NSP140..CBU |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52140 |
NCP14#,NSP140..CBU |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 85928-52032 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||

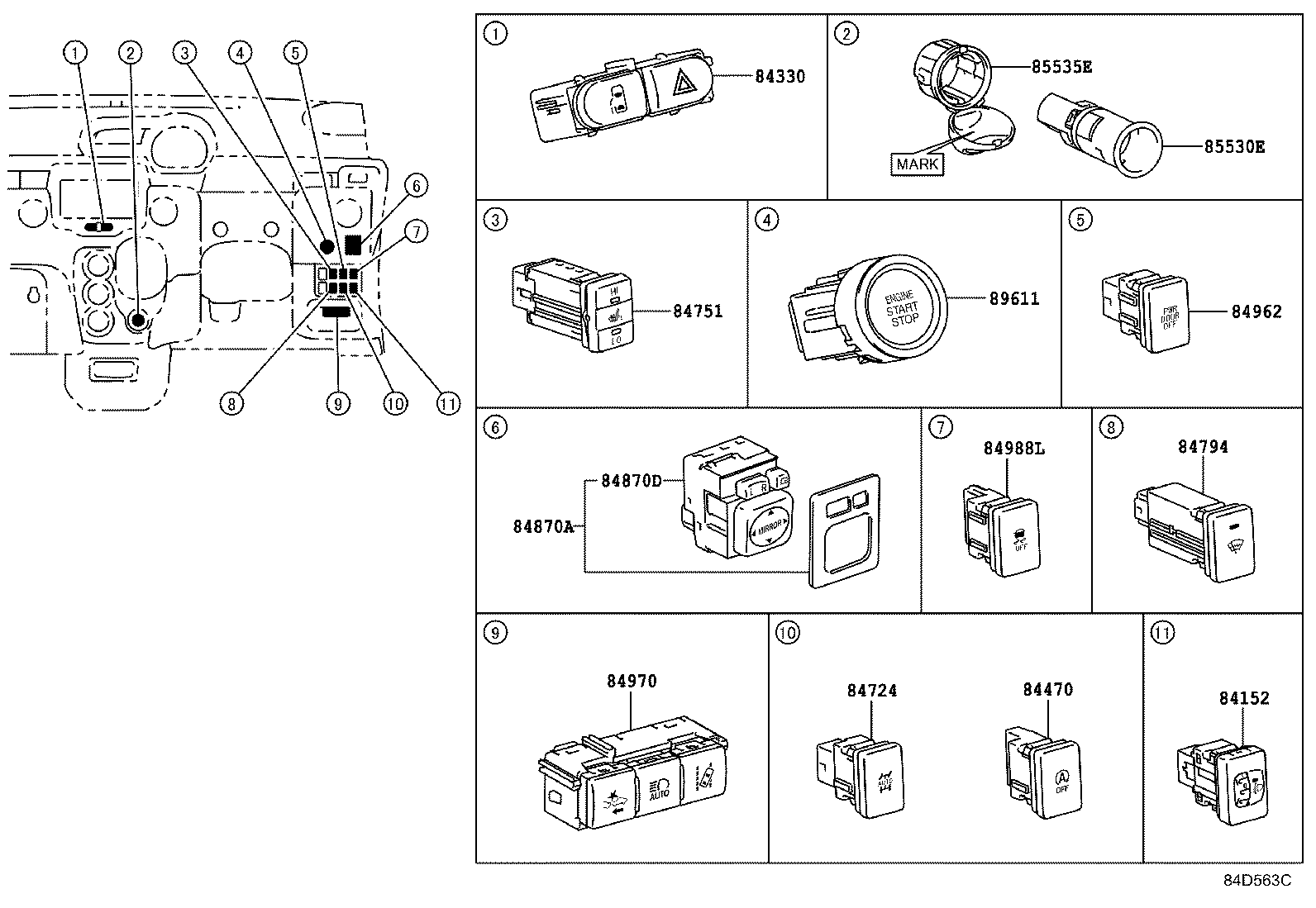

ILLUST NO. 5 OF10(1207- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52090 |
NCP14#,NSP140..CBU |
1 | ||
| 84152-52091 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 84152-52090 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 84152-52091 |
NCP14#,NSP140..CBU |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84330-52060 |
NCP14#,NSP140..CBU |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-52010 |
NCP145..CBU |
1 | ||
| 84724-52011 |
NCP145..CBU |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-35010 |
NCP14#,NSP140..CBU 寒冷地仕様 |
1 | ||
| 84794-35011 |
NCP14#,NSP140..CBU 寒冷地仕様 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-52090 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ) |
1 | ||
| 84870-52091 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ) |
1 | ||
| 84870-52090 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ) |
1 | ||
| 84870-52091 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ) |
1 | ||
| 84870-52091 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ) |
1 | ||
| 84870-52090 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ) |
1 | ||
| 84870-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-52080 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ) |
1 | ||
| 84872-52080 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ) |
1 | ||
| 84872-52081 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ) |
1 | ||
| 84872-52081 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ) |
1 | ||
| 84872-52080 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ) |
1 | ||
| 84872-52081 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ) |
1 | ||
| 84872-52050 |
NCP14#,NSP140..CBU |
1 | ||
| 84962 - SWITCH, POWER SLIDE DOOR MAIN | ||||
| 84962-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 84962-52021 |
NCP14#,NSP140..CBU |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-52080 |
NCP14#,NSP140..CBU |
1 | ||
| 84988-52081 |
NCP14#,NSP140..CBU |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 85530-42010 |
NCP14#,NSP140..CBU |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-52060E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4#,ﾏｰｸ=450 |
1 | ||
| 85535-52061E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4#,ﾏｰｸ=564 |
1 | ||
| 85535-52061E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4#,ﾏｰｸ=564 |
1 | ||
| 85535-52060E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4#,ﾏｰｸ=450 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52031 |
NCP14#,NSP140..F,G,X,Y ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 89611-52033 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 89611-52032 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||

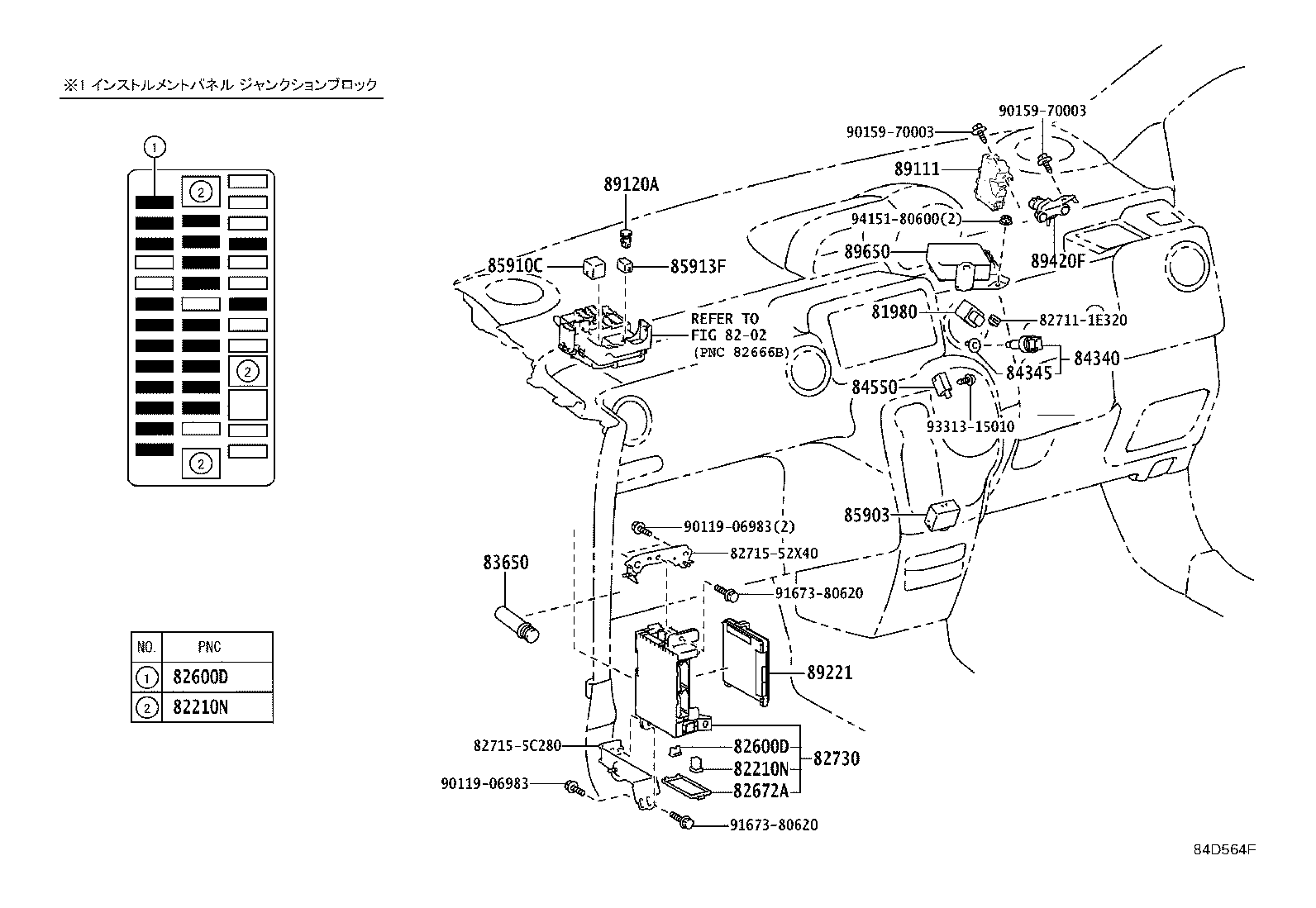

ILLUST NO. 4 OF10(1207- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
NCP14#,NSP140..CBU |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
NCP14#,NSP140..CBU 30A,ﾒｽ端子,桃 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
NCP14#,NSP140..CBU 30A,ﾒｽ端子,桃 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
NCP14#,NSP140..CBU 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09020 |
NCP14#,NSP140..CBU 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09022 |
NCP14#,NSP140..CBU 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
NCP14#,NSP140..CBU 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
NCP14#,NSP140..CBU 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09019 |
NCP14#,NSP140..CBU 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
NCP14#,NSP140..CBU 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09020 |
NCP14#,NSP140..CBU 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09022 |
NCP14#,NSP140..CBU 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
NCP14#,NSP140..CBU 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
NCP14#,NSP140..CBU 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09019 |
NCP14#,NSP140..CBU 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-52070 |
NCP14#,NSP140..CBU |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-52F70 |
NCP141..G;NCP145..CBU |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
NCP14#,NSP140..CBU |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69115 |
NCP14#,NSP140..CBU |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
NCP14#,NSP140..CBU |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
NCP14#,NSP140..CBU |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 85903-52020 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-52010 |
NCP14#,NSP140..CBU 寒冷地仕様 |
1 | ||
| 89121-52010 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 89121-52010 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-52680 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 89220-52680 |
NCP14#,NSP140..CBU 寒冷地仕様 |
1 | ||
| 89220-52680 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 89220-52681 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 89220-52670 |
NCP14#,NSP140..CBU |
1 | ||
| 89220-52681 |
NCP14#,NSP140..CBU 寒冷地仕様 |
1 | ||
| 89220-52681 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-52C60 |
NCP14#,NSP140..(F,G,X,Y)..CBU JTEKT/DENSO,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 89650-52460 |
NCP14#,NSP140..CBU JTEKT/DENSO |
1 | ||
| Common parts | ||||
| 82711-1E320 | ||||
| 82715-52X40 | ||||
| 82715-5C280 | ||||
| 90119-06983 | ||||
| 90159-70003 | ||||
| 91673-80620 | ||||
| 93313-15010 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||

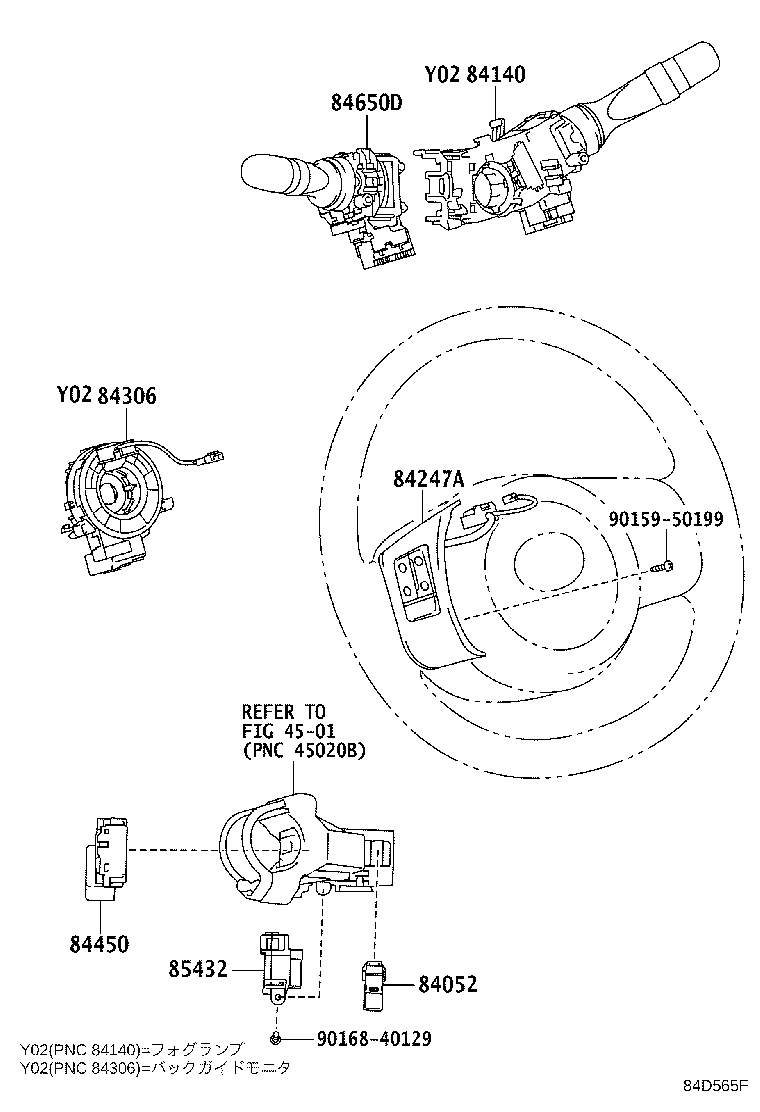

ILLUST NO. 6 OF10(1207-1507)
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
NCP14#,NSP140..CBU |
1 | ||
| 84052-71010 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42070 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 84140-42040 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 84140-42080 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-42060 |
NCP14#,NSP140..PORTE..CBU 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-52100E0 |
NCP14#,NSP140..(G,X)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ用4ｽﾋﾟｰｶ,PLUM,TRIM4# |
1 | ||
| 84247-52100E0 |
NCP141..Y;NCP145..SPADE..Y;NCP145..PORTE..(F,Y);NCP141..PORTE..F..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ用4ｽﾋﾟｰｶ,PLUM,TRIM0#,4# |
1 | ||
| 84247-52100E0 |
NCP141..Y;NCP145..SPADE..Y;NCP145..PORTE..(F,Y);NCP141..PORTE..F..CBU ｵｰﾃﾞｨｵ−CDﾗｼﾞｵ 4ｽﾋﾟｰｶ,PLUM,TRIM0#,4# |
1 | ||
| 84247-52100E0 |
NCP14#,NSP140..(G,X)..CBU ｵｰﾃﾞｨｵ−CDﾗｼﾞｵ 4ｽﾋﾟｰｶ,PLUM,TRIM4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84307-12120 |
NCP14#,NSP140..(F,G,X,Y)..CBU ｵｰﾃﾞｨｵ−CDﾗｼﾞｵ 4ｽﾋﾟｰｶ |
1 | ||
| 84307-12130 |
NCP14#,NSP140..CBU |
1 | ||
| 84307-12120 |
NCP14#,NSP140..(F,G,X,Y)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ用4ｽﾋﾟｰｶ |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52020 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 84450-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-52251 |
NCP14#,NSP140..CBU |
1 | ||
| 84652-52250 |
NCP14#,NSP140..CBU |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 85432-52010 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

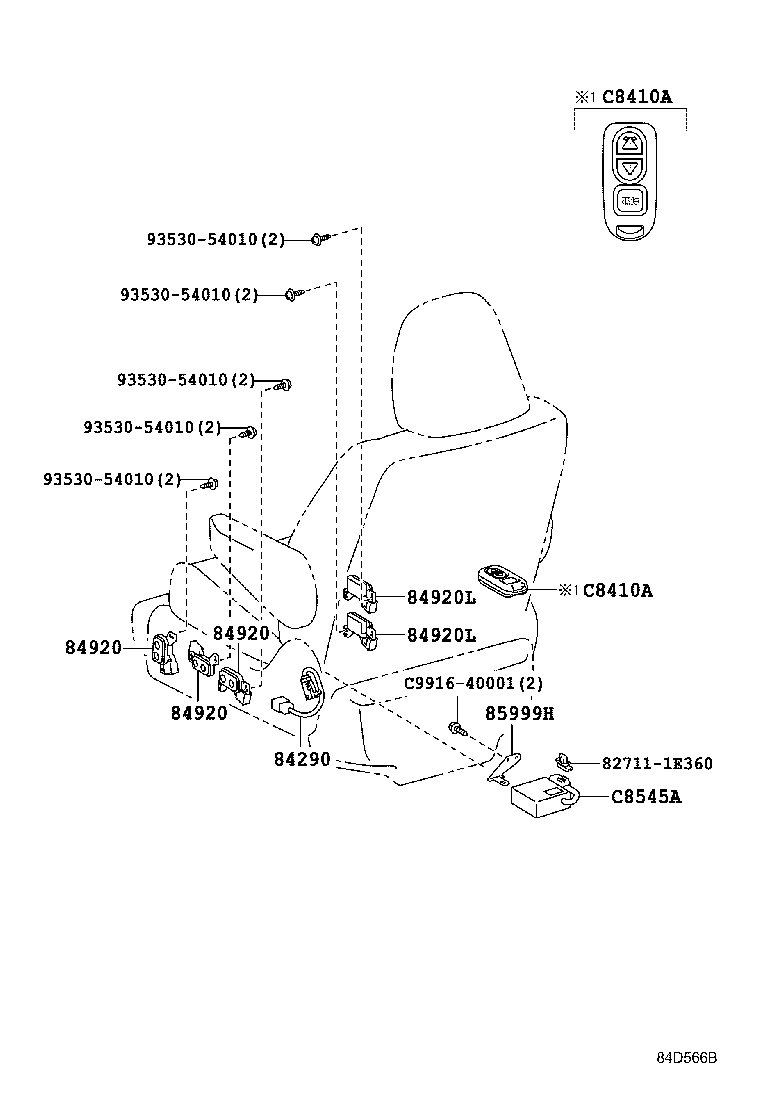

ILLUST NO. 7 OF10(1207- )NSP141 ; (1207- )NCP14#,NSP140
ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84290 - SWITCH ASSY, LIMIT | ||||
| 84290-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 84290-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-D1040C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
3 | ||
| 84920-D1040C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
3 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-D1040C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
3 | ||
| 84920-D1040C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
3 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-D1040C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
3 | ||
| 84920-D1040C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
3 | ||
| 84920L - SWITCH ASSY, POWER SEAT, NO.2 | ||||
| 84920-D1050C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
2 | ||
| 84920-D1050C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
2 | ||
| 84920L - SWITCH ASSY, POWER SEAT, NO.2 | ||||
| 84920-D1050C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
2 | ||
| 84920-D1050C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
2 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-D1330 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 85999-D1330 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C8410A - SWITCH ASSY, POWER LIFT CONTROL | ||||
| C8410-D1161 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C8410-D1161 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C8410A - SWITCH ASSY, POWER LIFT CONTROL | ||||
| C8410-D1161 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C8410-D1161 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C8545A - RELAY, POWER LIFT CONTROL | ||||
| C8545-D1400 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C8545-D1400 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 93530-54010 | ||||
| C9916-40001 | ||||

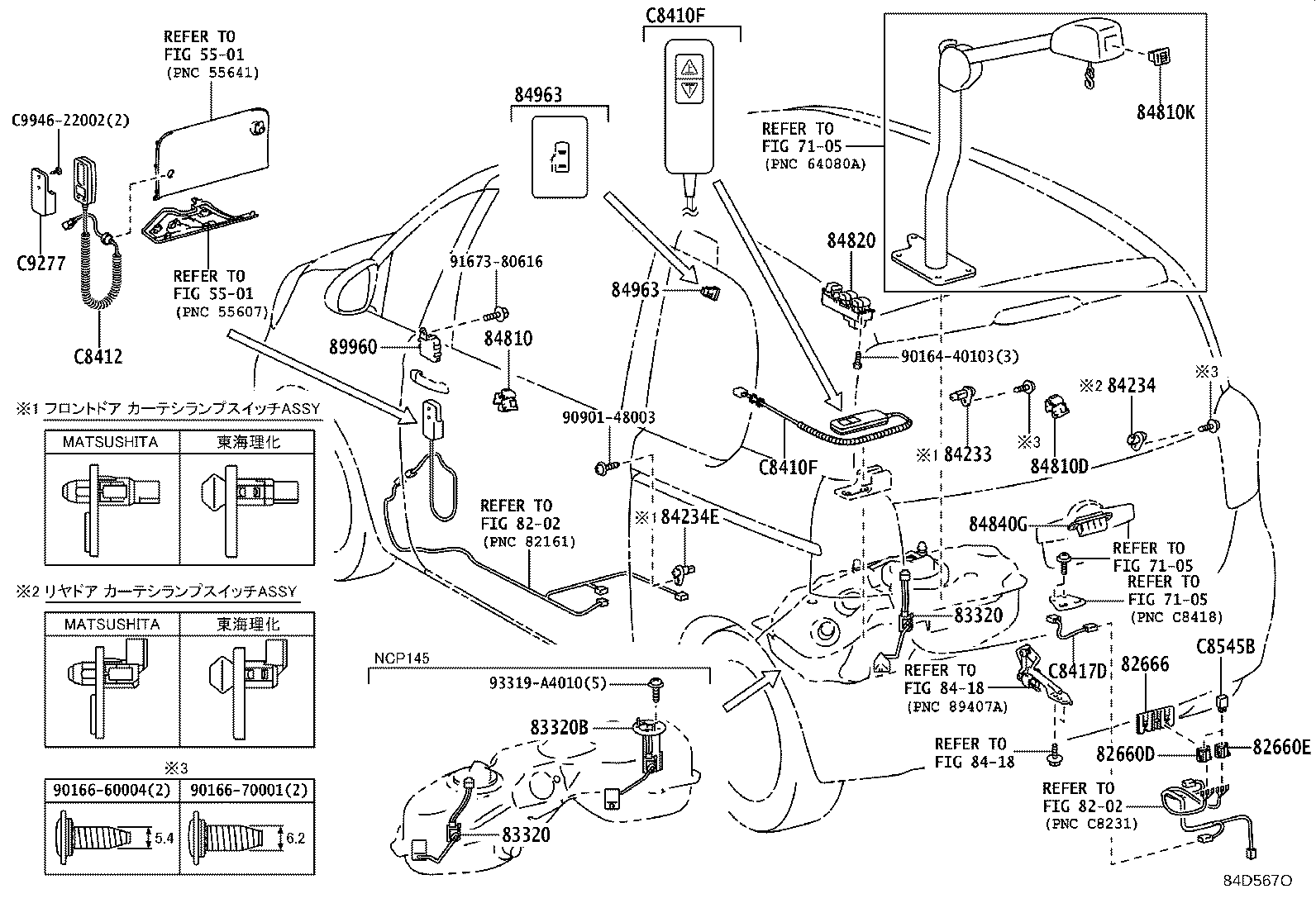

ILLUST NO.10 OF10(1207- )
ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾊﾞｯｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52190 |
NCP145..CBU |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52190 |
NCP145..CBU |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-59505 |
NCP145..CBU |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
NCP14#,NSP140..CBU 東海理化 |
1 | ||
| 84231-52010 |
NCP14#,NSP140..CBU MATSUSHITA |
1 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
NCP14#,NSP140..CBU MATSUSHITA |
1 | ||
| 84231-53010 |
NCP14#,NSP140..CBU 東海理化 |
1 | ||
| 84234E - SWITCH, COURTESY LAMP (FOR SLIDE DOOR) | ||||
| 84231-60070 |
NCP14#,NSP140..CBU 東海理化 |
1 | ||
| 84231-52010 |
NCP14#,NSP140..CBU MATSUSHITA |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 84810K - SWITCH, CHAIR LIFT ARM | ||||
| 84810-3206022 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK |
1 | ||
| 84810-3206022 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,BLACK |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-52350 |
NCP14#,NSP140..CBU |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28040 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 84840-28030 |
NCP14#,NSP140..CBU |
1 | ||
| 84963 - SWITCH, POWER SLIDE DOOR CONTROL, NO.1 | ||||
| 84963-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 84963-52021 |
NCP14#,NSP140..CBU |
1 | ||
| 84963 - SWITCH, POWER SLIDE DOOR CONTROL, NO.1 | ||||
| 84963-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 84963-52021 |
NCP14#,NSP140..CBU |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-52470 |
NCP145..PORTE..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60004 | ||||
| 90166-70001 | ||||
| 90901-48003 | ||||
| 91673-80616 | ||||
| 93319-A4010 | ||||
| C9946-22002 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 7105 | ||||
| 8202 | ||||
| 8418 | ||||
ILLUST NO. 3 OF10(1207-1507)
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300E - RELAY ASSY, STARTER, NO.1 | ||||
| 28300-21020 |
1N#..NCP14#,NSP140..CBU |
1 | ||
| 28300-28010 |
1N#..NCP14#,NSP140..CBU |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08300 |
NCP14#,NSP140..CBU 50A−30A−30A,ﾒｽ端子,赤 |
1 | ||
| 90982-08296 |
NCP14#,NSP140..CBU 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08305 |
NCP14#,NSP140..CBU 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08294 |
NCP14#,NSP140..CBU 40A,ﾒｽ端子,緑 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09022 |
NCP14#,NSP140..CBU 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
NCP14#,NSP140..CBU 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09025 |
NCP14#,NSP140..CBU 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09020 |
NCP14#,NSP140..CBU 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
NCP14#,NSP140..CBU 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 82630F - HOLDER, FUSE | ||||
| 82631-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-52060 |
NCP14#,NSP140..CBU 寒冷地仕様 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NCP14#,NSP140..CBU |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-52850 |
NCP14#,NSP140..CBU |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52661 |
NCP14#,NSP140..CBU |
1 | ||
| 82662-52701 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-52080 |
NCP14#,NSP140..CBU |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52090 |
NCP14#,NSP140..CBU |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12130 |
NCP14#,NSP140..CBU |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-52080 |
NCP14#,NSP140..CBU |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
NCP14#,NSP140..CBU |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
2 | ||
| 90987-02025 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
NCP14#,NSP140..CBU |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
NCP14#,NSP140..CBU |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
