NCP145-AEXXK (2012)
Toyota Porte/Spade

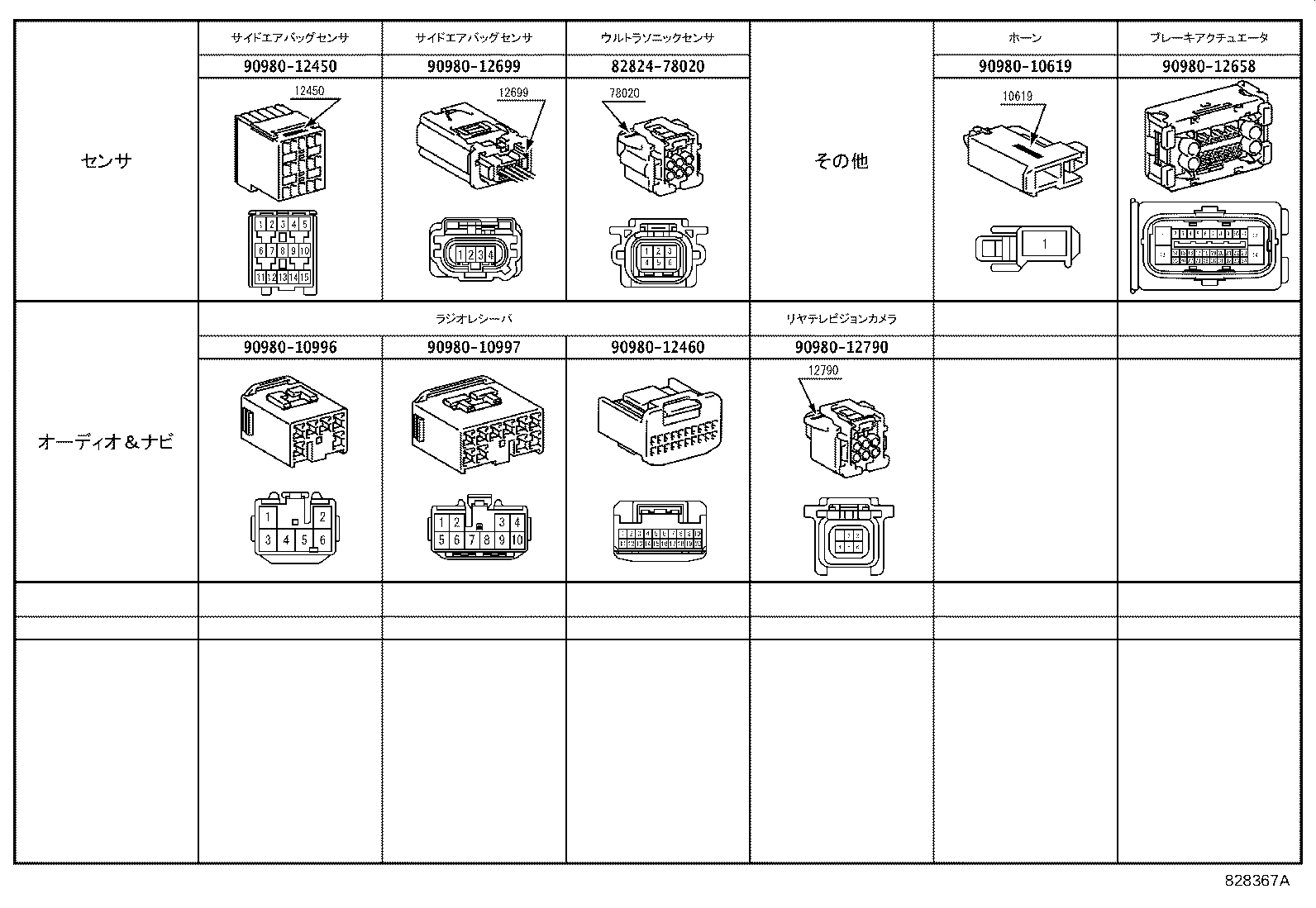

ILLUST NO. 8 OF 8(1207- )
ｺﾈｸﾀ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12450 | ||||
| 90980-12460 | ||||
| 90980-12658 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||

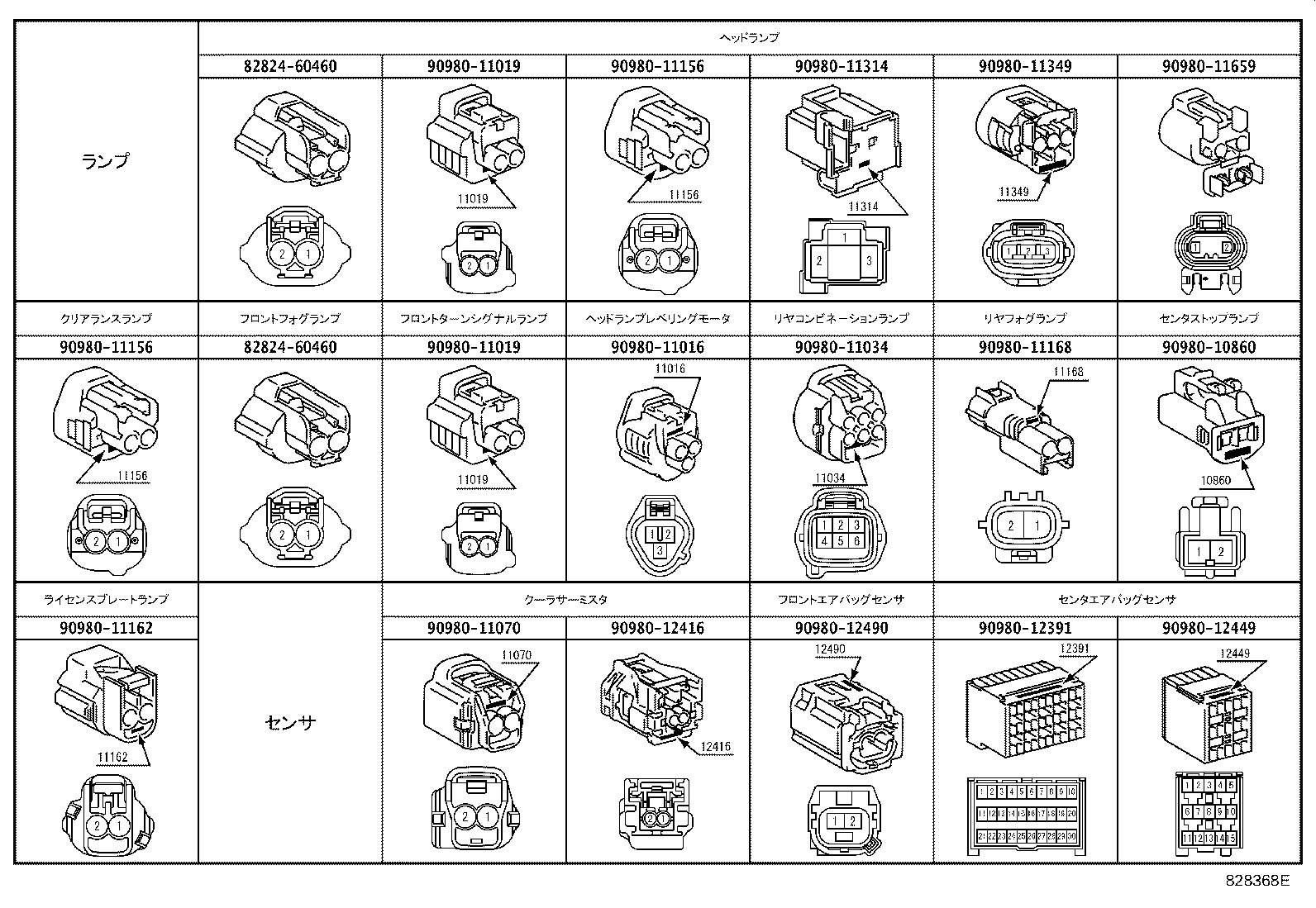

ILLUST NO. 7 OF 8(1207- )
ｺﾈｸﾀ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10860 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11034 | ||||
| 90980-11070 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11168 | ||||
| 90980-11314 | ||||
| 90980-11349 | ||||
| 90980-11659 | ||||
| 90980-12391 | ||||
| 90980-12416 | ||||
| 90980-12449 | ||||
| 90980-12490 | ||||

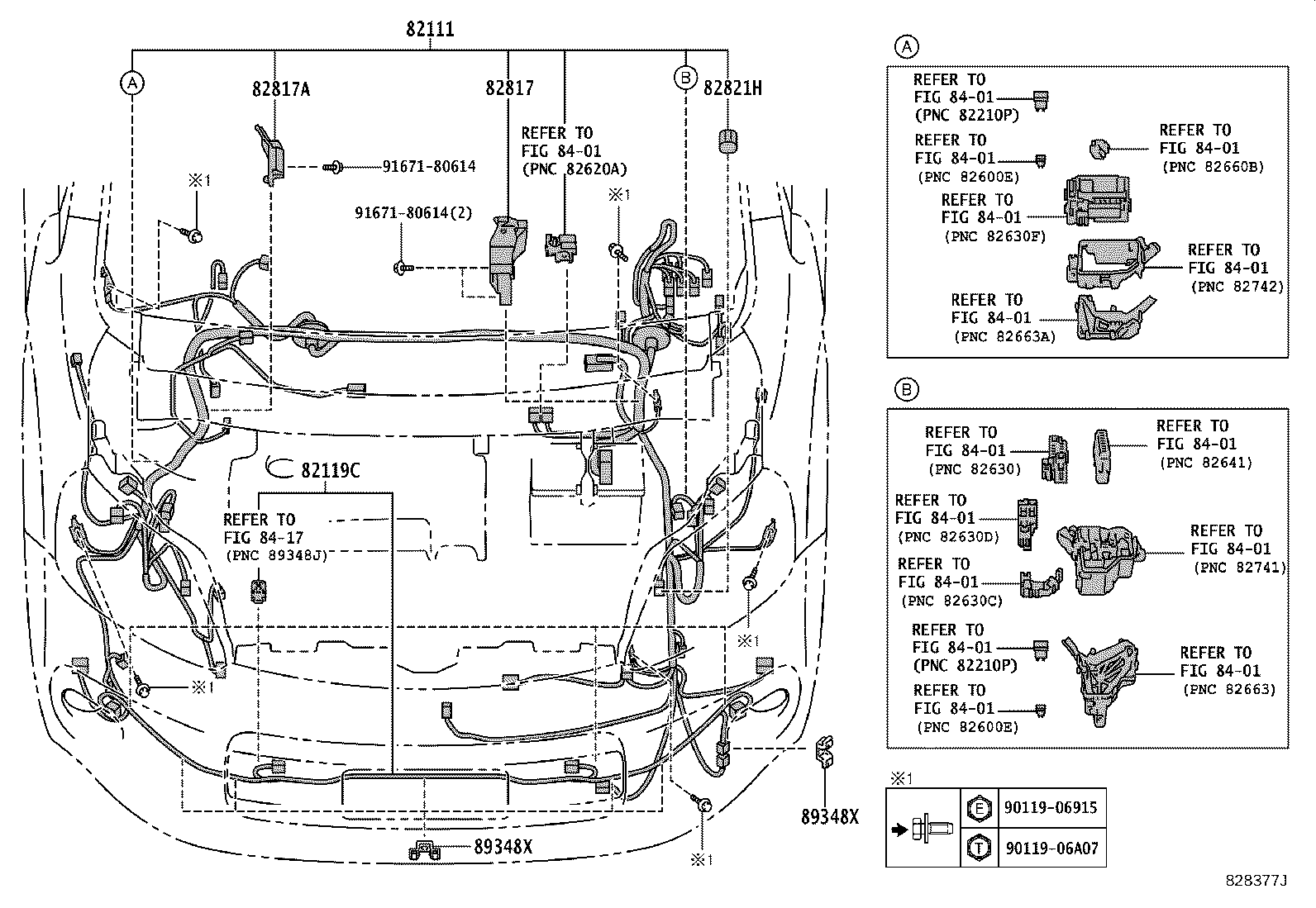

ILLUST NO. 1 OF 8(1207-1507)NCP141 ; (1207- )NCP145
ｴﾝｼﾞﾝ ﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-5CS50 |
NCP14#..PORTE..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 82111-5CS50 |
NCP14#..PORTE..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 82111-5CS50 |
NCP14#..PORTE..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 82111-5CS50 |
NCP14#..PORTE..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 82111-5CT10 |
NCP14#..PORTE..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 82111-5CT10 |
NSP140..PORTE..V;NCP14#..PORTE..CBU 寒冷地仕様 |
1 | ||
| 82111-5CT00 |
NSP140..PORTE..V;NCP14#..PORTE..CBU |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-52A20 |
NCP14#,NSP140..CBU |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52C00 |
NCP14#,NSP140..CBU |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-35040 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A07 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||

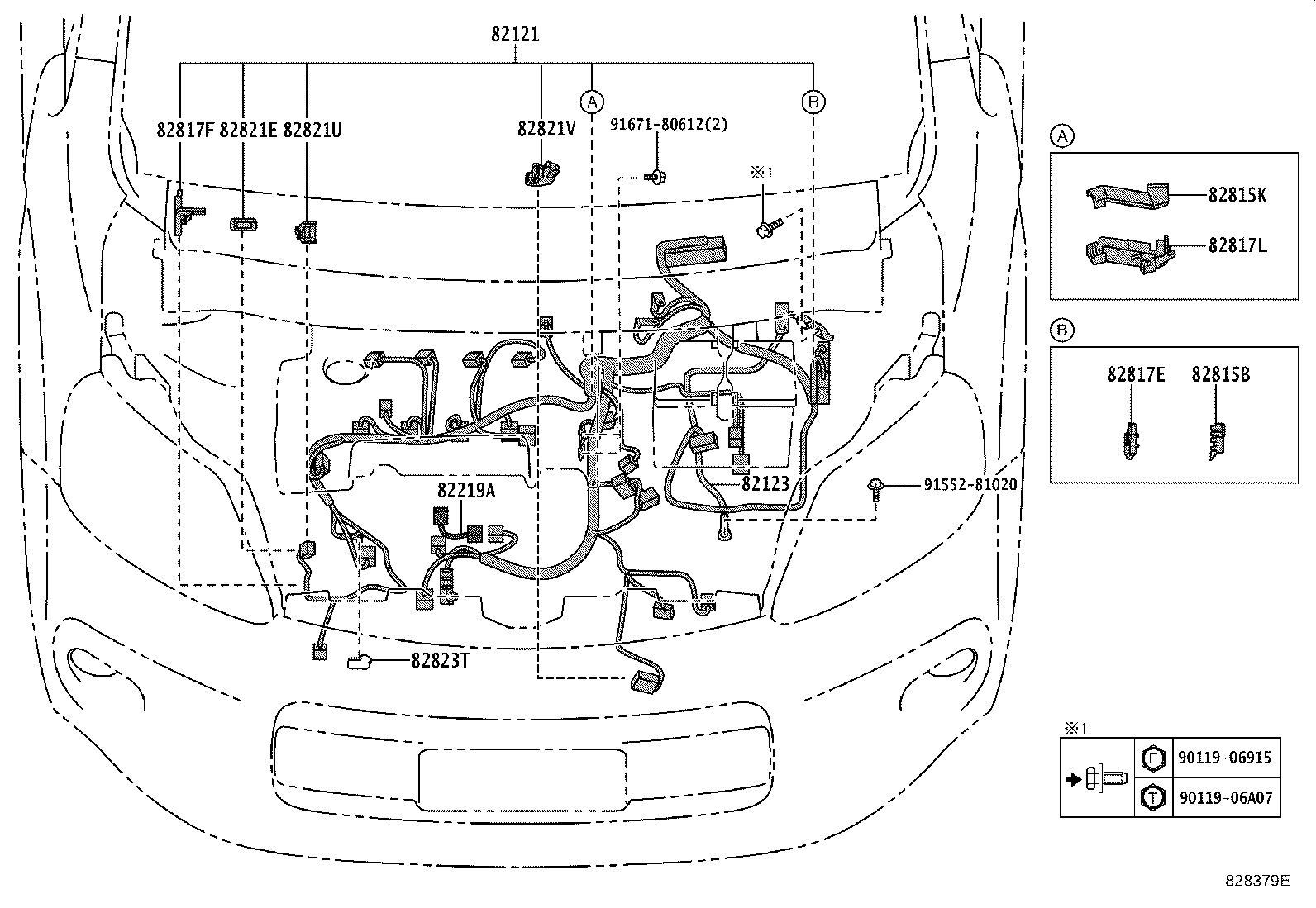

ILLUST NO. 2 OF 8(1207-1507)NCP141 ; (1207- )NCP145
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-12Q30 |
NCP145..CBU |
1 | ||
| 82121-12U50 |
NCP145..CBU |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-52350 |
NCP14#..CBU |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-52040 |
NCP14#..CBU |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-52120 |
NCP14#..CBU |
1 | ||
| 82815-52120 |
NCP145..CBU |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-52050 |
NCP14#..CBU |
1 | ||
| 82815-52050 |
NCP145..CBU |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-52850 |
NCP145..CBU |
1 | ||
| 82817-52850 |
NCP14#..CBU |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-52610 |
NCP145..CBU |
1 | ||
| 82817-52610 |
NCP14#..CBU |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-20410 |
NCP14#..CBU |
1 | ||
| 82821-20410 |
NCP145..CBU |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A07 | ||||
| 91552-81020 | ||||
| 91671-80612 | ||||

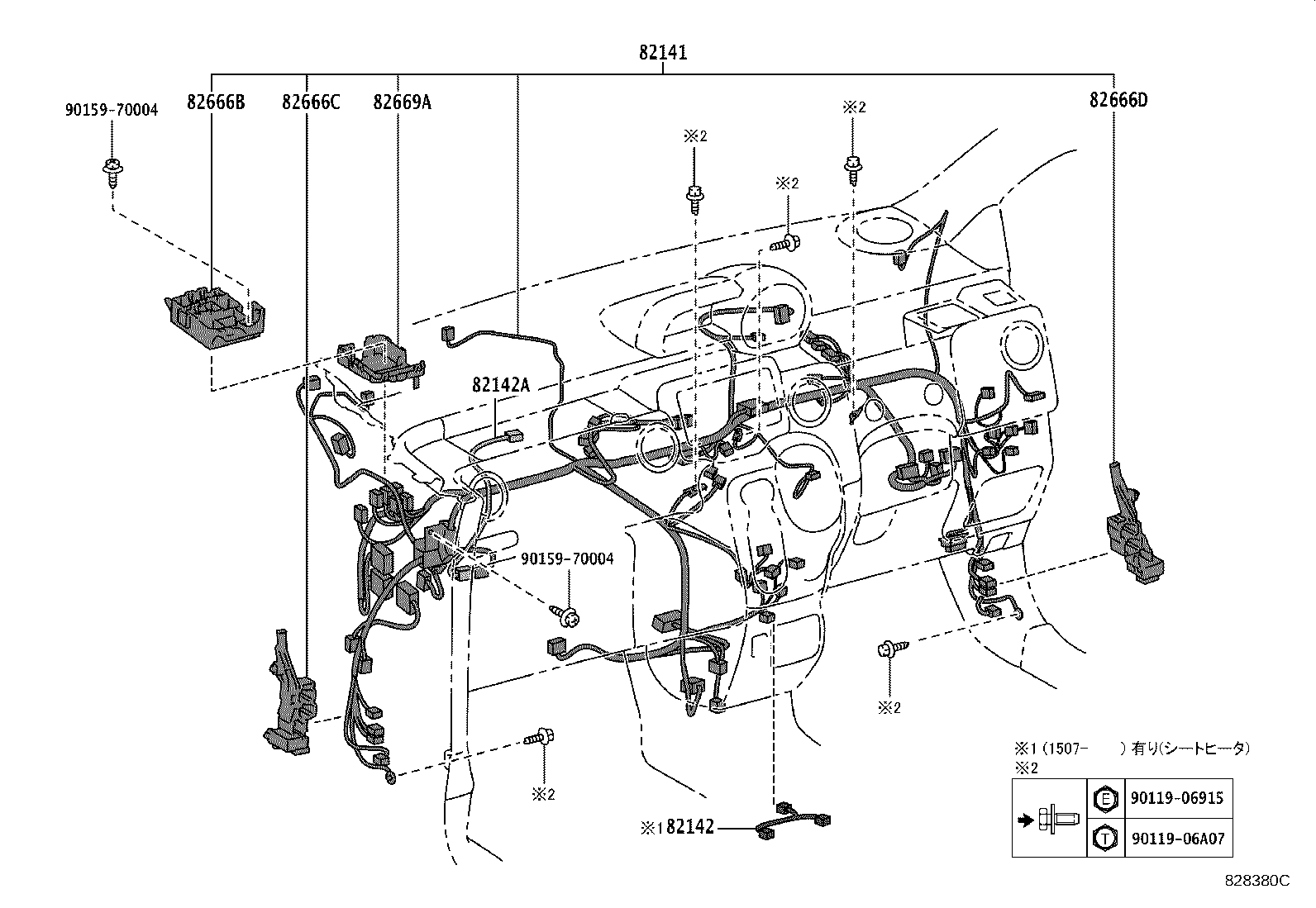

ILLUST NO. 3 OF 8(1207-1507)NCP141,NSP140 ; (1207- )NCP145 ; (1507- )NSP141
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-52F30 |
NSP140..V;NCP14#..(F,X,Y)..CBU |
1 | ||
| 82145-52F50 |
NSP140..V;NCP14#..(F,X,Y)..CBU 寒冷地仕様 |
1 | ||
| 82145-52F50 |
NCP14#..PORTE..(F,X,Y)..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 82145-52F60 |
NCP14#..(F,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 82145-52F50 |
NCP14#..PORTE..(F,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 82145-52F70 |
NCP14#..PORTE..(F,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 82145-52F70 |
NCP14#..(F,X,Y)..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 82145-52F80 |
NCP14#..(F,X,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 82145-52F70 |
NCP14#..PORTE..(F,X,Y)..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 82145-52G00 |
NCP14#..PORTE..(F,X,Y)..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 82145-52G00 |
NCP14#..PORTE..(F,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 82145-52G10 |
NCP14#..(F,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 82145-52G00 |
NCP14#..(F,X,Y)..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 82145-52G20 |
NCP14#..(F,X,Y)..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 82145-52G20 |
NCP14#..PORTE..(F,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 82145-52G20 |
NCP14#..PORTE..(F,X,Y)..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 82145-52Z30 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 82145-52Z30 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 82145-52Z30 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 82145-52Z30 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 82145-52Z30 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 82145-52Z30 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 82145-52Z30 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 82145-52Z40 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 82145-52Z30 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 82145-52Z40 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 82145-52Z40 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 82145-52Z40 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 82145-52Z30 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 82145-52Z40 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 82145-52Z40 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 82145-52Z40 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 82145-52Z50 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 82145-52Z40 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 82145-52Z50 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 82145-52Z40 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 82145-52Z50 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 82145-52Z60 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 82145-52Z60 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 82145-52Z60 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-52150 |
NCP14#,NSP140..CBU |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-52160 |
NCP14#,NSP140..CBU |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-52170 |
NCP14#,NSP140..CBU |
1 | ||
| 82669A - COVER, CONNECTOR HOLDER BLOCK, LOWER | ||||
| 82669-52010 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A07 | ||||
| 90159-70004 | ||||

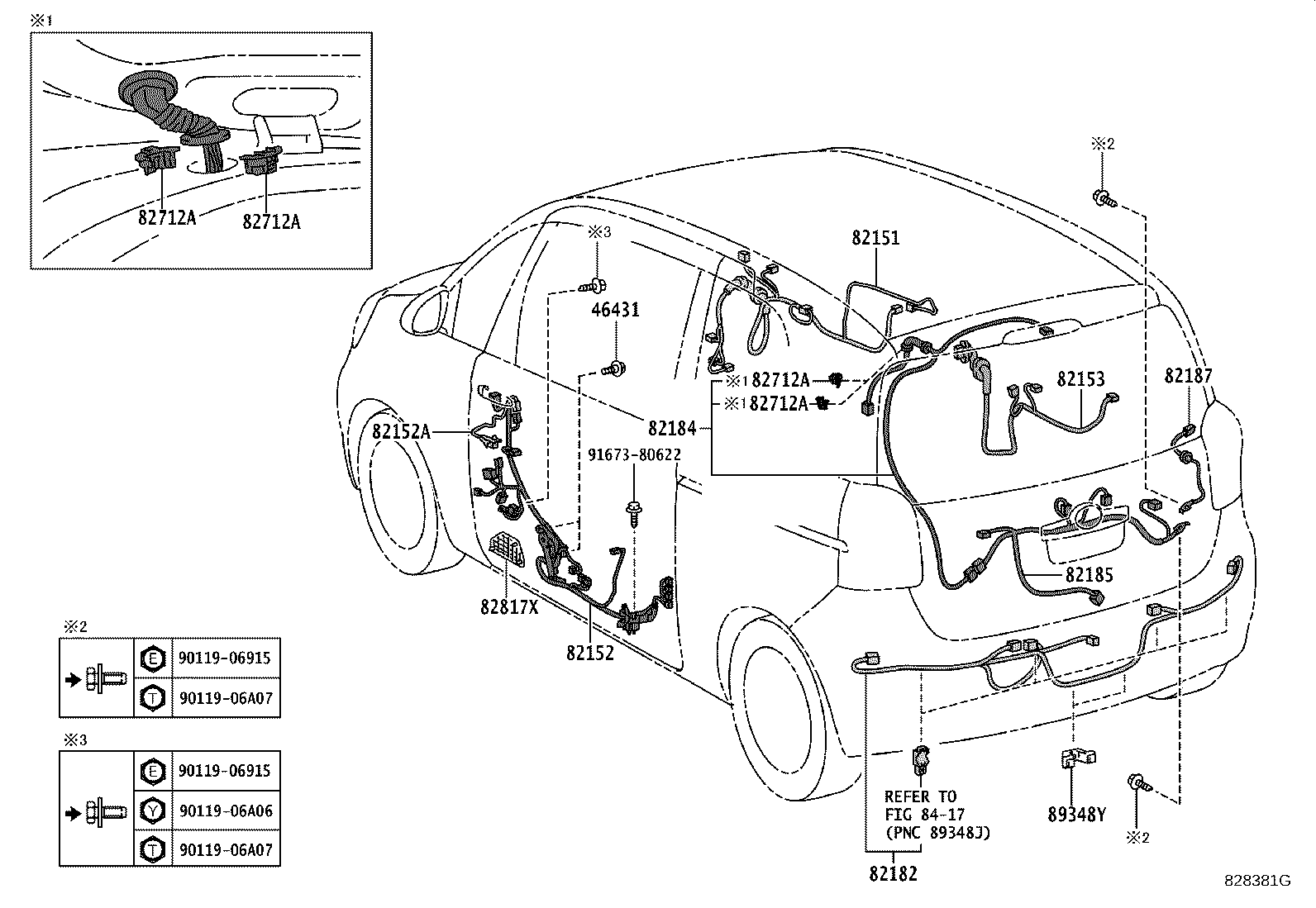

ILLUST NO. 4 OF 8(1207-1507)NCP141,NSP140 ; (1207- )NCP145 ; (1507- )NSP141
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46431 - BOLT, WIRE | ||||
| 46431-58010 |
NCP14#,NSP140..CBU |
2 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-52V40 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 82151-52V20 |
NCP14#,NSP140..CBU |
1 | ||
| 82151-52V40 |
NCP14#,NSP140..(F,G,X,Y)..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82052-52070E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 82052-52070E0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 82052-52070E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 82052-52060E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 82052-52070E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 82052-52060E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 82052-52070E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 82052-52070E0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 82052-52070E0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 82052-52070E0 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM0#,4# |
1 | ||
| 82052-52070E0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 82052-52070E0 |
NCP14#,NSP140..(G,X)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM4# |
1 | ||
| 82052-52070E0 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM4# |
1 | ||
| 82052-52070E0 |
NCP14#..(F,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM0#,4# |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82156-52010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 82156-52010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 82156-52010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 82156-52010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 82156-52010 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 82156-52010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 82156-52010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 82156-52010 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 82156-52010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 82156-52010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-52500 |
NCP14#,NSP140..CBU |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-52670 |
NCP14#,NSP140..CBU |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-52860 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ用4ｽﾋﾟｰｶ |
1 | ||
| 82185-52850 |
NCP14#,NSP140..CBU |
1 | ||
| 82185-52860 |
NCP14#,NSP140..(F,G,X,Y)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ用4ｽﾋﾟｰｶ |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-52100 |
NCP14#,NSP140..CBU |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-52130 |
NCP14#,NSP140..CBU |
2 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-52130 |
NCP14#,NSP140..CBU |
2 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-52130 |
NCP14#,NSP140..CBU |
2 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-52130 |
NCP14#,NSP140..CBU |
2 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-52E40 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
| 90119-06A07 | ||||
| 91673-80622 | ||||
| Linked diagrams | ||||
| 8417 | ||||

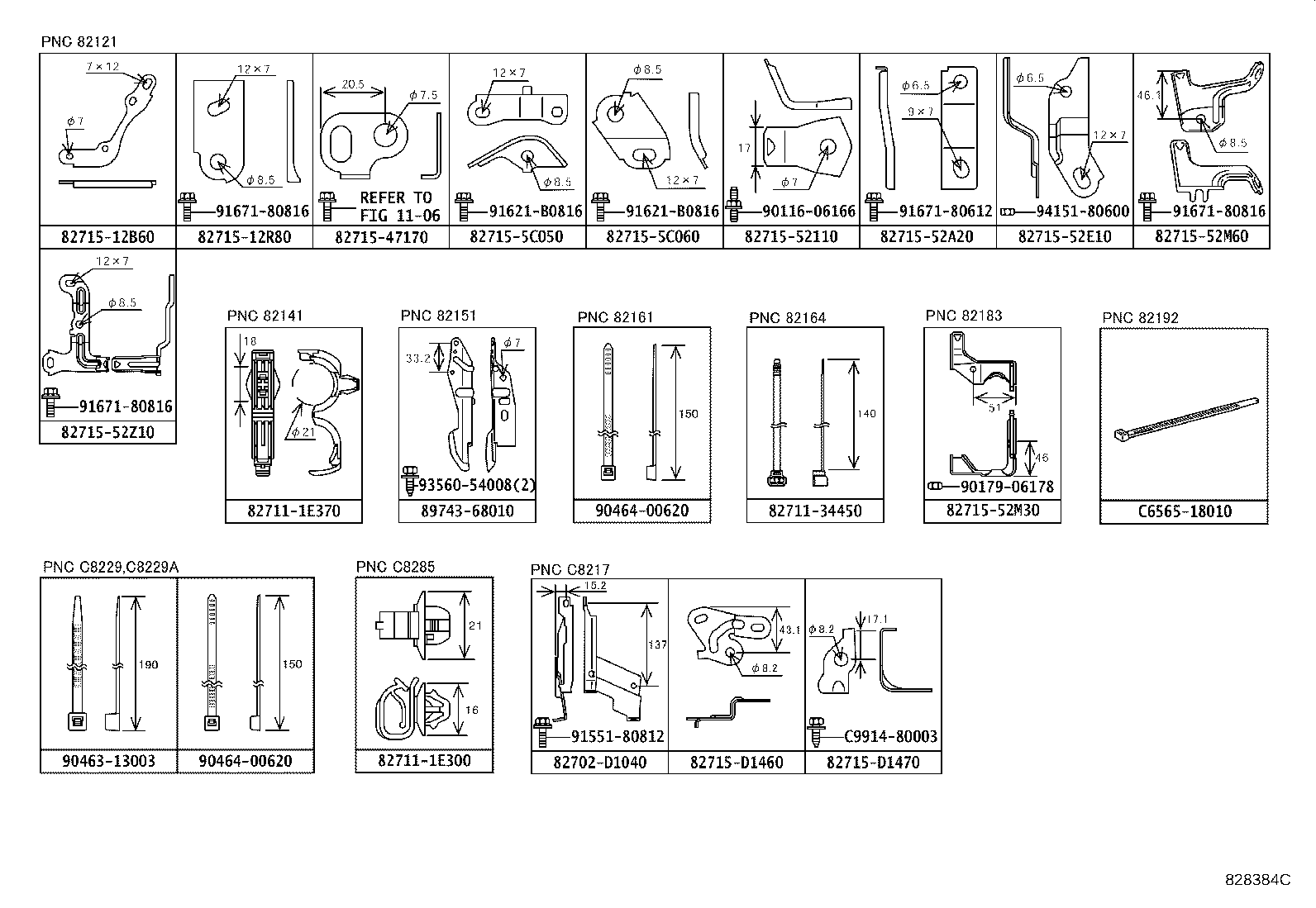

ILLUST NO. 6 OF 8(1207-1507)NCP141 ; (1207- )NCP145
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-D1040 | ||||
| 82711-1E300 | ||||
| 82711-1E370 | ||||
| 82711-34450 | ||||
| 82715-12B60 | ||||
| 82715-12R80 | ||||
| 82715-47170 | ||||
| 82715-52110 | ||||
| 82715-52A20 | ||||
| 82715-52E10 | ||||
| 82715-52M30 | ||||
| 82715-52M60 | ||||
| 82715-52Z10 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-D1460 | ||||
| 82715-D1470 | ||||
| 89743-68010 | ||||
| 90116-06166 | ||||
| 90179-06178 | ||||
| 90463-13003 | ||||
| 90464-00620 | ||||
| 91551-80812 | ||||
| 91621-B0816 | ||||
| 91671-80612 | ||||
| 91671-80816 | ||||
| 93560-54008 | ||||
| 94151-80600 | ||||
| C6565-18010 | ||||
| C9914-80003 | ||||
| Linked diagrams | ||||
| 1106 | ||||

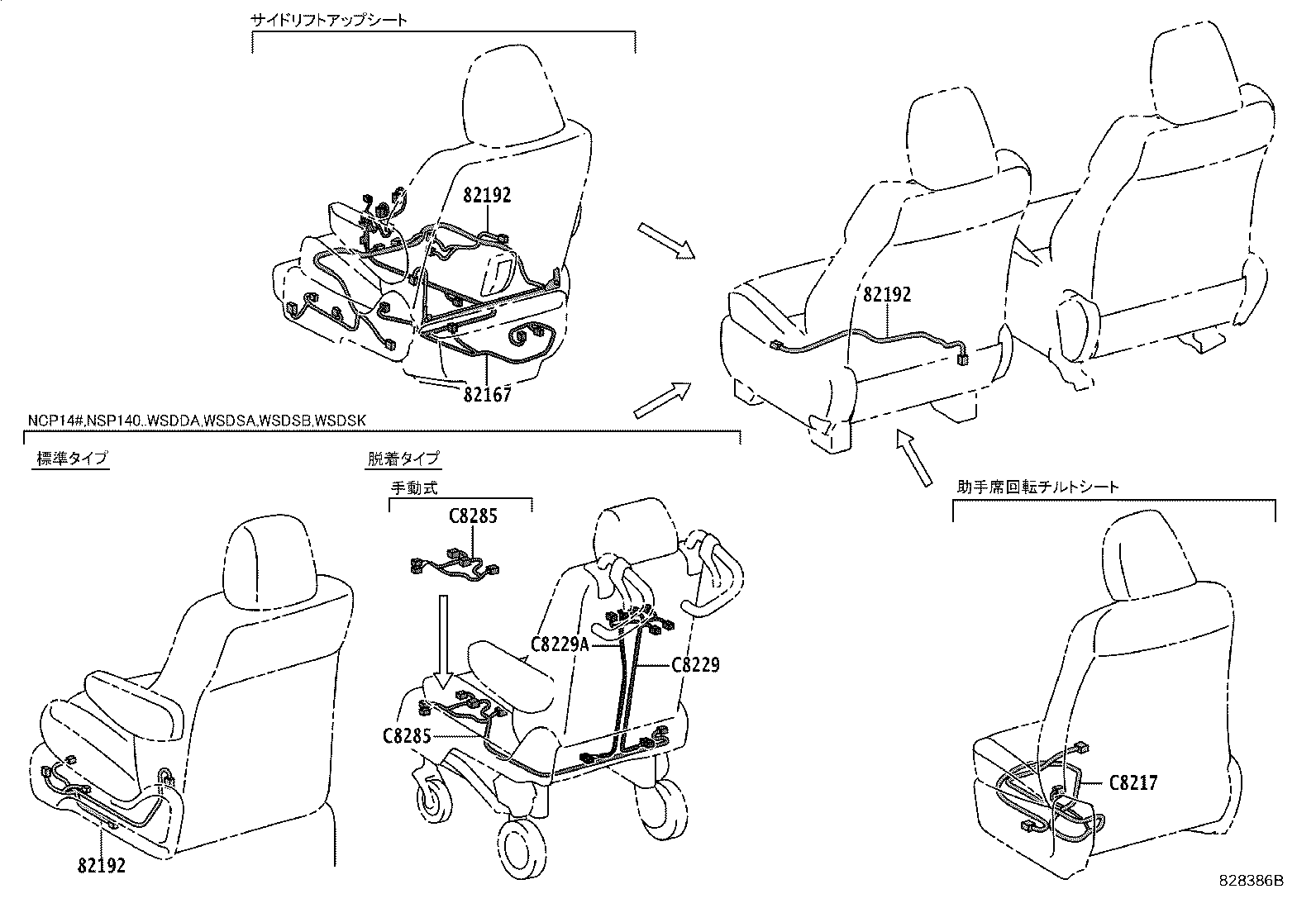

ILLUST NO. 5 OF 8(1207-1507)NCP141,NSP140 ; (1207- )NCP145 ; (1507- )NSP141
ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-52040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 82167-52040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 82167-52050 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 82167-52040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 82167-52050 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式) |
1 | ||
| 82167-52040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 82167-52050 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 82167-52050 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 82192-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 82192-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 82192-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 82192-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 82192-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 82192-D1080 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||

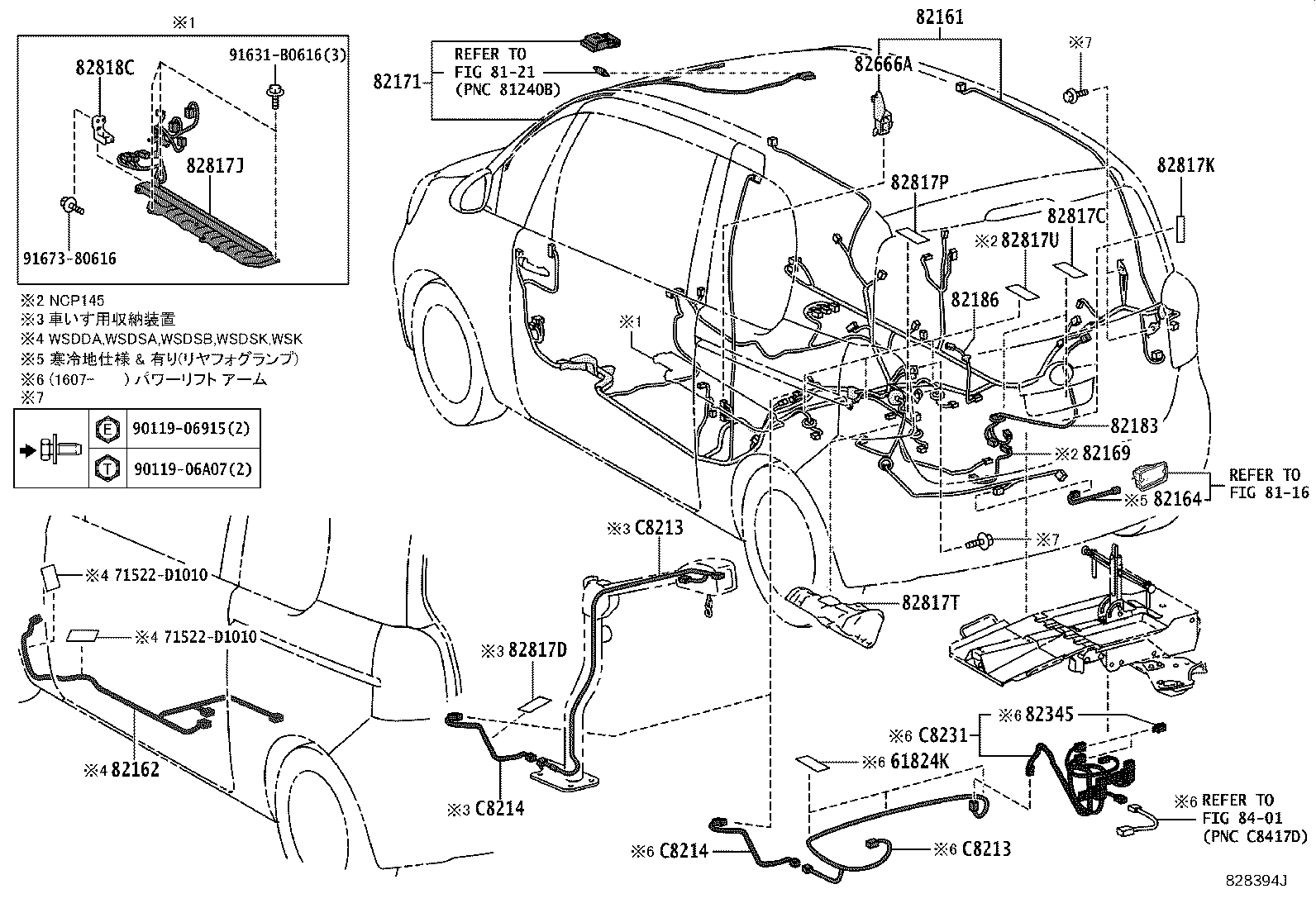

ILLUST NO. 5 OF 8(1207-1507)NCP141,NSP140 ; (1207- )NCP145 ; (1507- )NSP141 ; (1607- )NCP14
ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-5CP70 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 82161-5CP70 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 82161-5CP70 |
NCP145..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 82161-5CP60 |
NCP145..CBU |
1 | ||
| 82161-5CP70 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 82161-5CP70 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-52180 |
NCP14#,NSP140..CBU 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-52010 |
NCP145..CBU |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-52640 |
NCP14#,NSP140..CBU |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-52050 |
NCP145..CBU |
1 | ||
| 82183-52070 |
NCP145..PORTE..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 82183-52070 |
NCP145..PORTE..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 82183-52070 |
NCP145..PORTE..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-52170 |
NCP14#,NSP140..CBU |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-52200 |
NCP14#,NSP140..CBU |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-52710 |
NCP145..CBU |
2 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-52710 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 82817-52710 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82807-52040E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 82807-52040E0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 82807-52040E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 82807-52040E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 82807-52040E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 82807-52050E0 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM0#,4# |
1 | ||
| 82807-52040E0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 82807-52050E0 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM4# |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-52A60 |
NCP145..CBU |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-52710 |
NCP145..CBU |
3 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-52E00 |
NCP14#,NSP140..CBU |
1 | ||
| 82817-52E00 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 82817-52E00 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 82817-52E00 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式) |
1 | ||
| 82817-52E00 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C8213 - WIRE, POWER LIFT MOTOR TO BODY | ||||
| C8213-12010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C8213-12010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C8213 - WIRE, POWER LIFT MOTOR TO BODY | ||||
| C8213-12010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C8213-12010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C8214 - WIRE, POWER LIFT MOTOR | ||||
| C8214-52030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C8214-52030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C8214 - WIRE, POWER LIFT MOTOR | ||||
| C8214-52030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C8214-52030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| Common parts | ||||
| 71522-D1010 | ||||
| 90119-06915 | ||||
| 90119-06A07 | ||||
| 91631-B0616 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
