NCP145-AEXXK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1207- )NCP14#,NSP140 ; (1507- )

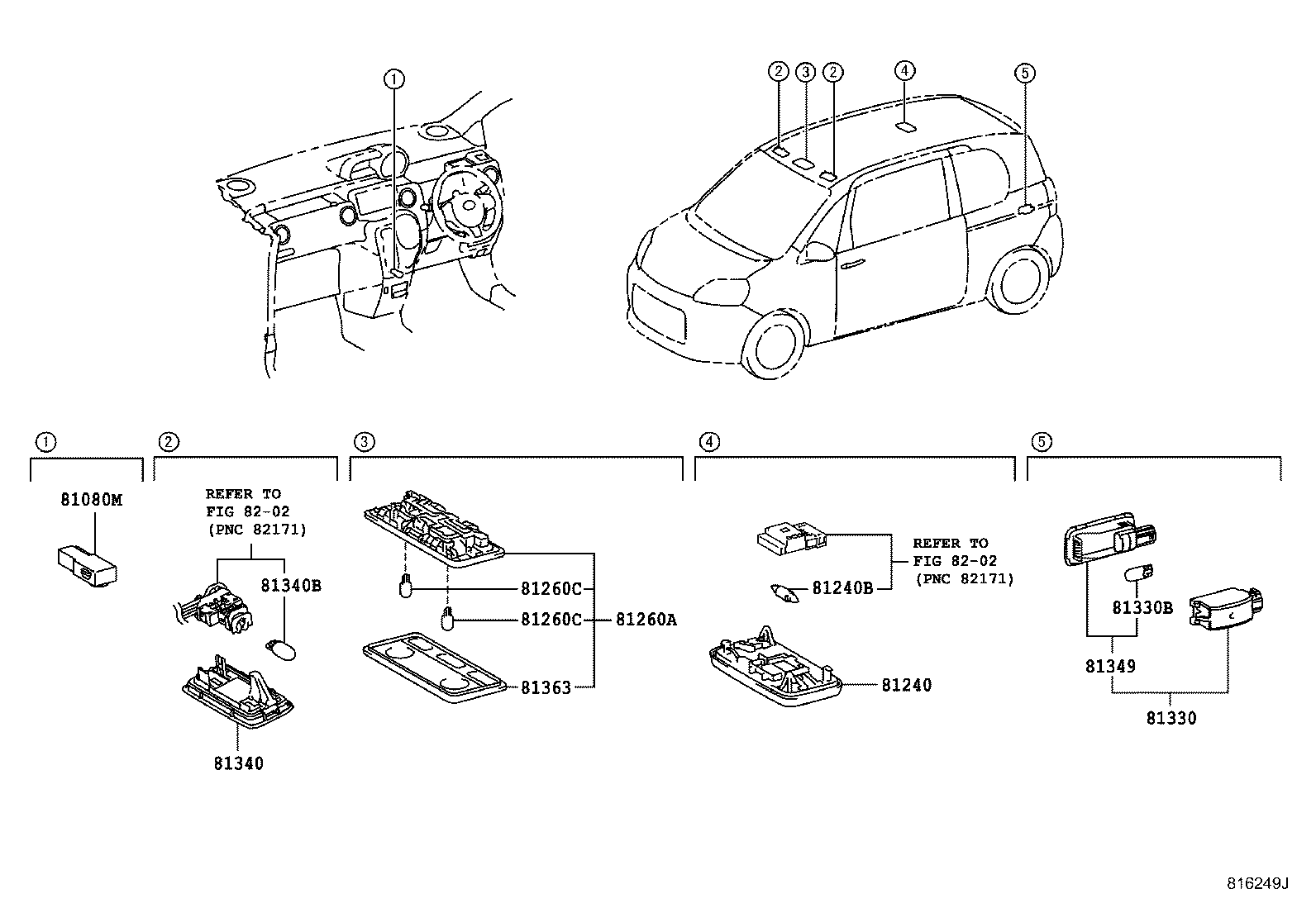

Click highlighted areas on diagram

diagram 81080M 81240 81240B 81260A 81260C 81260C 81330 81330B 81340 81340B 81349 81363 8202 8202
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-35020B0

NCP14#..(F,Y)..CBU

LT.GRAY,TRIM0#,4#

 1
81240-35020B0

NCP14#,NSP140..(G,V,X)..CBU

LT.GRAY,TRIM4#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

NCP14#,NSP140..CBU

12V 8W

 1
81260A - LAMP ASSY, MAP
81260-52120B0

NCP14#..(F,Y)..CBU

LT.GRAY,TRIM0#,4#

 1
81260-52120B0

NCP14#,NSP140..(G,V,X)..CBU

LT.GRAY,TRIM4#

 1
81260C - BULB(FOR MAP LAMP)
99132-12050

NCP14#,NSP140..CBU

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
99132-12050

NCP14#,NSP140..CBU

12V 5W

 2
81363 - LENS, ROOM LAMP, OUTER
81363-52010

NCP14#,NSP140..CBU

 1
Linked diagrams
8202
