NCP145-AEXXK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1207- )NCP14#,NSP140 ; (1507- )

Click highlighted areas on diagram

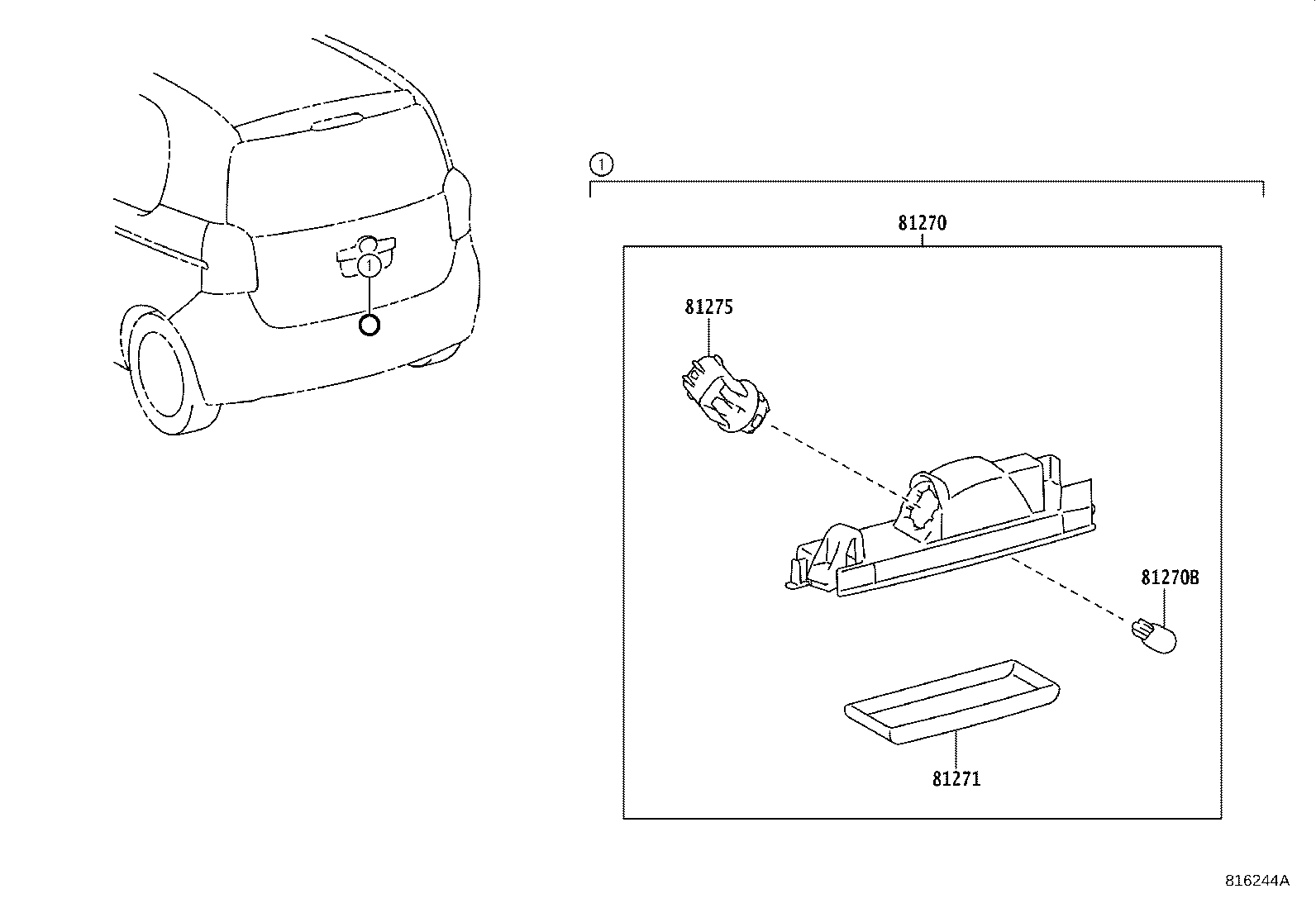

diagram 81270 81270B 81271 81275
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-52010

NCP14#,NSP140..CBU

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

NCP14#,NSP140..CBU

12V 5W

 1
81271 - LENS, LICENSE PLATE LAMP
81271-52010

NCP14#,NSP140..CBU

 1
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
90075-60005

NCP14#,NSP140..CBU

 1
