NCP145-AEXXK (2012)
Toyota Porte/Spade
(1207- )PORTE

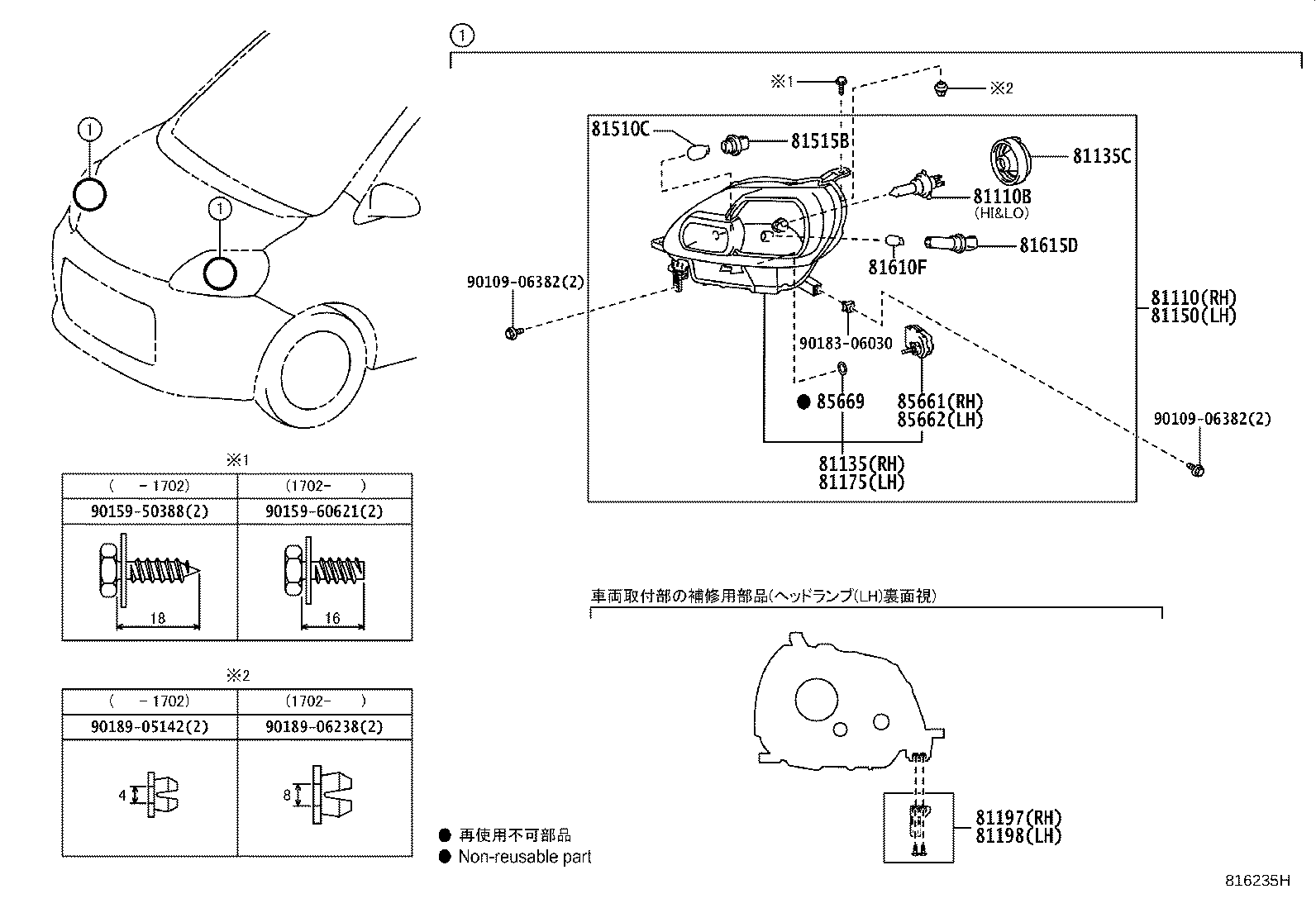

ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-52F60 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81110-52F70 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 81110-52F62 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81110-52F61 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU 12V65W(SAE),60W(ECE),ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟ` |
2 | ||
| 90981-13058 |
NCP14#,NSP140..PORTE..CBU 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-52F70 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 81130-52F61 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81130-52F60 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81130-52F62 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81135C - COVER, HEADLAMP BACK, NO.1 | ||||
| 90075-65019 |
NCP14#,NSP140..PORTE..CBU |
2 | ||
| 90075-65002 |
NCP14#,NSP140..PORTE..CBU |
2 | ||
| 90075-65006 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-52F62 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81150-52F61 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81150-52F60 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81150-52F70 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-52F61 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81170-52F60 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81185-52F70 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 81170-52F62 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81197 - BRACKET, HEADLAMP, LOWER RH | ||||
| 81197-52050 |
NCP14#,NSP140..CBU |
1 | ||
| 81198 - BRACKET, HEADLAMP, LWR LH | ||||
| 81198-52050 |
NCP14#,NSP140..CBU |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
NCP14#,NSP140..CBU 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
NCP14#,NSP140..CBU |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
NCP14#,NSP140..CBU 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
NCP14#,NSP140..CBU |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
NCP14#,NSP140..CBU |
1 | ||
| 85661-12020 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
NCP14#,NSP140..CBU |
1 | ||
| 85661-12020 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
NCP14#,NSP140..CBU |
2 | ||
| Common parts | ||||
| 90109-06382 | ||||
| 90159-50388 | ||||
| 90159-60621 | ||||
| 90183-06030 | ||||
| 90189-05142 | ||||
| 90189-06238 | ||||
(1207- )PORTE..F,G,X,Y

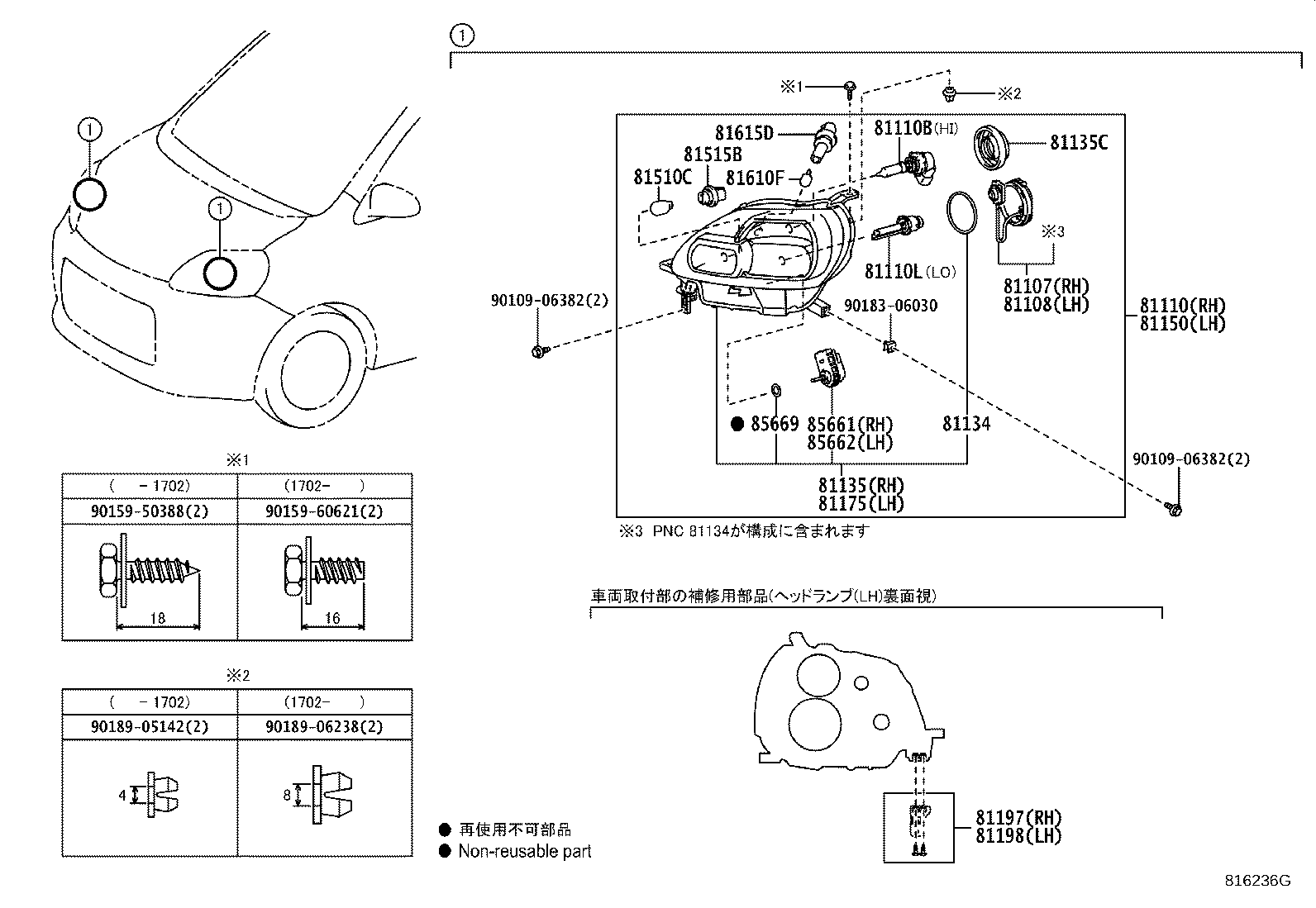

ﾃﾞｨｽﾁｬｰｼﾞﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-60F10 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-60F10 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-52F60 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81110-52F70 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 81110-52F62 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81110-52F61 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU 12V65W(SAE),60W(ECE),ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟ` |
2 | ||
| 90981-13058 |
NCP14#,NSP140..PORTE..CBU 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20029 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU 43V 35W,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
2 | ||
| 90981-20029 |
NCP14#,NSP140..PORTE..(F,G,X,Y) 43V 35W,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23002 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
4 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-52F70 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 81130-52F61 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81130-52F60 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81130-52F62 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81135C - COVER, HEADLAMP BACK, NO.1 | ||||
| 90075-65019 |
NCP14#,NSP140..PORTE..CBU |
2 | ||
| 90075-65002 |
NCP14#,NSP140..PORTE..CBU |
2 | ||
| 90075-65006 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-52F62 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81150-52F61 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81150-52F60 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81150-52F70 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-52F61 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81170-52F60 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81185-52F70 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 81170-52F62 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81197 - BRACKET, HEADLAMP, LOWER RH | ||||
| 81197-52050 |
NCP14#,NSP140..CBU |
1 | ||
| 81198 - BRACKET, HEADLAMP, LWR LH | ||||
| 81198-52050 |
NCP14#,NSP140..CBU |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
NCP14#,NSP140..CBU 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
NCP14#,NSP140..CBU |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
NCP14#,NSP140..CBU 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
NCP14#,NSP140..CBU |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
NCP14#,NSP140..CBU |
1 | ||
| 85661-12020 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
NCP14#,NSP140..CBU |
1 | ||
| 85661-12020 |
NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟA |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
NCP14#,NSP140..CBU |
2 | ||
| Common parts | ||||
| 90109-06382 | ||||
| 90159-50388 | ||||
| 90159-60621 | ||||
| 90183-06030 | ||||
| 90189-05142 | ||||
| 90189-06238 | ||||
