NCP145-AEXXK (2012)
Toyota Porte/Spade

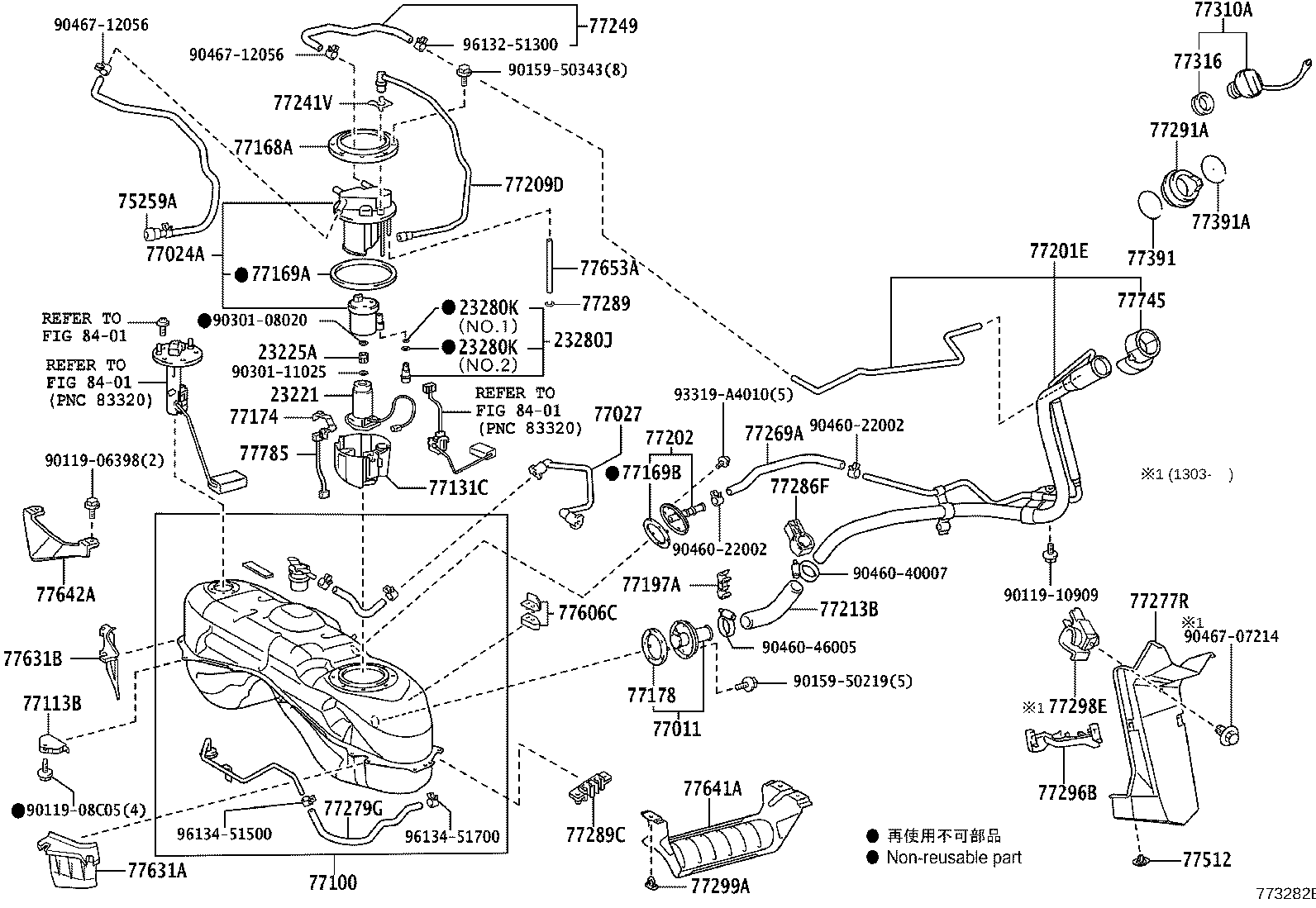

ILLUST NO. 1 OF 3(1207- )NCP145
ﾌｭｰｴﾙﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-21221 |
1NZFE..NCP145..CBU |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
1N#..NCP14#,NSP140..CBU |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
1NZFE..NCP145..CBU |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1NZFE..NCP145..CBU NO.1 |
1 | ||
| 90301-15024 |
1NZFE..NCP145..CBU NO.2 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1NZFE..NCP145..CBU NO.1 |
1 | ||
| 90301-15024 |
1NZFE..NCP145..CBU NO.2 |
1 | ||
| 75259A - HOSE, FUEL | ||||
| 77259-52050 |
NCP145..CBU |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-28010 |
NCP145..CBU |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-52191 |
NCP145..CBU |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-52140 |
NCP145..CBU |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-52161 |
NCP145..CBU |
1 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77113-52010 |
NCP145..CBU |
4 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-52082 |
NCP145..CBU |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52020 |
NCP145..CBU |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52010 |
NCP145..CBU |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
NCP145..CBU |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-52070 |
NCP145..CBU |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
NCP145..CBU |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-52010 |
NCP145..CBU |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-52242 |
NCP145..CBU |
1 | ||
| 77201-52520 |
NCP145..CBU |
1 | ||
| 77202 - TUBE SUB-ASSY, BREATHER | ||||
| 77203-52020 |
NCP145..CBU |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-52110 |
NCP145..CBU |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-52150 |
NCP145..CBU |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-32060 |
NCP145..CBU |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-52040 |
NCP145..CBU |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-52070 |
NCP145..CBU |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-52031 |
NCP145..CBU |
1 | ||
| 77277-52100 |
NCP145..CBU |
1 | ||
| 77277-52170 |
NCP145..CBU |
1 | ||
| 77279G - HOSE, FUEL, NO.2 | ||||
| 77279-52030 |
NCP145..CBU |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-52081 |
NCP145..CBU |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52110 |
NCP145..CBU |
1 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77289-52100 |
NCP145..CBU |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-12220 |
NCP14#,NSP140..CBU |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-52020 |
NCP145..CBU |
1 | ||
| 77298E - SUPPORT, FUEL TUBE PROTECTOR, NO.3 | ||||
| 77297-52060 |
NCP145..CBU |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-52010 |
NCP145..CBU |
3 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NCP14#,NSP140..CBU |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
NCP145..CBU |
1 | ||
| 77606C - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77607-52010 |
NCP145..CBU |
1 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-52040 |
NCP145..CBU |
1 | ||
| 77631B - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77632-52010 |
NCP145..CBU |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-52100 |
NCP145..CBU |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-52060 |
NCP145..CBU |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77652-52040 |
NCP145..CBU |
1 | ||
| 77745 - FILTER, CHARCOAL CANISTER, NO.1 | ||||
| 77745-52030 |
NCP145 |
1 | ||
| 77745-12050 |
NCP145..CBU |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52110 |
NCP145..CBU |
1 | ||
| Common parts | ||||
| 90119-06398 | ||||
| 90119-08C05 | ||||
| 90119-10909 | ||||
| 90159-50219 | ||||
| 90159-50343 | ||||
| 90301-08020 | ||||
| 90301-11025 | ||||
| 90460-22002 | ||||
| 90460-40007 | ||||
| 90460-46005 | ||||
| 90467-07214 | ||||
| 90467-12056 | ||||
| 93319-A4010 | ||||
| 96132-51300 | ||||
| 96134-51500 | ||||
| 96134-51700 | ||||
| Linked diagrams | ||||
| 8401 | ||||

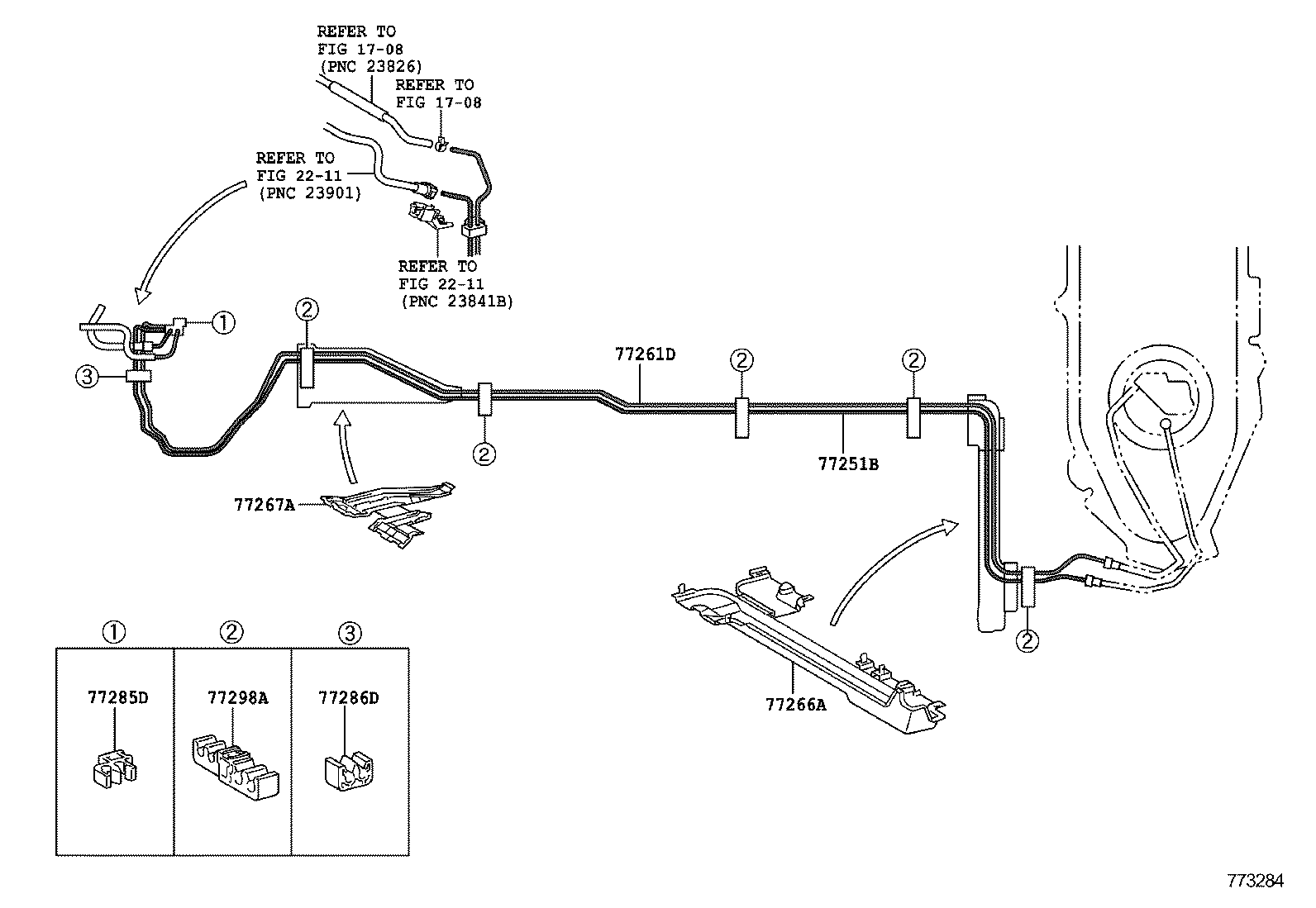

ILLUST NO. 2 OF 3(1207- )NCP145
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12840 |
NCP145..CBU |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12610 |
NCP145..CBU |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-52071 |
NCP145..CBU |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-52050 |
NCP14#,NSP140..CBU |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-52060 |
NCP14#,NSP140..CBU |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-52100 |
NCP14#,NSP140..CBU |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52070 |
NCP145..CBU |
5 | ||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

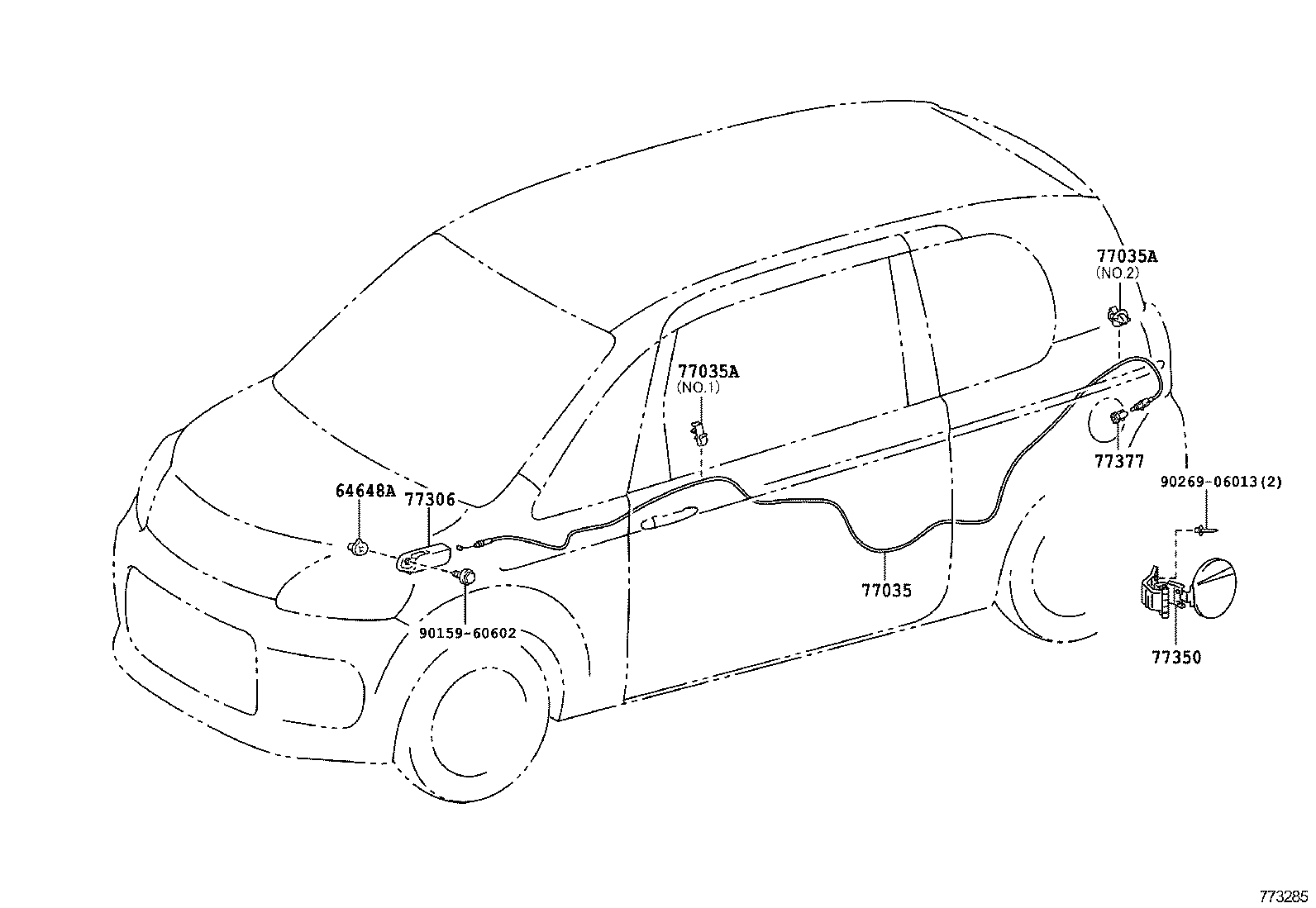

ILLUST NO. 3 OF 3(1207- )
ﾌｭｰｴﾙﾘｯﾄﾞ ｵｰﾌﾟﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-32020 |
NCP14#,NSP140..CBU |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-52350 |
NCP14#,NSP140..CBU |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-04004 |
NCP14#,NSP140..CBU NO.1 |
1 | ||
| 90469-06005 |
NCP14#,NSP140..CBU NO.2 |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-04004 |
NCP14#,NSP140..CBU NO.1 |
1 | ||
| 90469-06005 |
NCP14#,NSP140..CBU NO.2 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-52050 |
NCP14#,NSP140..CBU |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-52200 |
NCP14#,NSP140..CBU |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-75010 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90269-06013 | ||||
