NCP145-AEXXK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1207- )

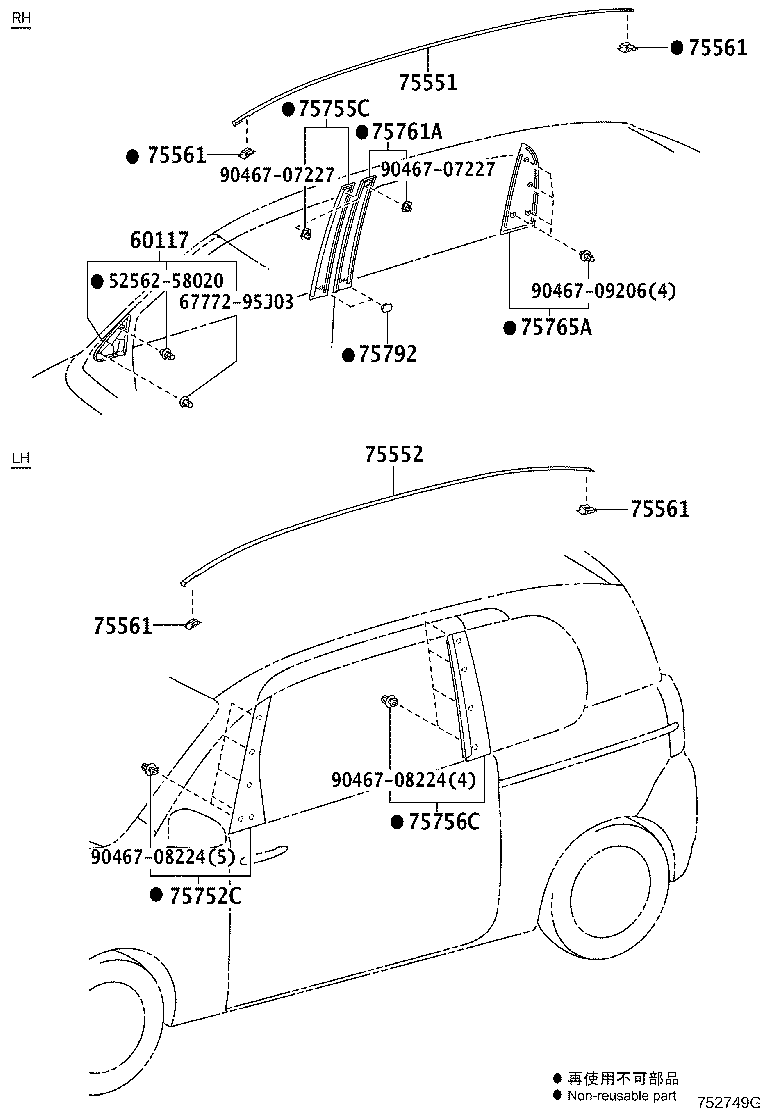

Click highlighted areas on diagram

diagram 5256258020 60117 6777295J03 75551 75552 75561 75561 75561 75561 75752C 75755C 75756C 75761A 75765A 75792 9046707227 9046707227 9046708224 9046708224 9046709206
Part # Description Qty Price
60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH
60117-52091

NCP14#,NSP140..CBU

 1
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-52220

NCP14#,NSP140..CBU

塗装不要

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-52200

NCP14#,NSP140..CBU

塗装不要

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-52040

NCP14#,NSP140..CBU

 4
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-52040

NCP14#,NSP140..CBU

 4
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-52040

NCP14#,NSP140..CBU

 4
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-52040

NCP14#,NSP140..CBU

 4
75752C - MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
75762-52040

NCP14#,NSP140..CBU

 1
75755C - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75755-52060

NCP14#,NSP140..CBU

 1
75756C - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75766-52050

NCP14#,NSP140..CBU

 1
75761A - MOULDING, REAR DOOR WINDOW FRAME, FRONT RH
75761-52030

NCP14#,NSP140..CBU

塗装不要

 1
75765A - MOULDING, REAR DOOR WINDOW FRAME, REAR RH
75765-52040

NCP14#,NSP140..CBU

 1
75792 - CLIP, DOOR WINDOW FRAME MOULDING
75792-47010

NCP14#,NSP140..CBU

 2
Common parts
52562-58020
67772-95J03
90467-07227
90467-08224
90467-09206
