NCP145-AEXXK (2012)
Toyota Porte/Spade

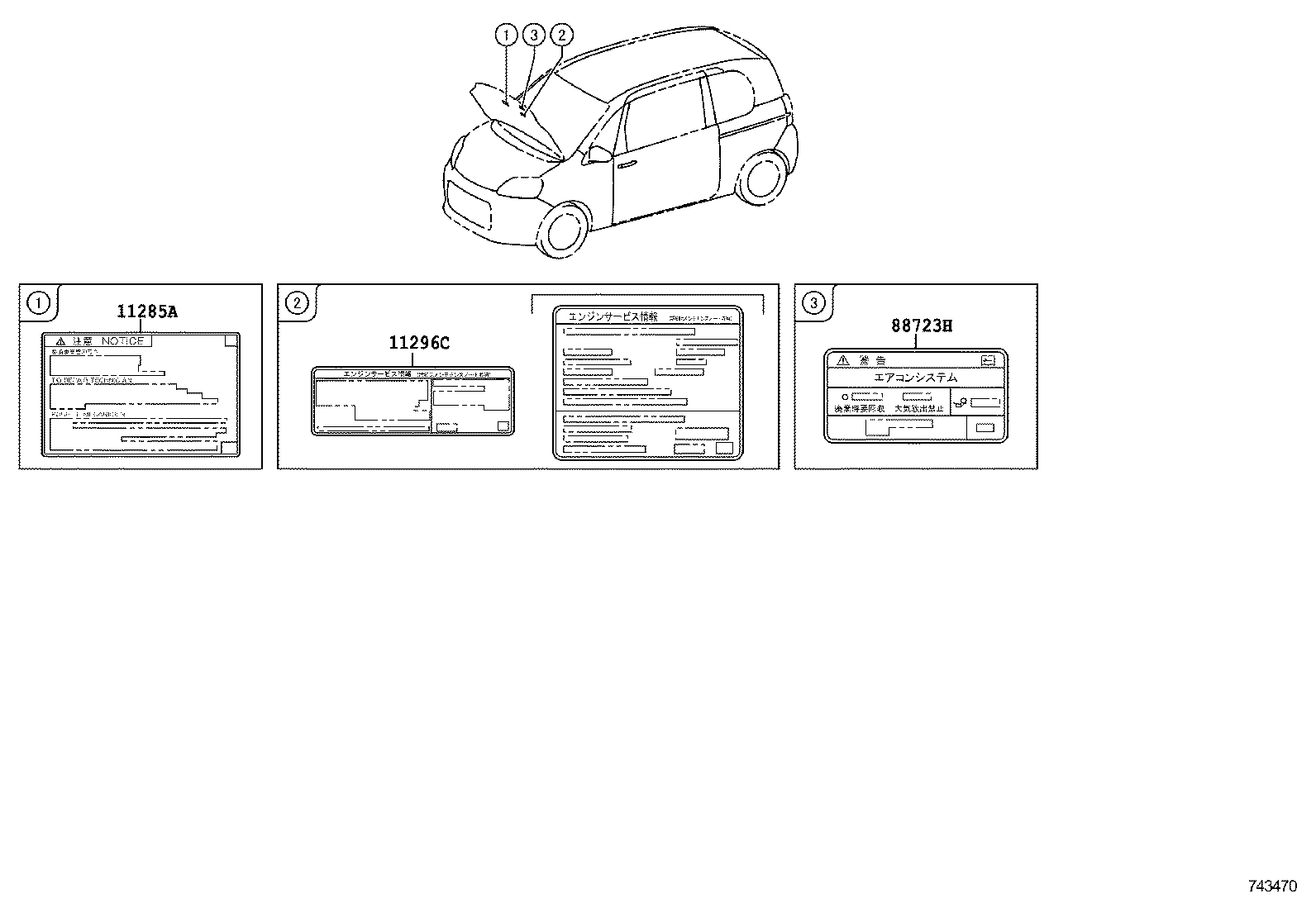

ILLUST NO. 2 OF 9(1207- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11296C - LABEL, ENGINE SERVICE INFORMATION | ||||
| 11296-21090 |
1NZFE..NCP145..CBU |
1 | ||
| 88723H - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-12240 |
NCP14#,NSP140..CBU |
1 | ||

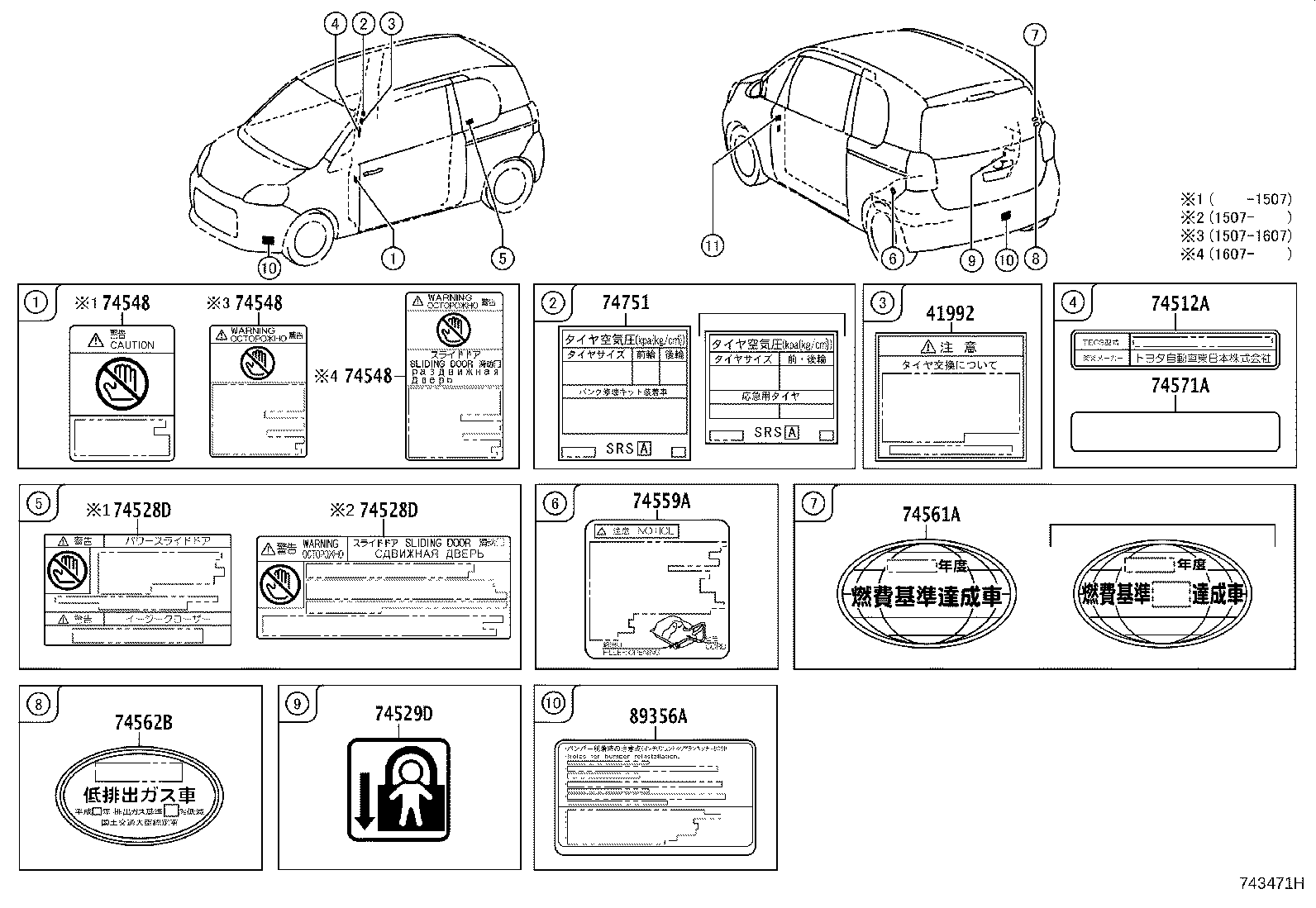

ILLUST NO. 3 OF 9(1207- )
ｶﾞｲｿｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41992 - LABEL, DIFFERENTIAL NOTICE | ||||
| 41992-33010 |
NCP145..CBU |
1 | ||
| 74512A - PLATE, IDENTIFICATION NUMBER | ||||
| 74512-52270 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 74512-52270 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 74528D - LABEL, POWER SLIDE DOOR NOTICE | ||||
| 74528-28220 |
NCP14#,NSP140..CBU |
1 | ||
| 74528D - LABEL, POWER SLIDE DOOR NOTICE | ||||
| 74528-28220 |
NCP14#,NSP140..CBU |
1 | ||
| 74529D - PLATE, CHILD PROTECTOR LOCK CAUTION | ||||
| 69339-33040 |
NCP14#,NSP140..CBU |
1 | ||
| 74548 - PLATE, BODY CAUTION | ||||
| 74541-28110 |
NCP14#,NSP140..CBU |
1 | ||
| 74548 - PLATE, BODY CAUTION | ||||
| 74541-28110 |
NCP14#,NSP140..CBU |
1 | ||
| 74548 - PLATE, BODY CAUTION | ||||
| 74541-28110 |
NCP14#,NSP140..CBU |
1 | ||
| 74562B - LABEL, EMISSION INFORMATION | ||||
| 74562-47010 |
NCP14#,NSP140..CBU H17 排出ｶﾞｽ75%低減 |
1 | ||
| 74571A - FILM, LABEL COVER | ||||
| 74571-43010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 74571-43010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 74751 - LABEL, TIRE PRESSURE INFORMATION | ||||
| 42661-12K40 |
NCP14#..CBU ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 42661-12K30 |
NCP14#..CBU |
1 | ||

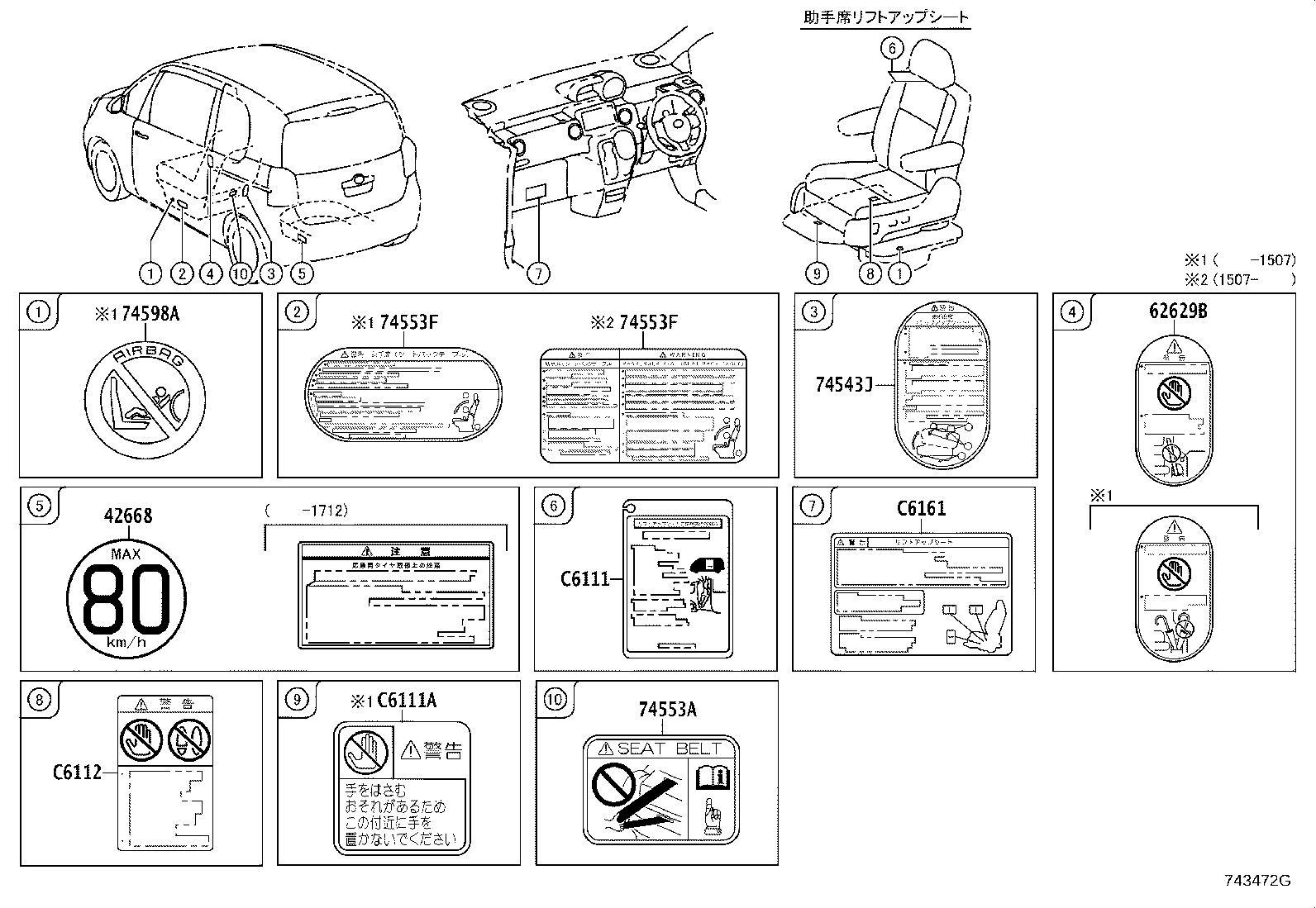

ILLUST NO. 5 OF 9(1207- )
ﾅｲｿｳ(2/4)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42668 - LABEL, COMPACT SPARE TIRE CAUTION | ||||
| 42668-28060 |
NCP14#,NSP140..CBU ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 42668-28080 |
NCP14#,NSP140..CBU ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 62629B - LABEL,QUARTER TRIM | ||||
| 62629-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 62629-52040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 62629-52040 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 62629-52040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 62629-52040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 62629-52040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 74553F - LABEL, FRONT SEAT CAUTION | ||||
| 74553-52090A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 74553-52090C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 74553F - LABEL, FRONT SEAT CAUTION | ||||
| 74553-52090A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 74553-52090C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 74598A - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式) |
1 | ||
| 74598-20010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 74598-20010 |
NCP14#,NSP140..CBU |
1 | ||
| C6111 - PLATE, SAFETY CAUTION | ||||
| C6111-52040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C6111-D1330 |
NCP145..X;NCP141,NSP140..F,X 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C6111-D1330 |
NCP145..X;NCP141,NSP140..F,X 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C6111-52040 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C6111A - PLATE, SAFETY CAUTION | ||||
| C6112-28020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C6112-D1180 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C6112-28020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C6112-D1180 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C6112 - LABEL, SAFETY INFORMATION, NO.2 | ||||
| C6112-D1210 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C6112-D1211 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C6112-D1210 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C6112-D1211 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C6161 - LABEL, POWER LIFT CAUTION | ||||
| C6161-D1510 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| C6161-D1510 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||

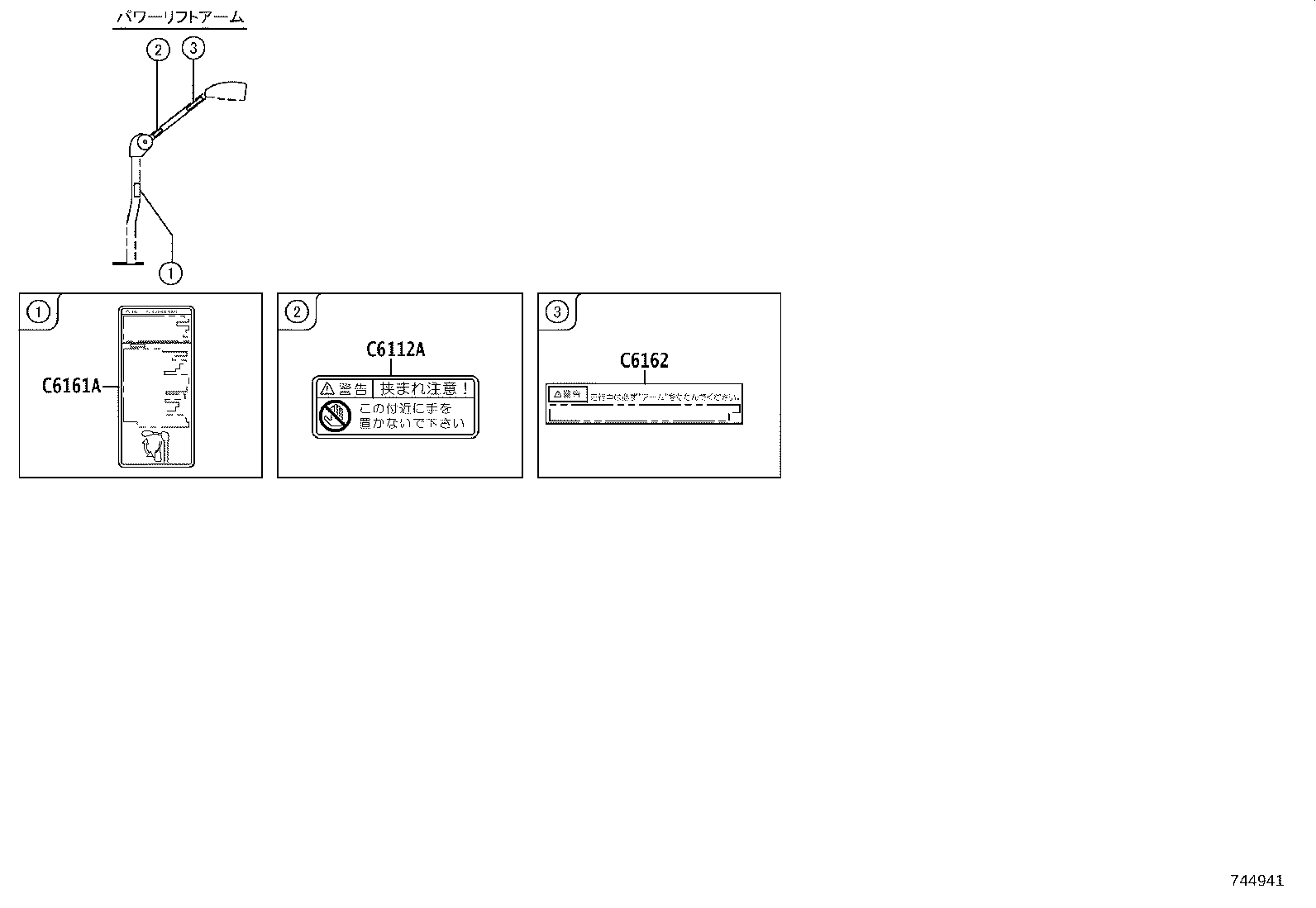

ILLUST NO. 9 OF 9(1207-1507)NCP145..X ; (1207-1507)NCP141,NSP140..F,X ; (1507- )NCP145..X ; (1507
ﾊﾟﾜｰﾘﾌﾄｱｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| C6112A - LABEL, SAFETY INFORMATION | ||||
| C6112-D1170 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C6112-D1170 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C6161A - LABEL, POWER LIFT CAUTION | ||||
| C6161-52030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| C6161-52030 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C6162 - LABEL, POWER LIFT CAUTION, NO.2 | ||||
| C6162-18010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C6162-18010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||

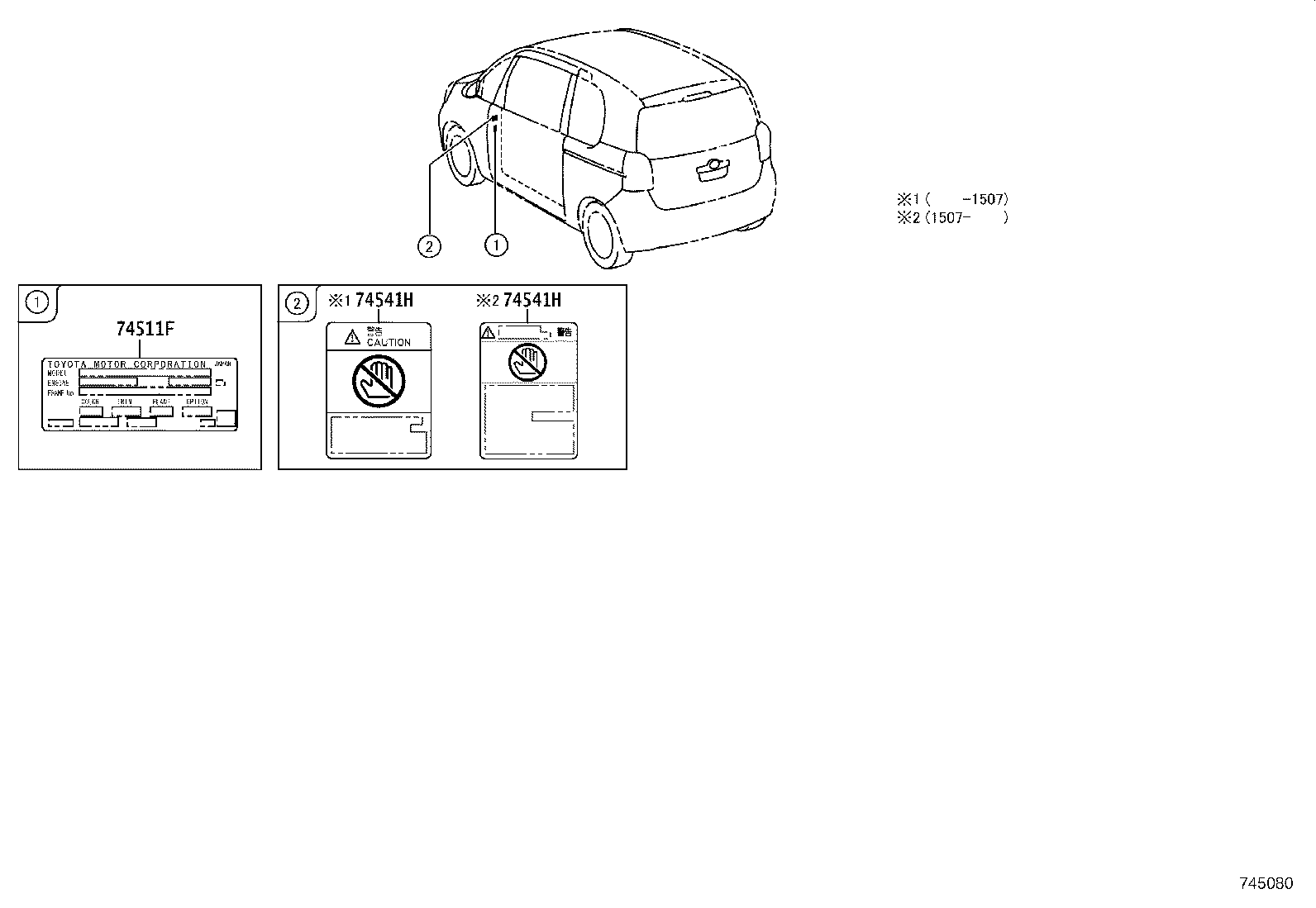

ILLUST NO. 4 OF 9(1207- )
ﾅｲｿｳ(1/4)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74511F - LABEL, NAME (IDENTIFICATION LASER LABEL) | ||||
| 74511-2B300 |
NCP14#,NSP140..CBU *111 |
1 | ||
| 74541H - PLATE, BODY CAUTION | ||||
| 74541-28110 |
NCP14#,NSP140..CBU |
1 | ||
| 74541H - PLATE, BODY CAUTION | ||||
| 74541-28110 |
NCP14#,NSP140..CBU |
1 | ||

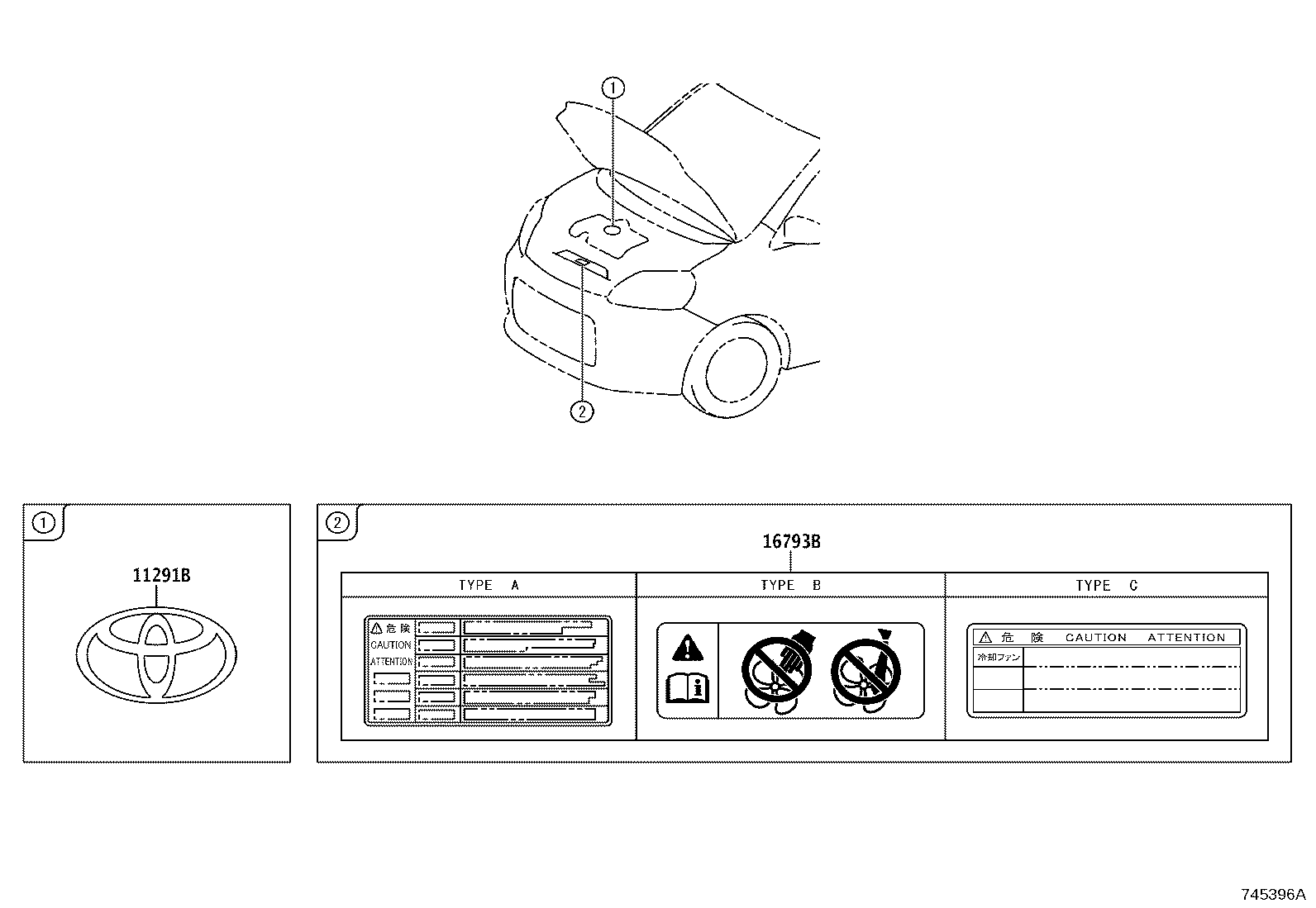

ILLUST NO. 1 OF 9(1207- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16793B - LABEL, COOLING FAN INFORMATION | ||||
| 88723-20081 |
1NZFE..NCP14#..CBU ﾀｲﾌﾟ C |
1 | ||
