NCP145-AEXXK (2012)
Toyota Porte/Spade

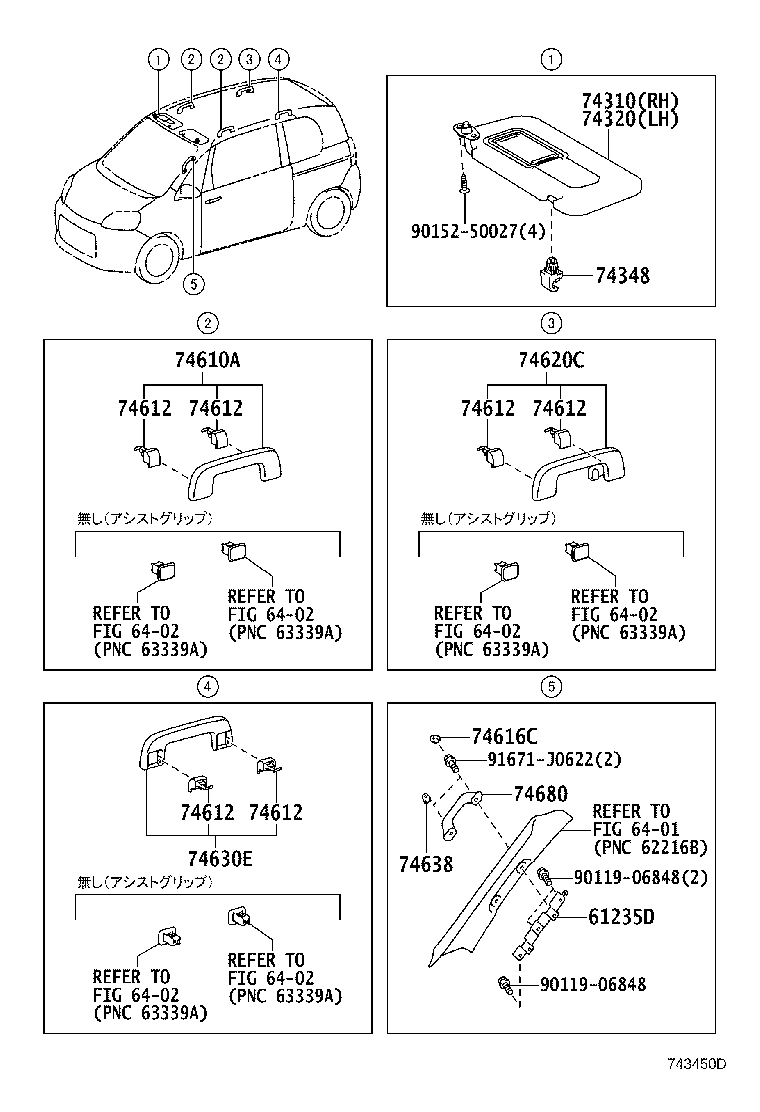

ILLUST NO. 2 OF 2(1207- )
ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61235D - BRACKET, ASSIST GRIP | ||||
| 61236-52130 |
NCP14#,NSP140..CBU |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-52402B0 |
NCP14#,NSP140..(G,V,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 74310-52402B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-52D00B0 |
NCP14#,NSP140..(G,V,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 74320-52D00B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040B1 |
NCP14#,NSP140..(G,V,X)..CBU LT.GRAY,TRIM4# |
2 | ||
| 74348-33040B1 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-52020B1 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
2 | ||
| 74610-52020B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ),LT.GRAY,TRIM0#,4# |
2 | ||
| 74610-52020B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ),LT.GRAY,TRIM0#,4# |
2 | ||
| 74610-52020B1 |
NCP14#,NSP140..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),LT.GRAY,TRIM4# |
2 | ||
| 74610-52020B1 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM4# |
2 | ||
| 74610-52020B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
2 | ||
| 74610-52020B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ),LT.GRAY,TRIM0#,4# |
2 | ||
| 74610-52020B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
2 | ||
| 74610-52020B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
2 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B1 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM4# |
8 | ||
| 74612-52030B1 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#,NSP140..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),LT.GRAY,TRIM4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ),LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
4 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ),LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ),LT.GRAY,TRIM0#,4# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B1 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM4# |
8 | ||
| 74612-52030B1 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#,NSP140..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),LT.GRAY,TRIM4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ),LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
4 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ),LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ),LT.GRAY,TRIM0#,4# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B1 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM4# |
8 | ||
| 74612-52030B1 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#,NSP140..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),LT.GRAY,TRIM4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ),LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
4 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ),LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ),LT.GRAY,TRIM0#,4# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B1 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM4# |
8 | ||
| 74612-52030B1 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#,NSP140..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),LT.GRAY,TRIM4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ),LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
4 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ),LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ),LT.GRAY,TRIM0#,4# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B1 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM4# |
8 | ||
| 74612-52030B1 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#,NSP140..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),LT.GRAY,TRIM4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ),LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
4 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ),LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ),LT.GRAY,TRIM0#,4# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B1 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM4# |
8 | ||
| 74612-52030B1 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#,NSP140..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),LT.GRAY,TRIM4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ),LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
4 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ),LT.GRAY,TRIM0#,4# |
8 | ||
| 74612-52030B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ),LT.GRAY,TRIM0#,4# |
8 | ||
| 74616C - PLUG, FRONT ASSIST GRIP, NO.1 LH | ||||
| 74616-52020B0 |
NCP14#,NSP140..(G,V,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 74616-52020B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 74620C - GRIP ASSY, ASSIST, REAR RH | ||||
| 74610-52030B1 |
NCP14#,NSP140..(V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM4# |
1 | ||
| 74610-52030B1 |
NCP14#,NSP140..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),LT.GRAY,TRIM4# |
1 | ||
| 74610-52030B1 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 74630E - GRIP ASSY, ASSIST, REAR LH | ||||
| 74610-52020B1 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 74610-52020B1 |
NCP14#,NSP140..(V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM4# |
1 | ||
| 74610-52020B1 |
NCP14#,NSP140..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),LT.GRAY,TRIM4# |
1 | ||
| 74638 - PLUG, ASSIST GRIP, NO.2 LH | ||||
| 74638-52020B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 74638-52020B0 |
NCP14#,NSP140..(G,V,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 74680 - GRIP ASSY, PILLAR ASSIST | ||||
| 74680-52020B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 74680-52020B0 |
NCP14#,NSP140..(G,V,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06848 | ||||
| 90152-50027 | ||||
| 91671-J0622 | ||||
| Linked diagrams | ||||
| 6401 | ||||
| 6402 | ||||

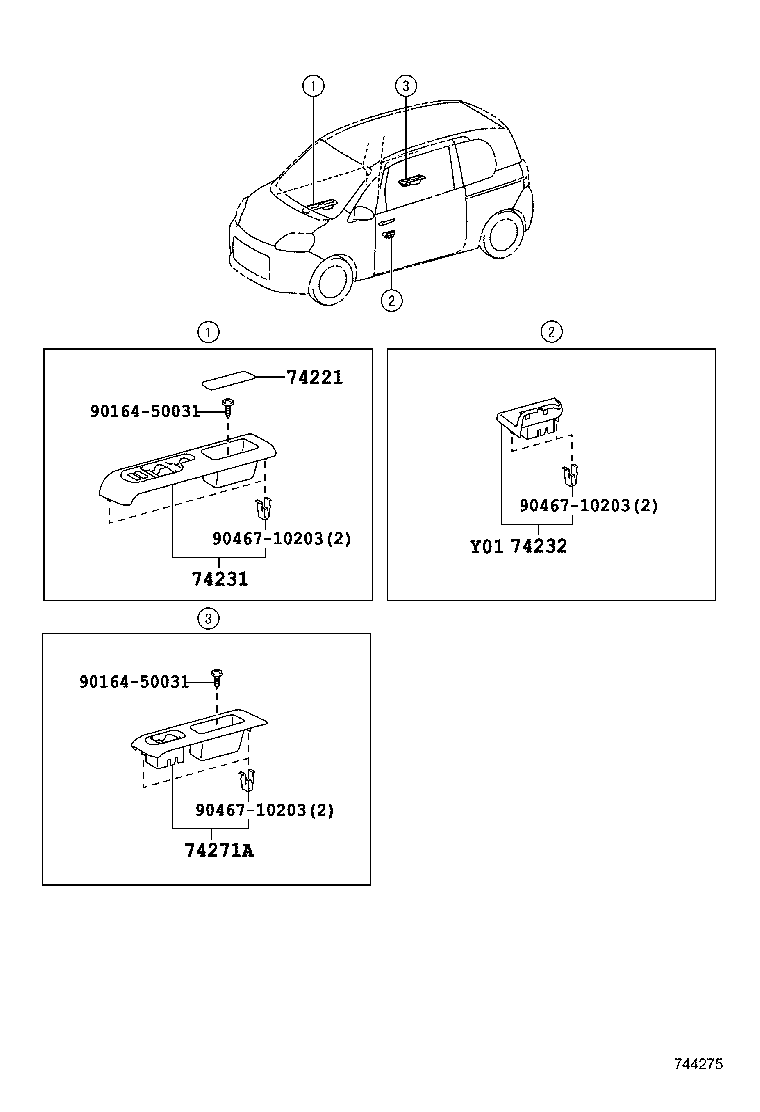

ILLUST NO. 1 OF 2(1207- )
ｱｰﾑﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74221 - COVER, DOOR ARMREST, RH | ||||
| 74221-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 74221 - COVER, DOOR ARMREST, RH | ||||
| 74221-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-52890A0 |
NCP14#,NSP140..G,V FROMAGE,TRIM41 |
1 | ||
| 74231-52890A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 74231-52890C0 |
NCP14#..(F,Y)..CBU BLACK,TRIM4# |
1 | ||
| 74231-52890C0 |
NCP14#,NSP140..X..CBU BLACK,TRIM40,42 |
1 | ||
| 74231-52890C0 |
NCP14#,NSP140..G,V BLACK,TRIM40 |
1 | ||
| 74231-52890A0 |
NCP14#,NSP140..X..CBU FROMAGE,TRIM41,43 |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-52890A0 |
NCP14#,NSP140..G,V FROMAGE,TRIM41 |
1 | ||
| 74231-52890A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 74231-52890C0 |
NCP14#..(F,Y)..CBU BLACK,TRIM4# |
1 | ||
| 74231-52890C0 |
NCP14#,NSP140..X..CBU BLACK,TRIM40,42 |
1 | ||
| 74231-52890C0 |
NCP14#,NSP140..G,V BLACK,TRIM40 |
1 | ||
| 74231-52890A0 |
NCP14#,NSP140..X..CBU FROMAGE,TRIM41,43 |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-52760E1 |
NCP14#..PORTE..F..CBU PLUM,TRIM02,03,4# |
1 | ||
| 74232-52760E0 |
NCP145..PORTE..F ORANGE,TRIM00 |
1 | ||
| 74232-52760E1 |
NCP14#,NSP140..G,V,Y;NCP14#..SPADE..F..CBU PLUM,TRIM4# |
1 | ||
| 74232-52760E0 |
NCP14#,NSP140..X..CBU ORANGE,TRIM41,43 |
1 | ||
| 74232-52760E1 |
NCP14#,NSP140..X..CBU PLUM,TRIM40,41,42 |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-52760E1 |
NCP14#..PORTE..F..CBU PLUM,TRIM02,03,4# |
1 | ||
| 74232-52760E0 |
NCP145..PORTE..F ORANGE,TRIM00 |
1 | ||
| 74232-52760E1 |
NCP14#,NSP140..G,V,Y;NCP14#..SPADE..F..CBU PLUM,TRIM4# |
1 | ||
| 74232-52760E0 |
NCP14#,NSP140..X..CBU ORANGE,TRIM41,43 |
1 | ||
| 74232-52760E1 |
NCP14#,NSP140..X..CBU PLUM,TRIM40,41,42 |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-52330E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 74271-52330E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-52330E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 74271-52330E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| Common parts | ||||
| 90164-50031 | ||||
| 90467-10203 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
