NCP145-AEXXK (2012)
Toyota Porte/Spade

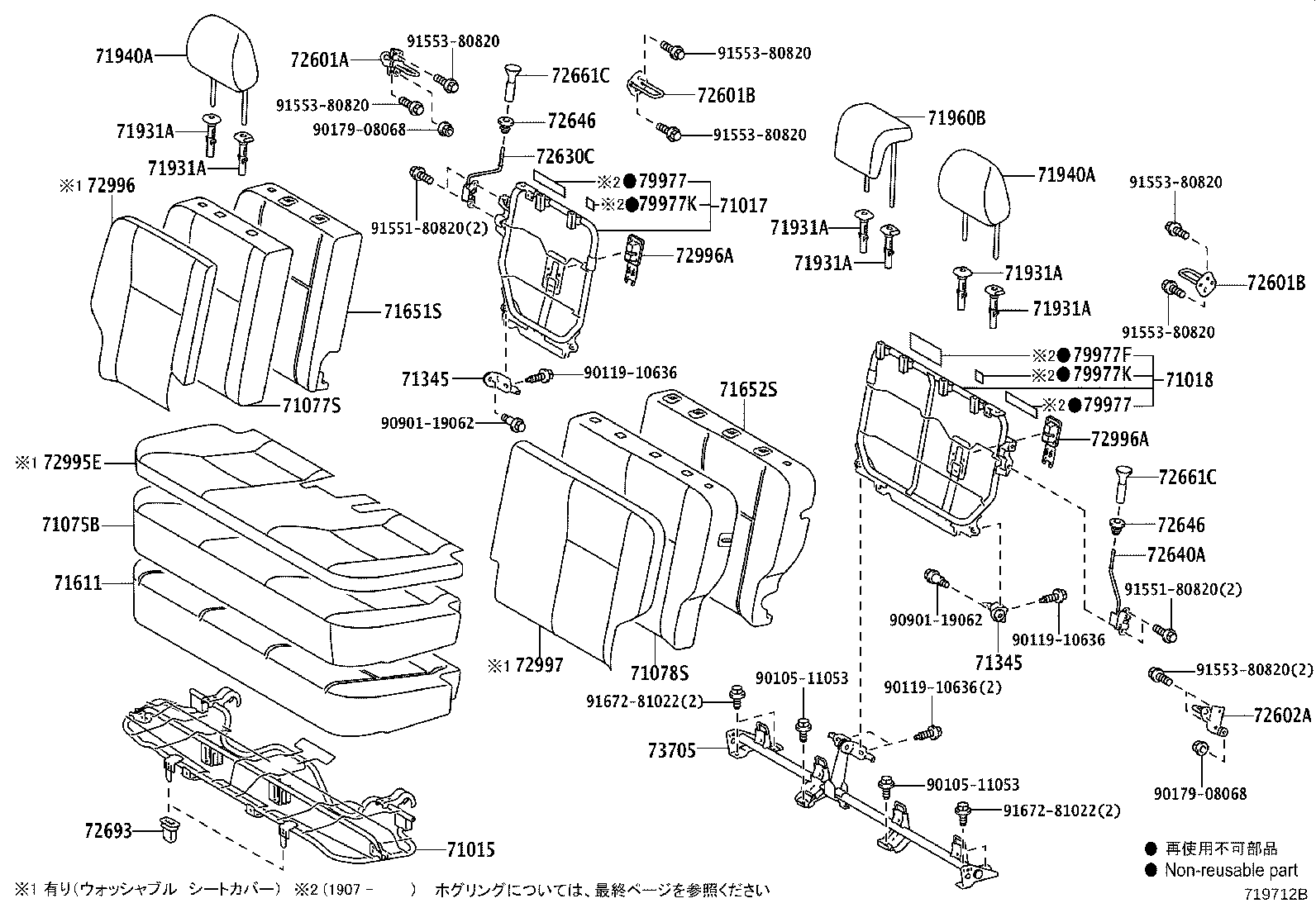

(1207- )NCP145..F,G,Y ; (1507- )NCP145..F,G,Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-52480 |
NCP145..CBU |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52730 |
NCP145..CBU |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52530 |
NCP145..CBU |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-52K10C0 |
NCP145..PORTE..F BLACK,TRIM4# |
1 | ||
| 71075-52K10A0 |
NCP145..F FROMAGE,TRIM0# |
1 | ||
| 71075-52J90E0 |
NCP145..X..CBU PLUM,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-52L00E1 |
NCP145..X..CBU PLUM,TRIM4# |
1 | ||
| 71077-52L20A1 |
NCP145..F FROMAGE,TRIM0# |
1 | ||
| 71077-52L20C1 |
NCP145..PORTE..F BLACK,TRIM4# |
1 | ||
| 71077-52L01E1 |
NCP145..X..CBU PLUM,TRIM4# |
1 | ||
| 71077-52L21A1 |
NCP145..F FROMAGE,TRIM0# |
1 | ||
| 71077-52L21C1 |
NCP145..PORTE..F BLACK,TRIM4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-52J31E1 |
NCP145..X..CBU PLUM,TRIM4# |
1 | ||
| 71078-52J50C1 |
NCP145..PORTE..F BLACK,TRIM4# |
1 | ||
| 71078-52J50A1 |
NCP145..F FROMAGE,TRIM0# |
1 | ||
| 71078-52J30E1 |
NCP145..X..CBU PLUM,TRIM4# |
1 | ||
| 71078-52J51A1 |
NCP145..F FROMAGE,TRIM0# |
1 | ||
| 71078-52J51C1 |
NCP145..PORTE..F BLACK,TRIM4# |
1 | ||
| 71345 - HINGE, REAR SEAT BACK | ||||
| 71345-52080 |
NCP141..X..CBU;NCP145,NSP140..CBU |
2 | ||
| 71345 - HINGE, REAR SEAT BACK | ||||
| 71345-52080 |
NCP141..X..CBU;NCP145,NSP140..CBU |
2 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-52260 |
NCP145..CBU |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-52780 |
NCP145..CBU |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-52610 |
NCP145..CBU |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ付,FROMAGE,TRIM0# |
3 | ||
| 71931-47010C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ無,BLACK,TRIM4# |
3 | ||
| 71931-4701001 |
NCP14#..(F,Y)..CBU ﾛｯｸ無,FROMAGE,TRIM0# |
3 | ||
| 71930-44020C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ付,BLACK,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ付,FROMAGE,TRIM0# |
3 | ||
| 71931-47010C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ無,BLACK,TRIM4# |
3 | ||
| 71931-4701001 |
NCP14#..(F,Y)..CBU ﾛｯｸ無,FROMAGE,TRIM0# |
3 | ||
| 71930-44020C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ付,BLACK,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ付,FROMAGE,TRIM0# |
3 | ||
| 71931-47010C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ無,BLACK,TRIM4# |
3 | ||
| 71931-4701001 |
NCP14#..(F,Y)..CBU ﾛｯｸ無,FROMAGE,TRIM0# |
3 | ||
| 71930-44020C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ付,BLACK,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ付,FROMAGE,TRIM0# |
3 | ||
| 71931-47010C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ無,BLACK,TRIM4# |
3 | ||
| 71931-4701001 |
NCP14#..(F,Y)..CBU ﾛｯｸ無,FROMAGE,TRIM0# |
3 | ||
| 71930-44020C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ付,BLACK,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ無,BLACK,TRIM4# |
3 | ||
| 71931-4701001 |
NCP14#..(F,Y)..CBU ﾛｯｸ無,FROMAGE,TRIM0# |
3 | ||
| 71930-44020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ付,FROMAGE,TRIM0# |
3 | ||
| 71930-44020C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ付,BLACK,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ無,BLACK,TRIM4# |
3 | ||
| 71931-4701001 |
NCP14#..(F,Y)..CBU ﾛｯｸ無,FROMAGE,TRIM0# |
3 | ||
| 71930-44020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ付,FROMAGE,TRIM0# |
3 | ||
| 71930-44020C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ付,BLACK,TRIM4# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52E00E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 71940-52E00E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 71940-52E00E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71940-52E00E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71940-52E10C0 |
NCP145..PORTE..F BLACK,TRIM4# |
2 | ||
| 71940-52E00E0 |
NCP145..X..CBU PLUM,TRIM4# |
2 | ||
| 71940-52E10A0 |
NCP14#..F..CBU FROMAGE,TRIM0# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52E00E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 71940-52E00E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 71940-52E00E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71940-52E00E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71940-52E10C0 |
NCP145..PORTE..F BLACK,TRIM4# |
2 | ||
| 71940-52E00E0 |
NCP145..X..CBU PLUM,TRIM4# |
2 | ||
| 71940-52E10A0 |
NCP14#..F..CBU FROMAGE,TRIM0# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-52670A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71960-52670C0 |
NCP14#..(F,Y)..CBU BLACK,TRIM4# |
1 | ||
| 71960-52670E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-52170 |
NCP14#,NSP140..(V,X)..CBU |
1 | ||
| 72601-52270E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 72601-52280 |
NCP14#,NSP140..(V,X)..CBU |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72602-52090 |
NCP14#,NSP140..(V,X)..CBU |
1 | ||
| 72602-52110E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 72602-52130 |
NCP14#,NSP140..(V,X)..CBU |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-52150 |
NCP145..CBU;NCP141..(F,G,Y)..CBU |
1 | ||
| 72630-52210 |
NCP145..CBU;NCP141..(F,G,Y)..CBU |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-52150 |
NCP145..CBU;NCP141..(F,G,Y)..CBU |
1 | ||
| 72640-52200 |
NCP145..CBU;NCP141..(F,G,Y)..CBU |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
2 | ||
| 72646-33010C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
2 | ||
| 72646-33010C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
2 | ||
| 72661-32030C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
2 | ||
| 72661-32030C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
NCP141..X..CBU;NCP145,NSP140..CBU |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-12320E1 |
NCP145..(G,X)..CBU PLUM,TRIM4# |
2 | ||
| 72996-12320E1 |
NCP145..F,Y PLUM,TRIM0#,4# |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-12320E1 |
NCP145..(G,X)..CBU PLUM,TRIM4# |
2 | ||
| 72996-12320E1 |
NCP145..F,Y PLUM,TRIM0#,4# |
2 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-52230 |
NCP145..CBU |
1 | ||
| Common parts | ||||
| 90105-11053 | ||||
| 90119-10636 | ||||
| 90179-08068 | ||||
| 90901-19062 | ||||
| 91551-80820 | ||||
| 91553-80820 | ||||
| 91672-81022 | ||||

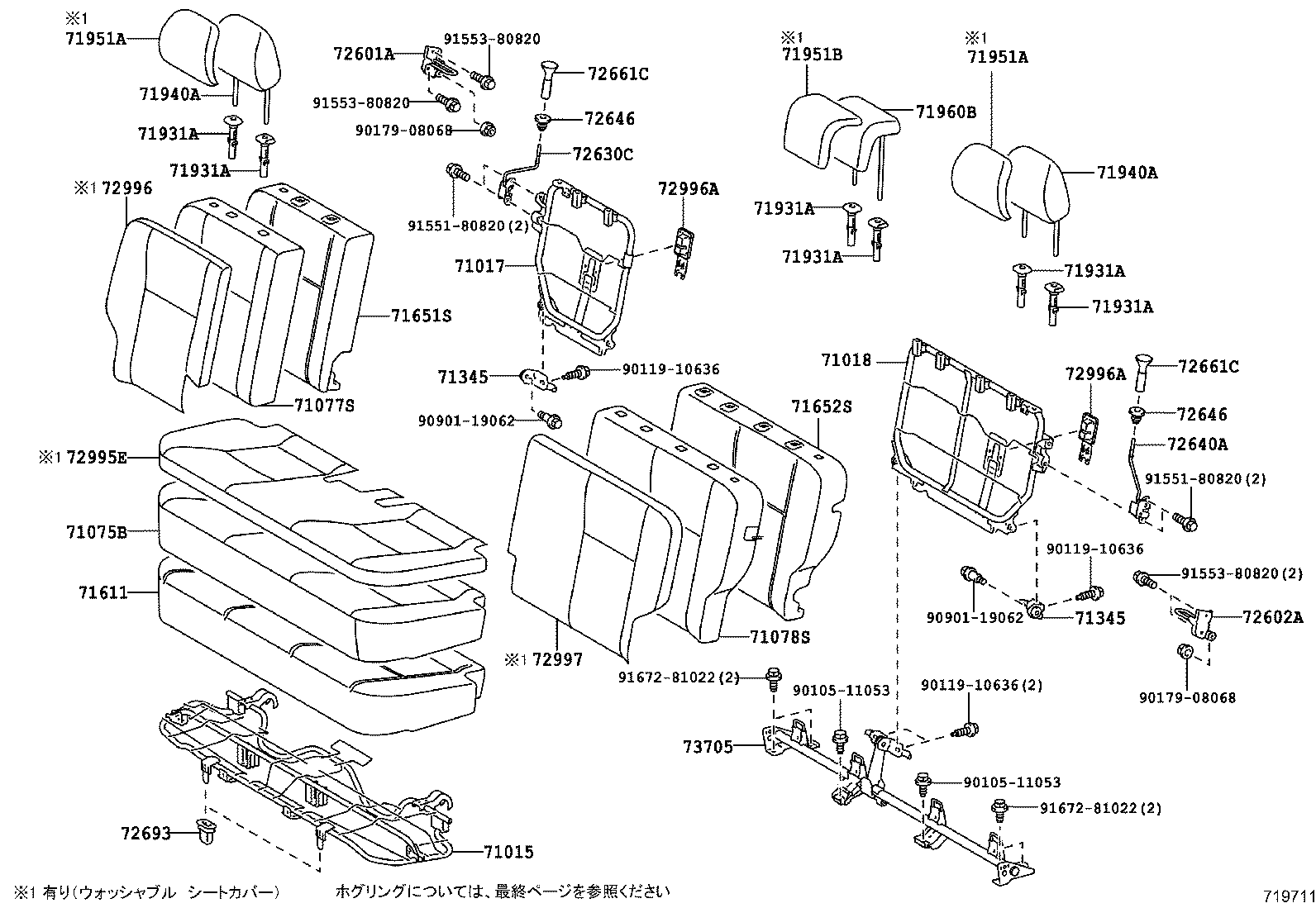

(1207- )NCP145..X ; (1507- )NCP145
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-52480 |
NCP145..CBU |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52730 |
NCP145..CBU |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52530 |
NCP145..CBU |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-52K10C0 |
NCP145..PORTE..F BLACK,TRIM4# |
1 | ||
| 71075-52K10A0 |
NCP145..F FROMAGE,TRIM0# |
1 | ||
| 71075-52J90E0 |
NCP145..X..CBU PLUM,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-52L00E1 |
NCP145..X..CBU PLUM,TRIM4# |
1 | ||
| 71077-52L20A1 |
NCP145..F FROMAGE,TRIM0# |
1 | ||
| 71077-52L20C1 |
NCP145..PORTE..F BLACK,TRIM4# |
1 | ||
| 71077-52L01E1 |
NCP145..X..CBU PLUM,TRIM4# |
1 | ||
| 71077-52L21A1 |
NCP145..F FROMAGE,TRIM0# |
1 | ||
| 71077-52L21C1 |
NCP145..PORTE..F BLACK,TRIM4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-52J50A1 |
NCP145..F FROMAGE,TRIM0# |
1 | ||
| 71078-52J31E1 |
NCP145..X..CBU PLUM,TRIM4# |
1 | ||
| 71078-52J50C1 |
NCP145..PORTE..F BLACK,TRIM4# |
1 | ||
| 71078-52J30E1 |
NCP145..X..CBU PLUM,TRIM4# |
1 | ||
| 71078-52J51A1 |
NCP145..F FROMAGE,TRIM0# |
1 | ||
| 71078-52J51C1 |
NCP145..PORTE..F BLACK,TRIM4# |
1 | ||
| 71345 - HINGE, REAR SEAT BACK | ||||
| 71345-52080 |
NCP141..X..CBU;NCP145,NSP140..CBU |
2 | ||
| 71345 - HINGE, REAR SEAT BACK | ||||
| 71345-52080 |
NCP141..X..CBU;NCP145,NSP140..CBU |
2 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-52260 |
NCP145..CBU |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-52780 |
NCP145..CBU |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-52610 |
NCP145..CBU |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ付,FROMAGE,TRIM0# |
3 | ||
| 71931-4701001 |
NCP14#..(F,Y)..CBU ﾛｯｸ無,FROMAGE,TRIM0# |
3 | ||
| 71931-47010C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ無,BLACK,TRIM4# |
3 | ||
| 71930-44020C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ付,BLACK,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ付,FROMAGE,TRIM0# |
3 | ||
| 71931-4701001 |
NCP14#..(F,Y)..CBU ﾛｯｸ無,FROMAGE,TRIM0# |
3 | ||
| 71931-47010C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ無,BLACK,TRIM4# |
3 | ||
| 71930-44020C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ付,BLACK,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ付,FROMAGE,TRIM0# |
3 | ||
| 71931-47010C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ無,BLACK,TRIM4# |
3 | ||
| 71931-4701001 |
NCP14#..(F,Y)..CBU ﾛｯｸ無,FROMAGE,TRIM0# |
3 | ||
| 71930-44020C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ付,BLACK,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ付,FROMAGE,TRIM0# |
3 | ||
| 71931-47010C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ無,BLACK,TRIM4# |
3 | ||
| 71931-4701001 |
NCP14#..(F,Y)..CBU ﾛｯｸ無,FROMAGE,TRIM0# |
3 | ||
| 71930-44020C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ付,BLACK,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ付,FROMAGE,TRIM0# |
3 | ||
| 71931-47010C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ無,BLACK,TRIM4# |
3 | ||
| 71931-4701001 |
NCP14#..(F,Y)..CBU ﾛｯｸ無,FROMAGE,TRIM0# |
3 | ||
| 71930-44020C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ付,BLACK,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020A6 |
NCP14#..(F,Y)..CBU ﾛｯｸ付,FROMAGE,TRIM0# |
3 | ||
| 71931-47010C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ無,BLACK,TRIM4# |
3 | ||
| 71931-4701001 |
NCP14#..(F,Y)..CBU ﾛｯｸ無,FROMAGE,TRIM0# |
3 | ||
| 71930-44020C0 |
NCP145..CBU;NCP141..(F,G,Y)..CBU ﾛｯｸ付,BLACK,TRIM4# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52E00E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 71940-52E00E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 71940-52E00E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71940-52E00E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71940-52E10C0 |
NCP145..PORTE..F BLACK,TRIM4# |
2 | ||
| 71940-52E00E0 |
NCP145..X..CBU PLUM,TRIM4# |
2 | ||
| 71940-52E10A0 |
NCP14#..F..CBU FROMAGE,TRIM0# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52E00E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 71940-52E00E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 71940-52E00E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71940-52E00E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 71940-52E10C0 |
NCP145..PORTE..F BLACK,TRIM4# |
2 | ||
| 71940-52E00E0 |
NCP145..X..CBU PLUM,TRIM4# |
2 | ||
| 71940-52E10A0 |
NCP14#..F..CBU FROMAGE,TRIM0# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-52670A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 71960-52670C0 |
NCP14#..(F,Y)..CBU BLACK,TRIM4# |
1 | ||
| 71960-52670E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-52170 |
NCP14#,NSP140..(V,X)..CBU |
1 | ||
| 72601-52270E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 72601-52280 |
NCP14#,NSP140..(V,X)..CBU |
1 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-52230 |
NCP14#..(F,G,Y)..CBU |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-52230 |
NCP14#..(F,G,Y)..CBU |
2 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72602-52090 |
NCP14#,NSP140..(V,X)..CBU |
1 | ||
| 72602-52110E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 72602-52130 |
NCP14#,NSP140..(V,X)..CBU |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-52150 |
NCP145..CBU;NCP141..(F,G,Y)..CBU |
1 | ||
| 72630-52210 |
NCP145..CBU;NCP141..(F,G,Y)..CBU |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-52150 |
NCP145..CBU;NCP141..(F,G,Y)..CBU |
1 | ||
| 72640-52200 |
NCP145..CBU;NCP141..(F,G,Y)..CBU |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
2 | ||
| 72646-33010C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
2 | ||
| 72646-33010C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
2 | ||
| 72661-32030C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
2 | ||
| 72661-32030C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
NCP141..X..CBU;NCP145,NSP140..CBU |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-12320E1 |
NCP145..(G,X)..CBU PLUM,TRIM4# |
2 | ||
| 72996-12320E1 |
NCP145..F,Y PLUM,TRIM0#,4# |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-12320E1 |
NCP145..(G,X)..CBU PLUM,TRIM4# |
2 | ||
| 72996-12320E1 |
NCP145..F,Y PLUM,TRIM0#,4# |
2 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-52230 |
NCP145..CBU |
1 | ||
| Common parts | ||||
| 90105-11053 | ||||
| 90119-10636 | ||||
| 90179-08068 | ||||
| 90901-19062 | ||||
| 91551-80820 | ||||
| 91553-80820 | ||||
| 91672-81022 | ||||
(1207- )NCP14#,NSP140

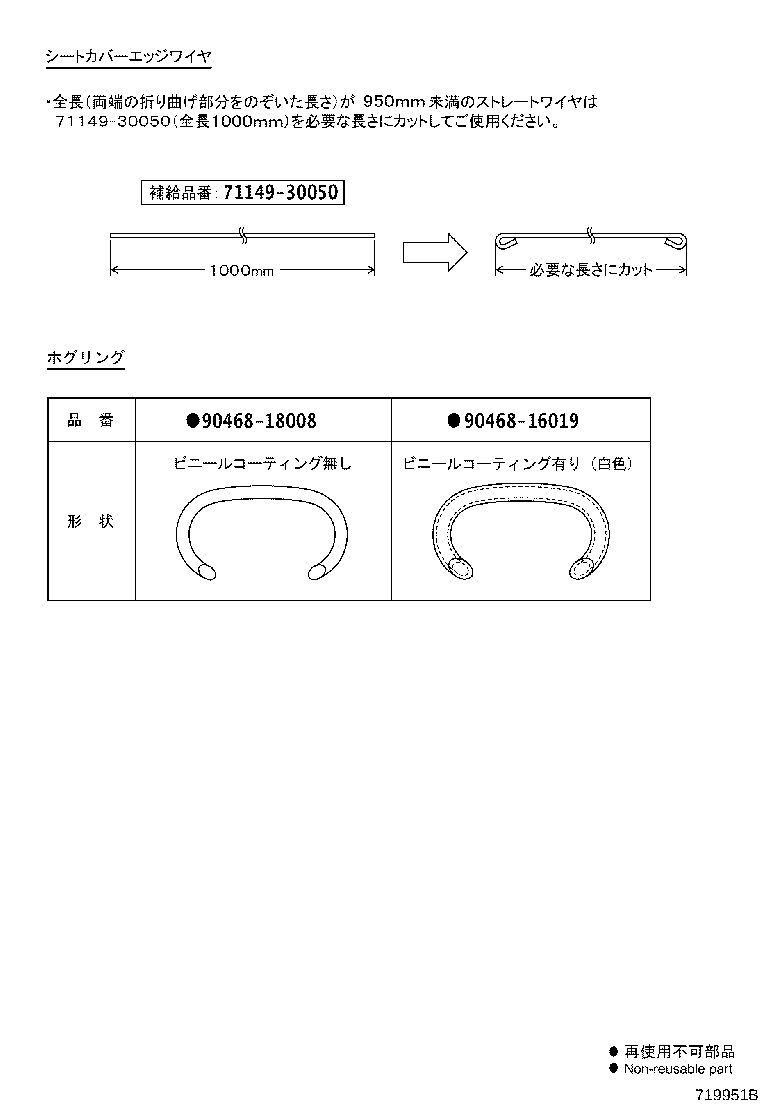

ｼｰﾄｶﾊﾞｰｴｯｼﾞﾜｲﾔ & ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
