Toyota Porte/spade NCP145 BACK DOOR PANEL & GLASS

Part #	Description	Period	Qty
62785F - SPACER, BACK DOOR GLASS
62785-16030	NCP14#,NSP140..CBU	07/2012 - 07/2015	6
62785F - SPACER, BACK DOOR GLASS
62785-16030	NCP14#,NSP140..CBU	07/2012 - 07/2015	6
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-52080	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
64819B - SPACER, BACK WINDOW GLASS, NO.2
64819-52070	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
64885A - CHANNEL, BACK WINDOW GLASS, RH
64885-52040	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
64886 - CHANNEL, BACK WINDOW GLASS, LH
64886-52040	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-52D50	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
67005-52D60	NCP14#,NSP140..(F,G,X,Y)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ用4ｽﾋﾟｰｶ	07/2012 - 07/2015	1
67005B - CUSHION(FOR BACK DOOR PANEL)
68326-52060	NCP14#,NSP140..CBU	07/2012 - 07/2015	2
67005B - CUSHION(FOR BACK DOOR PANEL)
68326-52060	NCP14#,NSP140..CBU	07/2012 - 07/2015	2
67290 - DAMPER ASSY, BACK DOOR
67290-52020	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
67837L - SEAL, DOOR DUST PROOF
67837-52040	NCP14#,NSP140..CBU	07/2012 - 07/2015	2
67881 - PLATE, BACK DOOR WEATHERSTRIP SET
67889-52010	NCP14#,NSP140..CBU	07/2012 - 03/2014	2
67881 - PLATE, BACK DOOR WEATHERSTRIP SET
67889-52010	NCP14#,NSP140..CBU	07/2012 - 03/2014	2
67881A - WEATHERSTRIP, BACK DOOR
67881-52201	NCP14#,NSP140..CBU	09/2014 - 07/2015	1
67881-52200	NCP14#,NSP140..CBU	07/2012 - 08/2014	1
68131 - GLASS, BACK DOOR
68105-52650	NCP14#,NSP140..CBU *EHT,厚さ=2.8,ﾀﾞｰｸｸﾞﾚｰ	07/2012 - 07/2015	1
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-52210	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
75574B - MOULDING, BACK WINDOW, OUTSIDE LH
75574-52090	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
81952D - COVER, REAR LAMP
81952-52040	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
Common parts
90119-06748
Linked diagrams
7507

Part #	Description	Period	Qty
67751 - BOARD, BACK DOOR TRIM
67751-52190E0	NCP14#,NSP140..V,X PLUM,TRIM4#	07/2012 - 09/2012	1
67751-52191E0	NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4#	10/2012 - 07/2015	1
67751-52200E0	NCP14#..(F,Y)..CBU PLUM,TRIM0#,4#	07/2012 - 07/2015	1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-08186C0	NCP14#,NSP140..(G,V,X)..CBU BLACK,TRIM4#	07/2012 - 07/2015	9
90467-08186C0	NCP14#..(F,Y)..CBU BLACK,TRIM0#,4#	07/2012 - 07/2015	9
74811D - HANDLE, DOOR PULL
74811-13010C0	NCP14#,NSP140..(G,V,X)..CBU BLACK,TRIM4#	07/2012 - 07/2015	1
74811-13010C0	NCP14#..(F,Y)..CBU BLACK,TRIM0#,4#	07/2012 - 07/2015	1

NCP145-AEXXK (2012)

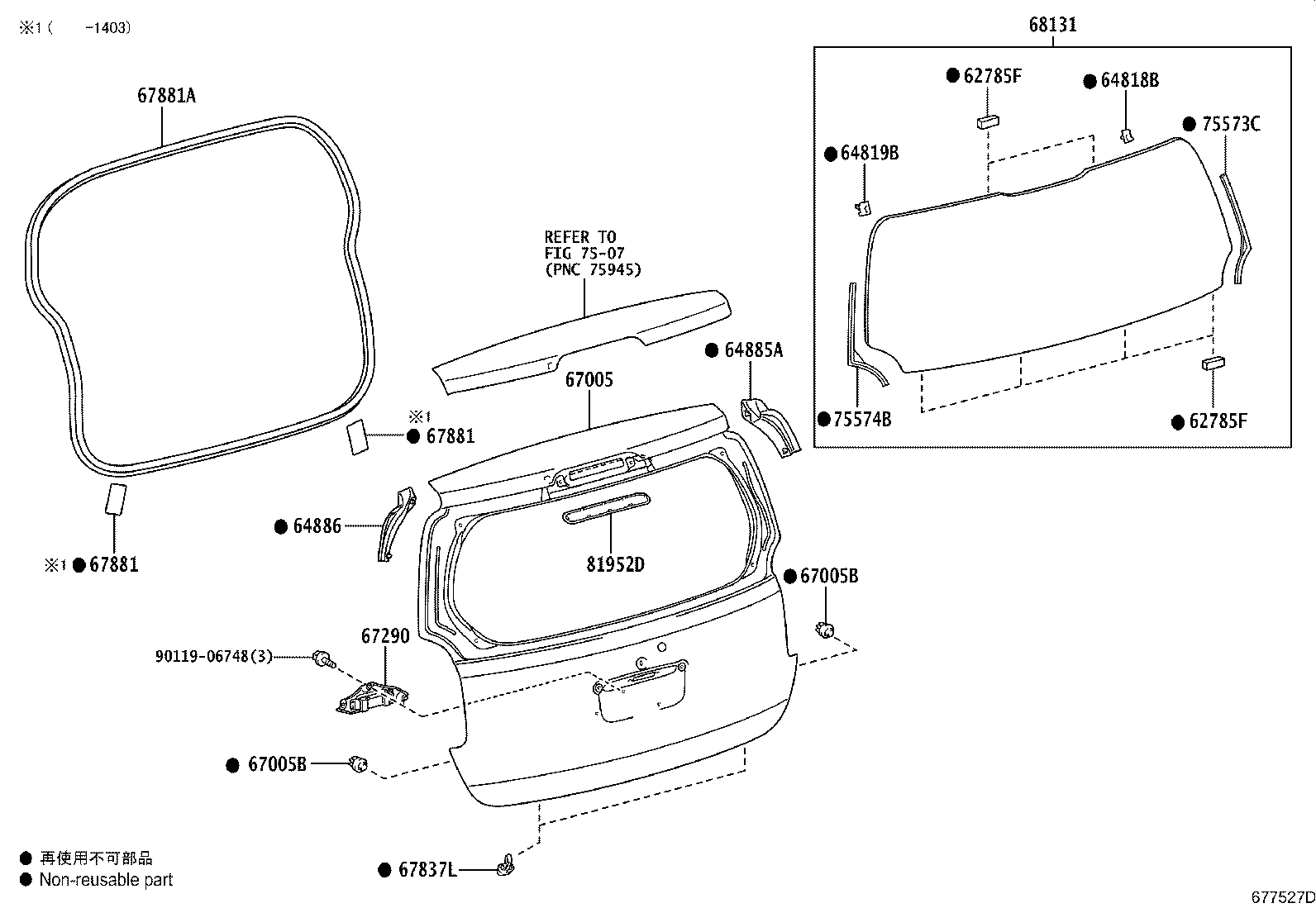

ILLUST NO. 1 OF 2(1207- )

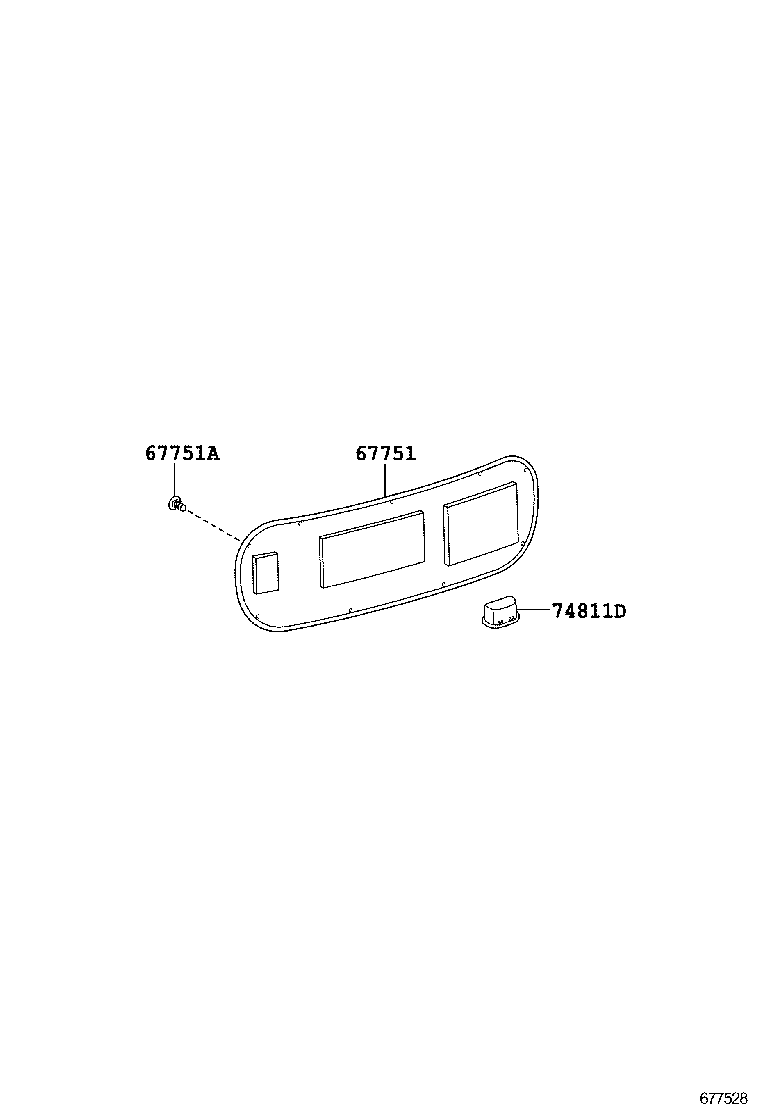

ILLUST NO. 2 OF 2(1207- )
