NCP145-AEXXK (2012)
Toyota Porte/Spade

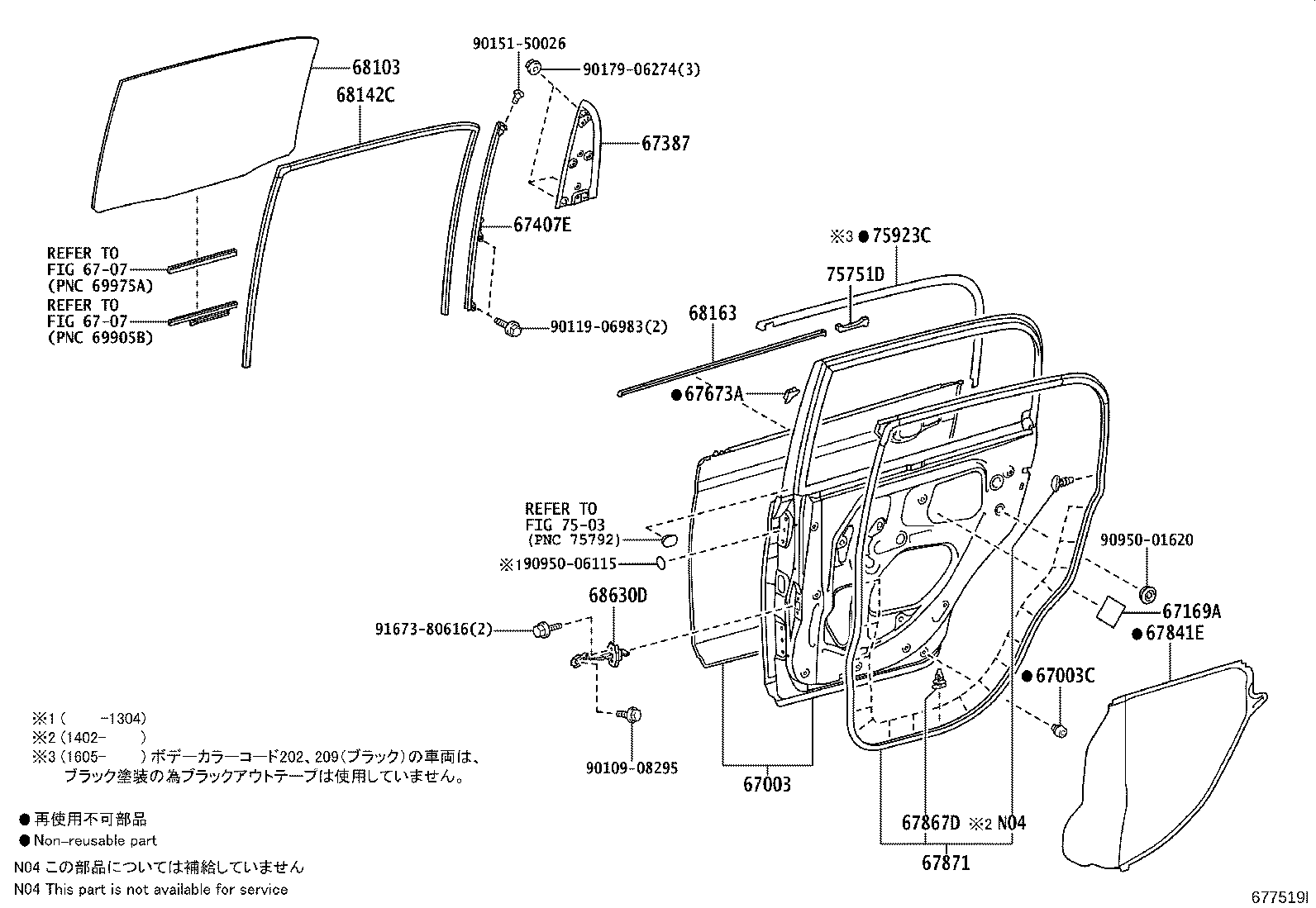

ILLUST NO. 1 OF 2(1207- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-52481 |
NCP14#,NSP140..CBU |
1 | ||
| 67003-52480 |
NCP14#,NSP140..CBU |
1 | ||
| 67003-52482 |
NCP14#,NSP140..CBU |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09143 |
NCP14#,NSP140..CBU |
1 | ||
| 67169A - LINING, DOOR OUTSIDE PANEL REINFORCEMENT | ||||
| 67169-44020 |
NCP14#,NSP140..CBU |
1 | ||
| 67387 - BRACKET, REAR DOOR INSIDE PANEL, NO.4 | ||||
| 67387-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-52190 |
NCP14#,NSP140..CBU |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-48010 |
NCP14#,NSP140..CBU |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-52360 |
NCP14#,NSP140..CBU |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NCP14#,NSP140..CBU |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-52201 |
NCP14#,NSP140..CBU |
1 | ||
| 67871-52200 |
NCP14#,NSP140..CBU |
1 | ||
| 67871-52240 |
NCP14#,NSP140..CBU |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-52360 |
NCP14#,NSP140..CBU *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-52200 |
NCP14#,NSP140..CBU |
1 | ||
| 68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER | ||||
| 68163-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-52140 |
NCP14#,NSP140..CBU |
1 | ||
| 75751D - MOULDING, REAR DOOR BELT, RH | ||||
| 75721-52010 |
NCP14#,NSP140 |
1 | ||
| 75721-52011 |
NCP14#,NSP140..CBU |
1 | ||
| 75923C - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-52141 |
NCP14#,NSP140..(F,G,X,Y)..CBU |
1 | ||
| 75923-52140 |
NCP14#,NSP140..F,G,X,Y |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90151-50026 | ||||
| 90179-06274 | ||||
| 90950-01620 | ||||
| 90950-06115 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6707 | ||||
| 7503 | ||||

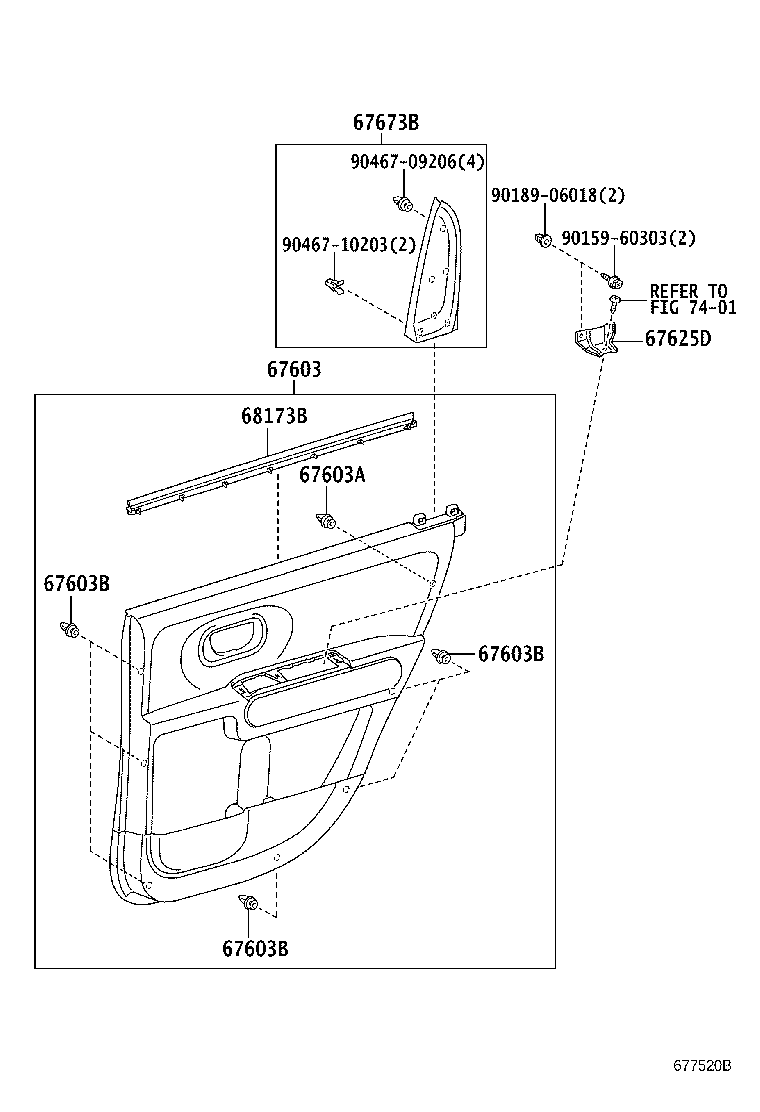

ILLUST NO. 2 OF 2(1207- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-52X40E1 |
NCP14#,NSP140..X..CBU PLUM/ORANGE,TRIM41,43 |
1 | ||
| 67630-52X40E0 |
NCP14#,NSP140..G,V,Y;NCP14#..SPADE..F..CBU PLUM/BLACK,TRIM4# |
1 | ||
| 67630-52X40E0 |
NCP14#..PORTE..F..CBU PLUM/BLACK,TRIM02,03,4# |
1 | ||
| 67630-52X40E0 |
NCP14#,NSP140..X..CBU PLUM/BLACK,TRIM40,41,42 |
1 | ||
| 67630-52X40E0 |
NCP14#,NSP140..X..CBU PLUM/BLACK,TRIM40,42 |
1 | ||
| 67630-52X40E1 |
NCP145..PORTE..F PLUM/ORANGE,TRIM00 |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-26240 |
NCP14#,NSP140..CBU |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09238 |
NCP14#,NSP140..CBU |
7 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09238 |
NCP14#,NSP140..CBU |
7 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09238 |
NCP14#,NSP140..CBU |
7 | ||
| 67625D - BRACKET, REAR DOOR TRIM | ||||
| 67625-52140 |
NCP14#,NSP140..CBU |
1 | ||
| 67673B - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-52060 |
NCP14#,NSP140..CBU |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-52180 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90189-06018 | ||||
| 90467-09206 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 7401 | ||||
