NCP145-AEXXK (2012)
Toyota Porte/Spade

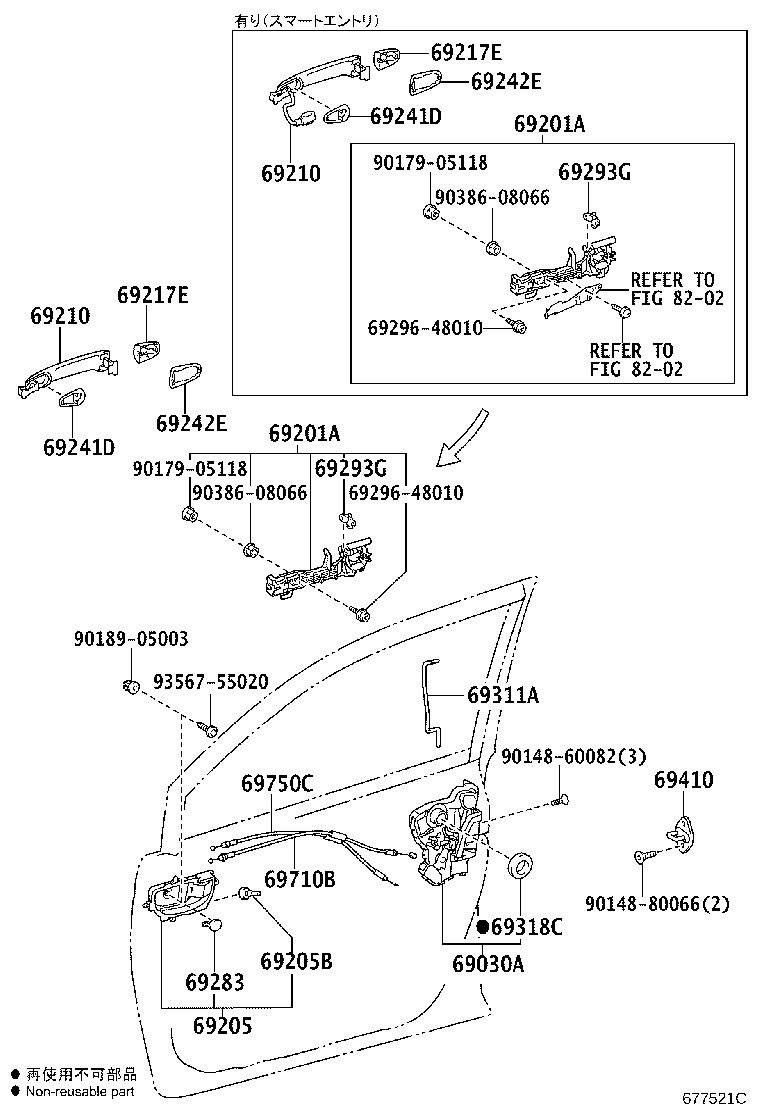

ILLUST NO. 1 OF 2(1207- )
ｳﾝﾃﾝｾｷｶﾞﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-42210 |
NCP14#,NSP140..CBU |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-30020 |
NCP14#,NSP140..CBU |
1 | ||
| 69201-52160 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 69201-52160 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 69201-52160 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 69201-52160 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 69201-52160 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-30020 |
NCP14#,NSP140..CBU |
1 | ||
| 69201-52160 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 69201-52160 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 69201-52160 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 69201-52160 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 69201-52160 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-52170E0 |
NCP14#,NSP140..(G,X)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,PLUM,TRIM4# |
1 | ||
| 69205-52170E0 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ),PLUM,TRIM0#,4# |
1 | ||
| 69205-52180E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 69205-52180E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 69205-52170E0 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ),PLUM,TRIM0#,4# |
1 | ||
| 69205-52170E0 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ),PLUM,TRIM0#,4# |
1 | ||
| 69205-52170E0 |
NCP14#..(F,Y)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,PLUM,TRIM0#,4# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04027 |
NCP14#,NSP140..CBU |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-52120B1 |
NCP14#..PORTE..F..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69210-52110B1 |
NCP14#,NSP140..PORTE..(G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69210-52110B1 |
NCP14#..PORTE..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69210-52120B1 |
NCP14#,NSP140..PORTE..(G,X,Y)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,6W1 ,6W2 ,8S1,8S9 ,9AF |
1 | ||
| 69210-58010 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾒｯｷ,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ |
1 | ||
| 69210-52120B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69211-28070P2 |
NCP14#,NSP140..PORTE..CBU SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69210-52120B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69210-52120B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-52120B1 |
NCP14#..PORTE..F..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69210-52110B1 |
NCP14#,NSP140..PORTE..(G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69210-52110B1 |
NCP14#..PORTE..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69210-52120B1 |
NCP14#,NSP140..PORTE..(G,X,Y)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,6W1 ,6W2 ,8S1,8S9 ,9AF |
1 | ||
| 69210-58010 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾒｯｷ,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ |
1 | ||
| 69210-52120B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69211-28070P2 |
NCP14#,NSP140..PORTE..CBU SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69210-52120B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69210-52120B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69250-30010B2 |
NCP14#..PORTE..F..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69250-30010B2 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69250-30010B2 |
NCP14#,NSP140..PORTE..(G,X,Y)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,6W1 ,6W2 ,8S1,8S9 ,9AF |
1 | ||
| 69250-30010B2 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69250-30010B2 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69217-28010P2 |
NCP14#,NSP140..PORTE..CBU SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69217-58010 |
NCP14#,NSP140..(F,G,X,Y)..CBU *CR,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ |
1 | ||
| 69217-28010P2 |
NCP14#..PORTE..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69250-30010B2 |
NCP14#..PORTE..F..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69250-30010B2 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69250-30010B2 |
NCP14#,NSP140..PORTE..(G,X,Y)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,6W1 ,6W2 ,8S1,8S9 ,9AF |
1 | ||
| 69250-30010B2 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69250-30010B2 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69217-28010P2 |
NCP14#,NSP140..PORTE..CBU SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69217-58010 |
NCP14#,NSP140..(F,G,X,Y)..CBU *CR,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ |
1 | ||
| 69217-28010P2 |
NCP14#..PORTE..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69241-28060 |
NCP14#,NSP140..CBU |
1 | ||
| 69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69241-28060 |
NCP14#,NSP140..CBU |
1 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-60030 |
NCP14#,NSP140..CBU |
1 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-60030 |
NCP14#,NSP140..CBU |
1 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-52010E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 69283-52010E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
NCP14#,NSP140..CBU |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
NCP14#,NSP140..CBU |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-52220 |
NCP14#,NSP140..CBU |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
NCP14#,NSP140..CBU |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-20110 |
NCP14#,NSP140..CBU |
1 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-52210 |
NCP14#,NSP140..CBU |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-52140 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 69296-48010 | ||||
| 90148-60082 | ||||
| 90148-80066 | ||||
| 90179-05118 | ||||
| 90189-05003 | ||||
| 90386-08066 | ||||
| 93567-55020 | ||||
| Linked diagrams | ||||
| 8202 | ||||

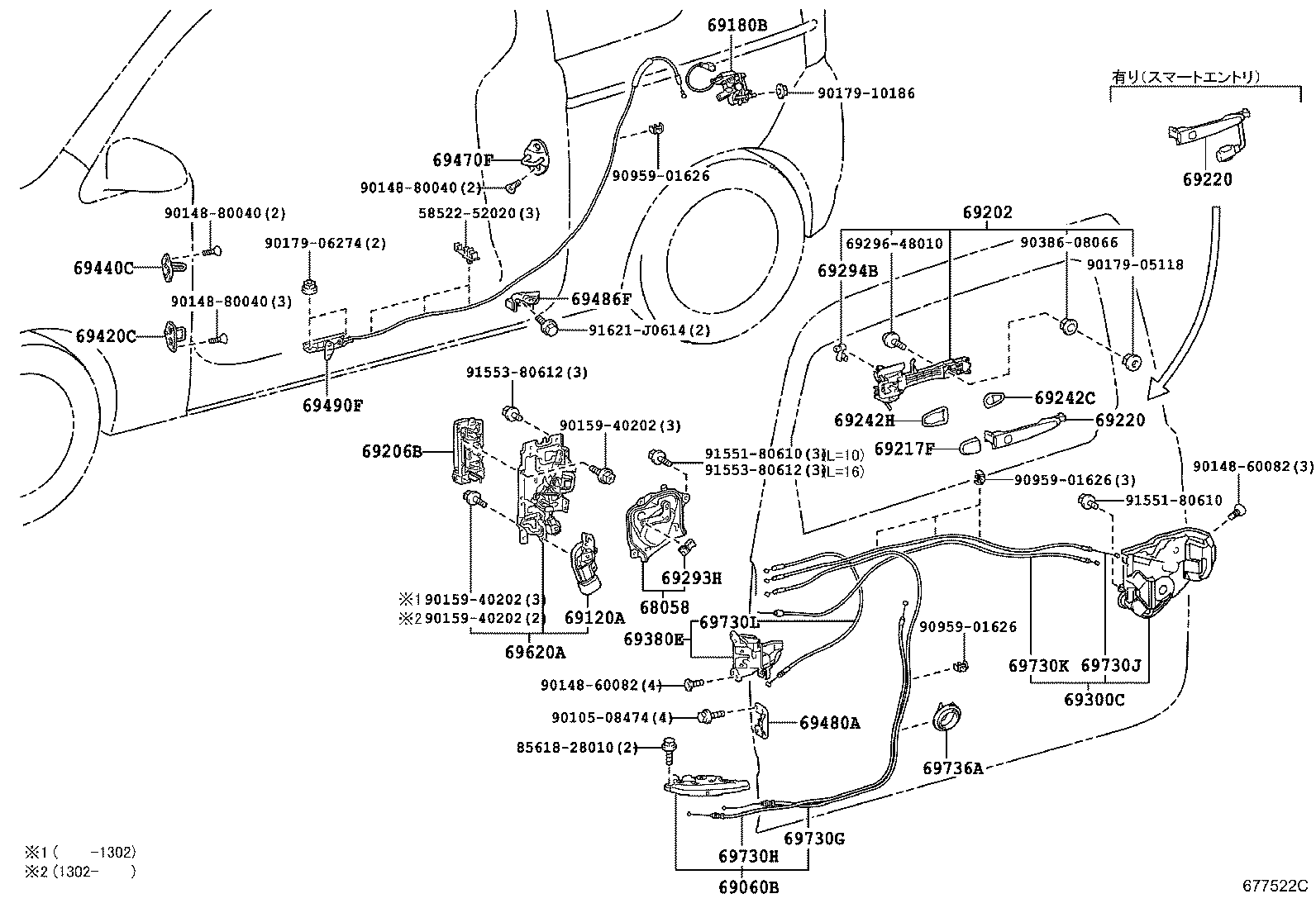

ILLUST NO. 2 OF 2(1207- )
ｼﾞｮｼｭｾｷｶﾞﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68058 - GUIDE SUB-ASSY, FR SIDE DOOR | ||||
| 68058-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 69060B - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, NO.1 LH | ||||
| 69060-52270 |
NCP14#,NSP140..CBU |
1 | ||
| 69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH | ||||
| 69140-58020 |
NCP14#,NSP140..CBU |
1 | ||
| 69180B - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPER | ||||
| 69180-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 69202 - HANDLE SUB-ASSY, DOOR OUTSIDE, LH | ||||
| 69204-52110 |
NCP14#,NSP140..CBU |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69208-52060E0 |
NCP14#..(F,Y)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,PLUM,TRIM0#,4# |
1 | ||
| 69208-52060E0 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ),PLUM,TRIM0#,4# |
1 | ||
| 69208-52060E0 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ),PLUM,TRIM0#,4# |
1 | ||
| 69208-52060E0 |
NCP14#,NSP140..(G,X)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,PLUM,TRIM4# |
1 | ||
| 69208-58020E1 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 69208-58020E1 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 69208-52060E0 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ),PLUM,TRIM0#,4# |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69227-28050B8 |
NCP14#,NSP140..PORTE..CBU SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69227-28050B8 |
NCP14#..PORTE..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69227-58010 |
NCP14#,NSP140..(F,G,X,Y)..CBU *CR,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ |
1 | ||
| 69250-58010B1 |
NCP14#,NSP140..PORTE..(G,X,Y)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,6W1 ,6W2 ,8S1,8S9 ,9AF |
1 | ||
| 69250-58010B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69250-58010B1 |
NCP14#..PORTE..F..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69250-58010B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69250-58010B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69213-28010B8 |
NCP14#,NSP140..PORTE..CBU SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69240-52080B1 |
NCP14#,NSP140..PORTE..(G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69240-52080B1 |
NCP14#..PORTE..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69230-58010 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾒｯｷ,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ |
1 | ||
| 69240-52090B1 |
NCP14#,NSP140..PORTE..(G,X,Y)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,6W1 ,6W2 ,8S1,8S9 ,9AF |
1 | ||
| 69240-52090B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69240-52090B1 |
NCP14#..PORTE..F..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69240-52090B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69240-52090B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69213-28010B8 |
NCP14#,NSP140..PORTE..CBU SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69240-52080B1 |
NCP14#,NSP140..PORTE..(G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69240-52080B1 |
NCP14#..PORTE..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69230-58010 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾒｯｷ,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ |
1 | ||
| 69240-52090B1 |
NCP14#,NSP140..PORTE..(G,X,Y)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,6W1 ,6W2 ,8S1,8S9 ,9AF |
1 | ||
| 69240-52090B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69240-52090B1 |
NCP14#..PORTE..F..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69240-52090B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2,8S1 ,8S9 ,9AF |
1 | ||
| 69240-52090B1 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),SILVER ME.,070 ,1F7 ,209 ,3P0 ,4U3 ,4V9 ,576 ,6W1 ,6W2 ,8S1 ,8S9 ,9AF |
1 | ||
| 69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69241-28060 |
NCP14#,NSP140..CBU |
1 | ||
| 69242H - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-60030 |
NCP14#,NSP140..CBU |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-30030 |
NCP14#,NSP140..CBU |
1 | ||
| 69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12030 |
NCP14#,NSP140..CBU |
1 | ||
| 69300C - LOCK ASSY, POWER SLIDE DOOR, NO.1 LH | ||||
| 69300-52060 |
NCP14#,NSP140..CBU |
1 | ||
| 69300-52061 |
NCP14#,NSP140..CBU |
1 | ||
| 69380E - LOCK ASSY, SLIDE DOOR, FRONT LH | ||||
| 69380-52070 |
NCP14#,NSP140..CBU 寒冷地仕様 |
1 | ||
| 69380-52060 |
NCP14#,NSP140..CBU |
1 | ||
| 69420C - PLATE ASSY, DOOR LOCK STRIKER | ||||
| 69420-52011 |
NCP14#,NSP140..CBU |
1 | ||
| 69440C - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER | ||||
| 69440-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 69470F - PLATE ASSY, SLIDE DOOR REAR LOCK STRIKER | ||||
| 69470-28120 |
NCP14#,NSP140..CBU |
1 | ||
| 69480A - HOOK ASSY, SLIDE DOOR FRONT LOCK | ||||
| 69481-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 69486F - STRIKER, SLIDE DOOR OPEN, LH | ||||
| 69486-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 69490F - STOPER ASSY, SLIDE DOOR HALF OPEN | ||||
| 69490-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 69620A - CONTROL ASSY, FRONT DOOR LOCK REMOTE, LH | ||||
| 69640-52060 |
NCP14#,NSP140..CBU |
1 | ||
| 69730G - CABLE ASSY, SIDE DOOR LOCK REMOTE CONTROL, NO.1 | ||||
| 69730-52200 |
NCP14#,NSP140..CBU |
1 | ||
| 69730H - CABLE ASSY, SIDE DOOR LOCK REMOTE CONTROL, NO.2 | ||||
| 69730-52210 |
NCP14#,NSP140..CBU |
1 | ||
| 69730J - CABLE ASSY, SIDE DOOR LOCK REMOTE CONTROL, NO.3 | ||||
| 69730-52221 |
NCP14#,NSP140..CBU |
1 | ||
| 69730-52220 |
NCP14#,NSP140..CBU |
1 | ||
| 69730K - CABLE ASSY, SIDE DOOR LOCK REMOTE CONTROL, NO.4 | ||||
| 69730-52230 |
NCP14#,NSP140..CBU |
1 | ||
| 69730-52231 |
NCP14#,NSP140..CBU |
1 | ||
| 69730L - CABLE ASSY, SIDE DOOR LOCK REMOTE CONTROL, NO.5 | ||||
| 69730-52240 |
NCP14#,NSP140..CBU |
1 | ||
| 69736A - GUIDE, FRONT DOOR LOCK LINK | ||||
| 69736-52010 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 58522-52020 | ||||
| 69296-48010 | ||||
| 85618-28010 | ||||
| 90105-08474 | ||||
| 90148-60082 | ||||
| 90148-80040 | ||||
| 90159-40202 | ||||
| 90179-05118 | ||||
| 90179-06274 | ||||
| 90179-10186 | ||||
| 90386-08066 | ||||
| 90959-01626 | ||||
| 91551-80610 | ||||
| 91553-80612 | ||||
| 91621-J0614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
