NCP145-AEXXK (2012)
Toyota Porte/Spade

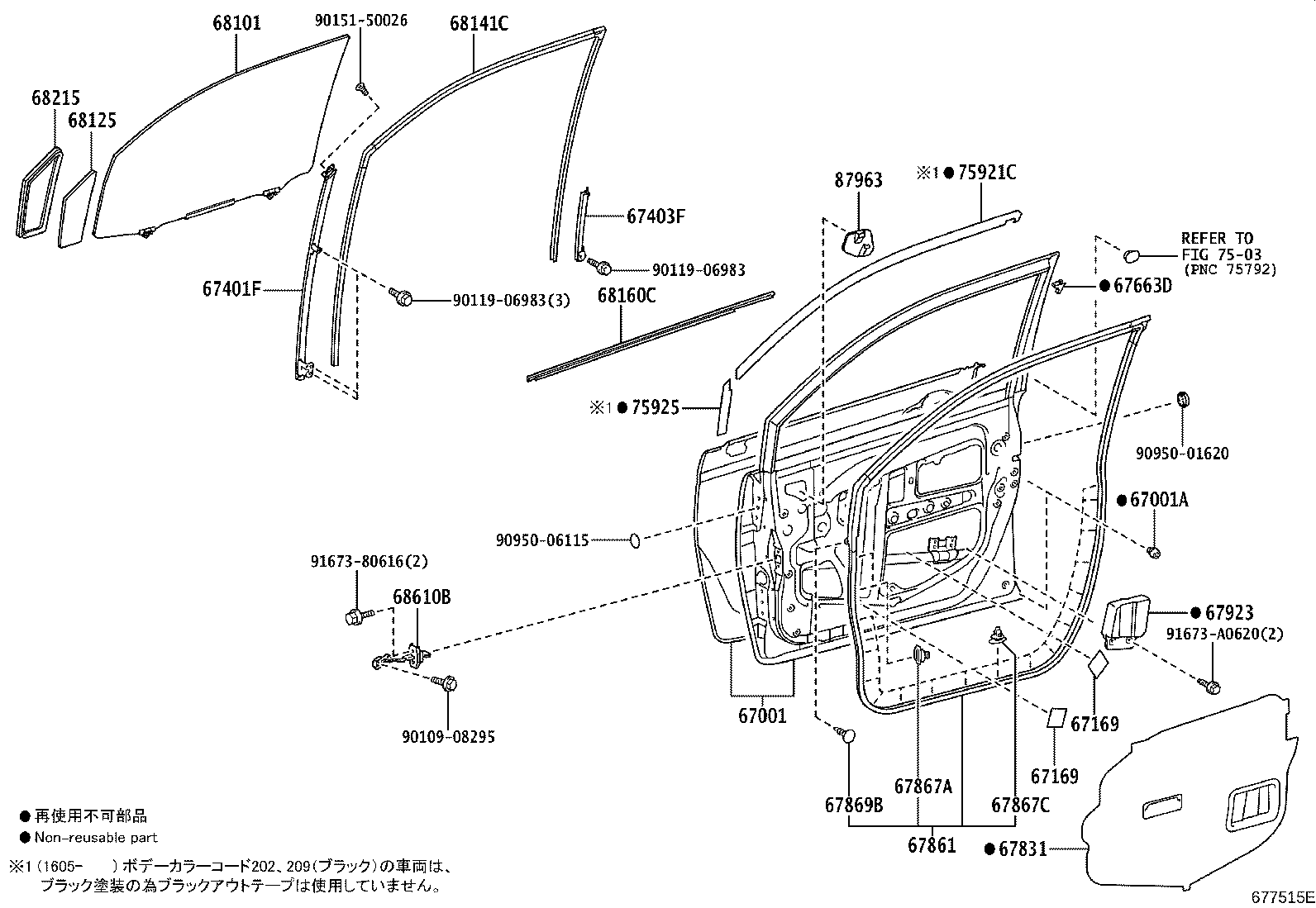

ILLUST NO. 1 OF 4(1207- )
ﾄﾞｱﾊﾟﾈﾙ(ｳﾝﾃﾝｾｷｶﾞﾜ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-52470 |
NCP14#,NSP140..CBU |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09143 |
NCP14#,NSP140..CBU |
2 | ||
| 67169 - LINING, DOOR OUTSIDE PANEL REINFORCEMENT | ||||
| 67169-44020 |
NCP14#,NSP140..CBU |
2 | ||
| 67169 - LINING, DOOR OUTSIDE PANEL REINFORCEMENT | ||||
| 67169-44020 |
NCP14#,NSP140..CBU |
2 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-52170 |
NCP14#,NSP140..CBU |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-52220 |
NCP14#,NSP140..CBU |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-48010 |
NCP14#,NSP140..CBU |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-52431 |
NCP14#,NSP140..CBU |
1 | ||
| 67831-52430 |
NCP14#,NSP140..CBU |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-52280 |
NCP14#,NSP140..CBU |
1 | ||
| 67861-52290 |
NCP14#,NSP140..CBU 寒冷地仕様 |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 90467-04034 |
NCP14#,NSP140..CBU |
2 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NCP14#,NSP140..CBU |
16 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
NCP14#,NSP140..CBU |
1 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-52190 |
NCP14#,NSP140..CBU |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-52060 |
NCP14#,NSP140..(F,V,X,Y)..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68101-52070 |
NCP14#,NSP140..(F,X,Y)..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−赤外線ｶｯﾄ+*TST{*ACS+ﾃﾞｱｲｻ |
1 | ||
| 68101-52070 |
NCP14#,NSP140..(F,X,Y)..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−赤外線ｶｯﾄ+*TST{*ACS |
1 | ||
| 68101-52080 |
NCP14#..PORTE..F..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ,“a la mode”(*IC.=ﾌﾟﾗﾑ)&ｳBﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−赤外線ｶｯﾄ+*TST+*ACS |
1 | ||
| 68101-52080 |
NCP14#..PORTE..F..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ,“a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ^ｼﾙﾊﾞｰ)&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−赤外線ｶｯﾄ+*TST+*ACS |
1 | ||
| 68101-52080 |
NCP14#..PORTE..F..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ,“a la mode”(*IC.=ﾌﾟﾗﾑ)&ｳBﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−赤外線ｶｯﾄ+*TST+*ACS+ﾃﾞｱｲｻ |
1 | ||
| 68101-52080 |
NCP14#..PORTE..F..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ,“a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ^ｼﾙﾊﾞｰ)&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−赤外線ｶｯﾄ+*TST+*ACS+ﾃﾞｱｲｻ |
1 | ||
| 68101-52080 |
NCP14#..PORTE..F..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ,“a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ^ﾌﾞﾗｳﾝ)&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−赤外線ｶｯﾄ+*TST+*ACS+ﾃﾞｱｲｻ |
1 | ||
| 68101-52080 |
NCP14#..PORTE..F..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ,“a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ^ﾌﾞﾗｳﾝ)&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−赤外線ｶｯﾄ+*TST+*ACS |
1 | ||
| 68125 - GLASS, FRONT DOOR FIX WINDOW, RH | ||||
| 68125-52060 |
NCP14#,NSP140..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-52270 |
NCP14#,NSP140..CBU |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH | ||||
| 68215-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-52190 |
NCP14#,NSP140..CBU |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-52150 |
NCP14#,NSP140..(F,G,X,Y)..CBU |
1 | ||
| 75925 - TAPE, BLACK OUT, NO.3 RH | ||||
| 75925-52140 |
NCP14#,NSP140..(F,G,X,Y)..CBU |
1 | ||
| 87963 - COVER, OUTER MIRROR INSTALL HOLE, RH | ||||
| 87963-52020 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90151-50026 | ||||
| 90950-01620 | ||||
| 90950-06115 | ||||
| 91673-80616 | ||||
| 91673-A0620 | ||||
| Linked diagrams | ||||
| 7503 | ||||

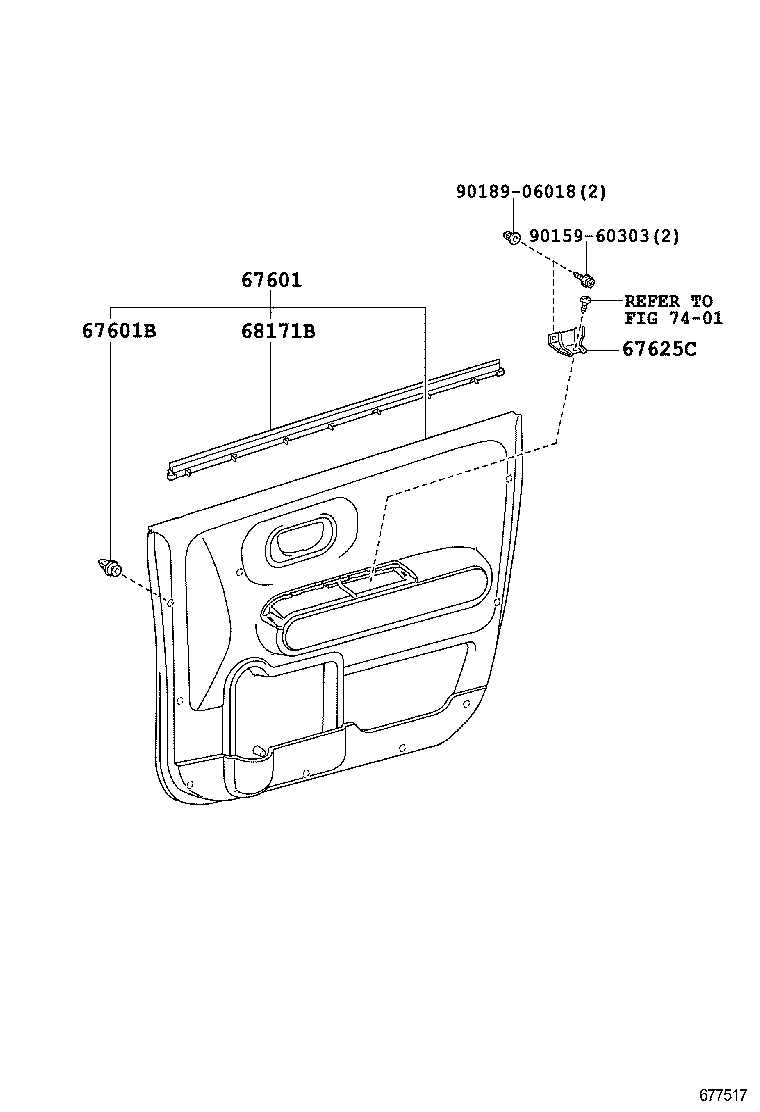

ILLUST NO. 3 OF 4(1207- )
ﾄﾞｱﾄﾘﾑ(ｳﾝﾃﾝｾｷｶﾞﾜ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-5CG50E2 |
NCP141..Y;NCP145..SPADE..Y;NCP145..PORTE..(F,Y);NCP141..PORTE..F..CBU PLUM/BLACK/PLUM,TRIM4# |
1 | ||
| 67610-5CG50E1 |
NCP145..PORTE..F PLUM/FROMAGE/ORANGE,TRIM00 |
1 | ||
| 67610-5CG50E1 |
NCP14#,NSP140..X..CBU PLUM/FROMAGE/ORANGE,TRIM41,43 |
1 | ||
| 67610-5CG50E0 |
NCP14#,NSP140..(V,X)..CBU PLUM/FROMAGE/PLUM,TRIM41 |
1 | ||
| 67610-5CG50E2 |
NCP14#,NSP140..X..CBU PLUM/BLACK/PLUM,TRIM40,42 |
1 | ||
| 67610-5CG50E0 |
NCP14#..PORTE..F..CBU PLUM/FROMAGE/PLUM,TRIM02,03 |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09238 |
NCP14#,NSP140..CBU |
18 | ||
| 67625C - BRACKET, DOOR TRIM, NO.1 | ||||
| 67625-52140 |
NCP14#,NSP140..CBU |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-52250 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7401 | ||||

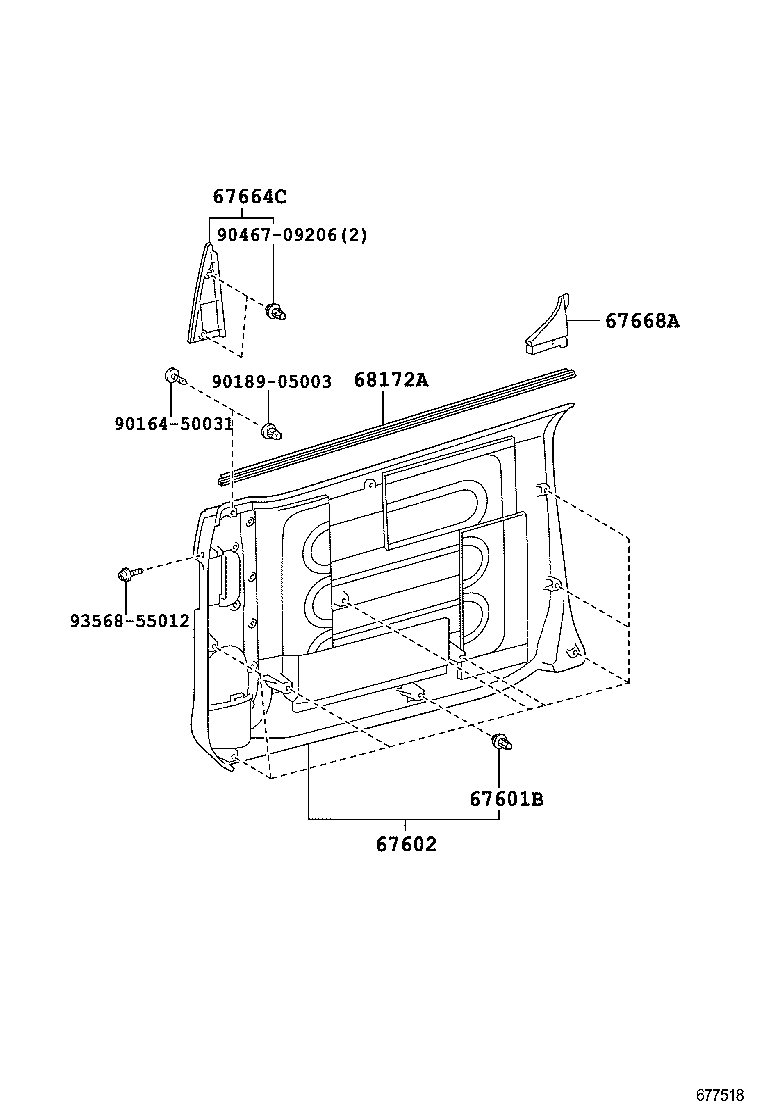

ILLUST NO. 4 OF 4(1207- )
ﾄﾞｱﾄﾘﾑ(ｼﾞｮｼｭｾｷｶﾞﾜ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09238 |
NCP14#,NSP140..CBU |
18 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-5CG30A0 |
NCP14#,NSP140..G,V PLUM/FROMAGE,TRIM41 |
1 | ||
| 67620-5CG30A0 |
NCP14#..(F,Y)..CBU PLUM/FROMAGE,TRIM0# |
1 | ||
| 67620-5CG30C0 |
NCP14#,NSP140..X..CBU PLUM/BLACK,TRIM40,42 |
1 | ||
| 67620-5CG30C0 |
NCP14#..(F,Y)..CBU PLUM/BLACK,TRIM4# |
1 | ||
| 67620-5CG30C0 |
NCP14#,NSP140..G,V PLUM/BLACK,TRIM40 |
1 | ||
| 67620-5CG31A0 |
NCP14#..(F,Y)..CBU PLUM/FROMAGE,TRIM0# |
1 | ||
| 67620-5CG30A0 |
NCP14#,NSP140..X..CBU PLUM/FROMAGE,TRIM41,43 |
1 | ||
| 67620-5CG31A0 |
NCP14#,NSP140..X..CBU PLUM/FROMAGE,TRIM41,43 |
1 | ||
| 67620-5CG31C0 |
NCP14#,NSP140..X..CBU PLUM/BLACK,TRIM40,42 |
1 | ||
| 67620-5CG31C0 |
NCP14#,NSP140..(F,V,Y)..CBU PLUM/BLACK,TRIM4# |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 67668A - GARNISH, SLIDE DOOR WINDOW, LH | ||||
| 67668-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68174-52190 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 90164-50031 | ||||
| 90189-05003 | ||||
| 90467-09206 | ||||
| 93568-55012 | ||||

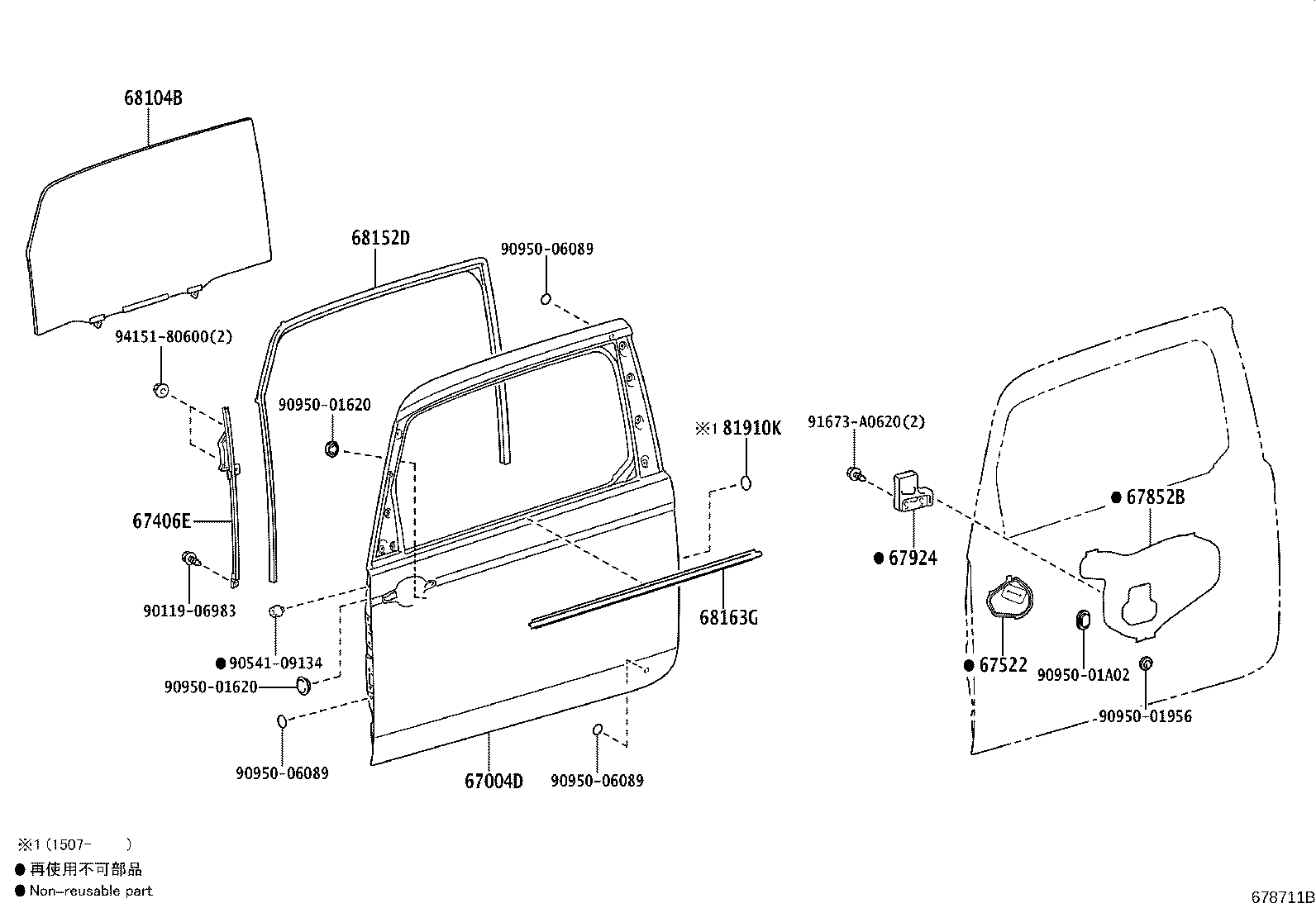

ILLUST NO. 2 OF 4(1207- )
ﾄﾞｱﾊﾟﾈﾙ(ｼﾞｮｼｭｾｷｶﾞﾜ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67004D - DOOR SUB-ASSY, SLIDE, LH | ||||
| 67004-52490 |
NCP14#,NSP140..CBU |
1 | ||
| 67004-52500 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 67004-52500 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 67406E - GUIDE SUB-ASSY, SLIDE DOOR WINDOW, FR LH | ||||
| 67406-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 67522 - COVER SUB-ASSY, SLIDE DOOR PANEL, LH | ||||
| 67522-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 67852B - COVER, SLIDE DOOR SERVICE HOLE | ||||
| 67852-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-52220 |
NCP14#,NSP140..CBU |
1 | ||
| 68104B - GLASS SUB-ASSY, SLIDE DOOR, NO.1 LH | ||||
| 68104-52020 |
NCP14#,NSP140..(F,V,X,Y)..CBU |
1 | ||
| 68104-52040 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−赤外線ｶｯﾄ+*TST+*ACS+ﾃﾞｱｲｻ |
1 | ||
| 68104-52030 |
NCP14#,NSP140..(F,X,Y)..CBU ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−赤外線ｶｯﾄ+*TST+*ACS+ﾃﾞｱｲｻ |
1 | ||
| 68104-52040 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ)&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−赤外線ｶｯﾄ+*TST+*ACS |
1 | ||
| 68104-52030 |
NCP14#,NSP140..(F,X,Y)..CBU ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−赤外線ｶｯﾄ+*TST+*ACS |
1 | ||
| 68104-52040 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−赤外線ｶｯﾄ+*TST+*ACS |
1 | ||
| 68104-52040 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−赤外線ｶｯﾄ+*TST+*ACS+ﾃﾞｱｲｻ |
1 | ||
| 68104-52040 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ)&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−赤外線ｶｯﾄ+*TST+*ACS |
1 | ||
| 68104-52040 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ)&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−赤外線ｶｯﾄ+*TST+*ACS+ﾃﾞｱｲｻ |
1 | ||
| 68152D - RUN, SLIDE DOOR GLASS, NO.1 LH | ||||
| 68152-52210 |
NCP14#,NSP140..CBU |
1 | ||
| 68163G - WEATHERSTRIP, SLIDE DOOR GLASS, LH | ||||
| 68164-52020 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 90119-06983 | ||||
| 90541-09134 | ||||
| 90950-01620 | ||||
| 90950-01956 | ||||
| 90950-01A02 | ||||
| 90950-06089 | ||||
| 91673-A0620 | ||||
| 94151-80600 | ||||
