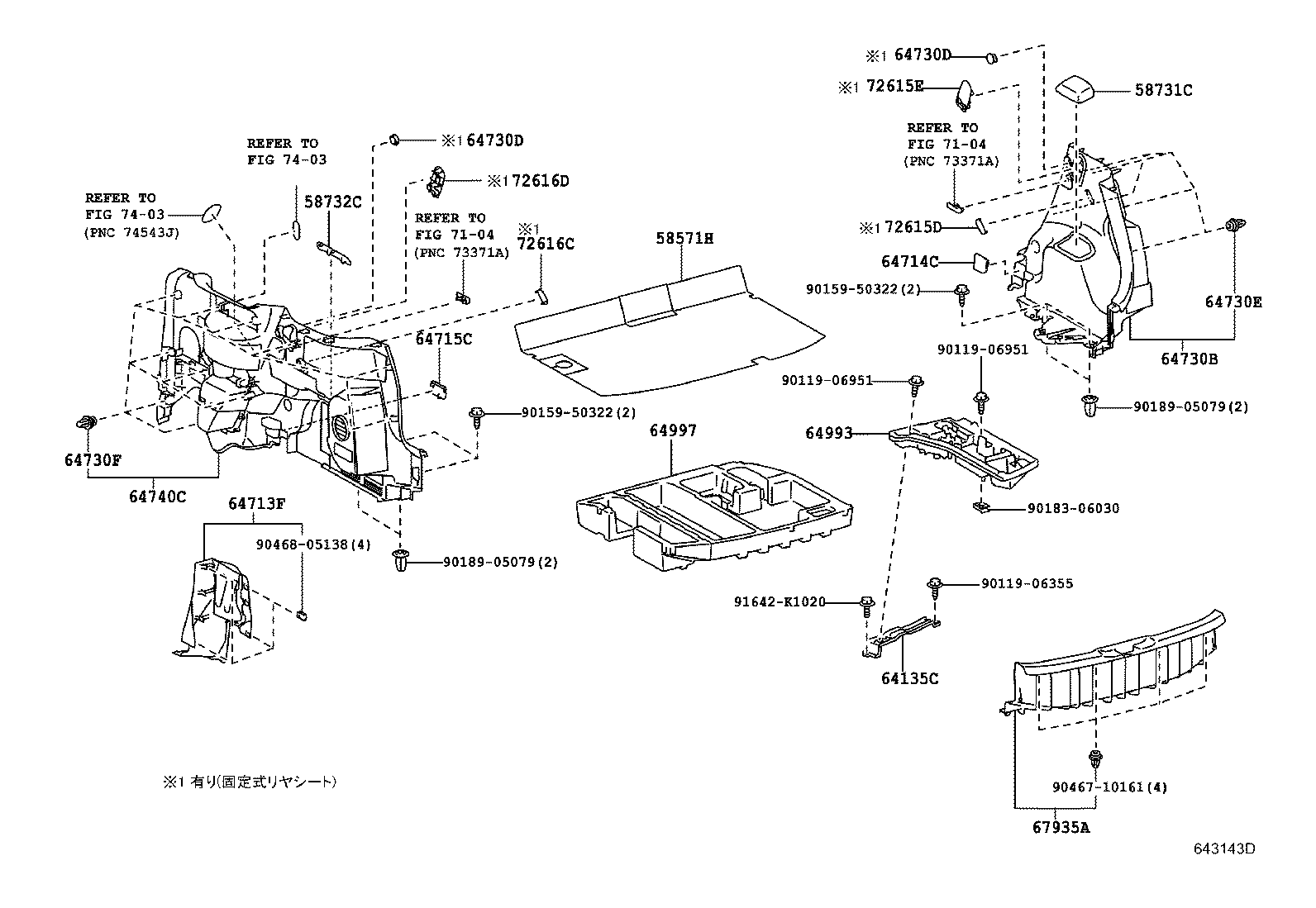

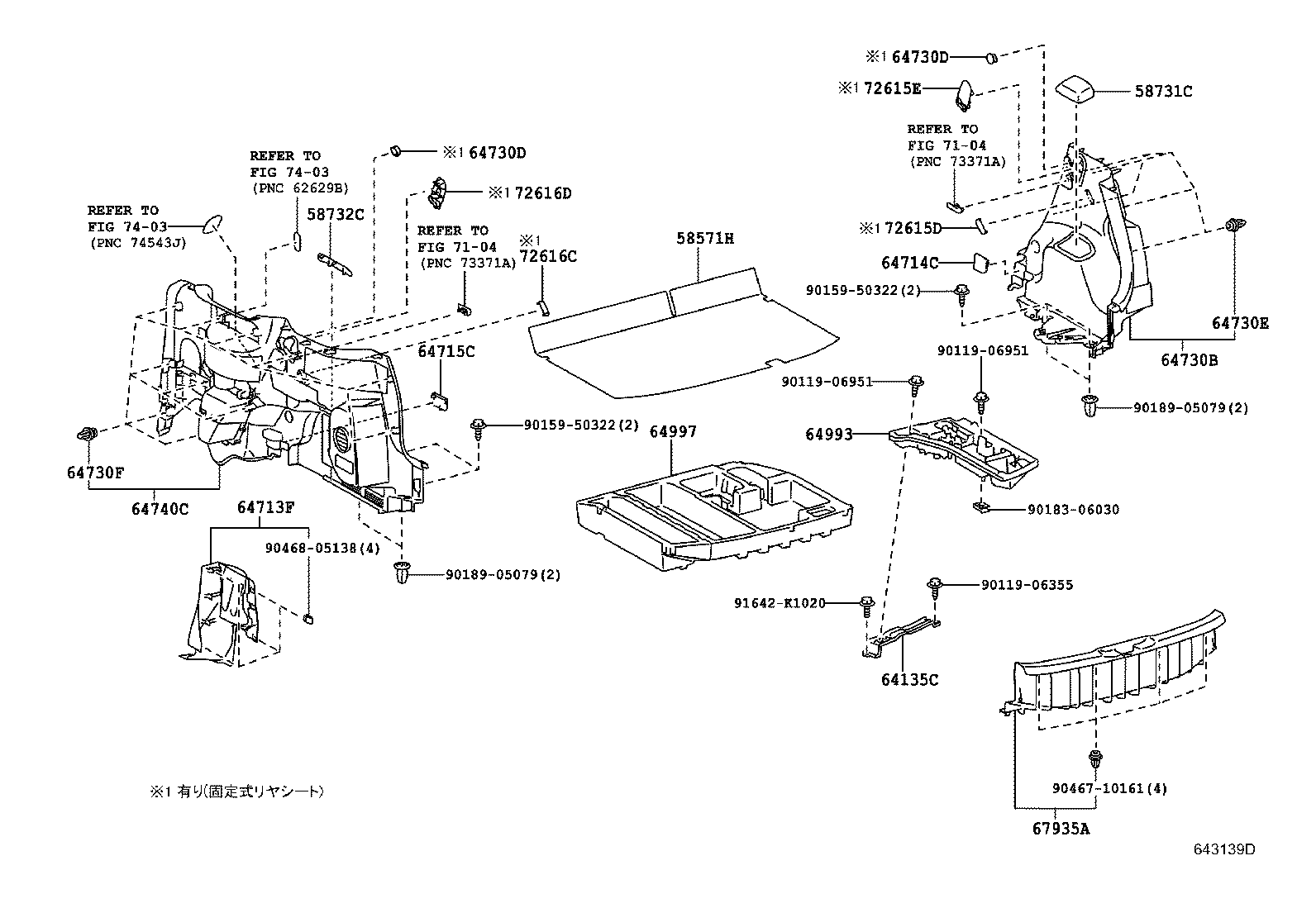

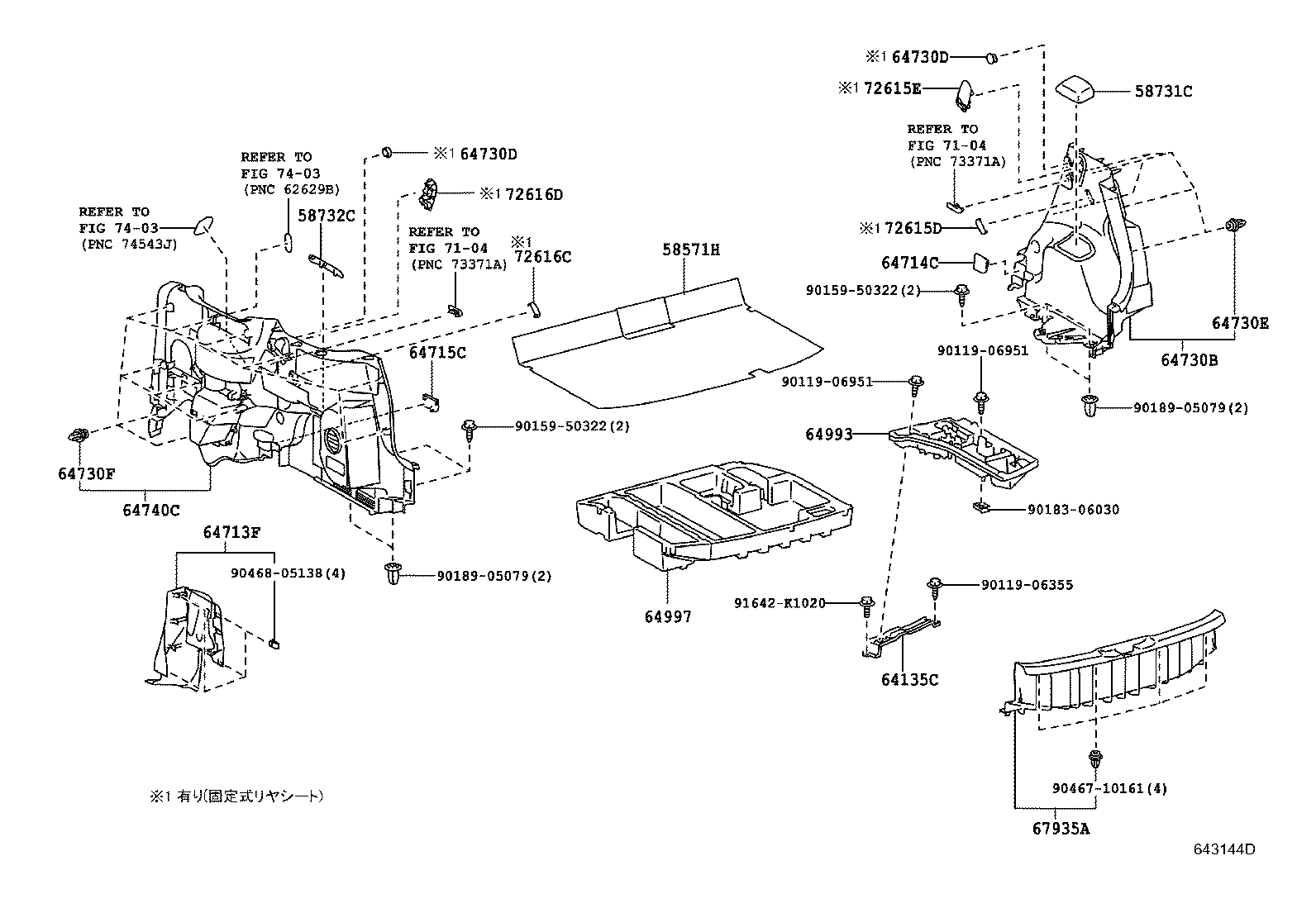

NCP145-AEXXK (2012)
Toyota Porte/Spade
(1207-1507)NCP145
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58571H - CARPET, REAR FLOOR | ||||
| 58571-52050E1 |
NCP145..F,Y PLUM,TRIM0#,4# |
1 | ||
| 58571-52070E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 58571-52050E1 |
NCP145..(G,X)..CBU PLUM,TRIM4# |
1 | ||
| 58571-52070E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 58571-52090E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 58571-52090E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-52050E1 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58731-52050E1 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-52030E1 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58732-52030E1 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64135C - BRACKET, LUGGAGE COMPARTMENT TRAY, REAR RH | ||||
| 64135-52010 |
NCP145..CBU |
1 | ||
| 64713F - COVER, DECK SIDE TRIM, FRONT LH | ||||
| 64713-52070E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64713-52070E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64713-52080E1 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM4# |
1 | ||
| 64713-52080E1 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM0#,4# |
1 | ||
| 64713-52100E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 64713-52090E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 64713-52090E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 64713-52100E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-52240E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64714-52240E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-52300E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64715-52300E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-52490E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64730-52490E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64730D - PLUG, HOLE(FOR DECK TRIM SIDE BOARD) | ||||
| 90950-01851E7 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
2 | ||
| 64730D - PLUG, HOLE(FOR DECK TRIM SIDE BOARD) | ||||
| 90950-01851E7 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
2 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
NCP14#,NSP140..CBU |
5 | ||
| 64730F - CLAMP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
NCP14#,NSP140..CBU |
11 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-52570E0 |
NCP14#,NSP140..X..CBU PLUM/BLACK,TRIM40,42 |
1 | ||
| 64740-52670E0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM/BLACK,TRIM40,42 |
1 | ||
| 64740-52570E1 |
NCP14#,NSP140..X..CBU PLUM/ORANGE,TRIM41,43 |
1 | ||
| 64740-52670E1 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/ORANGE,TRIM41,43 |
1 | ||
| 64740-52670E1 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM/ORANGE,TRIM41,43 |
1 | ||
| 64740-52670E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/BLACK,TRIM40,42 |
1 | ||
| 64740-52570E0 |
NCP141..PORTE..Y;NCP145..SPADE..F;NCP145,NSP140..V,Y;NCP141..SPADE..(F,Y)..CBU PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52570E1 |
NCP145..PORTE..F PLUM/ORANGE,TRIM00 |
1 | ||
| 64740-52570E0 |
NCP14#..PORTE..F..CBU PLUM/BLACK,TRIM02,03,4# |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-52130 |
NCP145..CBU |
1 | ||
| 64997 - BOX, DECK FLOOR, LH | ||||
| 64997-52090 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64997-52080 |
NCP145..CBU |
1 | ||
| 64997-52120 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 64997-52090 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64997-52120 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 64997-52090 |
NCP145..CBU ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 67935A - PLATE, BACK DOOR SCUFF | ||||
| 67935-52030E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 67935-52030E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 72615D - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52010E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 72615E - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52030E1 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 72616C - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-52010E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 72616D - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-52030E1 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06355 | ||||
| 90119-06951 | ||||
| 90159-50322 | ||||
| 90183-06030 | ||||
| 90189-05079 | ||||
| 90467-10161 | ||||
| 90468-05138 | ||||
| 91642-K1020 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7403 | ||||

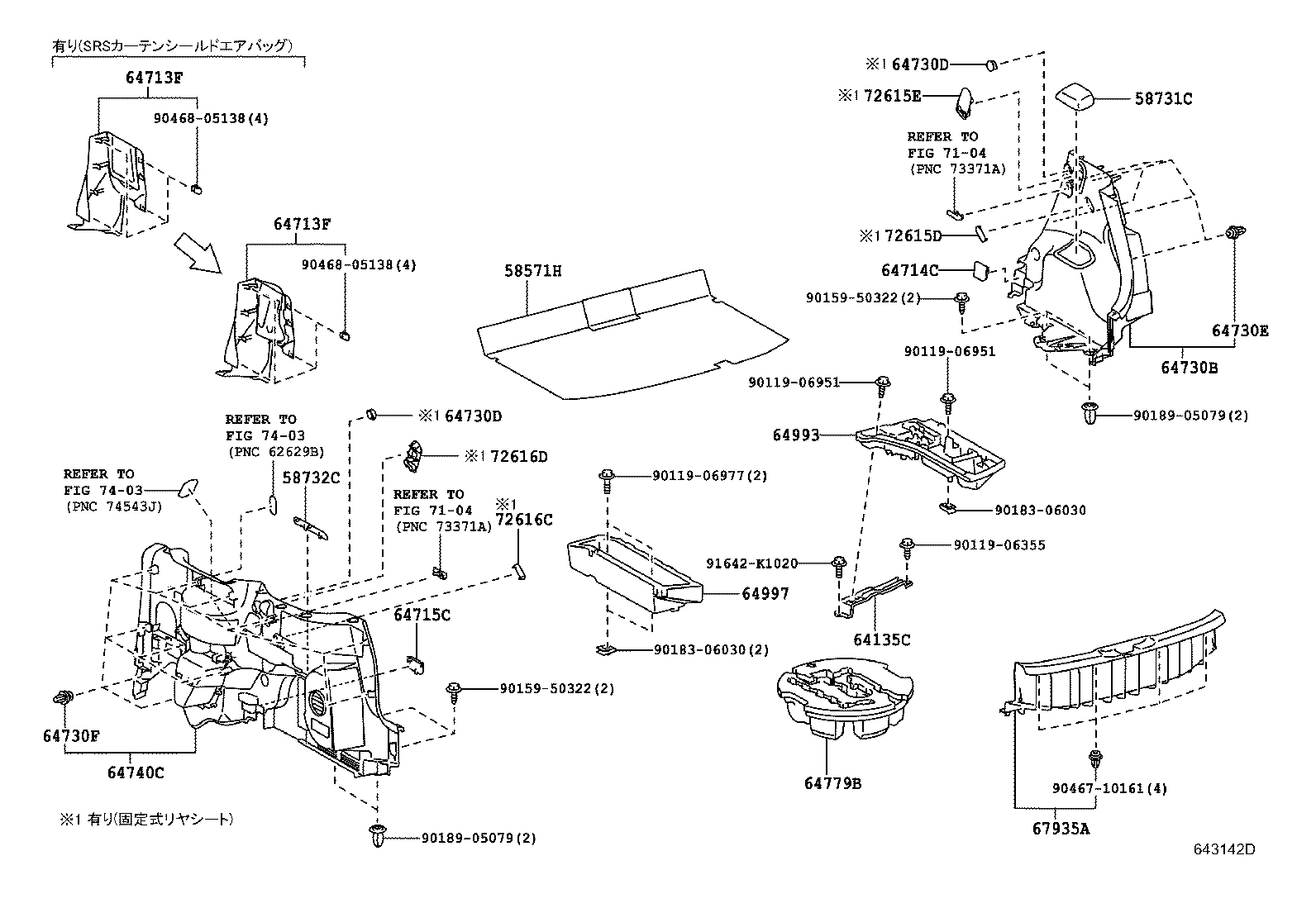

(1207-1507)NCP145..X
ｳｪﾙｷｬﾌﾞ, ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ:125/70 D16)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58571H - CARPET, REAR FLOOR | ||||
| 58571-52050E1 |
NCP145..F,Y PLUM,TRIM0#,4# |
1 | ||
| 58571-52070E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 58571-52050E1 |
NCP145..(G,X)..CBU PLUM,TRIM4# |
1 | ||
| 58571-52070E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 58571-52090E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 58571-52090E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-52050E1 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58731-52050E1 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-52030E1 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58732-52030E1 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64135C - BRACKET, LUGGAGE COMPARTMENT TRAY, REAR RH | ||||
| 64135-52010 |
NCP145..CBU |
1 | ||
| 64713F - COVER, DECK SIDE TRIM, FRONT LH | ||||
| 64713-52070E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64713-52070E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64713-52080E1 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM4# |
1 | ||
| 64713-52080E1 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM0#,4# |
1 | ||
| 64713-52100E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 64713-52090E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 64713-52090E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 64713-52100E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 64713F - COVER, DECK SIDE TRIM, FRONT LH | ||||
| 64713-52070E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64713-52070E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64713-52080E1 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM4# |
1 | ||
| 64713-52080E1 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM0#,4# |
1 | ||
| 64713-52100E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 64713-52090E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 64713-52090E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 64713-52100E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-52240E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64714-52240E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-52300E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64715-52300E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-52490E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64730-52490E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64730D - PLUG, HOLE(FOR DECK TRIM SIDE BOARD) | ||||
| 90950-01851E7 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
2 | ||
| 64730D - PLUG, HOLE(FOR DECK TRIM SIDE BOARD) | ||||
| 90950-01851E7 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
2 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
NCP14#,NSP140..CBU |
5 | ||
| 64730F - CLAMP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
NCP14#,NSP140..CBU |
11 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-52570E0 |
NCP14#,NSP140..X..CBU PLUM/BLACK,TRIM40,42 |
1 | ||
| 64740-52670E0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM/BLACK,TRIM40,42 |
1 | ||
| 64740-52570E1 |
NCP14#,NSP140..X..CBU PLUM/ORANGE,TRIM41,43 |
1 | ||
| 64740-52670E1 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/ORANGE,TRIM41,43 |
1 | ||
| 64740-52670E1 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM/ORANGE,TRIM41,43 |
1 | ||
| 64740-52670E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/BLACK,TRIM40,42 |
1 | ||
| 64740-52570E0 |
NCP141..PORTE..Y;NCP145..SPADE..F;NCP145,NSP140..V,Y;NCP141..SPADE..(F,Y)..CBU PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52570E1 |
NCP145..PORTE..F PLUM/ORANGE,TRIM00 |
1 | ||
| 64740-52570E0 |
NCP14#..PORTE..F..CBU PLUM/BLACK,TRIM02,03,4# |
1 | ||
| 64779B - STOPPER, SPARE WHEEL COVER | ||||
| 64779-46010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NCP14#,NSP140..CBU ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-52130 |
NCP145..CBU |
1 | ||
| 64997 - BOX, DECK FLOOR, LH | ||||
| 64997-52090 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64997-52080 |
NCP145..CBU |
1 | ||
| 64997-52120 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 64997-52090 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64997-52120 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 64997-52090 |
NCP145..CBU ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 67935A - PLATE, BACK DOOR SCUFF | ||||
| 67935-52030E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 67935-52030E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 72615D - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52010E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 72615E - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52030E1 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 72616C - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-52010E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 72616D - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-52030E1 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06355 | ||||
| 90119-06951 | ||||
| 90119-06977 | ||||
| 90159-50322 | ||||
| 90183-06030 | ||||
| 90189-05079 | ||||
| 90467-10161 | ||||
| 90468-05138 | ||||
| 91642-K1020 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7403 | ||||
(1207-1507)NCP145..X
ｳｪﾙｷｬﾌﾞ ｱﾘ(ｸﾚｰﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58571H - CARPET, REAR FLOOR | ||||
| 58571-52050E1 |
NCP145..F,Y PLUM,TRIM0#,4# |
1 | ||
| 58571-52070E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 58571-52050E1 |
NCP145..(G,X)..CBU PLUM,TRIM4# |
1 | ||
| 58571-52070E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 58571-52090E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 58571-52090E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-52050E1 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58731-52050E1 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-52030E1 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58732-52030E1 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64135C - BRACKET, LUGGAGE COMPARTMENT TRAY, REAR RH | ||||
| 64135-52010 |
NCP145..CBU |
1 | ||
| 64713F - COVER, DECK SIDE TRIM, FRONT LH | ||||
| 64713-52070E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64713-52070E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64713-52080E1 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM4# |
1 | ||
| 64713-52080E1 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM0#,4# |
1 | ||
| 64713-52100E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 64713-52090E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 64713-52090E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 64713-52100E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-52240E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64714-52240E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-52300E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64715-52300E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-52490E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64730-52490E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64730D - PLUG, HOLE(FOR DECK TRIM SIDE BOARD) | ||||
| 90950-01851E7 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
2 | ||
| 64730D - PLUG, HOLE(FOR DECK TRIM SIDE BOARD) | ||||
| 90950-01851E7 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
2 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
NCP14#,NSP140..CBU |
5 | ||
| 64730F - CLAMP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
NCP14#,NSP140..CBU |
11 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-52570E0 |
NCP14#,NSP140..X..CBU PLUM/BLACK,TRIM40,42 |
1 | ||
| 64740-52670E0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM/BLACK,TRIM40,42 |
1 | ||
| 64740-52570E1 |
NCP14#,NSP140..X..CBU PLUM/ORANGE,TRIM41,43 |
1 | ||
| 64740-52670E1 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/ORANGE,TRIM41,43 |
1 | ||
| 64740-52670E1 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM/ORANGE,TRIM41,43 |
1 | ||
| 64740-52670E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/BLACK,TRIM40,42 |
1 | ||
| 64740-52570E0 |
NCP141..PORTE..Y;NCP145..SPADE..F;NCP145,NSP140..V,Y;NCP141..SPADE..(F,Y)..CBU PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52570E1 |
NCP145..PORTE..F PLUM/ORANGE,TRIM00 |
1 | ||
| 64740-52570E0 |
NCP14#..PORTE..F..CBU PLUM/BLACK,TRIM02,03,4# |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-52130 |
NCP145..CBU |
1 | ||
| 64997 - BOX, DECK FLOOR, LH | ||||
| 64997-52090 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64997-52080 |
NCP145..CBU |
1 | ||
| 64997-52120 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 64997-52090 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64997-52120 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 64997-52090 |
NCP145..CBU ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 67935A - PLATE, BACK DOOR SCUFF | ||||
| 67935-52030E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 67935-52030E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 72615D - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52010E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 72615E - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52030E1 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 72616C - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-52010E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 72616D - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-52030E1 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06355 | ||||
| 90119-06951 | ||||
| 90159-50322 | ||||
| 90183-06030 | ||||
| 90189-05079 | ||||
| 90467-10161 | ||||
| 90468-05138 | ||||
| 91642-K1020 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7403 | ||||
(1207-1507)NCP145..X
ｳｪﾙｷｬﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58571H - CARPET, REAR FLOOR | ||||
| 58571-52050E1 |
NCP145..F,Y PLUM,TRIM0#,4# |
1 | ||
| 58571-52070E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 58571-52050E1 |
NCP145..(G,X)..CBU PLUM,TRIM4# |
1 | ||
| 58571-52070E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 58571-52090E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 58571-52090E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-52050E1 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58731-52050E1 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-52030E1 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58732-52030E1 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64135C - BRACKET, LUGGAGE COMPARTMENT TRAY, REAR RH | ||||
| 64135-52010 |
NCP145..CBU |
1 | ||
| 64713F - COVER, DECK SIDE TRIM, FRONT LH | ||||
| 64713-52070E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64713-52070E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64713-52080E1 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM4# |
1 | ||
| 64713-52080E1 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,PLUM,TRIM0#,4# |
1 | ||
| 64713-52100E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 64713-52090E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 64713-52090E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 64713-52100E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-52240E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64714-52240E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-52300E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64715-52300E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-52490E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 64730-52490E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64730D - PLUG, HOLE(FOR DECK TRIM SIDE BOARD) | ||||
| 90950-01851E7 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
2 | ||
| 64730D - PLUG, HOLE(FOR DECK TRIM SIDE BOARD) | ||||
| 90950-01851E7 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
2 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
NCP14#,NSP140..CBU |
5 | ||
| 64730F - CLAMP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
NCP14#,NSP140..CBU |
11 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-52570E0 |
NCP14#,NSP140..X..CBU PLUM/BLACK,TRIM40,42 |
1 | ||
| 64740-52670E0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM/BLACK,TRIM40,42 |
1 | ||
| 64740-52570E1 |
NCP14#,NSP140..X..CBU PLUM/ORANGE,TRIM41,43 |
1 | ||
| 64740-52670E1 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/ORANGE,TRIM41,43 |
1 | ||
| 64740-52670E1 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM/ORANGE,TRIM41,43 |
1 | ||
| 64740-52670E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/BLACK,TRIM40,42 |
1 | ||
| 64740-52570E0 |
NCP141..PORTE..Y;NCP145..SPADE..F;NCP145,NSP140..V,Y;NCP141..SPADE..(F,Y)..CBU PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52570E1 |
NCP145..PORTE..F PLUM/ORANGE,TRIM00 |
1 | ||
| 64740-52570E0 |
NCP14#..PORTE..F..CBU PLUM/BLACK,TRIM02,03,4# |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-52130 |
NCP145..CBU |
1 | ||
| 64997 - BOX, DECK FLOOR, LH | ||||
| 64997-52090 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64997-52080 |
NCP145..CBU |
1 | ||
| 64997-52120 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 64997-52090 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64997-52120 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 64997-52090 |
NCP145..CBU ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 67935A - PLATE, BACK DOOR SCUFF | ||||
| 67935-52030E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 67935-52030E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 72615D - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52010E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 72615E - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52030E1 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 72616C - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-52010E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 72616D - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-52030E1 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06355 | ||||
| 90119-06951 | ||||
| 90159-50322 | ||||
| 90183-06030 | ||||
| 90189-05079 | ||||
| 90467-10161 | ||||
| 90468-05138 | ||||
| 91642-K1020 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7403 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
