NCP145-AEXXK (2012)
Toyota Porte/Spade

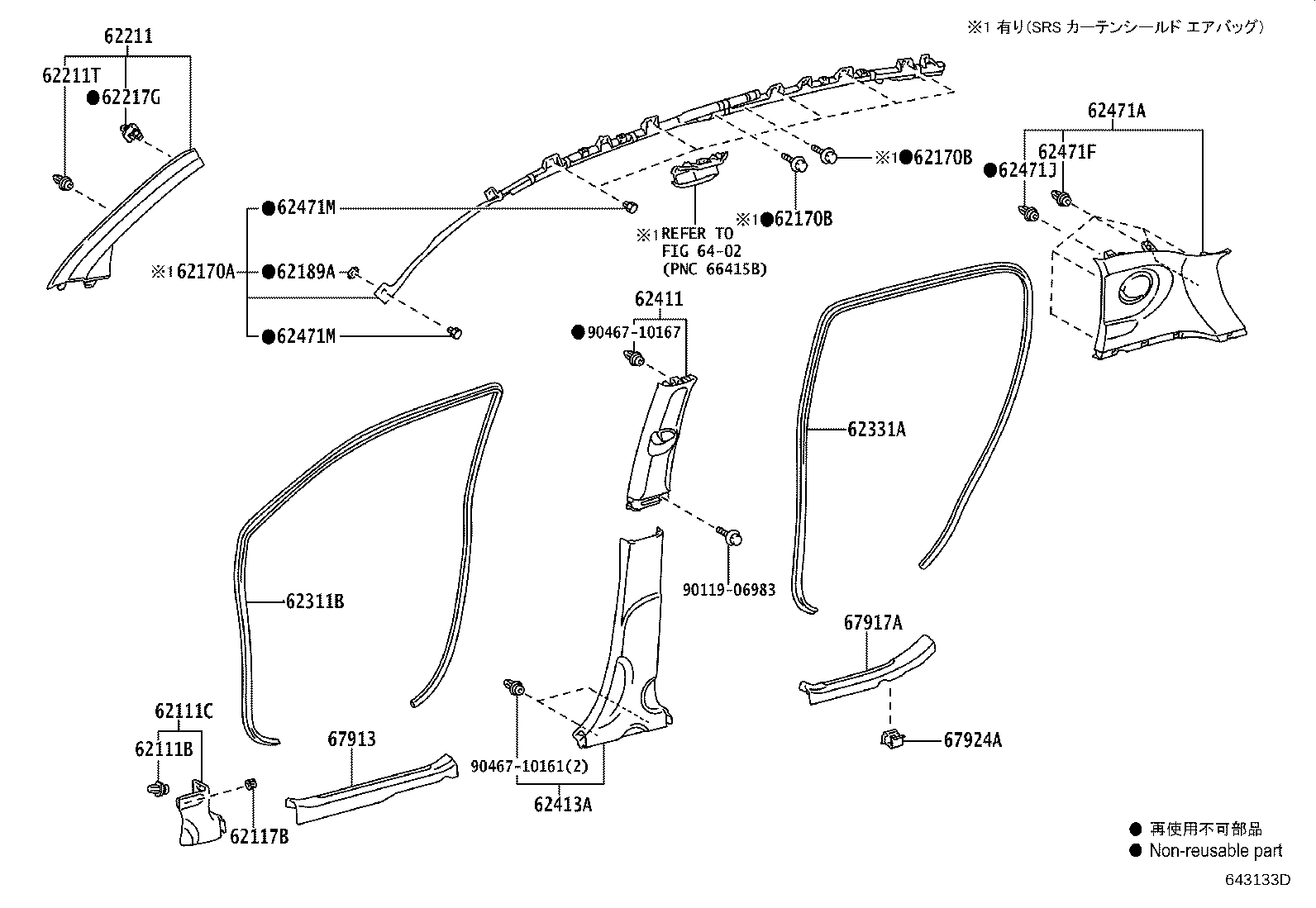

ILLUST NO. 1 OF 2(1207- )
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
NCP14#,NSP140..CBU |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-52240E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 62111-52240E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
NCP14#,NSP140..CBU |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-52110 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 62170-52110 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
8 | ||
| 90119-06869 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
8 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
8 | ||
| 90119-06869 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
8 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-33010 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
2 | ||
| 62189-33010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-52330B0 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM4# |
1 | ||
| 62211-52340B0 |
NCP14#..(G,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 62211-52330B0 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
1 | ||
| 62211-52340B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 62211-52330B0 |
NCP14#,NSP140..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),LT.GRAY,TRIM4# |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-09212 |
NCP14#,NSP140..CBU 左側 |
1 | ||
| 90467-10161 |
NCP14#,NSP140..CBU 右側 |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-52120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 90467-10161 |
NCP14#,NSP140..CBU |
2 | ||
| 62217-52120 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-52220 |
NCP14#,NSP140..CBU |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-52100 |
NCP14#,NSP140..CBU |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62411-52210B0 |
NCP14#,NSP140..(G,V,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 62411-52210B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-52170E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 62413-52170E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-52440B0 |
NCP14#,NSP140..(V,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 62471-52500B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 62471-52450B0 |
NCP14#,NSP140..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),LT.GRAY,TRIM4# |
1 | ||
| 62471-52450B0 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
1 | ||
| 62471-52450B0 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM4# |
1 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90467-10161 |
NCP14#,NSP140..CBU |
9 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 63395-12150 |
NCP14#,NSP140..CBU 左側 |
2 | ||
| 90467-10167 |
NCP14#,NSP140..CBU 右側 |
1 | ||
| 62471M - CLIP | ||||
| 62184-06010 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
12 | ||
| 62184-06010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
12 | ||
| 62471M - CLIP | ||||
| 62184-06010 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
12 | ||
| 62184-06010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
12 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-52240E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 67913-52240E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-52220E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 67917-52220E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 67924A - CLAMP, DOOR SCUFF PLATE, NO.2 | ||||
| 67923-30030 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 90119-06983 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| Linked diagrams | ||||
| 6402 | ||||

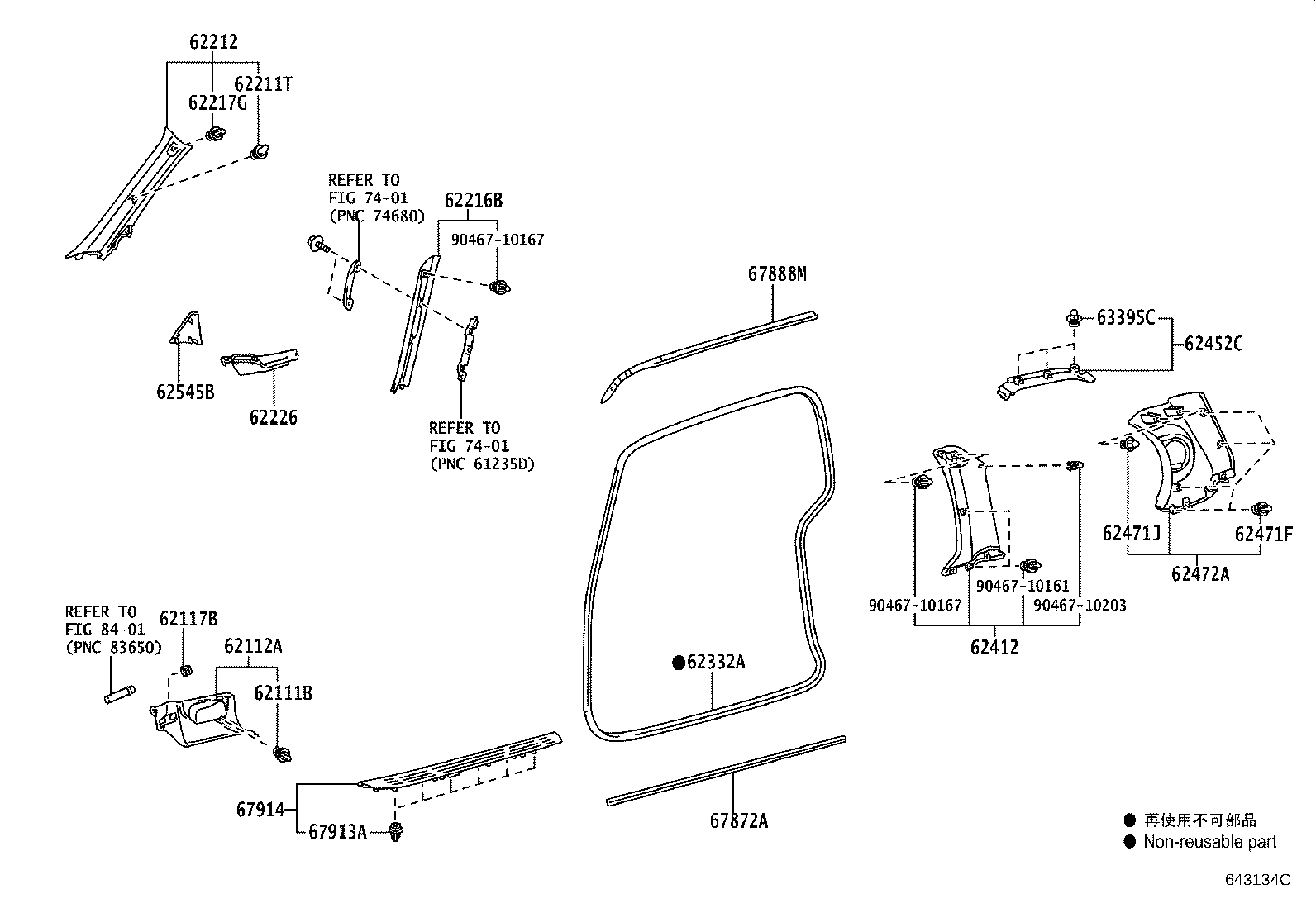

ILLUST NO. 2 OF 2(1207- )
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
NCP14#,NSP140..CBU |
2 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62112-52390E1 |
NCP14#..(F,Y)..CBU PLUM,TRIM4# |
1 | ||
| 62112-52390E0 |
NCP14#,NSP140..X..CBU PLUM,TRIM41,43 |
1 | ||
| 62112-52390E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0# |
1 | ||
| 62112-52390E1 |
NCP14#,NSP140..X..CBU PLUM,TRIM40,42 |
1 | ||
| 62112-52390E0 |
NCP14#,NSP140..G,V PLUM,TRIM41 |
1 | ||
| 62112-52390E1 |
NCP14#,NSP140..G,V PLUM,TRIM40 |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
NCP14#,NSP140..CBU |
2 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-09212 |
NCP14#,NSP140..CBU 左側 |
1 | ||
| 90467-10161 |
NCP14#,NSP140..CBU 右側 |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-52340B0 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
1 | ||
| 62212-52350B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 62212-52350B0 |
NCP14#..(G,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 62212-52340B0 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM4# |
1 | ||
| 62212-52340B0 |
NCP14#,NSP140..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),LT.GRAY,TRIM4# |
1 | ||
| 62216B - COVER, FRONT PILLAR GARNISH, NO.1 LH | ||||
| 62216-52050B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 62216-52050B0 |
NCP14#..(G,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-52120 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 90467-10161 |
NCP14#,NSP140..CBU |
2 | ||
| 62217-52120 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 62226 - GARNISH, FRONT PILLAR, LOWER LH | ||||
| 62226-52020E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 62226-52020E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-52120 |
NCP14#,NSP140..CBU |
1 | ||
| 62332-52121 |
NCP14#,NSP140..CBU |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62412-52200B0 |
NCP14#,NSP140..(G,V,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 62412-52210B0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,LT.GRAY,TRIM4# |
1 | ||
| 62412-52210B0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),LT.GRAY,TRIM4# |
1 | ||
| 62412-52200B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 62412-52210B0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,LT.GRAY,TRIM4# |
1 | ||
| 62412-52210B0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,LT.GRAY,TRIM4# |
1 | ||
| 62452C - GARNISH, ROOF SIDE RAIL, REAR LH | ||||
| 62452-52030B0 |
NCP14#,NSP140..(G,V,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 62452-52030B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90467-10161 |
NCP14#,NSP140..CBU |
9 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 63395-12150 |
NCP14#,NSP140..CBU 左側 |
2 | ||
| 90467-10167 |
NCP14#,NSP140..CBU 右側 |
1 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-52500B0 |
NCP14#..F,Y SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
1 | ||
| 62472-52550B0 |
NCP14#..F,Y LT.GRAY,TRIM0#,4# |
1 | ||
| 62472-52501B0 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
1 | ||
| 62472-52490B0 |
NCP14#,NSP140..V,X LT.GRAY,TRIM4# |
1 | ||
| 62472-52491B0 |
NCP14#,NSP140..(V,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 62472-52500B0 |
NCP14#,NSP140..G,V,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM4# |
1 | ||
| 62472-52500B0 |
NCP14#,NSP140..X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),LT.GRAY,TRIM4# |
1 | ||
| 62472-52501B0 |
NCP14#,NSP140..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),LT.GRAY,TRIM4# |
1 | ||
| 62472-52501B0 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM4# |
1 | ||
| 62472-52551B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 62545B - GARNISH, PILLAR NO.1, LH | ||||
| 62545-52030E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 62545-52030E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 63395C - CLIP(FOR ROOF SIDE INNER GARNISH) | ||||
| 63395-12150 |
NCP14#,NSP140..CBU |
3 | ||
| 67872A - WEATHERSTRIP, SLIDE DOOR, NO.1 LH | ||||
| 67872-52220 |
NCP14#,NSP140..CBU |
1 | ||
| 67888M - WEATHERSTRIP, SLIDE DOOR, NO.2 LH | ||||
| 67888-52031 |
NCP14#,NSP140..CBU |
1 | ||
| 67888-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 67888-52032 |
NCP14#,NSP140..CBU |
1 | ||
| 67913A - CLIP(FOR SCUFF PLATE) | ||||
| 90467-10161 |
NCP14#,NSP140..CBU |
6 | ||
| 90467-09206 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
6 | ||
| 90467-09206 |
NCP14#,NSP140..CBU |
6 | ||
| 90467-09206 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
6 | ||
| 90467-09206 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
6 | ||
| 90467-09206 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
6 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-52260E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 67914-52260E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 67914-52270E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 67914-52270E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 67914-52270E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 67914-52270E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| Common parts | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||

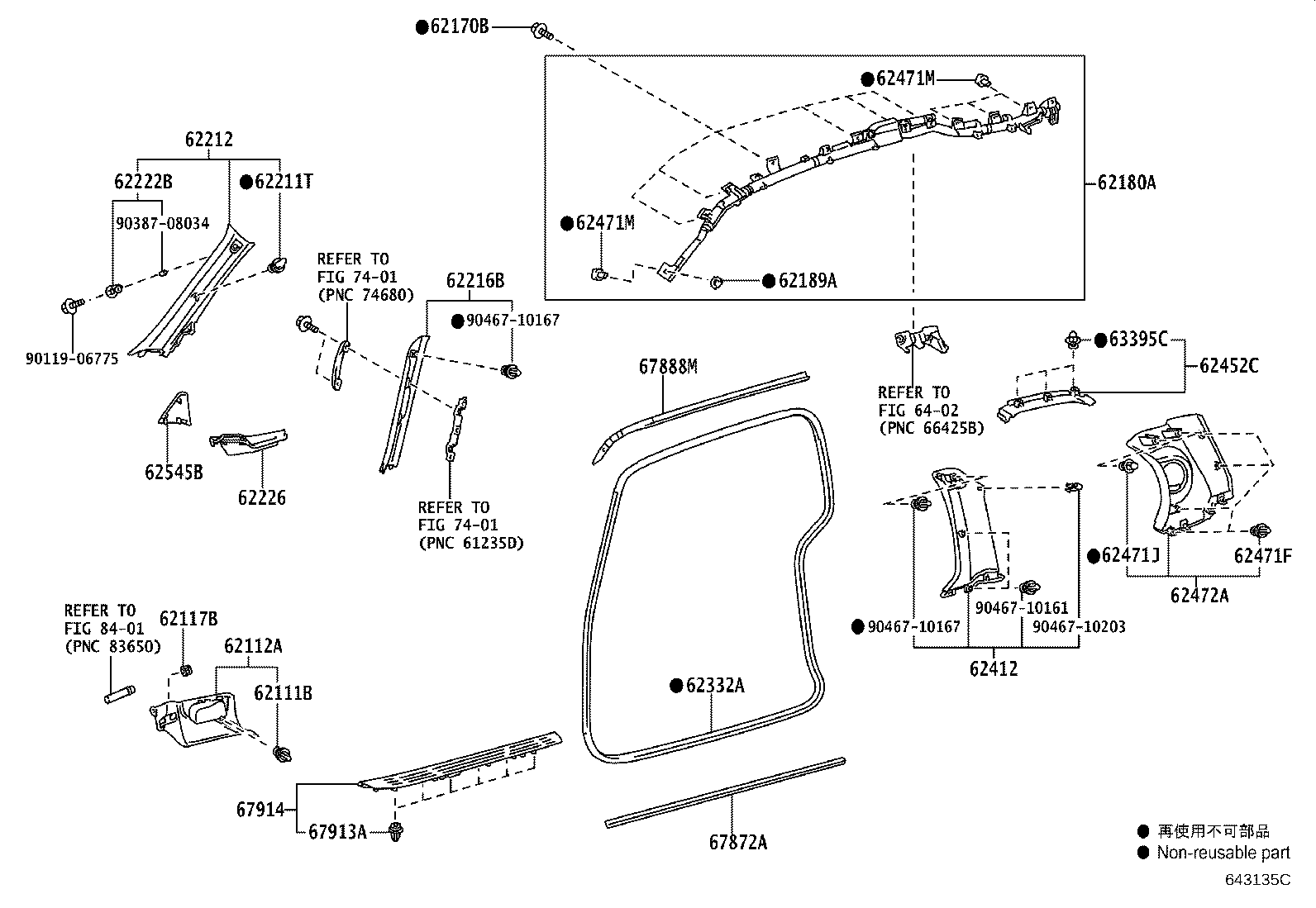

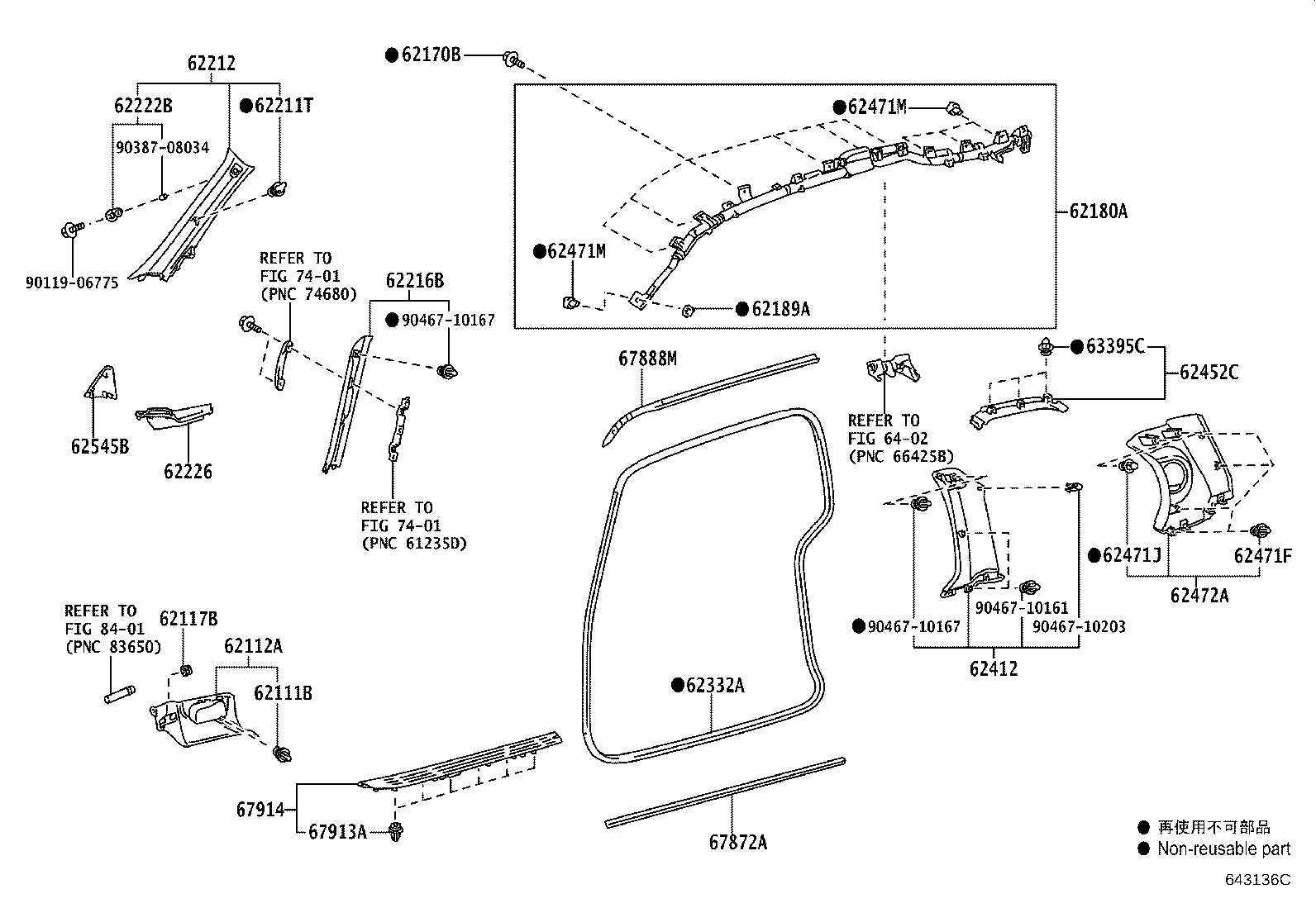

ILLUST NO. 2 OF 2(1207- )
LH ｱﾘ(SRS ｶｰﾃﾝｼｰﾙﾄﾞ ｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
NCP14#,NSP140..CBU |
2 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62112-52390E1 |
NCP14#..(F,Y)..CBU PLUM,TRIM4# |
1 | ||
| 62112-52390E0 |
NCP14#,NSP140..X..CBU PLUM,TRIM41,43 |
1 | ||
| 62112-52390E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0# |
1 | ||
| 62112-52390E1 |
NCP14#,NSP140..X..CBU PLUM,TRIM40,42 |
1 | ||
| 62112-52390E0 |
NCP14#,NSP140..G,V PLUM,TRIM41 |
1 | ||
| 62112-52390E1 |
NCP14#,NSP140..G,V PLUM,TRIM40 |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
NCP14#,NSP140..CBU |
2 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
8 | ||
| 90119-06869 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
8 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-52100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 62180-52100 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-33010 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
2 | ||
| 62189-33010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
2 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-09212 |
NCP14#,NSP140..CBU 左側 |
1 | ||
| 90467-10161 |
NCP14#,NSP140..CBU 右側 |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-52340B0 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
1 | ||
| 62212-52350B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 62212-52350B0 |
NCP14#..(G,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 62212-52340B0 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM4# |
1 | ||
| 62212-52340B0 |
NCP14#,NSP140..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),LT.GRAY,TRIM4# |
1 | ||
| 62216B - COVER, FRONT PILLAR GARNISH, NO.1 LH | ||||
| 62216-52050B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 62216-52050B0 |
NCP14#..(G,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 62222B - COVER, FRONT PILLAR GARNISH, LH | ||||
| 62222-52020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 62222-52020 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 62226 - GARNISH, FRONT PILLAR, LOWER LH | ||||
| 62226-52020E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 62226-52020E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-52120 |
NCP14#,NSP140..CBU |
1 | ||
| 62332-52121 |
NCP14#,NSP140..CBU |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62412-52200B0 |
NCP14#,NSP140..(G,V,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 62412-52210B0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,LT.GRAY,TRIM4# |
1 | ||
| 62412-52210B0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),LT.GRAY,TRIM4# |
1 | ||
| 62412-52200B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 62412-52210B0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,LT.GRAY,TRIM4# |
1 | ||
| 62412-52210B0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,LT.GRAY,TRIM4# |
1 | ||
| 62452C - GARNISH, ROOF SIDE RAIL, REAR LH | ||||
| 62452-52030B0 |
NCP14#,NSP140..(G,V,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 62452-52030B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90467-10161 |
NCP14#,NSP140..CBU |
9 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 63395-12150 |
NCP14#,NSP140..CBU 左側 |
2 | ||
| 90467-10167 |
NCP14#,NSP140..CBU 右側 |
1 | ||
| 62471M - CLIP | ||||
| 62184-06010 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
12 | ||
| 62184-06010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
12 | ||
| 62471M - CLIP | ||||
| 62184-06010 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
12 | ||
| 62184-06010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
12 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-52500B0 |
NCP14#..F,Y SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
1 | ||
| 62472-52550B0 |
NCP14#..F,Y LT.GRAY,TRIM0#,4# |
1 | ||
| 62472-52501B0 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
1 | ||
| 62472-52490B0 |
NCP14#,NSP140..V,X LT.GRAY,TRIM4# |
1 | ||
| 62472-52491B0 |
NCP14#,NSP140..(V,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 62472-52500B0 |
NCP14#,NSP140..G,V,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM4# |
1 | ||
| 62472-52500B0 |
NCP14#,NSP140..X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),LT.GRAY,TRIM4# |
1 | ||
| 62472-52501B0 |
NCP14#,NSP140..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),LT.GRAY,TRIM4# |
1 | ||
| 62472-52501B0 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM4# |
1 | ||
| 62472-52551B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 62545B - GARNISH, PILLAR NO.1, LH | ||||
| 62545-52030E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 62545-52030E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 63395C - CLIP(FOR ROOF SIDE INNER GARNISH) | ||||
| 63395-12150 |
NCP14#,NSP140..CBU |
3 | ||
| 67872A - WEATHERSTRIP, SLIDE DOOR, NO.1 LH | ||||
| 67872-52220 |
NCP14#,NSP140..CBU |
1 | ||
| 67888M - WEATHERSTRIP, SLIDE DOOR, NO.2 LH | ||||
| 67888-52031 |
NCP14#,NSP140..CBU |
1 | ||
| 67888-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 67888-52032 |
NCP14#,NSP140..CBU |
1 | ||
| 67913A - CLIP(FOR SCUFF PLATE) | ||||
| 90467-10161 |
NCP14#,NSP140..CBU |
6 | ||
| 90467-09206 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
6 | ||
| 90467-09206 |
NCP14#,NSP140..CBU |
6 | ||
| 90467-09206 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
6 | ||
| 90467-09206 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
6 | ||
| 90467-09206 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
6 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-52260E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 67914-52260E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 67914-52270E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 67914-52270E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 67914-52270E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 67914-52270E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06775 | ||||
| 90387-08034 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 6402 | ||||
| 7401 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1207- )NCP145..X ; (1207- )NCP141,NSP140..F,X
LH ｳｪﾙｷｬﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
NCP14#,NSP140..CBU |
2 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62112-52390E1 |
NCP14#..(F,Y)..CBU PLUM,TRIM4# |
1 | ||
| 62112-52390E0 |
NCP14#,NSP140..X..CBU PLUM,TRIM41,43 |
1 | ||
| 62112-52390E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0# |
1 | ||
| 62112-52390E1 |
NCP14#,NSP140..X..CBU PLUM,TRIM40,42 |
1 | ||
| 62112-52390E0 |
NCP14#,NSP140..G,V PLUM,TRIM41 |
1 | ||
| 62112-52390E1 |
NCP14#,NSP140..G,V PLUM,TRIM40 |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
NCP14#,NSP140..CBU |
2 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
8 | ||
| 90119-06869 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
8 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-52100 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 62180-52100 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-33010 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
2 | ||
| 62189-33010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
2 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-09212 |
NCP14#,NSP140..CBU 左側 |
1 | ||
| 90467-10161 |
NCP14#,NSP140..CBU 右側 |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-52340B0 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
1 | ||
| 62212-52350B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 62212-52350B0 |
NCP14#..(G,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 62212-52340B0 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM4# |
1 | ||
| 62212-52340B0 |
NCP14#,NSP140..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),LT.GRAY,TRIM4# |
1 | ||
| 62216B - COVER, FRONT PILLAR GARNISH, NO.1 LH | ||||
| 62216-52050B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 62216-52050B0 |
NCP14#..(G,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 62222B - COVER, FRONT PILLAR GARNISH, LH | ||||
| 62222-52020 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
1 | ||
| 62222-52020 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 62226 - GARNISH, FRONT PILLAR, LOWER LH | ||||
| 62226-52020E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 62226-52020E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-52120 |
NCP14#,NSP140..CBU |
1 | ||
| 62332-52121 |
NCP14#,NSP140..CBU |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62412-52200B0 |
NCP14#,NSP140..(G,V,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 62412-52210B0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,LT.GRAY,TRIM4# |
1 | ||
| 62412-52210B0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),LT.GRAY,TRIM4# |
1 | ||
| 62412-52200B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 62412-52210B0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,LT.GRAY,TRIM4# |
1 | ||
| 62412-52210B0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,LT.GRAY,TRIM4# |
1 | ||
| 62452C - GARNISH, ROOF SIDE RAIL, REAR LH | ||||
| 62452-52030B0 |
NCP14#,NSP140..(G,V,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 62452-52030B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90467-10161 |
NCP14#,NSP140..CBU |
9 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 63395-12150 |
NCP14#,NSP140..CBU 左側 |
2 | ||
| 90467-10167 |
NCP14#,NSP140..CBU 右側 |
1 | ||
| 62471M - CLIP | ||||
| 62184-06010 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
12 | ||
| 62184-06010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
12 | ||
| 62471M - CLIP | ||||
| 62184-06010 |
NCP14#,NSP140..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
12 | ||
| 62184-06010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
12 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-52500B0 |
NCP14#..F,Y SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
1 | ||
| 62472-52550B0 |
NCP14#..F,Y LT.GRAY,TRIM0#,4# |
1 | ||
| 62472-52501B0 |
NCP14#..(F,Y)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM0#,4# |
1 | ||
| 62472-52490B0 |
NCP14#,NSP140..V,X LT.GRAY,TRIM4# |
1 | ||
| 62472-52491B0 |
NCP14#,NSP140..(V,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 62472-52500B0 |
NCP14#,NSP140..G,V,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM4# |
1 | ||
| 62472-52500B0 |
NCP14#,NSP140..X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),LT.GRAY,TRIM4# |
1 | ||
| 62472-52501B0 |
NCP14#,NSP140..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),LT.GRAY,TRIM4# |
1 | ||
| 62472-52501B0 |
NCP14#,NSP140..(G,V,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,LT.GRAY,TRIM4# |
1 | ||
| 62472-52551B0 |
NCP14#..(F,Y)..CBU LT.GRAY,TRIM0#,4# |
1 | ||
| 62545B - GARNISH, PILLAR NO.1, LH | ||||
| 62545-52030E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 62545-52030E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 63395C - CLIP(FOR ROOF SIDE INNER GARNISH) | ||||
| 63395-12150 |
NCP14#,NSP140..CBU |
3 | ||
| 67872A - WEATHERSTRIP, SLIDE DOOR, NO.1 LH | ||||
| 67872-52220 |
NCP14#,NSP140..CBU |
1 | ||
| 67888M - WEATHERSTRIP, SLIDE DOOR, NO.2 LH | ||||
| 67888-52031 |
NCP14#,NSP140..CBU |
1 | ||
| 67888-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 67888-52032 |
NCP14#,NSP140..CBU |
1 | ||
| 67913A - CLIP(FOR SCUFF PLATE) | ||||
| 90467-10161 |
NCP14#,NSP140..CBU |
6 | ||
| 90467-09206 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
6 | ||
| 90467-09206 |
NCP14#,NSP140..CBU |
6 | ||
| 90467-09206 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
6 | ||
| 90467-09206 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ) |
6 | ||
| 90467-09206 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
6 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-52260E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 67914-52260E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 67914-52270E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| 67914-52270E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 67914-52270E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 67914-52270E0 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&運転席ｻｲﾄﾞ&ｶｰﾃﾝ(ｳｪﾙｷｬﾌﾞ),PLUM,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06775 | ||||
| 90387-08034 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 6402 | ||||
| 7401 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
