NCP145-AEXXK (2012)
Toyota Porte/Spade

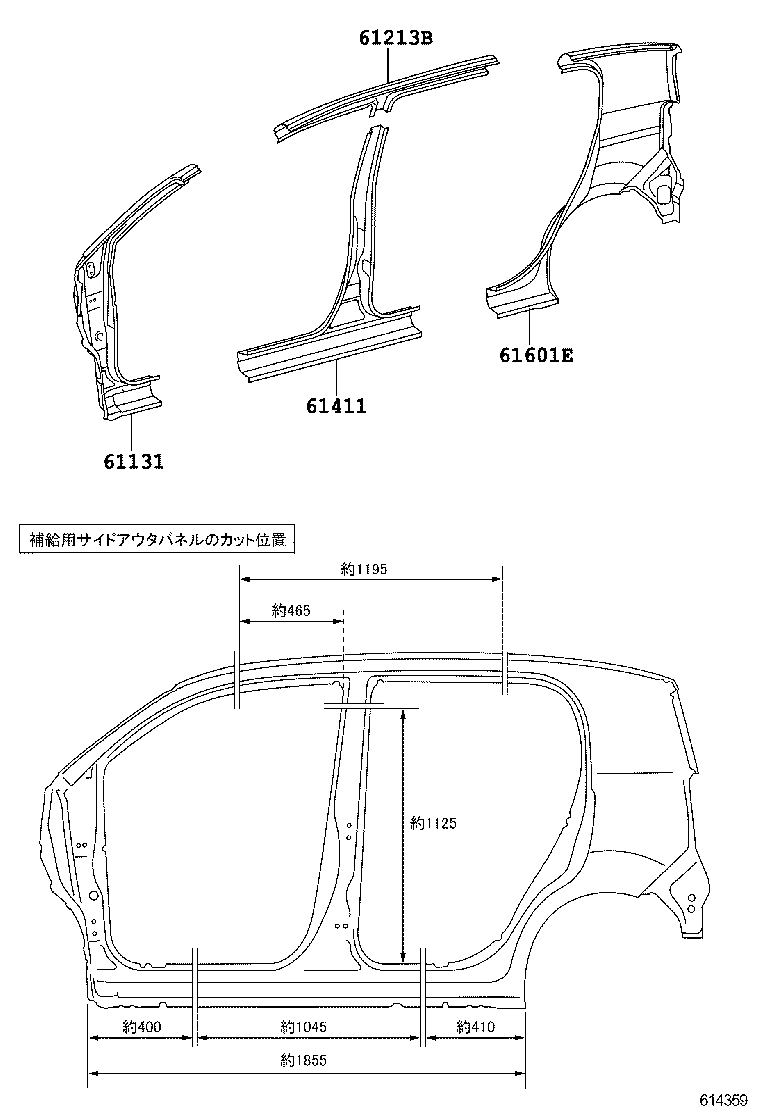

ILLUST NO. 1 OF 2(1207- )
ｱｳﾀﾊﾟﾈﾙ,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-52340 |
NCP14#,NSP140..CBU |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-52230 |
NCP14#,NSP140..CBU |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-52330 |
NCP14#,NSP140..CBU |
1 | ||
| 61601E - PANEL SUB-ASSY, QUARTER, OUTER RH | ||||
| 61601-52300 |
NCP14#,NSP140..CBU |
1 | ||

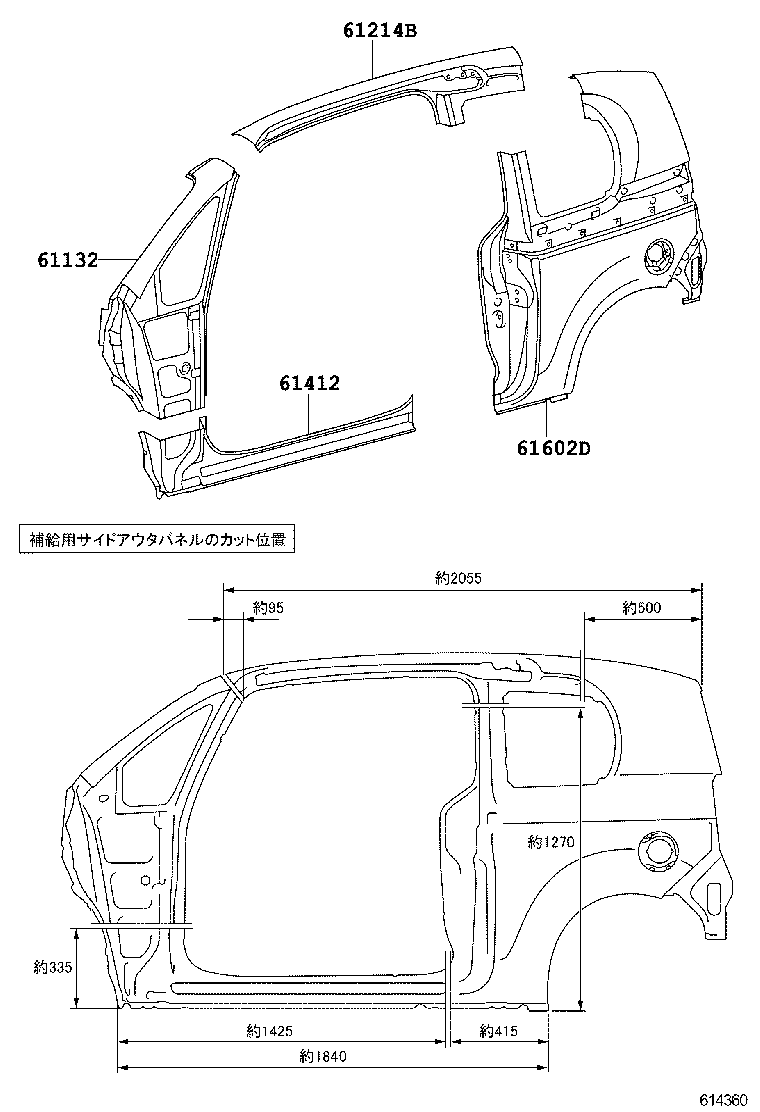

ILLUST NO. 1 OF 2(1207- )
ｱｳﾀﾊﾟﾈﾙ,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61107-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-52220 |
NCP14#,NSP140..CBU |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-52340 |
NCP14#,NSP140..CBU |
1 | ||
| 61602D - PANEL SUB-ASSY, QUARTER, OUTER LH | ||||
| 61602-52690 |
NCP14#,NSP140..CBU |
1 | ||

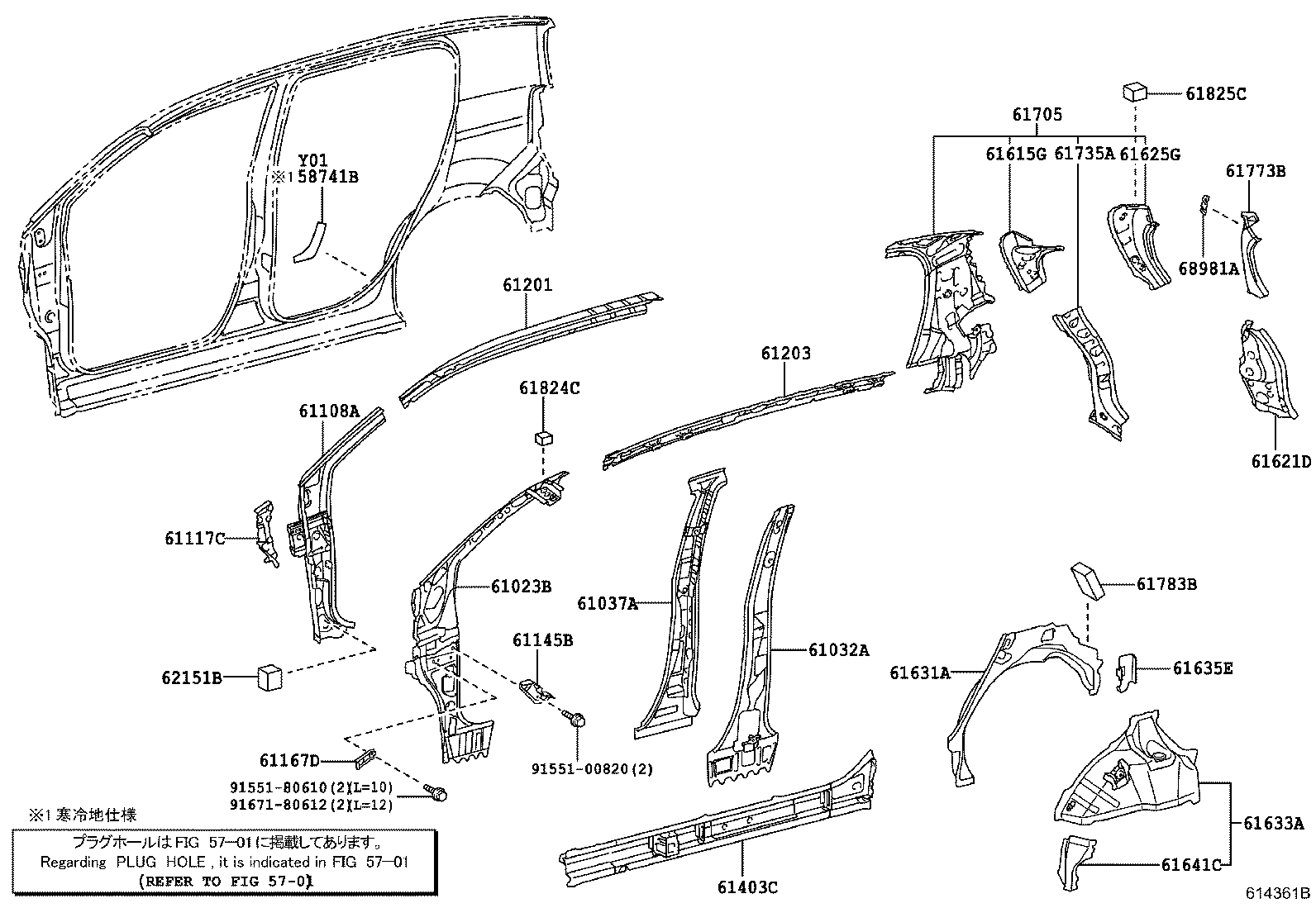

ILLUST NO. 2 OF 2(1207-1507)
ｲﾝﾅﾊﾟﾈﾙ,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-52390 |
NCP14#,NSP140..CBU 寒冷地仕様 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-52190 |
NCP14#,NSP140..CBU |
1 | ||
| 61032A - PILLAR SUB-ASSY, NO.1 INNER, RH | ||||
| 61032-52180 |
NCP14#,NSP140..CBU |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-52300 |
NCP14#,NSP140..CBU |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-52906 |
NCP14#,NSP140..CBU |
1 | ||
| 61117C - GUSSET, SIDE PANEL TO COWL, RH | ||||
| 61117-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-52070 |
NCP14#,NSP140..CBU |
1 | ||
| 61167D - BRACE, FRONT BODY PILLAR, INNER RH | ||||
| 61167-52050 |
NCP14#,NSP140..CBU |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-52150 |
NCP14#,NSP140..CBU |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-52060 |
NCP14#,NSP140..CBU |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-52230 |
NCP14#,NSP140..CBU |
1 | ||
| 61615G - REINFORCEMENT, REAR BODY REAR SIDE PANEL, RH | ||||
| 61615-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-52180 |
NCP14#,NSP140..CBU |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-52170 |
NCP14#,NSP140..CBU |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-52190 |
NCP14#,NSP140..CBU |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-52410 |
NCP14#,NSP140..CBU |
1 | ||
| 61635E - EXTENSION, QUARTER WHEEL HOUSE, RH | ||||
| 61635-52110 |
NCP14#,NSP140..CBU |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-52140 |
NCP14#,NSP140..CBU |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-52923 |
NCP14#,NSP140..CBU |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-52140 |
NCP14#,NSP140..CBU |
1 | ||
| 61773B - FRAME, BACK DOOR OPENING SIDE, UPPER RH | ||||
| 61773-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-52070 |
NCP14#,NSP140..CBU |
2 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-48030 |
NCP14#,NSP140..CBU |
2 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61826-52040 |
NCP14#,NSP140..CBU |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 68981A - RETAINER, BACK DOOR STAY, RH | ||||
| 68981-52100 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 91551-00820 | ||||
| 91551-80610 | ||||
| 91671-80612 | ||||
| Linked diagrams | ||||
| 5701 | ||||

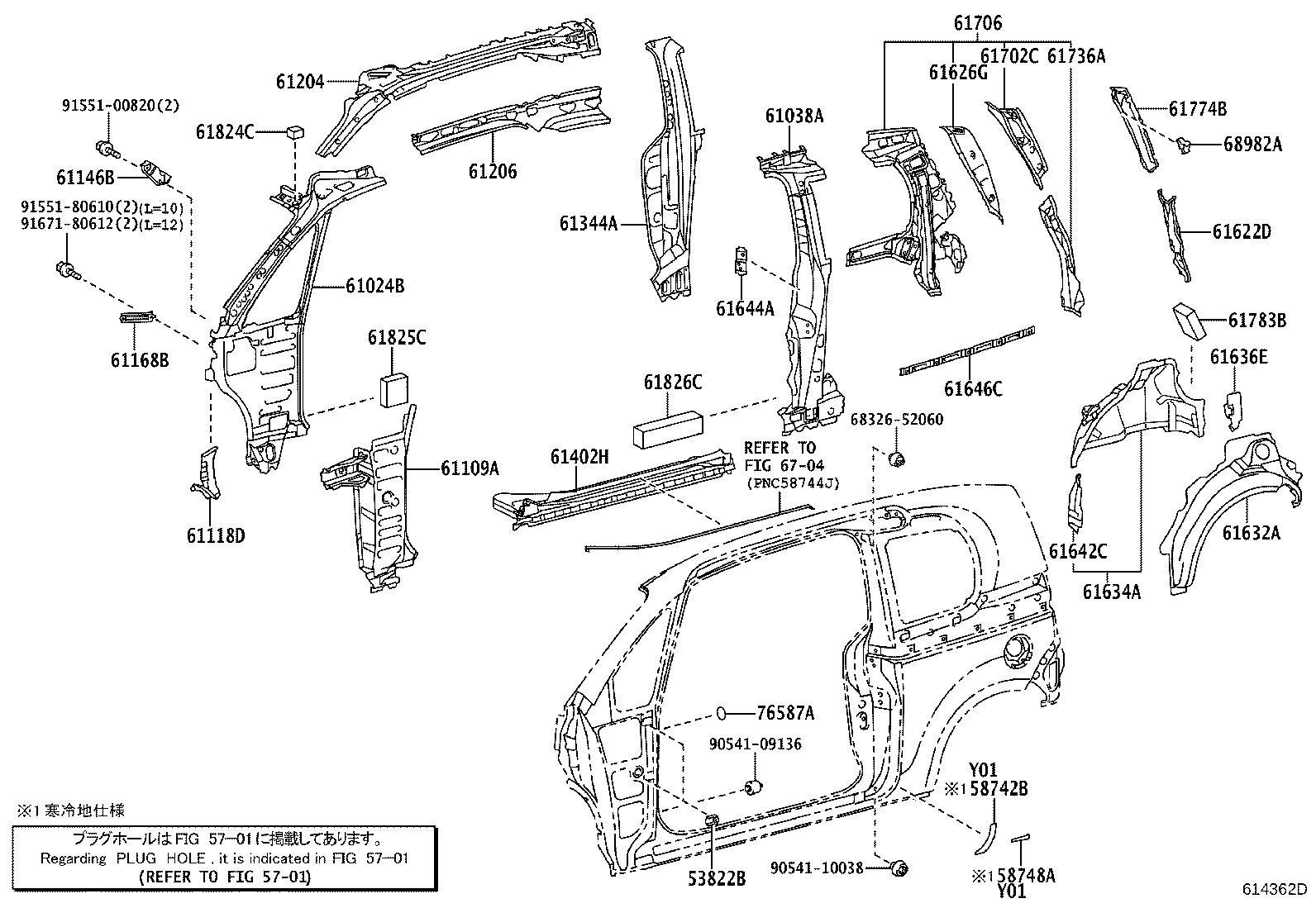

ILLUST NO. 2 OF 2(1207-1507)
ｲﾝﾅﾊﾟﾈﾙ,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-52040 |
NCP14#,NSP140..CBU |
2 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-52380 |
NCP14#,NSP140..CBU 寒冷地仕様 |
1 | ||
| 58748A - PROTECTOR, QUARTER PANEL, REAR LH | ||||
| 58748-52070 |
NCP14#,NSP140..CBU 寒冷地仕様 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-52200 |
NCP14#,NSP140..CBU |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-52300 |
NCP14#,NSP140..CBU |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-52190 |
NCP14#,NSP140..CBU |
1 | ||
| 61118D - GUSSET, SIDE PANEL TO COWL, LH | ||||
| 61118-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-52080 |
NCP14#,NSP140..CBU |
1 | ||
| 61168B - BRACE, FRONT BODY PILLAR, INNER LH | ||||
| 61167-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-52060 |
NCP14#,NSP140..CBU |
1 | ||
| 61206 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH | ||||
| 61206-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-52210 |
NCP14#,NSP140..CBU |
1 | ||
| 61402H - REINFORCEMENT SUB-ASSY, ROCKER PANEL, LH | ||||
| 61402-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-52180 |
NCP14#,NSP140..CBU |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-52170 |
NCP14#,NSP140..CBU |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-52190 |
NCP14#,NSP140..CBU |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-52450 |
NCP14#,NSP140..CBU |
1 | ||
| 61636E - EXTENSION, QUARTER WHEEL HOUSE, LH | ||||
| 61636-52110 |
NCP14#,NSP140..CBU |
1 | ||
| 61636-52111 |
NCP14#,NSP140..CBU |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-52140 |
NCP14#,NSP140..CBU |
1 | ||
| 61644A - RETAINER, QUARTER PANEL STEP, NO.2 LH | ||||
| 61644-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 61646C - RETAINER, QUARTER, INNER | ||||
| 61646-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 61702C - PANEL SUB-ASSY, ROOF SIDE, OUTER LH | ||||
| 61702-52200 |
NCP14#,NSP140..CBU |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-52922 |
NCP14#,NSP140..CBU |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-52130 |
NCP14#,NSP140..CBU |
1 | ||
| 61774B - FRAME, BACK DOOR OPENING SIDE, UPPER LH | ||||
| 61774-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-52070 |
NCP14#,NSP140..CBU |
2 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-48030 |
NCP14#,NSP140..CBU |
2 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61826-52040 |
NCP14#,NSP140..CBU |
2 | ||
| 61826C - PAD, NOISE SHUTTER, NO.3 | ||||
| 61826-60010 |
NCP14#,NSP140..CBU |
1 | ||
| 68982A - RETAINER, BACK DOOR STAY, LH | ||||
| 68982-52070 |
NCP14#,NSP140..CBU |
1 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-52040 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 68326-52060 | ||||
| 90541-09136 | ||||
| 90541-10038 | ||||
| 91551-00820 | ||||
| 91551-80610 | ||||
| 91671-80612 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 6704 | ||||
