NCP145-AEXXK (2012)
Toyota Porte/Spade

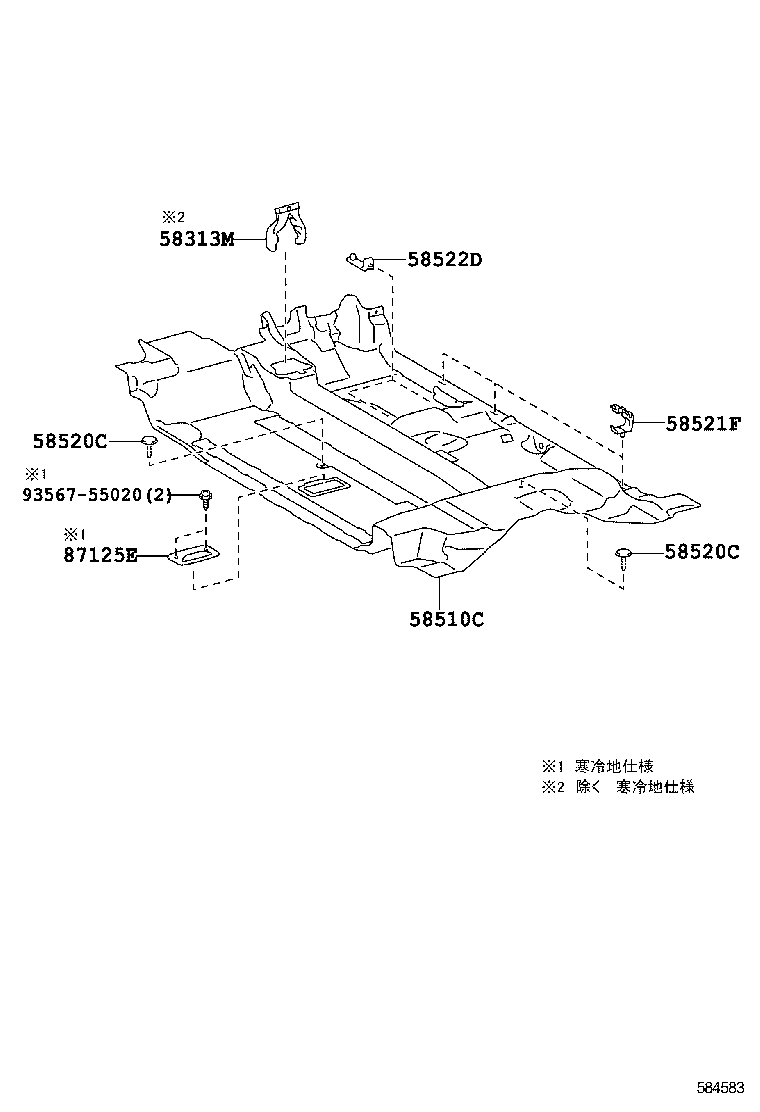

ILLUST NO. 1 OF 2(1207- )NCP145
ﾌﾛｱ ｶｰﾍﾟｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58313M - BOARD, FLOOR, LWR NO.2 | ||||
| 58313-52060 |
NCP14#,NSP140..CBU |
1 | ||
| 58510C - CARPET ASSY, FRONT FLOOR, FRONT | ||||
| 58510-52L90E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&寒冷地仕様,PLUM,TRIM4# |
1 | ||
| 58510-52L90E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&寒冷地仕様,PLUM,TRIM4# |
1 | ||
| 58510-52M00E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 58510-52L90E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&寒冷地仕様,PLUM,TRIM4# |
1 | ||
| 58510-52L90E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&寒冷地仕様,PLUM,TRIM4# |
1 | ||
| 58510-5C740E0 |
NCP145..(G,X)..CBU 寒冷地仕様,PLUM,TRIM4# |
1 | ||
| 58510-5C790E0 |
NCP145..F,Y PLUM,TRIM0#,4# |
1 | ||
| 58510-52M00E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 58510-5C740E0 |
NCP145..F,Y 寒冷地仕様,PLUM,TRIM0#,4# |
1 | ||
| 58510-52M00E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 58510-52M00E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 58510-5C790E0 |
NCP145..(G,X)..CBU PLUM,TRIM4# |
1 | ||
| 58510-5C741E0 |
NCP145..F,Y 寒冷地仕様,PLUM,TRIM0#,4# |
1 | ||
| 58510-5C791E0 |
NCP145..(G,X)..CBU PLUM,TRIM4# |
1 | ||
| 58510-52M01E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 58510-52L91E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&寒冷地仕様,PLUM,TRIM4# |
1 | ||
| 58510-52L91E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&寒冷地仕様,PLUM,TRIM4# |
1 | ||
| 58510-52M01E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 58510-52L91E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&寒冷地仕様,PLUM,TRIM4# |
1 | ||
| 58510-5C741E0 |
NCP145..(G,X)..CBU 寒冷地仕様,PLUM,TRIM4# |
1 | ||
| 58510-52M01E0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 58510-5C791E0 |
NCP145..F,Y PLUM,TRIM0#,4# |
1 | ||
| 58510-52M01E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 58510-52L91E0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&寒冷地仕様,PLUM,TRIM4# |
1 | ||
| 58520C - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-07049C0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),BLACK,TRIM4# |
1 | ||
| 90467-07049C0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 90467-07049C0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&寒冷地仕様,BLACK,TRIM4# |
1 | ||
| 90467-07049C0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 90467-07049C0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&寒冷地仕様,BLACK,TRIM4# |
1 | ||
| 90467-07049C0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&寒冷地仕様,BLACK,TRIM4# |
1 | ||
| 90467-07049C0 |
NCP145..(G,X)..CBU BLACK,TRIM4# |
2 | ||
| 90467-07049C0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 90467-07049C0 |
NCP145..F,Y BLACK,TRIM0#,4# |
2 | ||
| 90467-07049C0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&寒冷地仕様,BLACK,TRIM4# |
1 | ||
| 58520C - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-07049C0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),BLACK,TRIM4# |
1 | ||
| 90467-07049C0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 90467-07049C0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&寒冷地仕様,BLACK,TRIM4# |
1 | ||
| 90467-07049C0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 90467-07049C0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&寒冷地仕様,BLACK,TRIM4# |
1 | ||
| 90467-07049C0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&寒冷地仕様,BLACK,TRIM4# |
1 | ||
| 90467-07049C0 |
NCP145..(G,X)..CBU BLACK,TRIM4# |
2 | ||
| 90467-07049C0 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 90467-07049C0 |
NCP145..F,Y BLACK,TRIM0#,4# |
2 | ||
| 90467-07049C0 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&寒冷地仕様,BLACK,TRIM4# |
1 | ||
| 58521F - HOOK, FLOOR CARPET | ||||
| 58521-52050 |
NCP14#,NSP140..CBU |
3 | ||
| 58522D - HOOK, FLOOR CARPET, NO.2 | ||||
| 58522-52030 |
NCP14#,NSP140..CBU |
2 | ||
| 87125E - GRILLE, HEATER AIR OUTLET | ||||
| 87125-28050E2 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&寒冷地仕様,PLUM,TRIM4# |
1 | ||
| 87125-28050E2 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&寒冷地仕様,PLUM,TRIM4# |
1 | ||
| 87125-28050E2 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&寒冷地仕様,PLUM,TRIM4# |
1 | ||
| 87125-28050E2 |
NCP14#..(F,Y)..CBU 寒冷地仕様,PLUM,TRIM0#,4# |
1 | ||
| 87125-28050E2 |
NCP14#,NSP140..(G,V,X)..CBU 寒冷地仕様,PLUM,TRIM4# |
1 | ||
| 87125-28050E2 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&寒冷地仕様,PLUM,TRIM4# |
1 | ||
| Common parts | ||||
| 93567-55020 | ||||

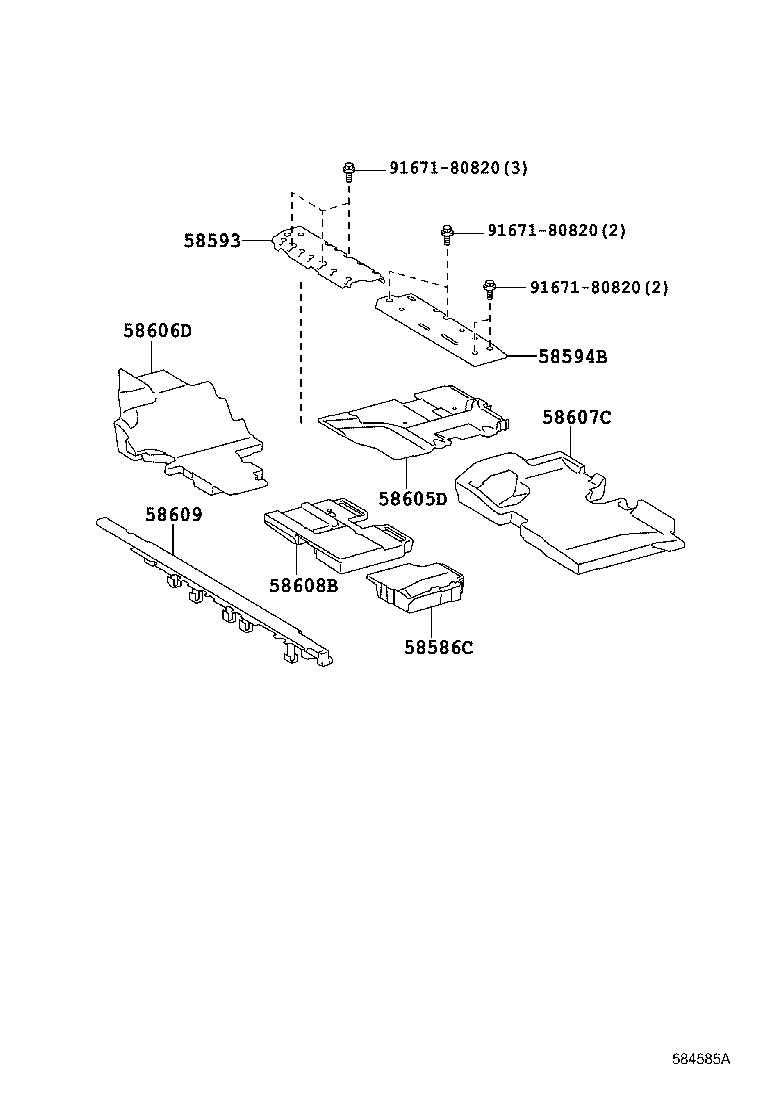

ILLUST NO. 2 OF 2(1207- )NCP145
ﾌﾛｱ ｻｲﾚﾝｻ ﾊﾟｯﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58586C - PAD, FRONT FLOOR, REAR NO.2 LH | ||||
| 58586-52020 |
NCP145..CBU |
1 | ||
| 58586-52040 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&寒冷地仕様 |
1 | ||
| 58586-52040 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&寒冷地仕様 |
1 | ||
| 58586-52040 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 58586-52040 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式) |
1 | ||
| 58586-52040 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 58586-52040 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&寒冷地仕様 |
1 | ||
| 58586-52040 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 58586-52040 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&寒冷地仕様 |
1 | ||
| 58593 - MOULDING, FLOOR CARPET, NO.1 | ||||
| 58593-52030 |
NCP145..CBU |
1 | ||
| 58594B - MOULDING, FLOOR CARPET, NO.2 | ||||
| 58594-52010 |
NCP145..CBU |
1 | ||
| 58605D - PAD SUB-ASSY, FRONT FLOOR SILENCER, FRONT RH | ||||
| 58605-52050 |
NCP14#,NSP140..CBU |
1 | ||
| 58606D - PAD SUB-ASSY, FRONT FLOOR SILENCER, FRONT LH | ||||
| 58606-52031 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&寒冷地仕様 |
1 | ||
| 58606-52031 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&寒冷地仕様 |
1 | ||
| 58606-52041 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式) |
1 | ||
| 58606-52031 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&寒冷地仕様 |
1 | ||
| 58606-52041 |
NCP14#,NSP140..CBU |
1 | ||
| 58606-52031 |
NCP14#,NSP140..CBU 寒冷地仕様 |
1 | ||
| 58606-52041 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 58606-52031 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&寒冷地仕様 |
1 | ||
| 58606-52041 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 58606-52041 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 58607C - PAD SUB-ASSY, FRONT FLOOR SILENCER, REAR RH | ||||
| 58607-52050 |
NCP145..CBU |
1 | ||
| 58608B - PAD SUB-ASSY, FRONT FLOOR SILENCER, REAR LH | ||||
| 58608-52060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&寒冷地仕様 |
1 | ||
| 58608-52031 |
NCP14#,NSP140..CBU |
1 | ||
| 58608-52060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&寒冷地仕様 |
1 | ||
| 58608-52021 |
NCP14#,NSP140..CBU 寒冷地仕様 |
1 | ||
| 58608-52060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ&寒冷地仕様 |
1 | ||
| 58608-52070 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 58608-52070 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 58608-52070 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式) |
1 | ||
| 58608-52070 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 58608-52060 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&寒冷地仕様 |
1 | ||
| 58609 - SHEET SUB-ASSY, REAR FLOOR SILENCER | ||||
| 58609-52011 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 91671-80820 | ||||
