NCP145-AEXXK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1207- )NCP145

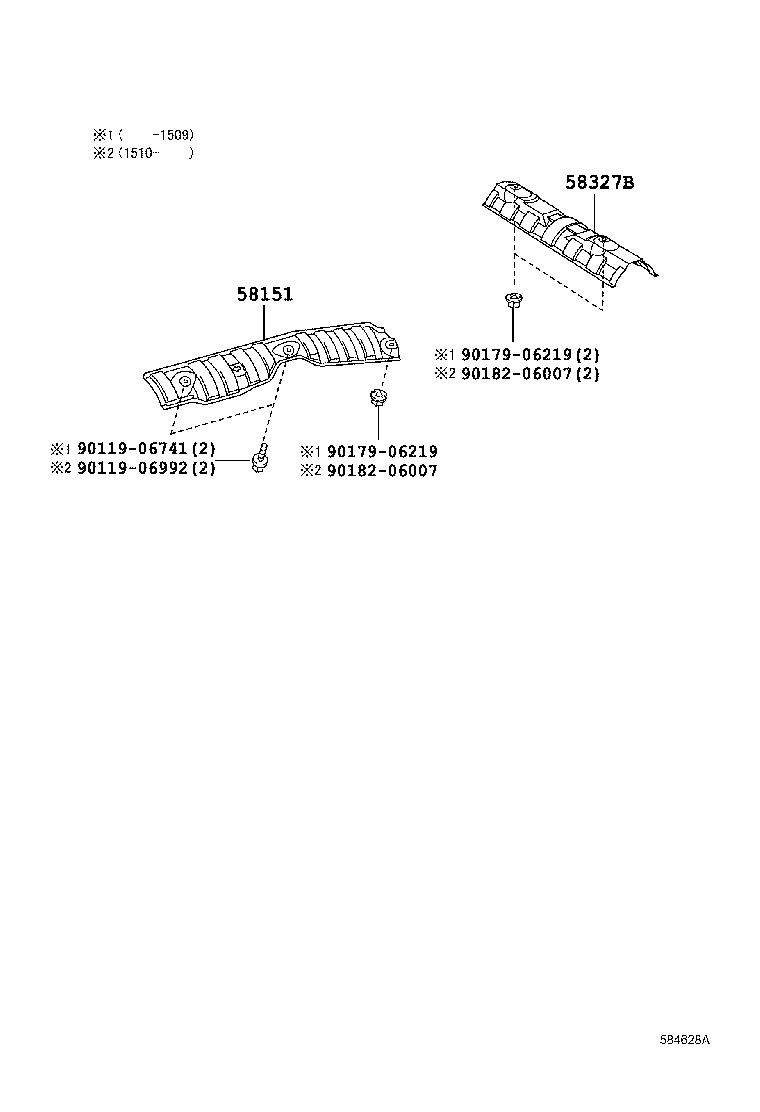

Click highlighted areas on diagram

diagram 58151 58327B 9011906741 9011906992 9017906219 9017906219 9018206007 9018206007
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-52071

NCP145..CBU

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-52151

NCP145..CBU

 1
Common parts
90119-06741
90119-06992
90179-06219
90182-06007
