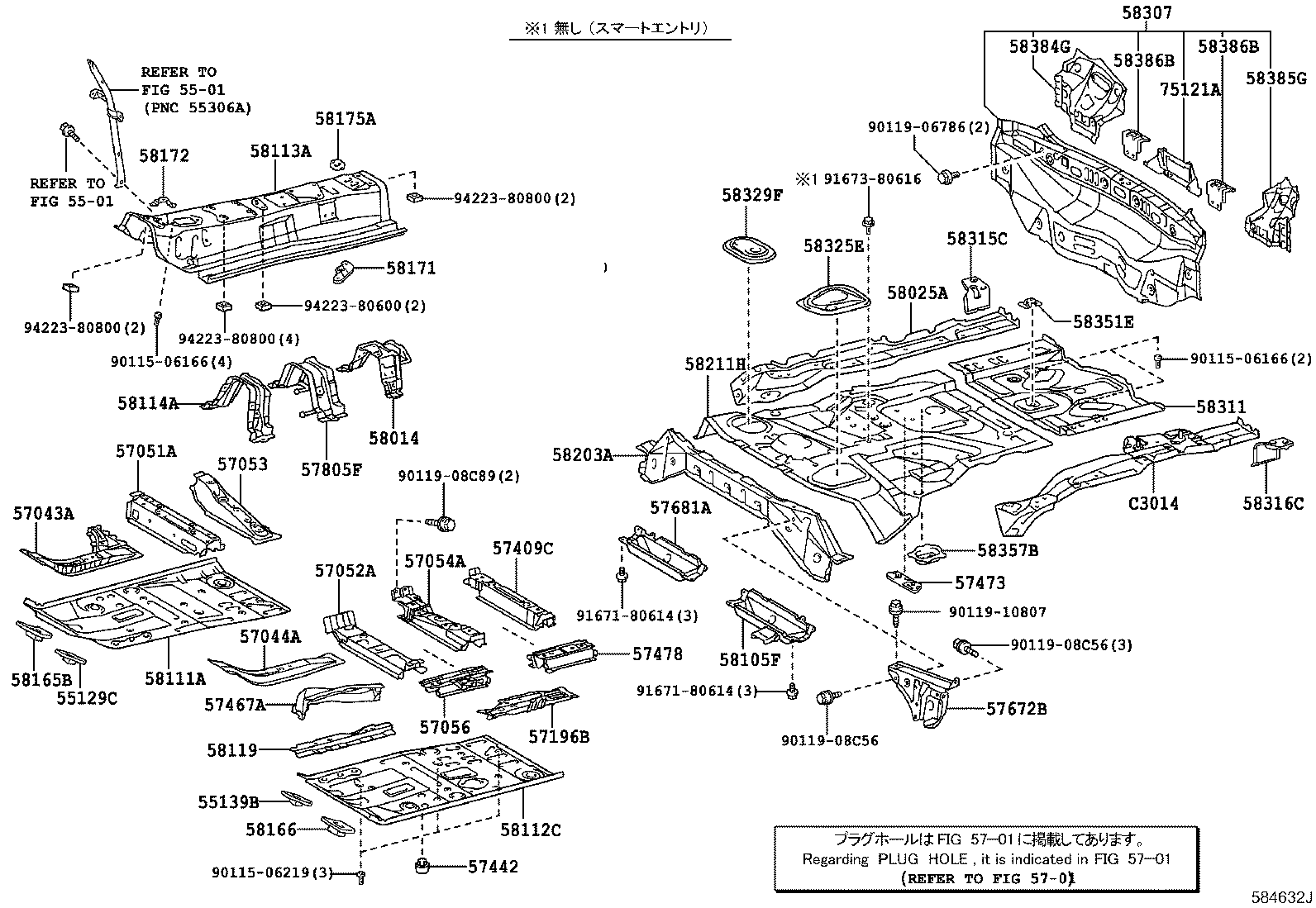

NCP145-AEXXK (2012)
Toyota Porte/Spade
(1207- )NCP145
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55129C - COVER, DASH PANEL HOLE | ||||
| 55129-52051 |
NCP14#,NSP140..CBU |
1 | ||
| 55139B - COVER, DASH PANEL HOLE, LH | ||||
| 55139-52021 |
NCP14#,NSP140..CBU |
1 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-52022 |
NCP14#,NSP140..CBU |
1 | ||
| 57043-52021 |
NCP14#,NSP140..CBU |
1 | ||
| 57043-52023 |
NCP14#,NSP140..CBU |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-52052 |
NCP14#,NSP140..CBU |
1 | ||
| 57044-52050 |
NCP14#,NSP140..CBU |
1 | ||
| 57044-52051 |
NCP14#,NSP140..CBU |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-52020 |
NCP145..CBU |
1 | ||
| 57056 - REINFORCEMENT SUB-ASSY, CROSS MEMBER FLOOR, NO.6 | ||||
| 57056-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 57196B - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH | ||||
| 57196-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 57409C - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57409-52040 |
NCP145..CBU |
1 | ||
| 57442 - PLUG, STEP PANEL HOLE | ||||
| 57442-28030 |
NCP14#,NSP140..CBU |
1 | ||
| 57467A - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH | ||||
| 57467-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 57473 - REINFORCEMENT, REAR SEAT BACK HINGE | ||||
| 57473-52021 |
NCP145..CBU |
1 | ||
| 57478 - GUSSET, REAR SEAT, LH | ||||
| 57478-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 57672B - BRACE, REAR FLOOR NO.1 CROSSMEMBER, LH | ||||
| 57672-52160 |
NCP145..CBU |
1 | ||
| 57681A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, OUTER | ||||
| 57681-52030 |
NCP145..CBU |
1 | ||
| 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 | ||||
| 57805-52141 |
NCP145..CBU |
1 | ||
| 58014 - PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER | ||||
| 58014-52011 |
NCP145..CBU |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58025-52060 |
NCP14#,NSP140..CBU |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58026-52090 |
NCP14#,NSP140..CBU |
1 | ||
| 58105F - RETAINER SUB-ASSY, FLOOR CLAMP | ||||
| 58105-52030 |
NCP145..CBU |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-52280 |
NCP14#,NSP140..CBU |
1 | ||
| 58111-52170 |
NCP14#,NSP140..CBU |
1 | ||
| 58111-52281 |
NCP14#,NSP140..CBU |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-52923 |
NCP14#,NSP140..CBU |
1 | ||
| 58112-52919 |
NCP14#,NSP140..CBU |
1 | ||
| 58112-52914 |
NCP14#,NSP140..CBU |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-52914 |
NCP145..CBU |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-52081 |
NCP145..CBU |
1 | ||
| 58119 - PLATE, FRONT FLOOR SIDE, FRONT | ||||
| 58119-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-52011 |
NCP14#,NSP140..CBU |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-52011 |
NCP14#,NSP140..CBU |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-52120 |
NCP145..CBU |
1 | ||
| 58172 - BRACKET, COMPUTER MOUNTING, NO.3 | ||||
| 58172-52030 |
NCP145..CBU |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 58175-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH | ||||
| 58203-52100 |
NCP145..CBU |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-52170 |
NCP145..CBU |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-52620 |
NCP145..CBU |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-52191 |
NCP145..CBU |
1 | ||
| 58315C - EXTENSION, REAR FLOOR SIDE PANEL, RH | ||||
| 58315-52160 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 58315-52160 |
NCP14#,NSP140..CBU |
1 | ||
| 58315-52160 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 58316C - EXTENSION, REAR FLOOR SIDE PANEL, LH | ||||
| 58316-52180 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 58316-52180 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 58316-52180 |
NCP14#,NSP140..CBU |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-52060 |
NCP145..CBU |
1 | ||
| 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 | ||||
| 58329-52020 |
NCP145..CBU |
1 | ||
| 58351E - BRACKET, SPARE WHEEL CLAMP | ||||
| 58351-52070 |
NCP14#,NSP140..CBU |
1 | ||
| 58357B - BRACKET, ACTUATOR COVER, NO.3 RH | ||||
| 58357-52041 |
NCP145..CBU |
1 | ||
| 58384G - GUSSET, LOWER BACK, UPPER RH | ||||
| 58384-52170 |
NCP14#,NSP140..CBU |
1 | ||
| 58385G - GUSSET, LOWER BACK, UPPER LH | ||||
| 58385-52130 |
NCP14#,NSP140..CBU |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-74010 |
NCP14#,NSP140..CBU |
2 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-74010 |
NCP14#,NSP140..CBU |
2 | ||
| 75121A - BRACKET, REAR LICENSE PLATE | ||||
| 75121-52110 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90119-06786 | ||||
| 90119-08C56 | ||||
| 90119-08C89 | ||||
| 90119-10807 | ||||
| 91671-80614 | ||||
| 91673-80616 | ||||
| 94223-80600 | ||||
| 94223-80800 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 5701 | ||||

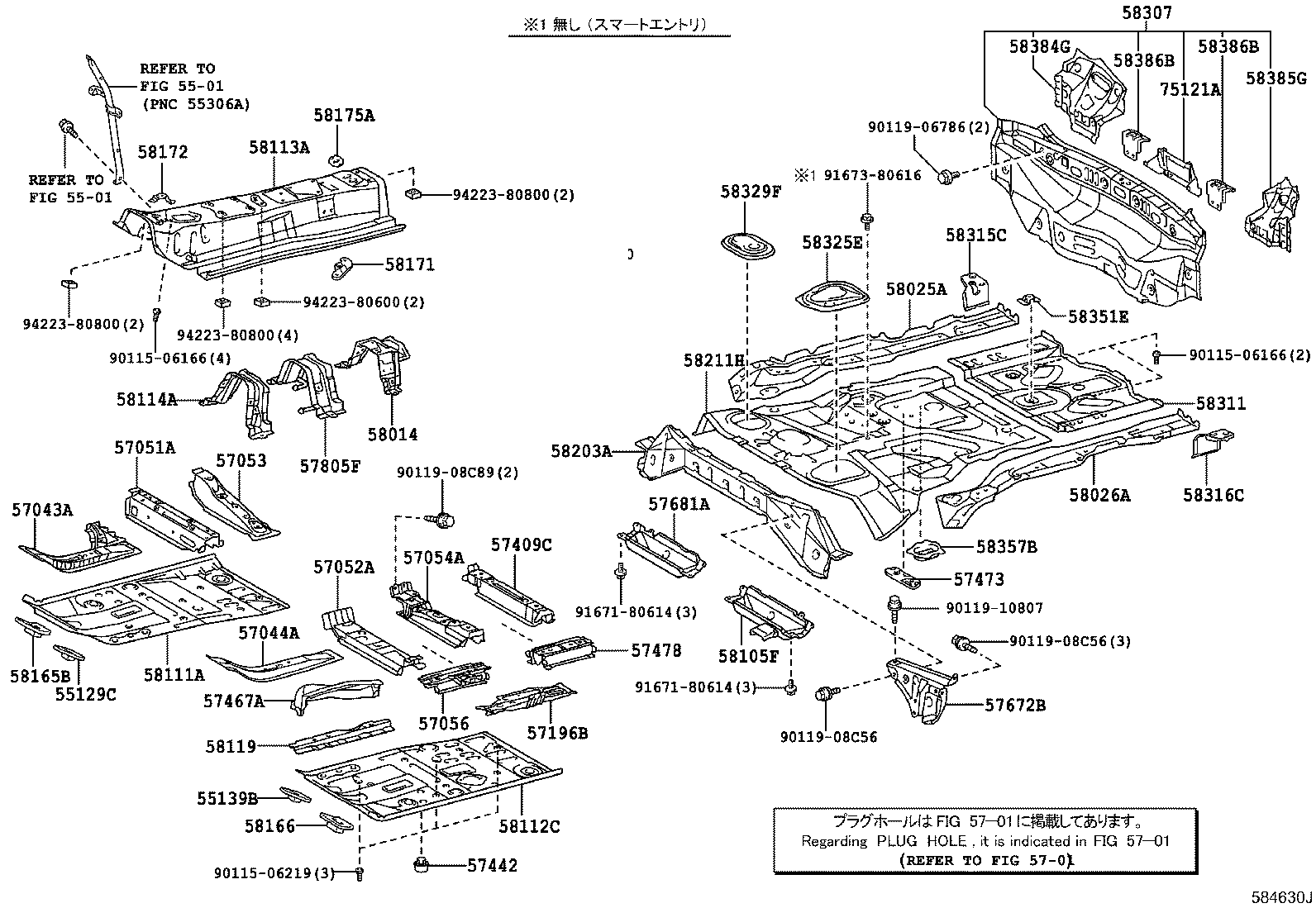

(1207- )NCP145..X
ｳｪﾙｷｬﾌﾞ ｱﾘ(ｼﾞｮｼｭｾｷﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55129C - COVER, DASH PANEL HOLE | ||||
| 55129-52051 |
NCP14#,NSP140..CBU |
1 | ||
| 55139B - COVER, DASH PANEL HOLE, LH | ||||
| 55139-52021 |
NCP14#,NSP140..CBU |
1 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-52022 |
NCP14#,NSP140..CBU |
1 | ||
| 57043-52021 |
NCP14#,NSP140..CBU |
1 | ||
| 57043-52023 |
NCP14#,NSP140..CBU |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-52052 |
NCP14#,NSP140..CBU |
1 | ||
| 57044-52050 |
NCP14#,NSP140..CBU |
1 | ||
| 57044-52051 |
NCP14#,NSP140..CBU |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-52020 |
NCP145..CBU |
1 | ||
| 57056 - REINFORCEMENT SUB-ASSY, CROSS MEMBER FLOOR, NO.6 | ||||
| 57056-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 57196B - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH | ||||
| 57196-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 57409C - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57409-52040 |
NCP145..CBU |
1 | ||
| 57442 - PLUG, STEP PANEL HOLE | ||||
| 57442-28030 |
NCP14#,NSP140..CBU |
1 | ||
| 57467A - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH | ||||
| 57467-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 57473 - REINFORCEMENT, REAR SEAT BACK HINGE | ||||
| 57473-52021 |
NCP145..CBU |
1 | ||
| 57478 - GUSSET, REAR SEAT, LH | ||||
| 57478-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 57672B - BRACE, REAR FLOOR NO.1 CROSSMEMBER, LH | ||||
| 57672-52160 |
NCP145..CBU |
1 | ||
| 57681A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, OUTER | ||||
| 57681-52030 |
NCP145..CBU |
1 | ||
| 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 | ||||
| 57805-52141 |
NCP145..CBU |
1 | ||
| 58014 - PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER | ||||
| 58014-52011 |
NCP145..CBU |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58025-52060 |
NCP14#,NSP140..CBU |
1 | ||
| 58105F - RETAINER SUB-ASSY, FLOOR CLAMP | ||||
| 58105-52030 |
NCP145..CBU |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-52280 |
NCP14#,NSP140..CBU |
1 | ||
| 58111-52170 |
NCP14#,NSP140..CBU |
1 | ||
| 58111-52281 |
NCP14#,NSP140..CBU |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-52923 |
NCP14#,NSP140..CBU |
1 | ||
| 58112-52919 |
NCP14#,NSP140..CBU |
1 | ||
| 58112-52914 |
NCP14#,NSP140..CBU |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-52914 |
NCP145..CBU |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-52081 |
NCP145..CBU |
1 | ||
| 58119 - PLATE, FRONT FLOOR SIDE, FRONT | ||||
| 58119-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-52011 |
NCP14#,NSP140..CBU |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-52011 |
NCP14#,NSP140..CBU |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-52120 |
NCP145..CBU |
1 | ||
| 58172 - BRACKET, COMPUTER MOUNTING, NO.3 | ||||
| 58172-52030 |
NCP145..CBU |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 58175-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH | ||||
| 58203-52100 |
NCP145..CBU |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-52170 |
NCP145..CBU |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-52620 |
NCP145..CBU |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-52191 |
NCP145..CBU |
1 | ||
| 58315C - EXTENSION, REAR FLOOR SIDE PANEL, RH | ||||
| 58315-52160 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 58315-52160 |
NCP14#,NSP140..CBU |
1 | ||
| 58315-52160 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 58316C - EXTENSION, REAR FLOOR SIDE PANEL, LH | ||||
| 58316-52180 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 58316-52180 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 58316-52180 |
NCP14#,NSP140..CBU |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-52060 |
NCP145..CBU |
1 | ||
| 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 | ||||
| 58329-52020 |
NCP145..CBU |
1 | ||
| 58351E - BRACKET, SPARE WHEEL CLAMP | ||||
| 58351-52070 |
NCP14#,NSP140..CBU |
1 | ||
| 58357B - BRACKET, ACTUATOR COVER, NO.3 RH | ||||
| 58357-52041 |
NCP145..CBU |
1 | ||
| 58384G - GUSSET, LOWER BACK, UPPER RH | ||||
| 58384-52170 |
NCP14#,NSP140..CBU |
1 | ||
| 58385G - GUSSET, LOWER BACK, UPPER LH | ||||
| 58385-52130 |
NCP14#,NSP140..CBU |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-74010 |
NCP14#,NSP140..CBU |
2 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-74010 |
NCP14#,NSP140..CBU |
2 | ||
| 75121A - BRACKET, REAR LICENSE PLATE | ||||
| 75121-52110 |
NCP14#,NSP140..CBU |
1 | ||
| C3014 - PLATE SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| C3014-52040 |
NCP145..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| C3014-52040 |
NCP145..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90119-06786 | ||||
| 90119-08C56 | ||||
| 90119-08C89 | ||||
| 90119-10807 | ||||
| 91671-80614 | ||||
| 91673-80616 | ||||
| 94223-80600 | ||||
| 94223-80800 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 5701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
