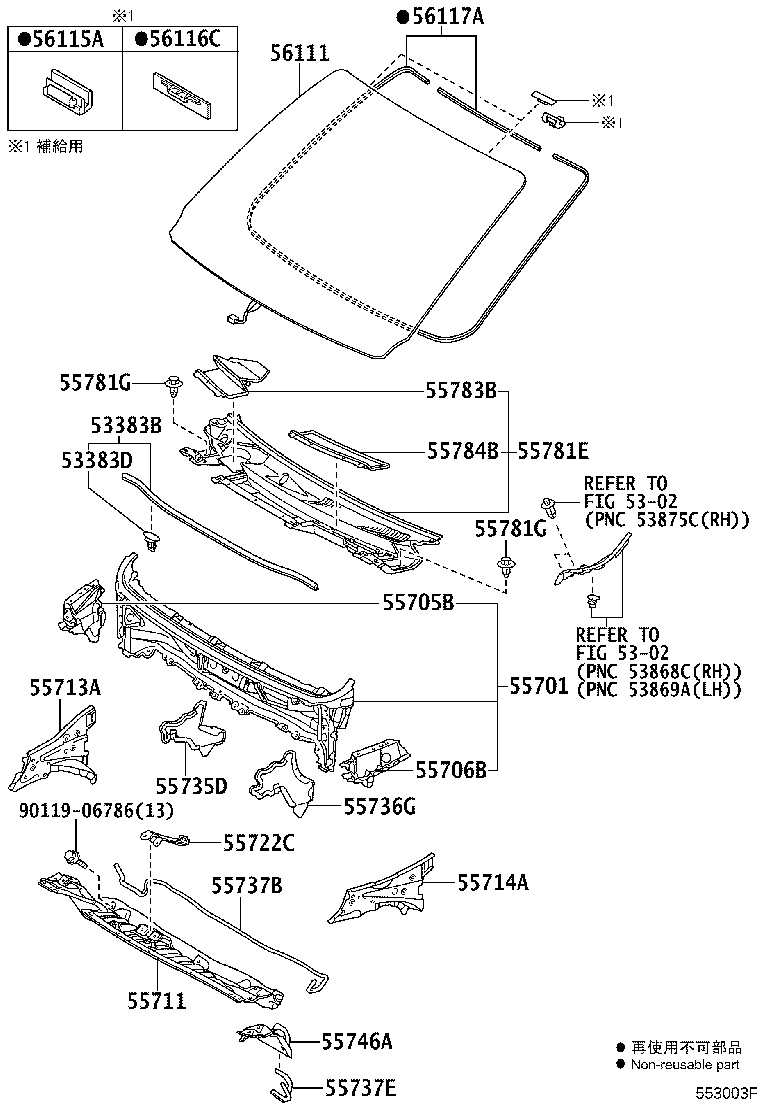

NCP145-AEXXK (2012)
Toyota Porte/Spade
(1207-1712)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-52150 |
NCP14#,NSP140..CBU |
1 | ||
| 53383D - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 67867-12150 |
NCP14#,NSP140..CBU |
8 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-52380 |
NCP14#,NSP140..CBU |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-52190 |
NCP14#,NSP140..CBU |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-52190 |
NCP14#,NSP140..CBU |
1 | ||
| 55711 - PANEL, COWL TOP, OUTER | ||||
| 55701-52330 |
NCP14#,NSP140..CBU |
1 | ||
| 55701-52330 |
NCP14#,NSP140..CBU |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-52150 |
NCP14#,NSP140..CBU |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-52150 |
NCP14#,NSP140..CBU |
1 | ||
| 55722C - BRACE, COWL TOP TO COWL, INNER | ||||
| 55722-52190 |
NCP14#,NSP140..CBU |
1 | ||
| 55722-52190 |
NCP14#,NSP140..CBU |
1 | ||
| 55735D - SEAL, FRONT AIR SHUTTER, RH | ||||
| 55735-52120 |
NCP14#,NSP140..CBU |
1 | ||
| 55736G - SEAL, FRONT AIR SHUTTER, LH | ||||
| 55736-52070 |
NCP14#,NSP140..CBU |
1 | ||
| 55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 | ||||
| 55737-52190 |
NCP14#,NSP140..CBU |
1 | ||
| 55737E - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55737-52200 |
NCP14#,NSP140..CBU |
1 | ||
| 55746A - REINFORCEMENT, COWL TOP, INNER LOWER | ||||
| 55746-52170 |
NCP14#,NSP140..CBU |
1 | ||
| 55746-52170 |
NCP14#,NSP140..CBU |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-52340 |
NCP14#,NSP140..CBU 寒冷地仕様 |
1 | ||
| 55708-52330 |
NCP14#,NSP140..CBU |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-07076C0 |
NCP14#,NSP140..CBU BLACK |
2 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-07076C0 |
NCP14#,NSP140..CBU BLACK |
2 | ||
| 55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1 | ||||
| 55783-52320 |
NCP14#,NSP140..CBU |
1 | ||
| 55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2 | ||||
| 55784-52130 |
NCP14#,NSP140..CBU |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-52948 |
NCP14#,NSP140..(F,V,X,Y)..CBU *LAM,T=4.56,ｸﾞﾘｰﾝ |
1 | ||
| 56101-52949 |
NCP14#,NSP140..(F,X,Y)..CBU *LAM,T=4.56,ｸﾞﾘｰﾝ,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−赤外線ｶｯﾄ+*TST+魔`CS |
1 | ||
| 56101-52950 |
NCP14#,NSP140..(F,X,Y)..CBU *EHL,T=4.56,ｸﾞﾘｰﾝ,寒冷地仕様&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−*LAMｸﾞﾘ[ﾝ+ﾃﾞｱｲｻ |
1 | ||
| 56101-52951 |
NCP14#,NSP140..(F,X,Y)..CBU *EHL,T=4.56,ｸﾞﾘｰﾝ,寒冷地仕様&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−赤外線ｶｯﾄ{*TST+*ACS+ﾃﾞｱｲｻ |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
NCP14#,NSP140..CBU |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
NCP14#,NSP140..CBU |
2 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-50130 |
NCP14#,NSP140..(F,X,Y)..CBU *D,L=3173,寒冷地仕様&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−*LAMｸﾞﾘｰﾝ+ﾃﾞｱｲｻ |
1 | ||
| 56117-50130 |
NCP14#,NSP140..CBU *D,L=3173 |
1 | ||
| 56117-50130 |
NCP14#,NSP140..(F,X,Y)..CBU *D,L=3173,寒冷地仕様&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−赤外線ｶｯﾄ+*TST+*`CS+ﾃﾞｱｲｻ |
1 | ||
| 56117-50130 |
NCP14#,NSP140..(F,X,Y)..CBU *D,L=3173,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−赤外線ｶｯﾄ+*TST+*ACS |
1 | ||
| 56117-50130 |
NCP14#,NSP140..G,V *D,L=3173,寒冷地仕様 |
1 | ||
| Common parts | ||||
| 90119-06786 | ||||
| Linked diagrams | ||||
| 5302 | ||||
