NCP145-AEXXK (2012)
Toyota Porte/Spade

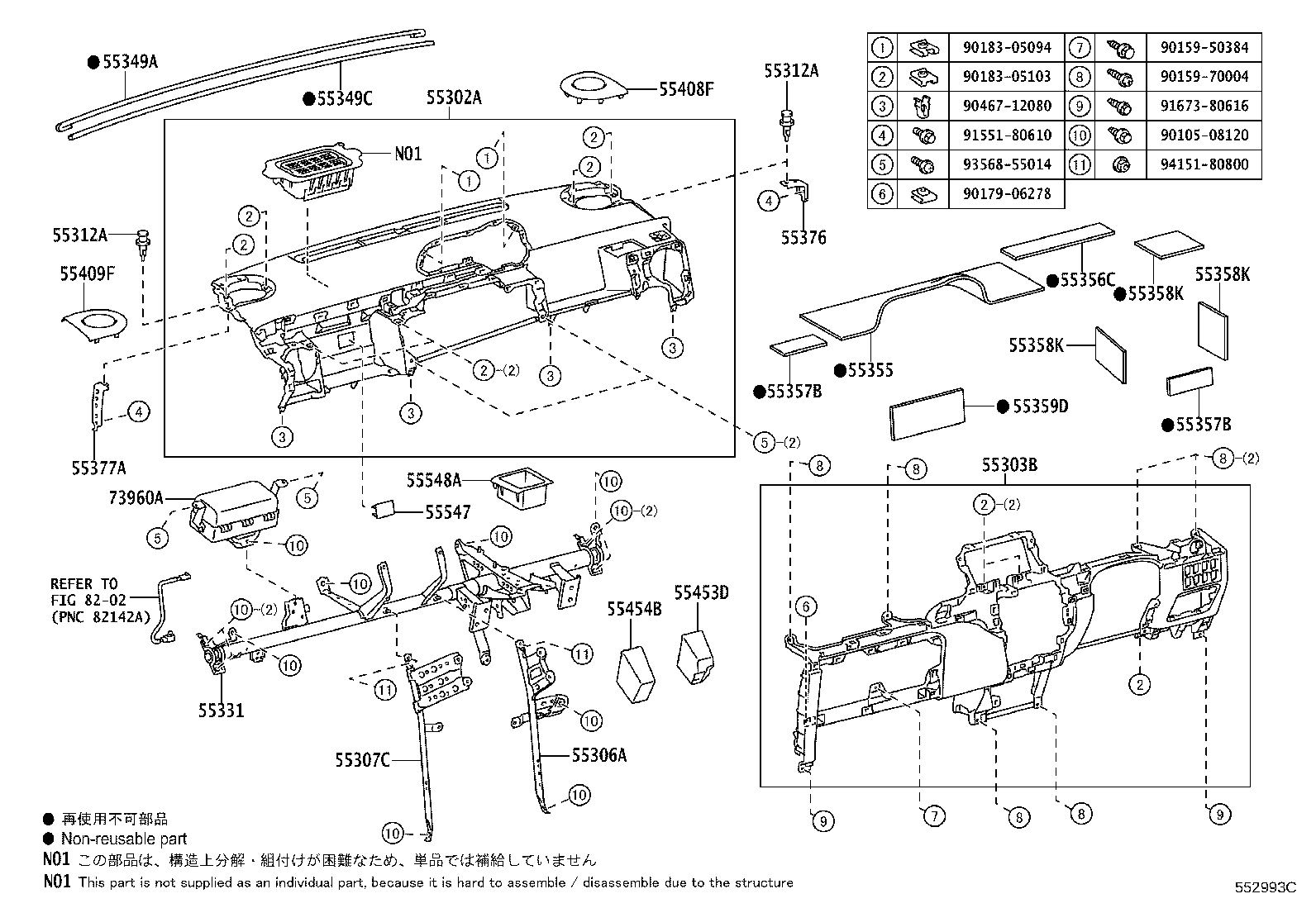

ILLUST NO. 1 OF 2(1207- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-52180E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 55302-52180E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-52300A0 |
NCP14#,NSP140..G,V FROMAGE,TRIM41 |
1 | ||
| 55303-52300C0 |
NCP14#..(F,Y)..CBU BLACK,TRIM4# |
1 | ||
| 55303-52300A0 |
NCP14#,NSP140..X..CBU FROMAGE,TRIM41,43 |
1 | ||
| 55303-52300C0 |
NCP14#,NSP140..G,V BLACK,TRIM40 |
1 | ||
| 55303-52300C0 |
NCP14#,NSP140..X..CBU BLACK,TRIM40,42 |
1 | ||
| 55303-52301C0 |
NCP14#,NSP140..X..CBU BLACK,TRIM40,42 |
1 | ||
| 55303-52300A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 55303-52301C0 |
NCP14#,NSP140..(F,V,Y)..CBU BLACK,TRIM4# |
1 | ||
| 55303-52301A0 |
NCP14#,NSP140..X..CBU FROMAGE,TRIM41,43 |
1 | ||
| 55303-52301A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-52310 |
NCP14#,NSP140..CBU |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-52070 |
NCP14#,NSP140..CBU |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
NCP14#,NSP140..CBU |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
NCP14#,NSP140..CBU |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-52700 |
NCP14#,NSP140..CBU |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-52320 |
NCP14#,NSP140..CBU |
1 | ||
| 55349-52210 |
NCP14#,NSP140..CBU |
1 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-52220 |
NCP14#,NSP140..CBU |
1 | ||
| 55349-52330 |
NCP14#,NSP140..CBU |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52220 |
NCP14#,NSP140..CBU |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-52210 |
NCP14#,NSP140..CBU |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-52180 |
NCP14#,NSP140..CBU |
2 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-52180 |
NCP14#,NSP140..CBU |
2 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-52150 |
NCP14#,NSP140..CBU |
3 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-52150 |
NCP14#,NSP140..CBU |
3 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-52150 |
NCP14#,NSP140..CBU |
3 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-52120 |
NCP14#,NSP140..CBU |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-52110 |
NCP14#,NSP140..CBU |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-52040E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 55472-52040E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-52040E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 55473-52040E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55453-52150 |
NCP14#,NSP140..CBU |
1 | ||
| 55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55454-52140 |
NCP14#,NSP140..CBU |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-28010E6 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 55547-28010E6 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-52090E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 55548-52090E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-52200 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90159-50384 | ||||
| 90159-70004 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-12080 | ||||
| 91551-80610 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

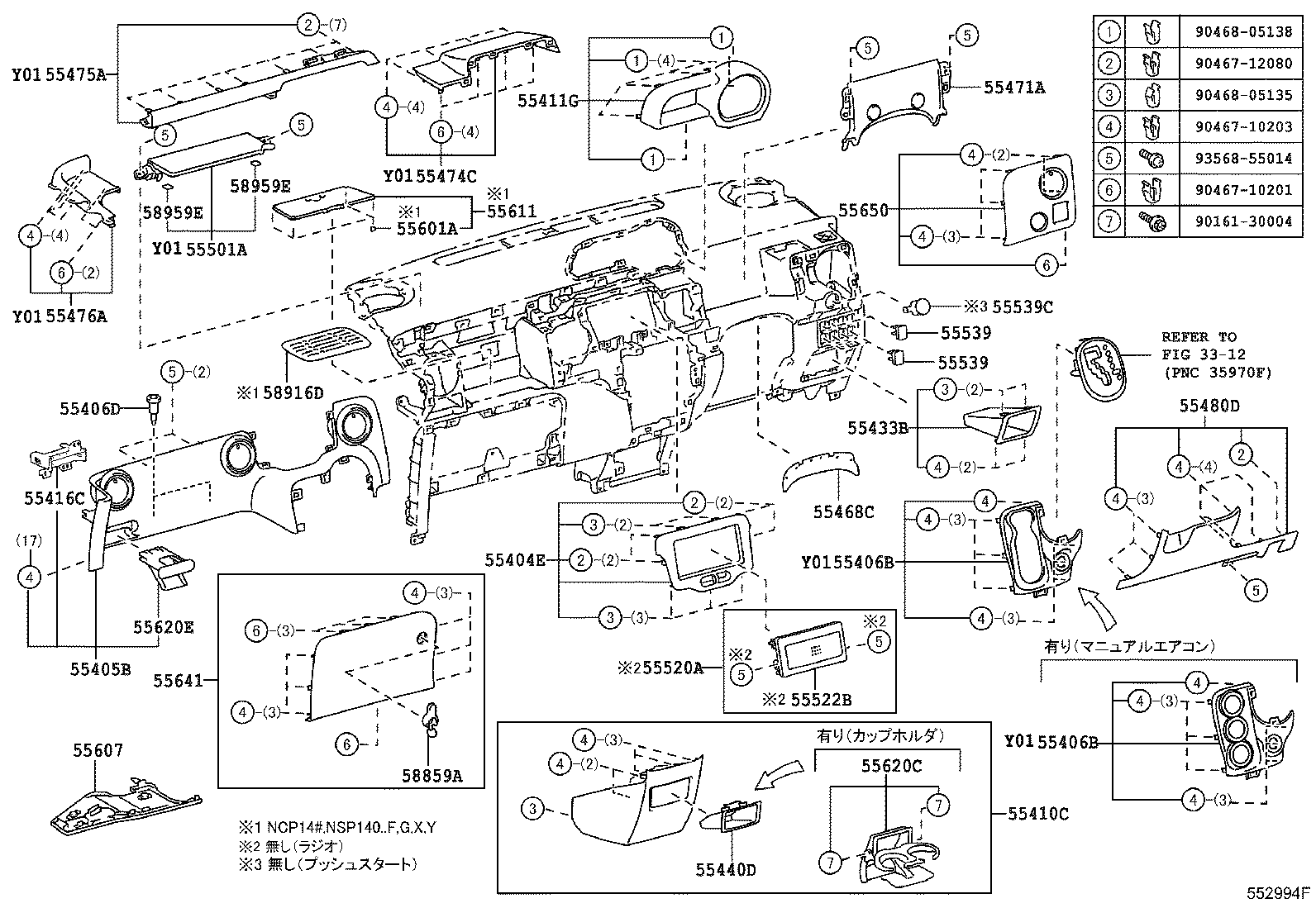

ILLUST NO. 2 OF 2(1207-1507)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55404E - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, UPR | ||||
| 55404-52130E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM4# |
1 | ||
| 55404-52130A0 |
NCP14#,NSP140..G,V FROMAGE,TRIM41 |
1 | ||
| 55404-52130E0 |
NCP14#,NSP140..X..CBU PLUM,TRIM40,42 |
1 | ||
| 55404-52130A0 |
NCP14#,NSP140..X..CBU FROMAGE,TRIM41,43 |
1 | ||
| 55404-52130A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 55404-52130C0 |
NCP145..PORTE..CBU;NCP141..PORTE..F..CBU;NCP141,NSP140..(G,X,Y)..CBU;NCP145..SPADE..(G,X,Y)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,BLACK,TRIM40 |
1 | ||
| 55404-52130E0 |
NCP14#,NSP140..G,V PLUM,TRIM40 |
1 | ||
| 55404-52130C0 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ),BLACK,TRIM40 |
1 | ||
| 55404-52130C0 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ),BLACK,TRIM40 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-52A50E0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 55405-52A50E0 |
NCP14#,NSP140..X..CBU FROMAGE,TRIM41,43 |
1 | ||
| 55405-52A50E0 |
NCP14#,NSP140..G,V FROMAGE,TRIM41 |
1 | ||
| 55405-52A50E1 |
NCP14#..(F,Y)..CBU BLACK,TRIM4# |
1 | ||
| 55405-52A50E1 |
NCP14#,NSP140..G,V BLACK,TRIM40 |
1 | ||
| 55405-52A50E1 |
NCP14#,NSP140..X..CBU BLACK,TRIM40,42 |
1 | ||
| 55405-52A80E2 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ),PLUM,TRIM4# |
1 | ||
| 55405-52A80E3 |
NCP14#,NSP140..X..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,PLUM/FROMAGE,TRIM41,43 |
1 | ||
| 55405-52A90E2 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ),PLUM/FROMAGE,TRIM0# |
1 | ||
| 55405-52A80E3 |
NCP14#..(F,Y)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,PLUM/FROMAGE,TRIM0# |
1 | ||
| 55405-52A80E3 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ),PLUM/FROMAGE,TRIM0# |
1 | ||
| 55405-52A80E2 |
NCP14#..(F,Y)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,PLUM,TRIM4# |
1 | ||
| 55405-52A80E3 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ),PLUM/FROMAGE,TRIM0# |
1 | ||
| 55405-52A80E2 |
NCP14#,NSP140..X..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,PLUM,TRIM40,42 |
1 | ||
| 55405-52A80E2 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ),PLUM,TRIM4# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-52350E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 55406-52350E0 |
NCP14#..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 55406-52360C0 |
NCP14#..(F,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ),BLACK,TRIM4# |
1 | ||
| 55406-52360E1 |
NCP14#..(F,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ),CHAMPAGNE GOLD,TRIM0# |
1 | ||
| 55406-52350E0 |
NCP145..PORTE..F PLUM,TRIM00,4# |
1 | ||
| 55406-52350A0 |
NCP14#..PORTE..F..CBU FROMAGE,TRIM02,03 |
1 | ||
| 55406-52360E1 |
NCP14#,NSP140..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ),CHAMPAGNE GOLD,TRIM41,43 |
1 | ||
| 55406-52360C0 |
NCP14#,NSP140..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ),BLACK,TRIM40,42 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-52350E0 |
NCP14#,NSP140..(V,X)..CBU PLUM,TRIM4# |
1 | ||
| 55406-52350E0 |
NCP14#..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 55406-52360C0 |
NCP14#..(F,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ),BLACK,TRIM4# |
1 | ||
| 55406-52360E1 |
NCP14#..(F,Y)..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ),CHAMPAGNE GOLD,TRIM0# |
1 | ||
| 55406-52350E0 |
NCP145..PORTE..F PLUM,TRIM00,4# |
1 | ||
| 55406-52350A0 |
NCP14#..PORTE..F..CBU FROMAGE,TRIM02,03 |
1 | ||
| 55406-52360E1 |
NCP14#,NSP140..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ),CHAMPAGNE GOLD,TRIM41,43 |
1 | ||
| 55406-52360C0 |
NCP14#,NSP140..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ),BLACK,TRIM40,42 |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-07066P6 |
NCP14#,NSP140..CBU DK.GRAY |
2 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-52220E0 |
NCP14#..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 55410-52220E0 |
NCP14#,NSP140..(G,X)..CBU PLUM,TRIM4# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-52300E0 |
NCP141..Y;NCP145..SPADE..Y;NCP145..PORTE..(F,Y);NCP141..PORTE..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 55411-52300E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-52050 |
NCP14#,NSP140..CBU |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-52120C0 |
NCP14#..(F,Y)..CBU BLACK,TRIM4# |
1 | ||
| 55433-52120C0 |
NCP14#,NSP140..X..CBU BLACK,TRIM40,42 |
1 | ||
| 55433-52120A0 |
NCP14#,NSP140..X..CBU FROMAGE,TRIM41,43 |
1 | ||
| 55433-52120A0 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 55433-52120A0 |
NCP14#,NSP140..G,V FROMAGE,TRIM41 |
1 | ||
| 55433-52120C0 |
NCP14#,NSP140..G,V BLACK,TRIM40 |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-52080 |
NCP14#,NSP140..CBU |
1 | ||
| 55471A - ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55471-52010A0 |
NCP14#..PORTE..F..CBU FROMAGE,TRIM02,03 |
1 | ||
| 55471-52010E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 55471-52010E0 |
NCP14#..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 55471-52010E0 |
NCP145..PORTE..F PLUM,TRIM00,02,03,4# |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-52080E1 |
NCP14#..PORTE..F..CBU PLUM,TRIM02,03,4# |
1 | ||
| 55474-52080E1 |
NCP14#,NSP140..G,V,Y;NCP14#..SPADE..F..CBU PLUM,TRIM4# |
1 | ||
| 55474-52080E0 |
NCP14#,NSP140..X..CBU ORANGE,TRIM41,43 |
1 | ||
| 55474-52080E0 |
NCP145..PORTE..F ORANGE,TRIM00 |
1 | ||
| 55474-52080E1 |
NCP14#,NSP140..X..CBU PLUM,TRIM40,41,42 |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-52020E1 |
NCP14#,NSP140..G,V,Y;NCP14#..SPADE..F..CBU PLUM,TRIM4# |
1 | ||
| 55475-52020E0 |
NCP14#,NSP140..X..CBU ORANGE,TRIM41,43 |
1 | ||
| 55475-52020E0 |
NCP145..PORTE..F ORANGE,TRIM00 |
1 | ||
| 55475-52020E1 |
NCP14#..PORTE..F..CBU PLUM,TRIM02,03,4# |
1 | ||
| 55475-52020E1 |
NCP14#,NSP140..X..CBU PLUM,TRIM40,41,42 |
1 | ||
| 55476A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3 | ||||
| 55476-52070E1 |
NCP14#,NSP140..X..CBU PLUM,TRIM40,41,42 |
1 | ||
| 55476-52070E0 |
NCP14#,NSP140..X..CBU ORANGE,TRIM41,43 |
1 | ||
| 55476-52070E0 |
NCP145..PORTE..F ORANGE,TRIM00 |
1 | ||
| 55476-52070E1 |
NCP14#,NSP140..G,V,Y;NCP14#..SPADE..F..CBU PLUM,TRIM4# |
1 | ||
| 55476-52070E1 |
NCP14#..PORTE..F..CBU PLUM,TRIM02,03,4# |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-52070E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 55480-52070E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 55480-52070E0 |
NCP14#,NSP140..X..CBU PLUM,TRIM40,41,42,43 |
1 | ||
| 55480-52070C0 |
NCP145..PORTE..CBU;NCP141..PORTE..F..CBU;NCP145..SPADE..(G,X,Y)..CBU;NCP141,NSP140..(G,V,X,Y)..CBU BLACK,TRIM40 |
1 | ||
| 55480-52070A0 |
NCP14#,NSP140..(G,V,X)..CBU FROMAGE,TRIM41 |
1 | ||
| 55480-52070A0 |
NCP14#..PORTE..F..CBU FROMAGE,TRIM00,02,03 |
1 | ||
| 55480-52070E0 |
NCP145..PORTE..F PLUM,TRIM00,02,03,40 |
1 | ||
| 55480-52070E0 |
NCP14#,NSP140..G,V PLUM,TRIM40,41 |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-52090E3 |
NCP14#,NSP140..X..CBU PLUM,TRIM40,42 |
1 | ||
| 55501-52090E2 |
NCP145..PORTE..F ORANGE,TRIM00 |
1 | ||
| 55501-52090E2 |
NCP14#,NSP140..X..CBU ORANGE,TRIM41,43 |
1 | ||
| 55501-52090E3 |
NCP14#,NSP140..G,V,Y;NCP14#..SPADE..F..CBU PLUM,TRIM4# |
1 | ||
| 55501-52090E3 |
NCP14#..PORTE..F..CBU PLUM,TRIM02,03,4# |
1 | ||
| 55520A - COVER ASSY, STEREO OPENING | ||||
| 55520-47020 |
NCP14#,NSP140..CBU ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ､ｶﾊﾞｰ 4ｽﾋﾟｰｶ付き |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
NCP14#,NSP140..CBU ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ､ｶﾊﾞｰ 4ｽﾋﾟｰｶ付き |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
NCP14#,NSP140..CBU BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
NCP14#,NSP140..CBU BLACK |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-52040C0 |
NCP14#,NSP140..CBU BLACK |
1 | ||
| 55539-52040C0 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),BLACK |
1 | ||
| 55601A - CUSHION(FOR UNDER TRAY) | ||||
| 58959-52010 |
NCP14#,NSP140..(F,G,X,Y)..CBU |
4 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-52070 |
NCP14#,NSP140..CBU |
1 | ||
| 55611 - TRAY, INSTRUMENT PANEL UNDER | ||||
| 55611-52240E1 |
NCP14#,NSP140..(G,X)..CBU PLUM,TRIM4# |
1 | ||
| 55611-52240E1 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-52010E1 |
NCP14#,NSP140..(G,X)..CBU PLUM,TRIM4# |
1 | ||
| 55620-52010E1 |
NCP14#..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 55620E - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-52080E1 |
NCP14#,NSP140..(F,V,Y)..CBU PLUM/BLACK,TRIM4# |
1 | ||
| 55620-52080E0 |
NCP14#..(F,Y)..CBU PLUM/FROMAGE,TRIM0# |
1 | ||
| 55620-52080E1 |
NCP14#,NSP140..X..CBU PLUM/BLACK,TRIM40,42 |
1 | ||
| 55620-52080E0 |
NCP14#,NSP140..X..CBU PLUM/FROMAGE,TRIM41,43 |
1 | ||
| 55641 - COVER, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55641-52110A1 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),FROMAGE,TRIM41,43 |
1 | ||
| 55641-52110A1 |
NCP14#,NSP140..X..CBU FROMAGE,TRIM41,43 |
1 | ||
| 55641-52110A1 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,FROMAGE,TRIM41,43 |
1 | ||
| 55641-52110C1 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),BLACK,TRIM40,42 |
1 | ||
| 55641-52110A1 |
NCP14#,NSP140..G,V FROMAGE,TRIM41 |
1 | ||
| 55641-52110C1 |
NCP14#,NSP140..X..CBU BLACK,TRIM40,42 |
1 | ||
| 55641-52110A1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 55641-52110C1 |
NCP14#..(F,Y)..CBU BLACK,TRIM4# |
1 | ||
| 55641-52110C1 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,BLACK,TRIM40,42 |
1 | ||
| 55641-52110C1 |
NCP14#,NSP140..G,V BLACK,TRIM40 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52340E1 |
NCP14#..(F,Y)..CBU FROMAGE,TRIM0# |
1 | ||
| 55650-52340E2 |
NCP14#..(F,Y)..CBU BLACK,TRIM4# |
1 | ||
| 55650-52340E1 |
NCP14#,NSP140..G,V FROMAGE,TRIM41 |
1 | ||
| 55650-52340E2 |
NCP14#,NSP140..G,V BLACK,TRIM40 |
1 | ||
| 55650-52350E2 |
NCP14#..(F,Y)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,PLUM/BLACK,TRIM4# |
1 | ||
| 55650-52350E3 |
NCP14#..(F,Y)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,PLUM/FROMAGE,TRIM0# |
1 | ||
| 55650-52340E2 |
NCP14#,NSP140..X..CBU BLACK,TRIM40,42 |
1 | ||
| 55650-52350E3 |
NCP14#,NSP140..X..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,PLUM/FROMAGE,TRIM41,43 |
1 | ||
| 55650-52350E2 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ),PLUM/BLACK,TRIM4# |
1 | ||
| 55650-52340E1 |
NCP14#,NSP140..X..CBU FROMAGE,TRIM41,43 |
1 | ||
| 55650-52350E3 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾟﾗﾑ),PLUM/FROMAGE,TRIM0# |
1 | ||
| 55650-52350E3 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ),PLUM/FROMAGE,TRIM0# |
1 | ||
| 55650-52350E2 |
NCP14#,NSP140..X..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,PLUM/BLACK,TRIM40,42 |
1 | ||
| 55650-52350E2 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ),PLUM/BLACK,TRIM4# |
1 | ||
| 55650-52360E2 |
NCP14#..PORTE..F..CBU “a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ),PLUM/FROMAGE,TRIM0# |
1 | ||
| 58859A - HOOK, CONSOLE BOX HOLDER | ||||
| 58859-52010E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 58859-52010E0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 58859-52010E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58859-52010E0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),PLUM,TRIM4# |
1 | ||
| 58916D - MAT, BOX BOTTOM | ||||
| 58916-52030E0 |
NCP14#,NSP140..(G,X)..CBU PLUM,TRIM4# |
1 | ||
| 58916-52030E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60030 |
NCP14#,NSP140..CBU |
2 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60030 |
NCP14#,NSP140..CBU |
2 | ||
| Common parts | ||||
| 90161-30004 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
| 90468-05138 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 3312 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
