NCP145-AEXXK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1207- )NCP145

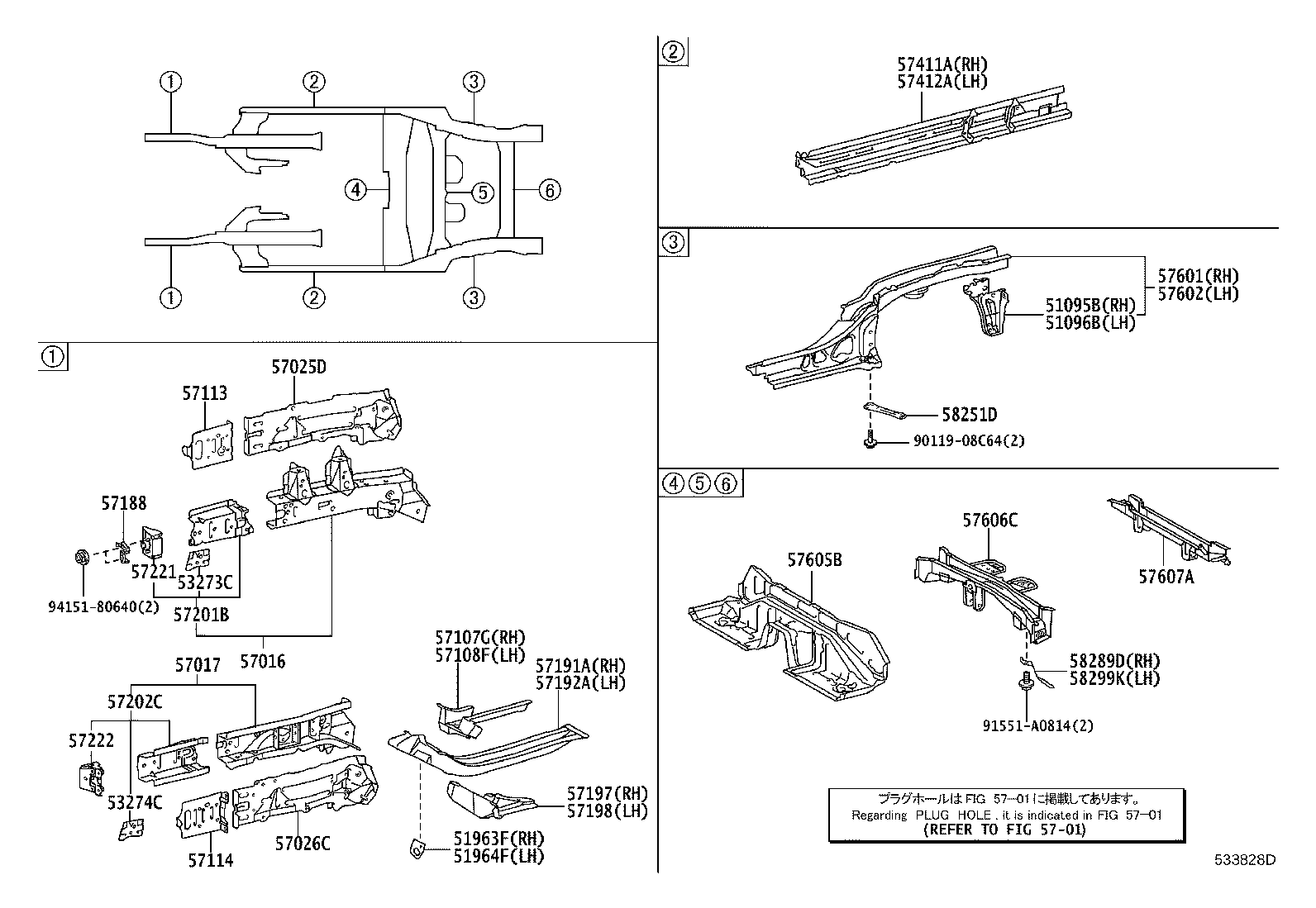

Click highlighted areas on diagram

diagram 51095B 51096B 51963F 51964F 53273C 53274C 5701 57016 57017 57025D 57026C 57107G 57108F 57113 57114 57188 57191A 57192A 57197 57198 57201B 57202C 57221 57222 57411A 57412A 57601 57602 57605B 57606C 57607A 58251D 58289D 58299K 9011908C64 91551A0814 9415180640
Part # Description Qty Price
51095B - HOOK SUB-ASSY, TRANSPORT, REAR RH
51095-52020

NCP14#,NSP140..CBU

 1
51096B - HOOK SUB-ASSY, TRANSPORT, REAR LH
51096-52010

NCP14#,NSP140..CBU

 1
51963F - HOOK, TRANSPORT
51963-52050

NCP14#,NSP140..CBU

 1
51964F - HOOK, TRANSPORT, LH
51963-52050

NCP14#,NSP140..CBU

 1
53273C - REINFORCEMENT, RADIATOR SUPPORT, RH
53273-52030

NCP14#,NSP140..CBU

 1
53274C - REINFORCEMENT, RADIATOR SUPPORT, LH
53274-52020

NCP14#,NSP140..CBU

 1
57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57016-52100

NCP14#,NSP140..CBU

 1
57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57017-52110

NCP14#,NSP140..CBU

 1
57025D - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57025-52010

NCP14#,NSP140..CBU

 1
57026C - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57026-52010

NCP14#,NSP140..CBU

 1
57107G - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA
57107-52030

NCP14#,NSP140..CBU

 1
57108F - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA
57108-52030

NCP14#,NSP140..CBU

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-52020

NCP14#,NSP140..CBU

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-52020

NCP14#,NSP140..CBU

 1
57188 - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57188-52020

NCP14#,NSP140..CBU

 1
57191A - MEMBER, FRONT SIDE, INNER REAR RH
57191-52020

NCP14#,NSP140..CBU

 1
57192A - MEMBER, FRONT SIDE, INNER REAR LH
57192-52020

NCP14#,NSP140..CBU

 1
57197 - BOX, TORQUE, FRONT RH
57197-52030

NCP14#,NSP140..CBU

 1
57198 - BOX, TORQUE, FRONT LH
57198-52030

NCP14#,NSP140..CBU

 1
57201B - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH
57201-52030

NCP14#,NSP140..CBU

 1
57202C - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH
57202-52030

NCP14#,NSP140..CBU

 1
57221 - BRACKET, FRONT SIDE MEMBER, RH
57013-52040

NCP14#,NSP140..CBU

 1
57222 - BRACKET, FRONT SIDE MEMBER, LH
57014-52030

NCP14#,NSP140..CBU

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57401-52210

NCP14#,NSP140..CBU

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57402-52230

NCP14#,NSP140..CBU

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-52350

NCP145..CBU

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-52400

NCP145..CBU

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-52200

NCP145..CBU

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-52181

NCP145..X..CBU

ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ

 1
57606-52180

NCP145..X..CBU

助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ

 1
57606-52180

NCP145..CBU

 1
57606-52180

NCP145..X..CBU

ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ

 1
57606-52181

NCP145..X..CBU

助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ

 1
57606-52181

NCP145..CBU

 1
57606-52182

NCP145..CBU

 1
57606-52182

NCP145..X..CBU

助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ

 1
57606-52182

NCP145..X..CBU

ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ

 1
57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-52071

NCP145..X..CBU

助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ

 1
57607-52071

NCP145..X..CBU

ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ

 1
57607-52071

NCP145..CBU

 1
58251D - BRACE, FLOOR PANEL, FRONT
58251-52020

NCP14#,NSP140..CBU

 2
58289D - BRACKET, FLOOR BRAKE HOSE, REAR
58289-52040

NCP145..CBU

 1
58299K - BRACKET, FLOOR BRAKE HOSE, REAR LH
58299-52070

NCP145..CBU

 1
Common parts
90119-08C64
91551-A0814
94151-80640
Linked diagrams
5701
