Toyota Porte/spade NCP145 HOOD LOCK & HINGE

NCP145-AEXXK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015

Engine 1NZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

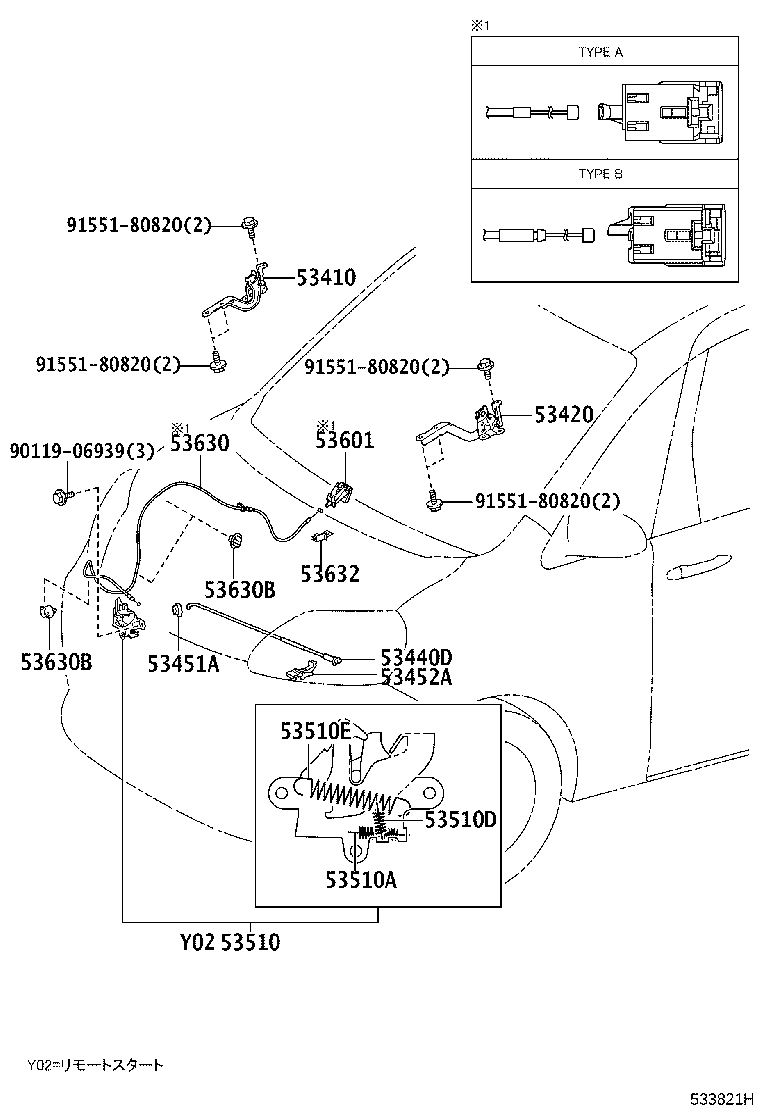

Click highlighted areas on diagram

ﾅｼ(ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ)

Part #	Description	Period	Qty
53410 - HINGE ASSY, HOOD, RH
53410-52380	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
53420 - HINGE ASSY, HOOD, LH
53420-52390	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
53440D - SUPPORT ASSY, HOOD
53440-52270	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15025	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
53452A - HOLDER, HOOD STAY
53452-52070	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
53510 - LOCK ASSY, HOOD
53510-52680	NSP140..V;NCP14#..CBU	07/2012 - 07/2015	1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055	NCP14#,NSP140..CBU 線径=0.9,ｺｲﾙ巻数=21	07/2012 - 07/2015	1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063	NCP14#,NSP140..CBU 線径=1.2,ｺｲﾙ巻数=8.5	07/2012 - 07/2015	1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-16077	NCP14#,NSP140..CBU 線径=1.6,ｺｲﾙ巻数=12	07/2012 - 07/2015	1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010E7	NCP14#..(F,Y)..CBU PLUM,TRIM0#,4#	07/2012 - 07/2015	1
53601-52010E7	NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4#	07/2012 - 07/2015	1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-52180	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005	NCP14#,NSP140..CBU	07/2012 - 07/2015	3
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005	NCP14#,NSP140..CBU	07/2012 - 07/2015	3
Common parts
90119-06939
91551-80820

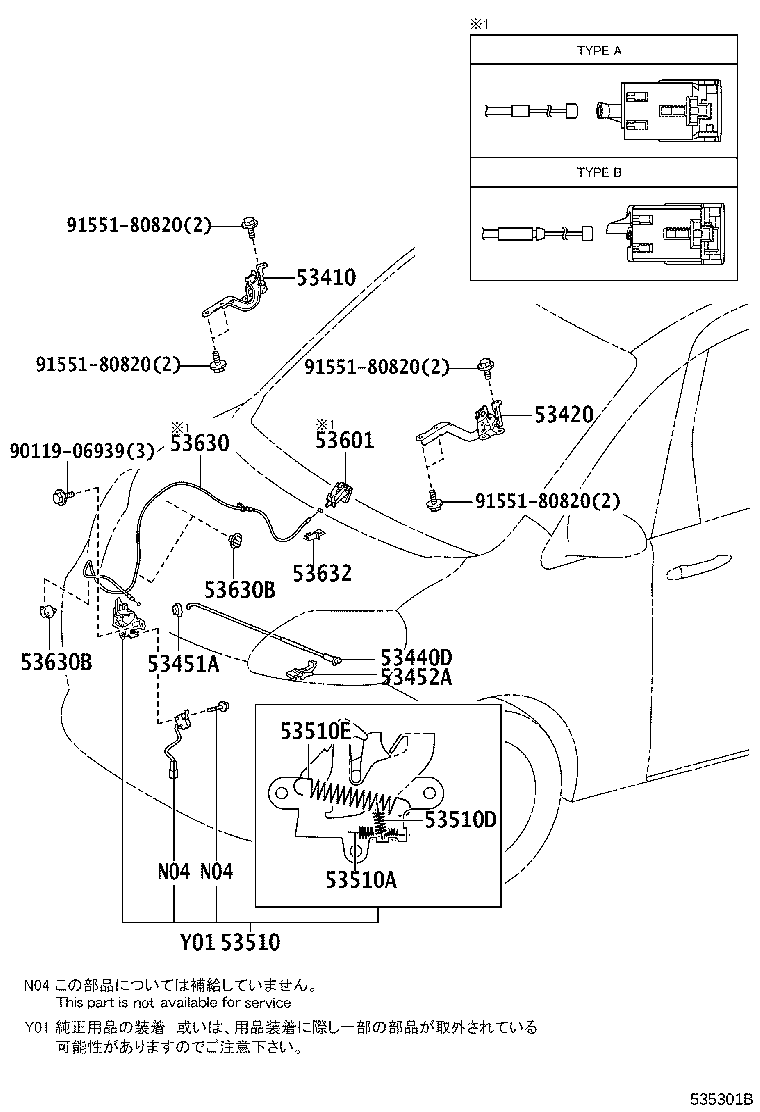

Click highlighted areas on diagram

ｱﾘ(ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ)

Part #	Description	Period	Qty
53410 - HINGE ASSY, HOOD, RH
53410-52380	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
53420 - HINGE ASSY, HOOD, LH
53420-52390	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
53440D - SUPPORT ASSY, HOOD
53440-52270	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15025	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
53452A - HOLDER, HOOD STAY
53452-52070	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
53510 - LOCK ASSY, HOOD
53510-52680	NSP140..V;NCP14#..CBU	07/2012 - 07/2015	1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055	NCP14#,NSP140..CBU 線径=0.9,ｺｲﾙ巻数=21	07/2012 - 07/2015	1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063	NCP14#,NSP140..CBU 線径=1.2,ｺｲﾙ巻数=8.5	07/2012 - 07/2015	1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-16077	NCP14#,NSP140..CBU 線径=1.6,ｺｲﾙ巻数=12	07/2012 - 07/2015	1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010E7	NCP14#..(F,Y)..CBU PLUM,TRIM0#,4#	07/2012 - 07/2015	1
53601-52010E7	NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4#	07/2012 - 07/2015	1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-52180	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005	NCP14#,NSP140..CBU	07/2012 - 07/2015	3
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005	NCP14#,NSP140..CBU	07/2012 - 07/2015	3
Common parts
90119-06939
91551-80820
