NCP145-AEXXK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

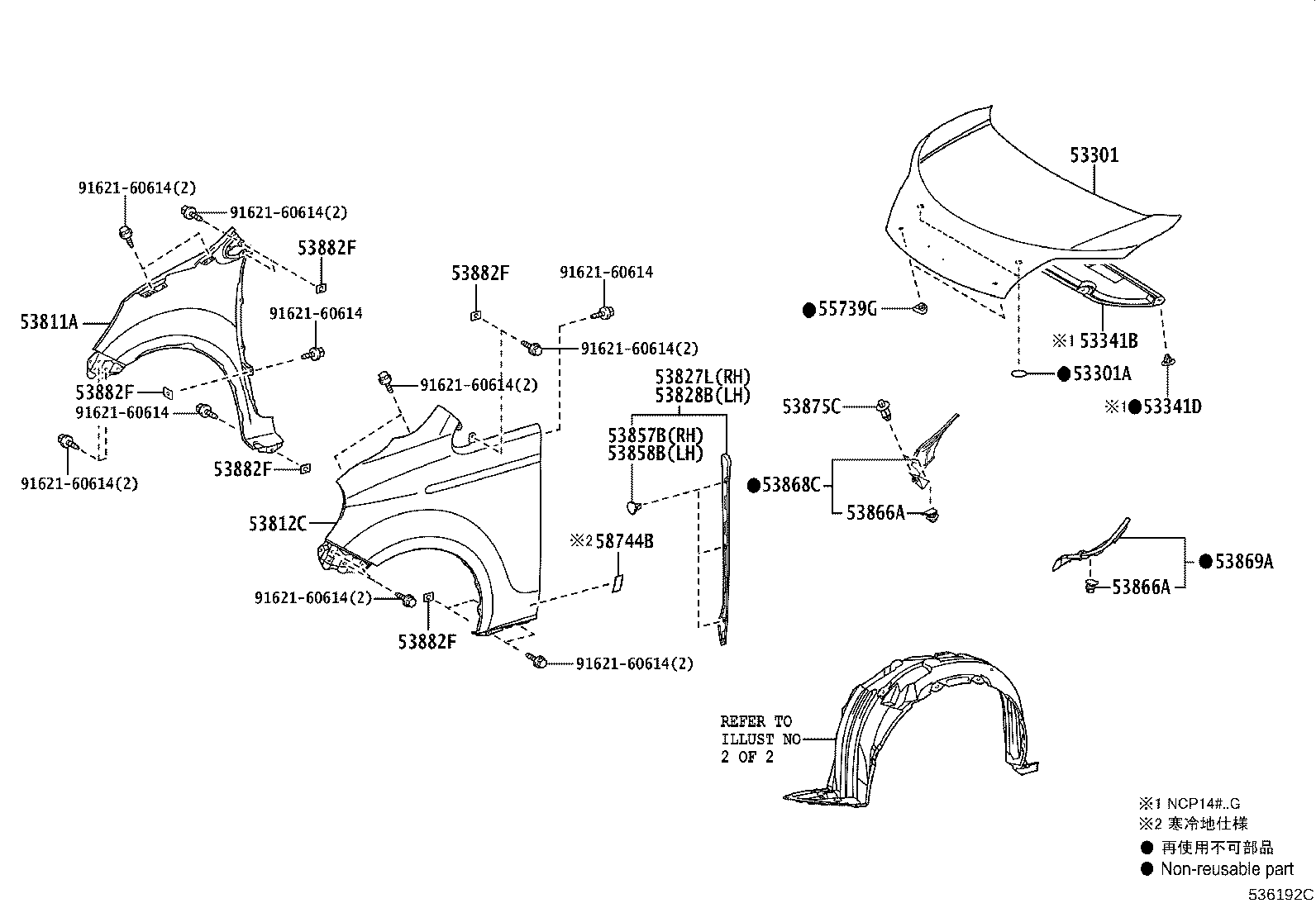

ILLUST NO. 1 OF 2(1207- )NCP14#..PORTE ; (1507- )NSP141..PORTE

Click highlighted areas on diagram

PORTE

diagram 53301 53301A 53341B 53341D 53811A 53812C 53827L 53828B 53857B 53858B 53866A 53866A 53868C 53869A 53875C 53882F 53882F 53882F 53882F 53882F 55739G 58744B 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-52350

NCP14#,NSP140..PORTE..CBU

 1
53301A - PLUG, HOLE(FOR HOOD)
90950-06124

NCP14#,NSP140..CBU

 4
53811A - PANEL, FRONT FENDER, RH
53811-52430

NCP14#,NSP140..PORTE..CBU

 1
53812C - PANEL, FRONT FENDER, LH
53812-52420

NCP14#,NSP140..PORTE..CBU

 1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-52180

NCP14#..CBU

 1
53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-52190

NCP14#,NSP140..CBU

 1
53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-47011

NCP14#..CBU

 3
53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
90467-10162

NCP14#,NSP140..CBU

 3
53866A - CLIP(FOR FRONT FENDER TO COWL SIDE SEAL)
55799-74010

NCP14#,NSP140..CBU

 2
53866A - CLIP(FOR FRONT FENDER TO COWL SIDE SEAL)
55799-74010

NCP14#,NSP140..CBU

 2
53868C - SEAL, FRONT FENDER TO COWL SIDE, NO.2 RH
53868-52060

NCP14#,NSP140..CBU

 1
53869A - SEAL, FRONT FENDER TO COWL SIDE, NO.2 LH
53869-52090

NCP14#,NSP140..CBU

 1
53875C - CLIP, FRONT FENDER LINER
90467-07076C0

NCP14#,NSP140..CBU

BLACK

 2
53882F - SEAL, FRONT FENDER
53882-16030

NCP14#,NSP140..CBU

 8
53882F - SEAL, FRONT FENDER
53882-16030

NCP14#,NSP140..CBU

 8
53882F - SEAL, FRONT FENDER
53882-16030

NCP14#,NSP140..CBU

 8
53882F - SEAL, FRONT FENDER
53882-16030

NCP14#,NSP140..CBU

 8
53882F - SEAL, FRONT FENDER
53882-16030

NCP14#,NSP140..CBU

 8
55739G - STOPPER, HOOD
55738-52050

NCP14#,NSP140..PORTE..CBU

 3
58744B - PROTECTER, FRONT FENDER PANEL, LH
58744-52040

NCP14#,NSP140..CBU

寒冷地仕様

 1
Common parts
91621-60614

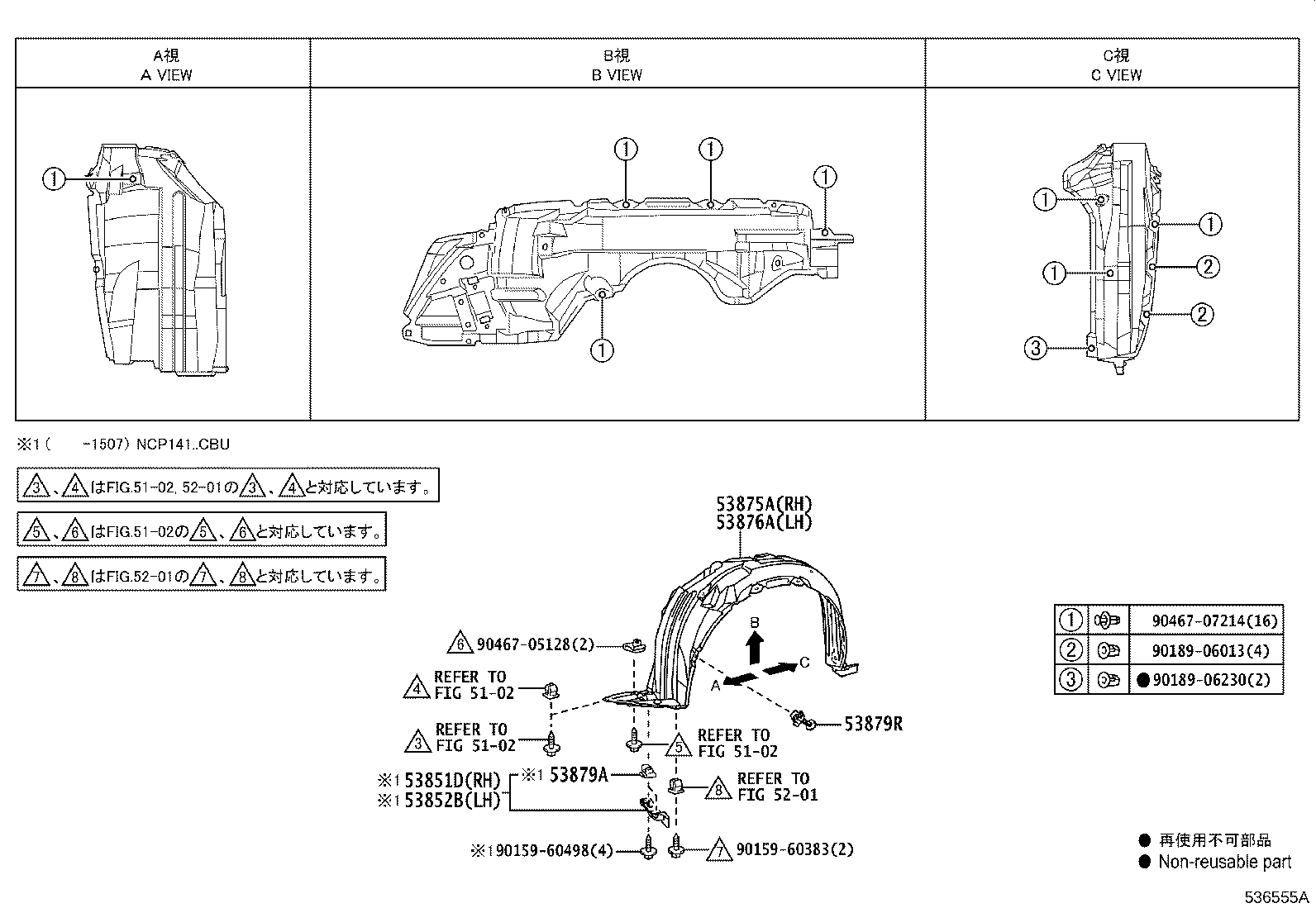

ILLUST NO. 2 OF 2(1207- )NCP14#

Click highlighted areas on diagram

diagram 5102 5102 5102 5201 53851D 53852B 53875A 53876A 53879A 53879R 9015960383 9015960498 9018906013 9018906230 9046705128 9046707214
Part # Description Qty Price
53875A - LINER, FRONT FENDER, RH
53805-52090

NCP14#..PORTE..(F,G,Y)..CBU

 1
53875-52380

NCP14#,NSP140..PORTE..(V,X)..CBU

 1
53876A - LINER, FRONT FENDER, LH
53876-52370

NCP14#,NSP140..PORTE..(V,X)..CBU

 1
53806-52080

NCP14#..PORTE..(F,G,Y)..CBU

 1
53879R - RETAINER, FRONT FENDER LINER
53879-28010

NCP14#,NSP140..CBU

 2
Common parts
90159-60383
90159-60498
90189-06013
90189-06230
90467-05128
90467-07214
Linked diagrams
5102
5201
