NCP145-AEXXK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1207- )PORTE

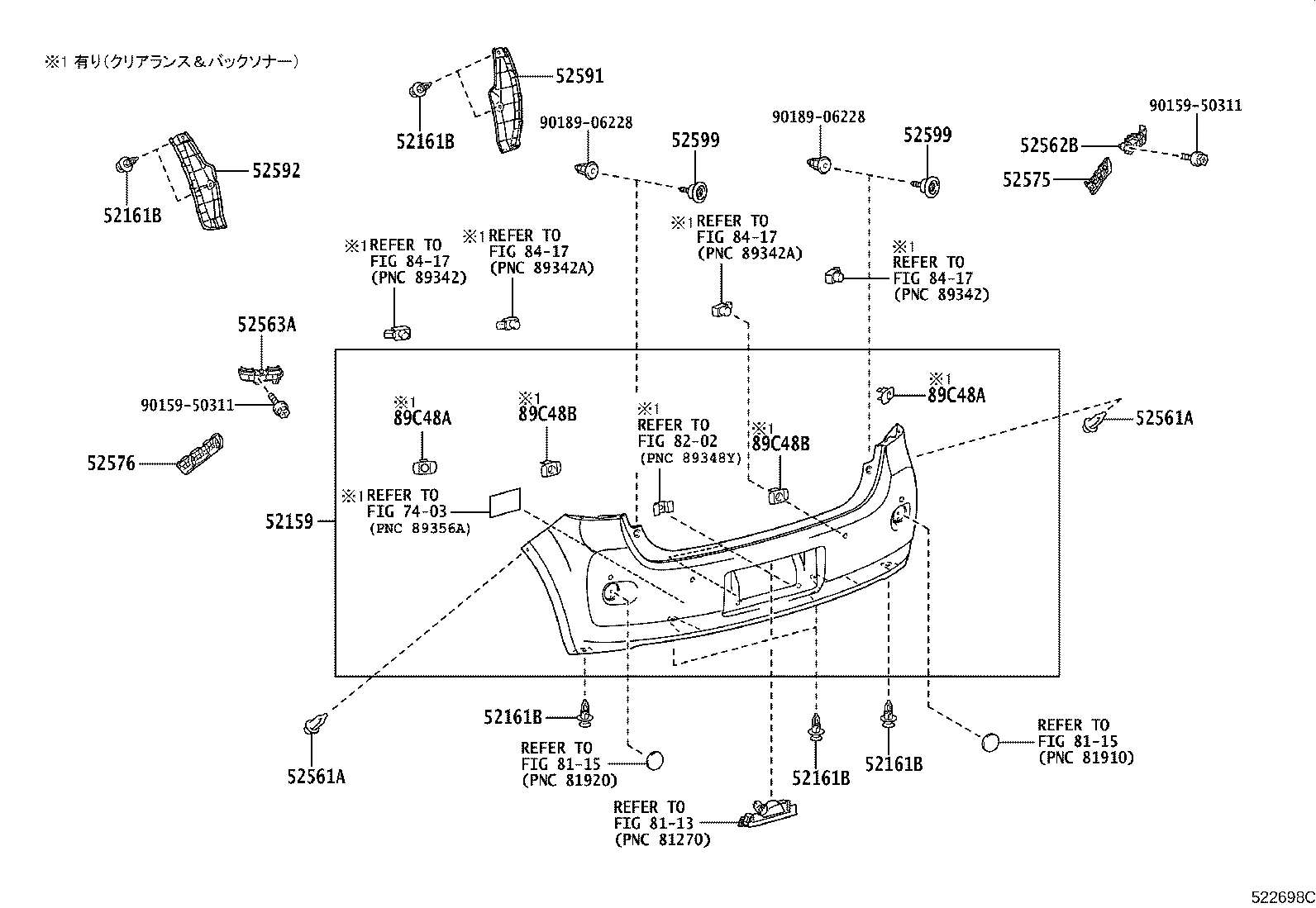

Click highlighted areas on diagram

diagram 52159 52161B 52161B 52161B 52161B 52161B 52561A 52561A 52562B 52563A 52575 52576 52591 52592 52599 52599 7403 8113 8115 8115 8202 8417 8417 8417 8417 89C48A 89C48A 89C48B 89C48B 9015950311 9015950311 9018906228 9018906228
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-52810A0

NCP14#,NSP140..PORTE..CBU

WHITE PEARL CS.,070

 1
52159-52810C0

NCP14#,NSP140..PORTE..CBU

BLACK MC.,209

 1
52159-52810B0

NCP14#,NSP140..PORTE..CBU

SILVER ME.,1F7

 1
52159-52810D0

NCP14#,NSP140..PORTE..CBU

SUPER RED 5,3P0

 1
52159-52810E1

NCP14#,NSP140..PORTE..CBU

CREAM BEIGE,4V9

 1
52159-52810E0

NCP14#,NSP140..PORTE..CBU

DK. BROWN M.M.,4U3

 1
52159-52810F0

NCP14#..PORTE..F..CBU

SUPER BRIGHT YELLOW,576

 1
52159-52810J0

NCP14#,NSP140..PORTE..CBU

LT.BLUE M.M.,8S1

 1
52159-52810G0

NCP14#,NSP140..PORTE..CBU

AIR GREEN M.M.,6W1

 1
52161B - PIECE, REAR BUMPER
52161-16010

NCP14#,NSP140..CBU

 8
52161B - PIECE, REAR BUMPER
52161-16010

NCP14#,NSP140..CBU

 8
52161B - PIECE, REAR BUMPER
52161-16010

NCP14#,NSP140..CBU

 8
52161B - PIECE, REAR BUMPER
52161-16010

NCP14#,NSP140..CBU

 8
52161B - PIECE, REAR BUMPER
52161-16010

NCP14#,NSP140..CBU

 8
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-05170

NCP14#,NSP140..CBU

 2
90467-05090B1

NCP14#,NSP140..CBU

DK.GRAY

 2
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-05170

NCP14#,NSP140..CBU

 2
90467-05090B1

NCP14#,NSP140..CBU

DK.GRAY

 2
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-52070

NCP14#,NSP140..CBU

 1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-52040

NCP14#,NSP140..CBU

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-52190

NCP14#,NSP140..CBU

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-52170

NCP14#,NSP140..CBU

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-52340

NCP14#,NSP140..CBU

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-52330

NCP14#,NSP140..CBU

 1
52599 - STOPPER, REAR BUMPER, UPPER
52599-68030

NCP14#,NSP140..CBU

 2
52599 - STOPPER, REAR BUMPER, UPPER
52599-68030

NCP14#,NSP140..CBU

 2
Common parts
90159-50311
90189-06228
Linked diagrams
7403
8113
8115
8202
8417
