NCP145-AEXXK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

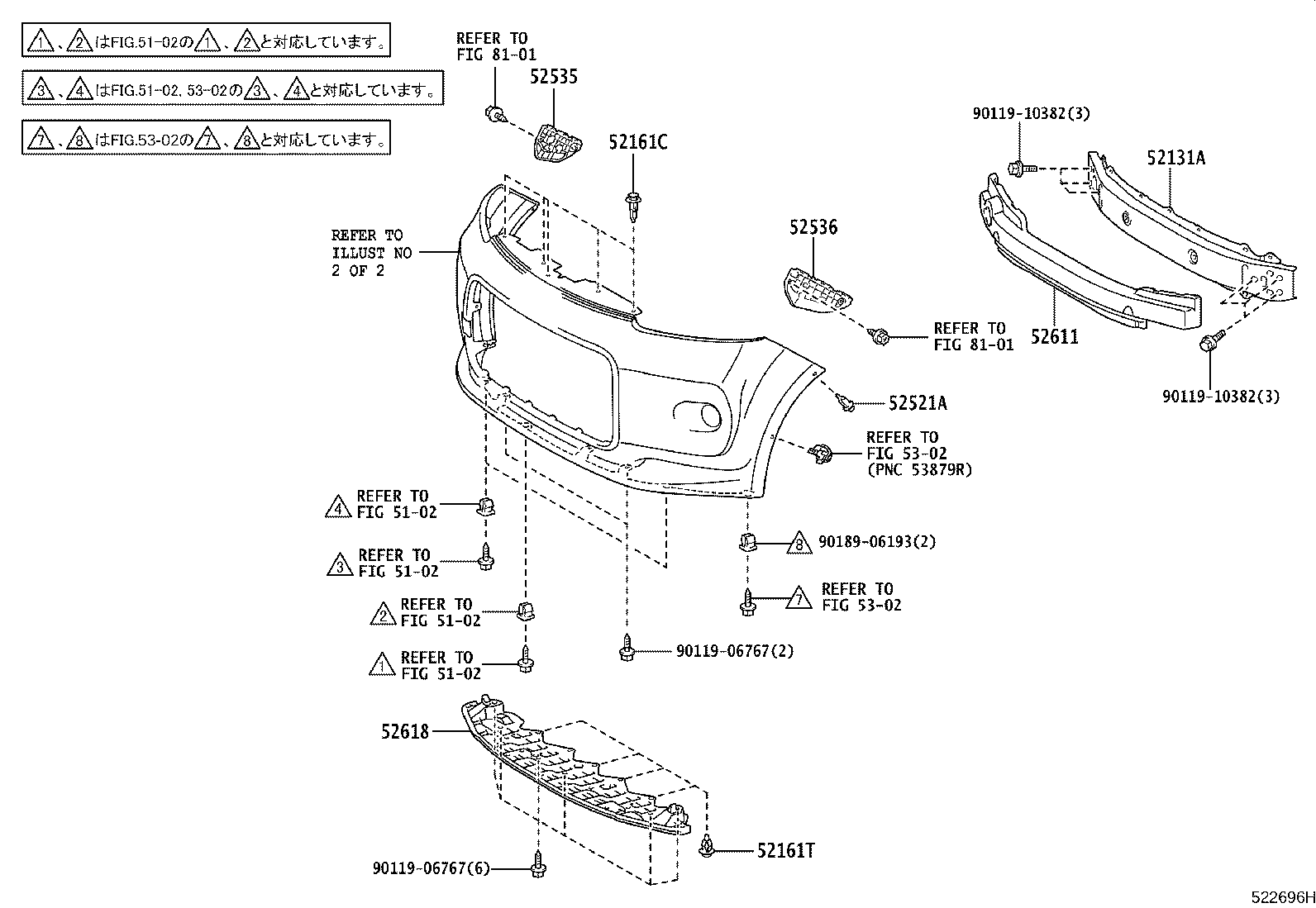

ILLUST NO. 1 OF 2(1207- )PORTE

Click highlighted areas on diagram

diagram 5102 5102 5102 5102 52131A 52161C 52161T 52521A 52535 52536 52611 52618 5302 5302 8101 8101 9011906767 9011906767 9011910382 9011910382 9018906193
Part # Description Qty Price
52131A - REINFORCEMENT, FRONT BUMPER
52131-52250

NCP14#,NSP140..CBU

 1
52161C - PIECE, FRONT BUMPER
52161-16010

NCP14#,NSP140..CBU

 5
52161T - PIECE, FRONT BUMPER
90467-10216

NCP14#,NSP140..CBU

 4
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05090B1

NCP14#,NSP140..CBU

DK.GRAY

 2
90467-05170

NCP14#,NSP140..CBU

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-52170

NCP14#,NSP140..PORTE..CBU

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-52160

NCP14#,NSP140..PORTE..CBU

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-52091

NCP14#,NSP140..CBU

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-52070

NCP14#,NSP140..CBU

 1
Common parts
90119-06767
90119-10382
90189-06193
Linked diagrams
5102
5302
8101

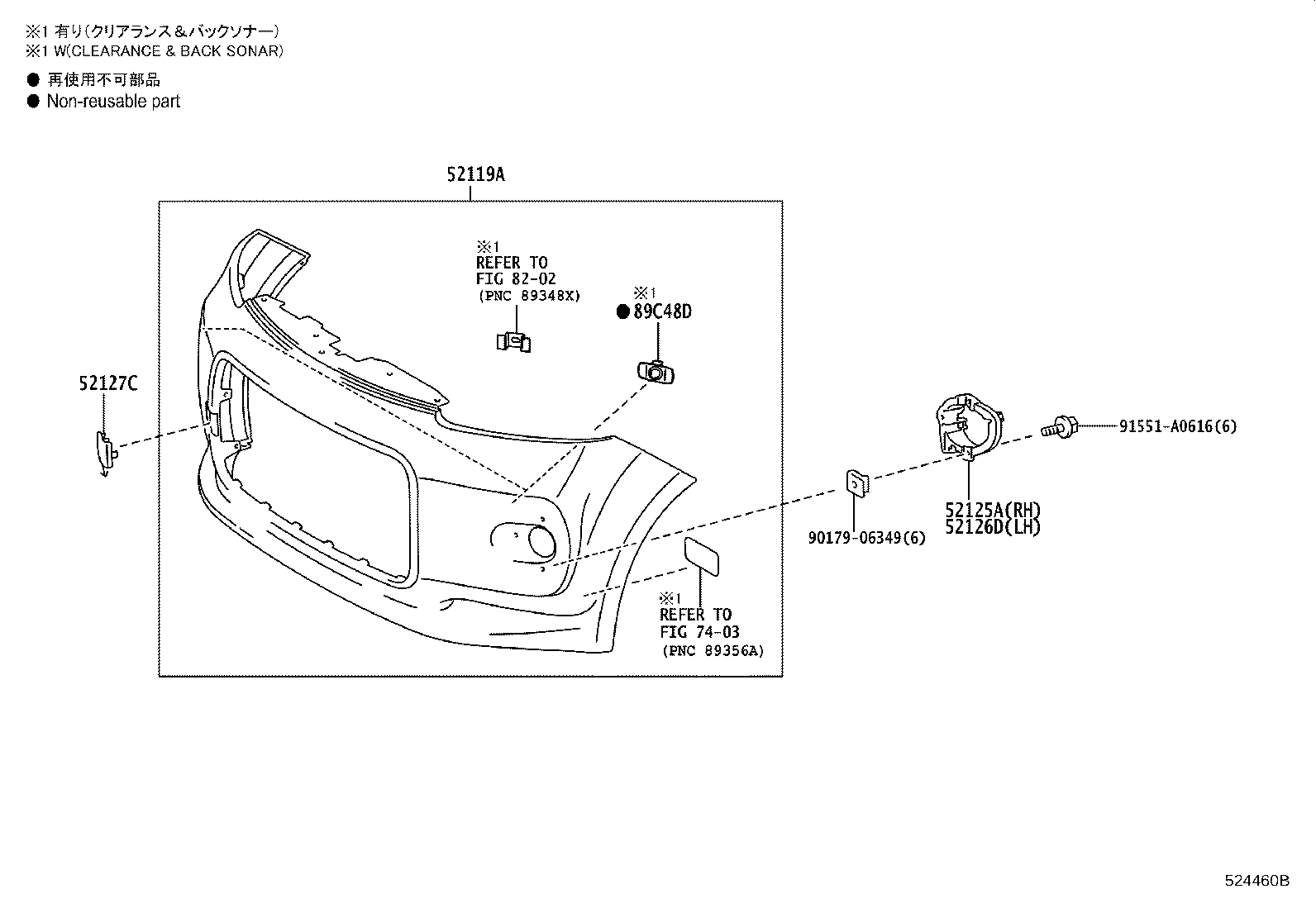

ILLUST NO. 2 OF 2(1207- )PORTE

Click highlighted areas on diagram

diagram 52119A 52125A 52126D 52127C 7403 8202 89C48D 9017906349 91551A0616
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-52820A0

NCP14#,NSP140..PORTE..CBU

WHITE PEARL CS.,070

 1
52119-52820E1

NCP14#,NSP140..PORTE..CBU

CREAM BEIGE,4V9

 1
52119-52820B0

NCP14#,NSP140..PORTE..CBU

SILVER ME.,1F7

 1
52119-52820D0

NCP14#,NSP140..PORTE..CBU

SUPER RED 5,3P0

 1
52119-52820C0

NCP14#,NSP140..PORTE..CBU

BLACK MC.,209

 1
52119-52820J1

NCP14#,NSP140..PORTE..CBU

LT.BLUE M.M.,8S1

 1
52119-52820G0

NCP14#,NSP140..PORTE..CBU

AIR GREEN M.M.,6W1

 1
52119-52820F0

NCP14#..PORTE..F..CBU

“a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ),SUPER BRIGHT YELLOW,576

 1
52119-52820F0

NCP14#..PORTE..F..CBU

“a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ),SUPER BRIGHT YELLOW,576

 1
52119-52820E0

NCP14#,NSP140..PORTE..CBU

DK. BROWN M.M.,4U3

 1
52119-52820F0

NCP14#..PORTE..F..CBU

“a la mode”(*IC.=ﾌﾟﾗﾑ),SUPER BRIGHT YELLOW,576

 1
52125A - BRACKET, FOG LAMP MOUNTING, RH
52125-52110

NCP14#,NSP140..PORTE..CBU

 1
52126D - BRACKET, FOG LAMP MOUNTING, LH
52126-52120

NCP14#,NSP140..PORTE..CBU

 1
52127C - COVER, FRONT BUMPER HOLE
52127-52560C0

NCP14#,NSP140..PORTE..CBU

BLACK MC.,209

 1
52127-52560D0

NCP14#,NSP140..PORTE..CBU

SUPER RED 5,3P0

 1
52127-52560F0

NCP14#..PORTE..F..CBU

“a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ),SUPER BRIGHT YELLOW,576

 1
52127-52560F0

NCP14#..PORTE..F..CBU

“a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ),SUPER BRIGHT YELLOW,576

 1
52127-52560A0

NCP14#,NSP140..PORTE..CBU

WHITE PEARL CS.,070

 1
52127-52560F0

NCP14#..PORTE..F..CBU

“a la mode”(*IC.=ﾌﾟﾗﾑ),SUPER BRIGHT YELLOW,576

 1
52127-52560J1

NCP14#,NSP140..PORTE..CBU

LT.BLUE M.M.,8S1

 1
52127-52560B0

NCP14#,NSP140..PORTE..CBU

SILVER ME.,1F7

 1
52127-52560E1

NCP14#,NSP140..PORTE..CBU

CREAM BEIGE,4V9

 1
52127-52561A0

NCP14#,NSP140..PORTE..CBU

WHITE PEARL CS.,070

 1
52127-52560G0

NCP14#,NSP140..PORTE..CBU

AIR GREEN M.M.,6W1

 1
52127-52561D0

NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU

SUPER RED 5,3P0

 1
52127-52560E0

NCP14#,NSP140..PORTE..CBU

DK. BROWN M.M.,4U3

 1
52127-52561E1

NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU

CREAM BEIGE,4V9

 1
52127-52561J1

NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU

LT.BLUE M.M.,8S1

 1
52127-52561F0

NCP14#..PORTE..F..CBU

“a la mode”(*IC.=ﾌﾟﾗﾑ),SUPER BRIGHT YELLOW,576

 1
52127-52561F0

NCP14#..PORTE..F..CBU

“a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ｼﾙﾊﾞｰ),SUPER BRIGHT YELLOW,576

 1
52127-52561G0

NCP14#,NSP140..PORTE..CBU

AIR GREEN PEARL CS.,6W1

 1
52127-52561B0

NCP14#,NSP140..PORTE..CBU

SILVER ME.,1F7

 1
52127-52561C0

NCP14#,NSP140..PORTE..CBU

BLACK MC.,209

 1
52127-52561E0

NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU

DK. BROWN M.M.,4U3

 1
52127-52561F0

NCP14#..PORTE..F..CBU

“a la mode”(*IC.=ﾌﾛﾏｰｼﾞｭ/ﾌﾞﾗｳﾝ),SUPER BRIGHT YELLOW,576

 1
Common parts
90179-06349
91551-A0616
Linked diagrams
7403
8202
