NCP145-AEXXK (2012)
Toyota Porte/Spade
(1207- )

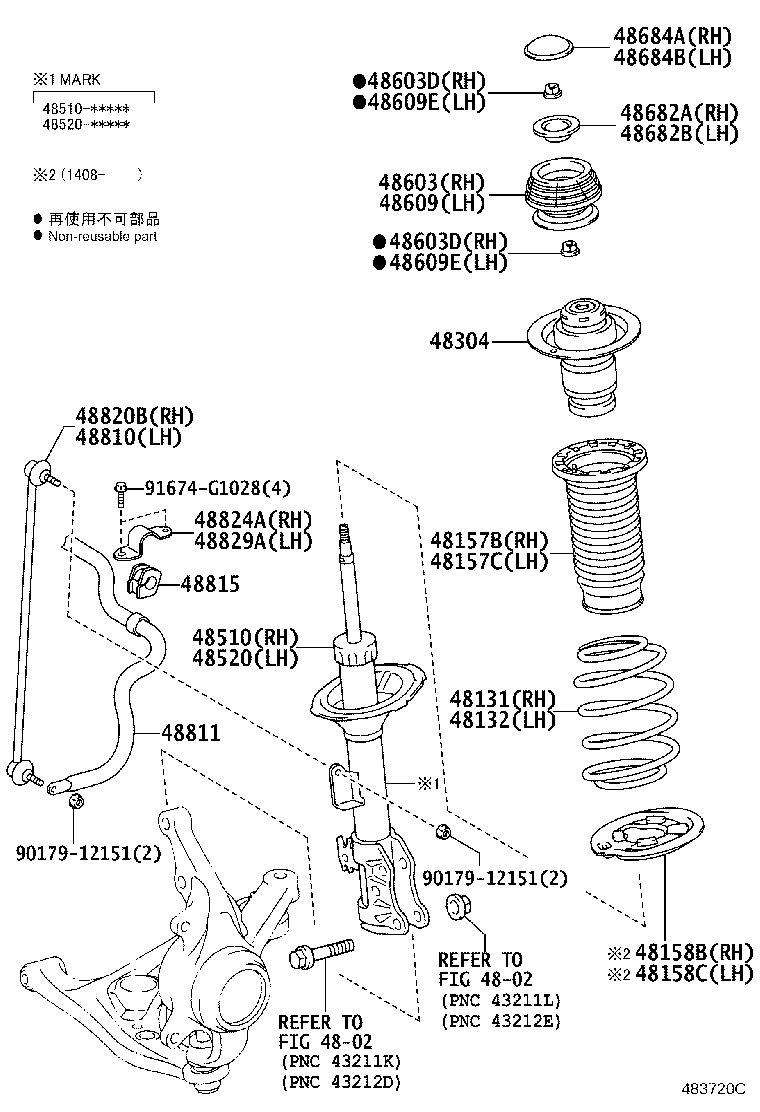

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-52K50 |
NCP145..CBU |
1 | ||
| 48131-52K51 |
NCP145..CBU |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-52K51 |
NCP145..CBU |
1 | ||
| 48131-52K50 |
NCP145..CBU |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 48157-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 48157-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-52041 |
NCP145..CBU |
2 | ||
| 48304-52040 |
NCP145..CBU |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-52J51 |
NCP145..CBU ﾏｰｸ 48510−52J51 |
1 | ||
| 48510-52J50 |
NCP145..CBU ﾏｰｸ 48510−52J50 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-52650 |
NCP145..CBU ﾏｰｸ 48520−52650 |
1 | ||
| 48520-52651 |
NCP145..CBU ﾏｰｸ 48520−52651 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-52100 |
NCP14#,NSP140..CBU |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-12145 |
NCP14#,NSP140..CBU |
2 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-12145 |
NCP14#,NSP140..CBU |
2 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-52100 |
NCP14#,NSP140..CBU |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-12145 |
NCP14#,NSP140..CBU |
2 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-12145 |
NCP14#,NSP140..CBU |
2 | ||
| 48682A - SUPPORT, FRONT SUSPENSION, NO.2 RH | ||||
| 48682-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 48682B - SUPPORT, FRONT SUSPENSION, NO.2 LH | ||||
| 48682-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-52300 |
NCP145..CBU |
1 | ||
| 48811-52231 |
NCP145..CBU |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-52140 |
NCP145..CBU |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-52060 |
NCP14#,NSP140..CBU |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-52060 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 90179-12151 | ||||
| 91674-G1028 | ||||
| Linked diagrams | ||||
| 4802 | ||||
