NCP145-AEXXK (2012)
Toyota Porte/Spade

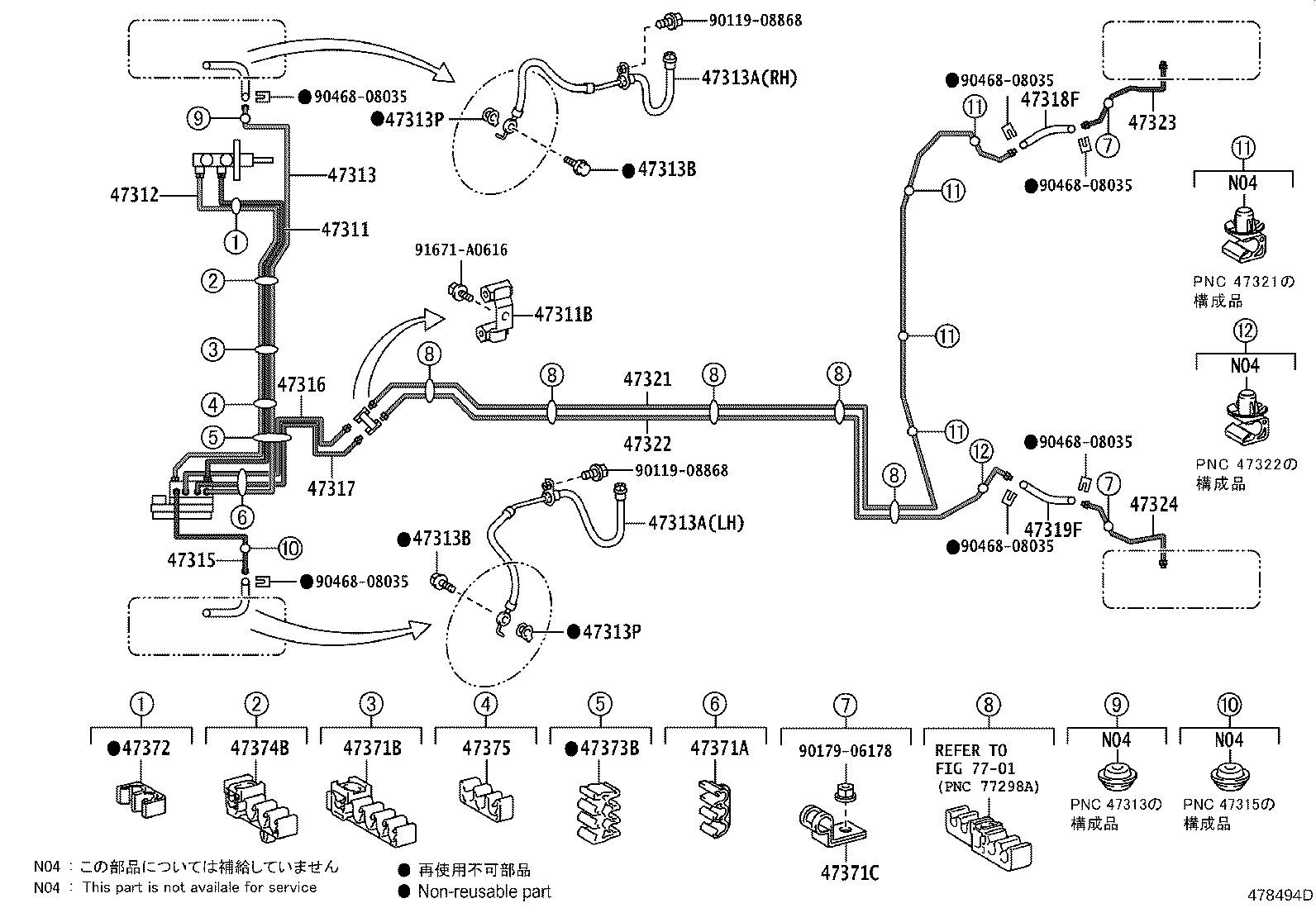

ILLUST NO. 1 OF 2(1207-1507)NCP145
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52460 |
NCP14#,NSP140..CBU |
1 | ||
| 47311-52610 |
NCP14#,NSP140..CBU |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
NCP14#,NSP140..CBU |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52420 |
NCP14#,NSP140..CBU |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52210 |
NCP14#,NSP140..CBU |
1 | ||
| 47313-52231 |
NCP14#,NSP140..CBU |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02H35 |
NCP14#,NSP140..CBU 右側 |
1 | ||
| 90947-02G35 |
NCP14#,NSP140..CBU 左側 |
1 | ||
| 90947-02H36 |
NCP14#,NSP140..CBU 左側 |
1 | ||
| 90947-02G34 |
NCP14#,NSP140..CBU 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02H35 |
NCP14#,NSP140..CBU 右側 |
1 | ||
| 90947-02G35 |
NCP14#,NSP140..CBU 左側 |
1 | ||
| 90947-02H36 |
NCP14#,NSP140..CBU 左側 |
1 | ||
| 90947-02G34 |
NCP14#,NSP140..CBU 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP14#,NSP140..CBU |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP14#,NSP140..CBU |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP14#,NSP140..CBU |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP14#,NSP140..CBU |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52290 |
NCP14#,NSP140..CBU |
1 | ||
| 47315-52231 |
NCP14#,NSP140..CBU |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52190 |
NCP14#,NSP140..CBU |
1 | ||
| 47316-52191 |
NCP14#,NSP140..CBU |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52190 |
NCP14#,NSP140..CBU |
1 | ||
| 47317-52191 |
NCP14#,NSP140..CBU |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02G71 |
NCP145..CBU |
1 | ||
| 90947-02H29 |
NCP145..CBU |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02H30 |
NCP145..CBU |
1 | ||
| 90947-02G72 |
NCP145..CBU |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12391 |
NCP145..CBU |
1 | ||
| 47321-12390 |
NCP145..CBU |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12551 |
NCP145..CBU |
1 | ||
| 47322-12550 |
NCP145..CBU |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52140 |
NCP145..CBU |
1 | ||
| 47323-52141 |
NCP145..CBU |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52131 |
NCP145..CBU |
1 | ||
| 47324-52130 |
NCP145..CBU |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01D92 |
NCP14#,NSP140..CBU |
1 | ||
| 90464-00868 |
NCP14#,NSP140..CBU |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01D97 |
NCP14#,NSP140..CBU |
1 | ||
| 90949-01D85 |
NCP14#,NSP140..CBU |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-10837 |
NCP145..CBU |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00899 |
NCP14#,NSP140..CBU |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D98 |
NCP14#,NSP140..CBU |
1 | ||
| 90464-00925 |
NCP14#,NSP140..CBU |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D84 |
NCP14#,NSP140..CBU |
1 | ||
| 90949-01D94 |
NCP14#,NSP140..CBU |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01D93 |
NCP14#,NSP140..CBU |
1 | ||
| 90464-00929 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90179-06178 | ||||
| 90468-08035 | ||||
| 91671-A0616 | ||||
| Linked diagrams | ||||
| 7701 | ||||

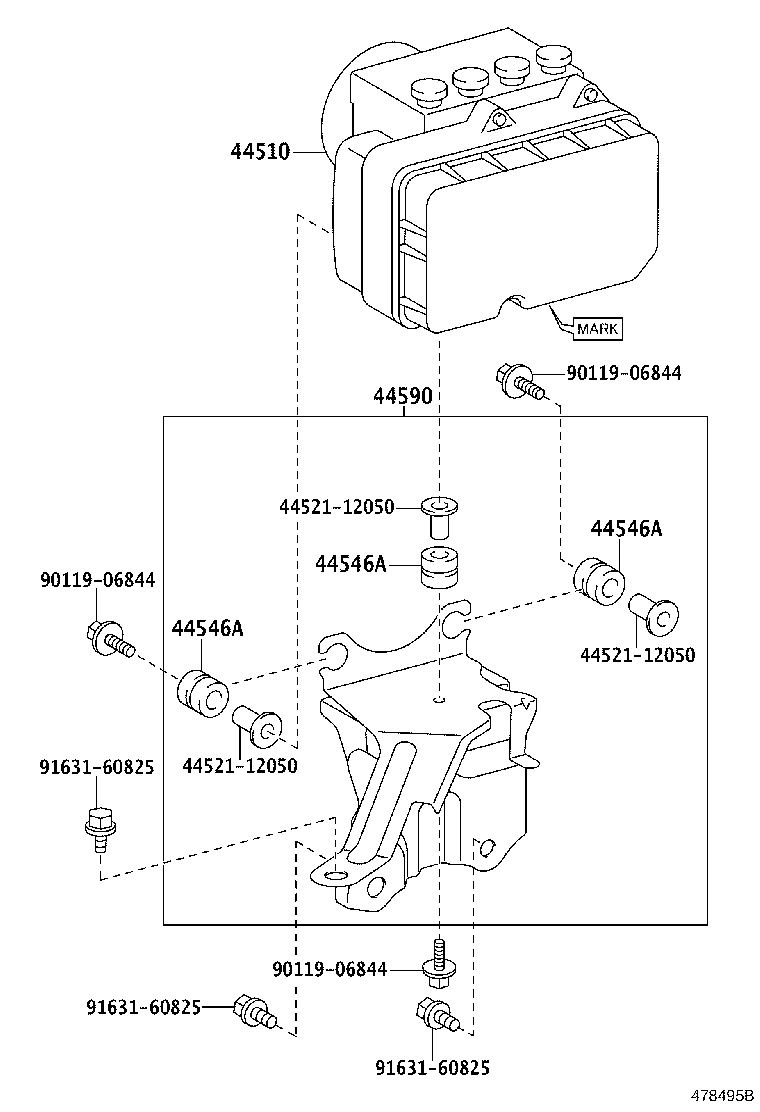

ILLUST NO. 2 OF 2(1207- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-52K70 |
NCP145..CBU |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NCP14#,NSP140..CBU |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NCP14#,NSP140..CBU |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NCP14#,NSP140..CBU |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52230 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 91631-60825 | ||||
