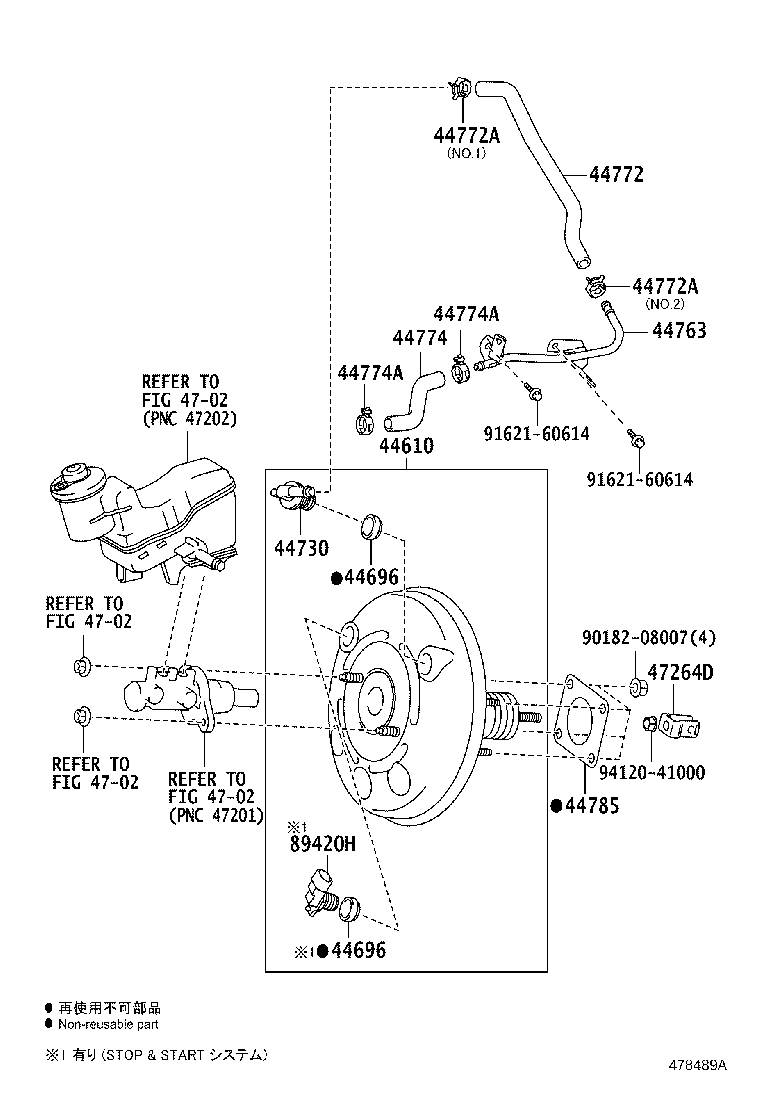

Toyota Porte/spade NCP145 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-52F00	NCP145..CBU	07/2012 - 07/2015	1
44696 - GROMMET, CHECK VALVE
90480-24439	NSP140..V;NCP14#..CBU	07/2012 - 07/2015	1
44696 - GROMMET, CHECK VALVE
90480-24439	NSP140..V;NCP14#..CBU	07/2012 - 07/2015	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20170	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
44763 - TUBE, BOOSTER VACUUM
44763-52030	NCP14#..CBU	07/2012 - 07/2015	1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-52120	NCP14#..CBU	07/2012 - 07/2015	1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
96133-41500	NCP14# NO.1	07/2012 - 09/2012	1
90467-16014	NCP14# NO.2	07/2012 - 09/2012	1
90467-16014	NCP14#..CBU NO.1 & NO.2	09/2012 - 07/2015	2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
96133-41500	NCP14# NO.1	07/2012 - 09/2012	1
90467-16014	NCP14# NO.2	07/2012 - 09/2012	1
90467-16014	NCP14#..CBU NO.1 & NO.2	09/2012 - 07/2015	2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-52070	NCP14#..CBU	07/2012 - 07/2015	1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500	NCP14#..CBU	07/2012 - 01/2015	2
96136-41801	NCP14#..CBU	02/2015 - 07/2015	2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500	NCP14#..CBU	07/2012 - 01/2015	2
96136-41801	NCP14#..CBU	02/2015 - 07/2015	2
44785 - GASKET, BRAKE BOOSTER
44785-16020	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-52040	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
Common parts
90182-08007
91621-60614
94120-41000
Linked diagrams
4702

NCP145-AEXXK (2012)
