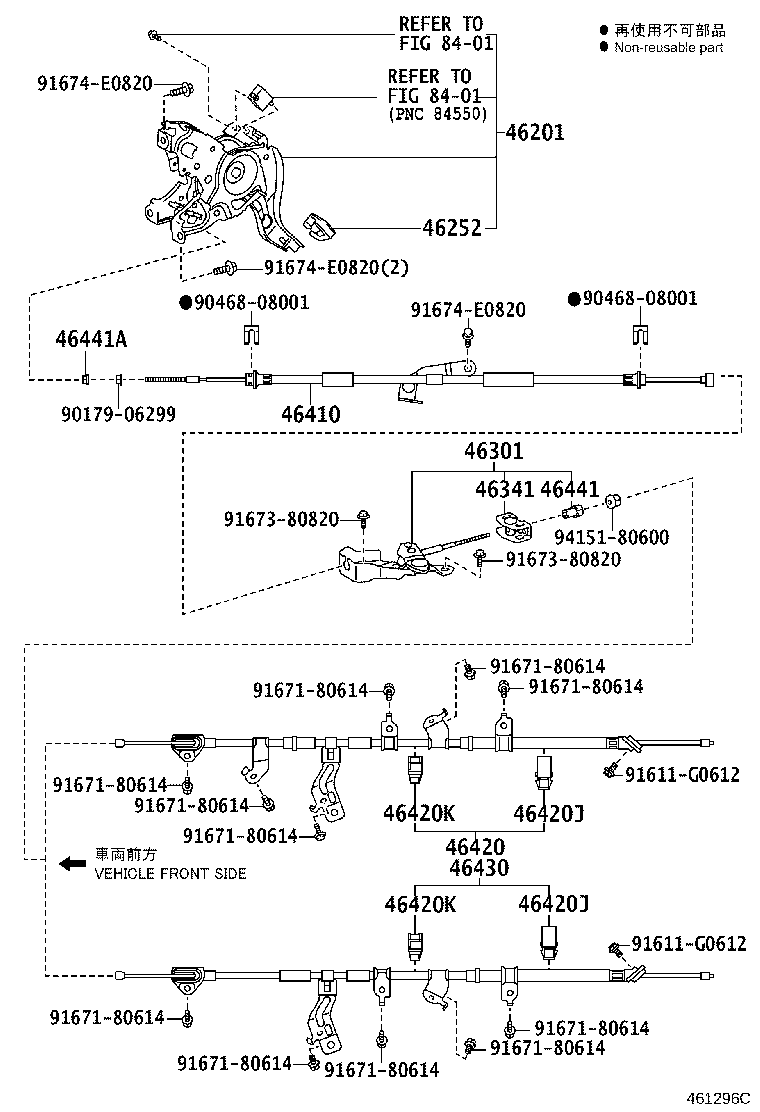

Toyota Porte/spade NCP145 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46201 - PEDAL SUB-ASSY, PARKING BRAKE
46210-52110	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
46252 - PAD, PARKING PEDAL
46252-52020	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46320-52040	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
46341 - EQUALIZER, PARKING BRAKE
46341-52010	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-52100	NCP145..CBU	07/2012 - 07/2015	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-52430	NCP145..CBU	07/2012 - 07/2015	1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46402-52030	NCP14#,NSP140..CBU	07/2012 - 07/2015	2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46402-52030	NCP14#,NSP140..CBU	07/2012 - 07/2015	2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46402-52020	NCP145..CBU	07/2012 - 07/2015	2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46402-52020	NCP145..CBU	07/2012 - 07/2015	2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-52430	NCP145..CBU	07/2012 - 07/2015	1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-52010	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-12010	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
Common parts
90179-06299
90468-08001
91611-G0612
91671-80614
91673-80820
91674-E0820
94151-80600
Linked diagrams
8401

NCP145-AEXXK (2012)
