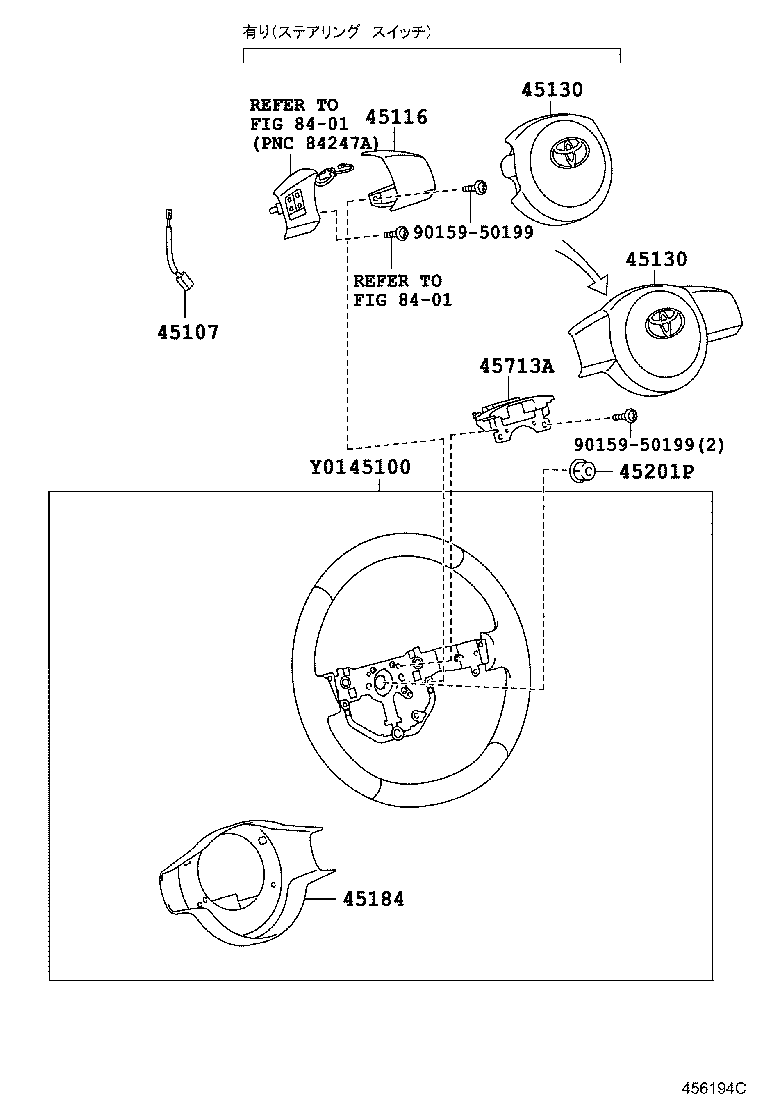

Toyota Porte/spade NCP145 STEERING WHEEL

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-52570E0	NCP14#,NSP140..(V,X)..CBU 2本ｽﾎﾟｰｸ, ｳﾚﾀﾝ,PLUM,TRIM4#	07/2012 - 07/2015	1
45100-52570E0	NCP141..Y;NCP145..SPADE..Y;NCP145..PORTE..(F,Y);NCP141..PORTE..F..CBU 2本ｽﾎﾟｰｸ, ｳﾚﾀﾝ,PLUM,TRIM0#,4#	07/2012 - 07/2015	1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-48010	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-52120E0	NCP14#,NSP140..(G,X)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ用4ｽﾋﾟｰｶ,PLUM,TRIM4#	07/2012 - 07/2015	1
45116-52120E0	NCP141..Y;NCP145..SPADE..Y;NCP145..PORTE..(F,Y);NCP141..PORTE..F..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ用4ｽﾋﾟｰｶ,PLUM,TRIM0#,4#	07/2012 - 07/2015	1
45116-52120E0	NCP14#,NSP140..(G,X)..CBU ｵｰﾃﾞｨｵ−CDﾗｼﾞｵ 4ｽﾋﾟｰｶ,PLUM,TRIM4#	07/2012 - 07/2015	1
45116-52120E0	NCP141..Y;NCP145..SPADE..Y;NCP145..PORTE..(F,Y);NCP141..PORTE..F..CBU ｵｰﾃﾞｨｵ−CDﾗｼﾞｵ 4ｽﾋﾟｰｶ,PLUM,TRIM0#,4#	07/2012 - 07/2015	1
45130 - BUTTON ASSY, HORN
45130-52690A0	NCP14#,NSP140..X..CBU FROMAGE,TRIM41,43	07/2012 - 07/2015	1
45130-52690A0	NCP14#,NSP140..G,V FROMAGE,TRIM41	07/2012 - 07/2015	1
45130-52690C0	NCP14#..(F,Y)..CBU BLACK,TRIM4#	07/2012 - 07/2015	1
45130-52700A0	NCP14#,NSP140..X..CBU ｵｰﾃﾞｨｵ−CDﾗｼﾞｵ 4ｽﾋﾟｰｶ,FROMAGE,TRIM41,43	07/2012 - 07/2015	1
45130-52700C0	NCP14#..(F,Y)..CBU ｵｰﾃﾞｨｵ−CDﾗｼﾞｵ 4ｽﾋﾟｰｶ,BLACK,TRIM4#	07/2012 - 07/2015	1
45130-52700A0	NCP14#..(F,Y)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ用4ｽﾋﾟｰｶ,FROMAGE,TRIM0#	07/2012 - 07/2015	1
45130-52700C0	NCP14#..(F,Y)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ用4ｽﾋﾟｰｶ,BLACK,TRIM4#	07/2012 - 07/2015	1
45130-52700A0	NCP14#,NSP140..X..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ用4ｽﾋﾟｰｶ,FROMAGE,TRIM41,43	07/2012 - 07/2015	1
45130-52700A0	NCP14#..(F,Y)..CBU ｵｰﾃﾞｨｵ−CDﾗｼﾞｵ 4ｽﾋﾟｰｶ,FROMAGE,TRIM0#	07/2012 - 07/2015	1
45130-52690C0	NCP14#,NSP140..G,V BLACK,TRIM40	07/2012 - 07/2015	1
45130-52700C0	NCP14#,NSP140..X..CBU ｵｰﾃﾞｨｵ−CDﾗｼﾞｵ 4ｽﾋﾟｰｶ,BLACK,TRIM40,42	07/2012 - 07/2015	1
45130-52700C0	NCP14#,NSP140..X..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ用4ｽﾋﾟｰｶ,BLACK,TRIM40,42	07/2012 - 07/2015	1
45130-52690A0	NCP14#..(F,Y)..CBU FROMAGE,TRIM0#	07/2012 - 07/2015	1
45130-52690C0	NCP14#,NSP140..X..CBU BLACK,TRIM40,42	07/2012 - 07/2015	1
45130 - BUTTON ASSY, HORN
45130-52690A0	NCP14#,NSP140..X..CBU FROMAGE,TRIM41,43	07/2012 - 07/2015	1
45130-52690A0	NCP14#,NSP140..G,V FROMAGE,TRIM41	07/2012 - 07/2015	1
45130-52690C0	NCP14#..(F,Y)..CBU BLACK,TRIM4#	07/2012 - 07/2015	1
45130-52700A0	NCP14#,NSP140..X..CBU ｵｰﾃﾞｨｵ−CDﾗｼﾞｵ 4ｽﾋﾟｰｶ,FROMAGE,TRIM41,43	07/2012 - 07/2015	1
45130-52700C0	NCP14#..(F,Y)..CBU ｵｰﾃﾞｨｵ−CDﾗｼﾞｵ 4ｽﾋﾟｰｶ,BLACK,TRIM4#	07/2012 - 07/2015	1
45130-52700A0	NCP14#..(F,Y)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ用4ｽﾋﾟｰｶ,FROMAGE,TRIM0#	07/2012 - 07/2015	1
45130-52700C0	NCP14#..(F,Y)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ用4ｽﾋﾟｰｶ,BLACK,TRIM4#	07/2012 - 07/2015	1
45130-52700A0	NCP14#,NSP140..X..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ用4ｽﾋﾟｰｶ,FROMAGE,TRIM41,43	07/2012 - 07/2015	1
45130-52700A0	NCP14#..(F,Y)..CBU ｵｰﾃﾞｨｵ−CDﾗｼﾞｵ 4ｽﾋﾟｰｶ,FROMAGE,TRIM0#	07/2012 - 07/2015	1
45130-52690C0	NCP14#,NSP140..G,V BLACK,TRIM40	07/2012 - 07/2015	1
45130-52700C0	NCP14#,NSP140..X..CBU ｵｰﾃﾞｨｵ−CDﾗｼﾞｵ 4ｽﾋﾟｰｶ,BLACK,TRIM40,42	07/2012 - 07/2015	1
45130-52700C0	NCP14#,NSP140..X..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ用4ｽﾋﾟｰｶ,BLACK,TRIM40,42	07/2012 - 07/2015	1
45130-52690A0	NCP14#..(F,Y)..CBU FROMAGE,TRIM0#	07/2012 - 07/2015	1
45130-52690C0	NCP14#,NSP140..X..CBU BLACK,TRIM40,42	07/2012 - 07/2015	1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-52170E0	NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4#	07/2012 - 07/2015	1
45184-52170E0	NCP141..Y;NCP145..SPADE..Y;NCP145..PORTE..(F,Y);NCP141..PORTE..F..CBU PLUM,TRIM0#,4#	07/2012 - 07/2015	1
45201P - NUT, STEERING WHEEL SET
90179-12071	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
45713A - DAMPER, STEERING SHAKE
45713-33210	NCP14#,NSP140..CBU	07/2012 - 07/2015	1
Common parts
90159-50199
Linked diagrams
8401

NCP145-AEXXK (2012)

(1207-1507)
