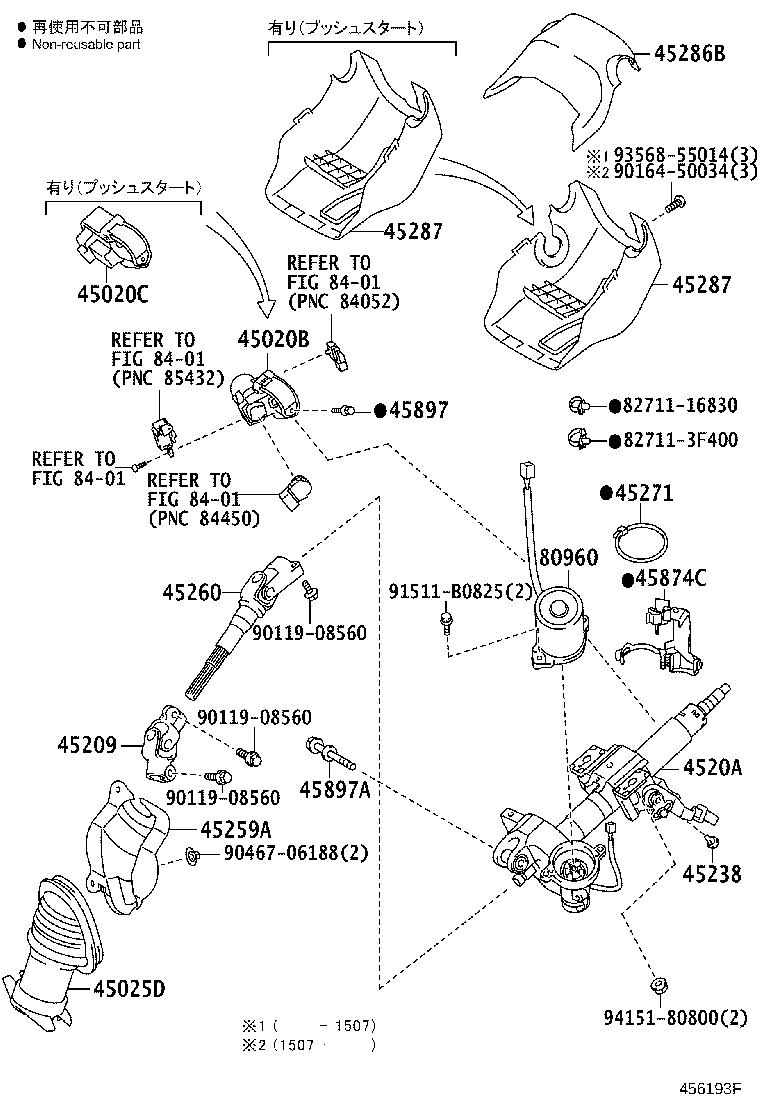

NCP145-AEXXK (2012)
Toyota Porte/Spade
(1207- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK | ||||
| 45280-52100 |
NCP14#,NSP140..CBU |
1 | ||
| 45020C - ACTUATOR ASSY, STEERING LOCK(W/ECU) | ||||
| 45020-52170 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-52160 |
NCP145..CBU |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-52050 |
NCP14#,NSP140..CBU |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-52260 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 4520A-52250 |
NCP14#,NSP140..CBU |
1 | ||
| 45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45238-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-52320 |
NCP14#,NSP140..CBU |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-12560E0 |
NCP141..Y;NCP145..SPADE..Y;NCP145..PORTE..(F,Y);NCP141..PORTE..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),PLUM,TRIM0#,4# |
1 | ||
| 45286-12560E0 |
NCP14#,NSP140..(G,X)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),PLUM,TRIM4# |
1 | ||
| 45286-52160E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 45286-52160E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-12640E0 |
NCP14#,NSP140..(G,X)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),PLUM,TRIM4# |
1 | ||
| 45287-12640E0 |
NCP141..Y;NCP145..SPADE..Y;NCP145..PORTE..(F,Y);NCP141..PORTE..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),PLUM,TRIM0#,4# |
1 | ||
| 45287-52190E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 45287-52270E0 |
NCP14#,NSP140..(G,X)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),PLUM,TRIM4# |
1 | ||
| 45287-52190E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 45287-52260E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 45287-52270E0 |
NCP141..Y;NCP145..SPADE..Y;NCP145..PORTE..(F,Y);NCP141..PORTE..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),PLUM,TRIM0#,4# |
1 | ||
| 45287-52260E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-52190E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 45287-12640E0 |
NCP141..Y;NCP145..SPADE..Y;NCP145..PORTE..(F,Y);NCP141..PORTE..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),PLUM,TRIM0#,4# |
1 | ||
| 45287-12640E0 |
NCP14#,NSP140..(G,X)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),PLUM,TRIM4# |
1 | ||
| 45287-52270E0 |
NCP14#,NSP140..(G,X)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),PLUM,TRIM4# |
1 | ||
| 45287-52190E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 45287-52260E0 |
NCP14#..(F,Y)..CBU PLUM,TRIM0#,4# |
1 | ||
| 45287-52270E0 |
NCP141..Y;NCP145..SPADE..Y;NCP145..PORTE..(F,Y);NCP141..PORTE..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ),PLUM,TRIM0#,4# |
1 | ||
| 45287-52260E0 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
1 | ||
| 45874C - PROTECTOR, STEERING COLUMN, NO.1 | ||||
| 45874-52040 |
NCP14#,NSP140..CBU |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
NCP14#,NSP140..CBU |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 90119-10980 |
NCP14#,NSP140..CBU |
1 | ||
| 45897-42010 |
NCP14#,NSP140 |
1 | ||
| 80960 - MOTOR ASSY, POWER STEERING | ||||
| 80960-52110 |
NCP14#,NSP140..CBU |
1 | ||
| 80960-52070 |
NCP14#,NSP140..CBU |
1 | ||
| 80960-52100 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 82711-3F400 | ||||
| 90119-08560 | ||||
| 90164-50034 | ||||
| 90467-06188 | ||||
| 91511-B0825 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
