NCP145-AEXXK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

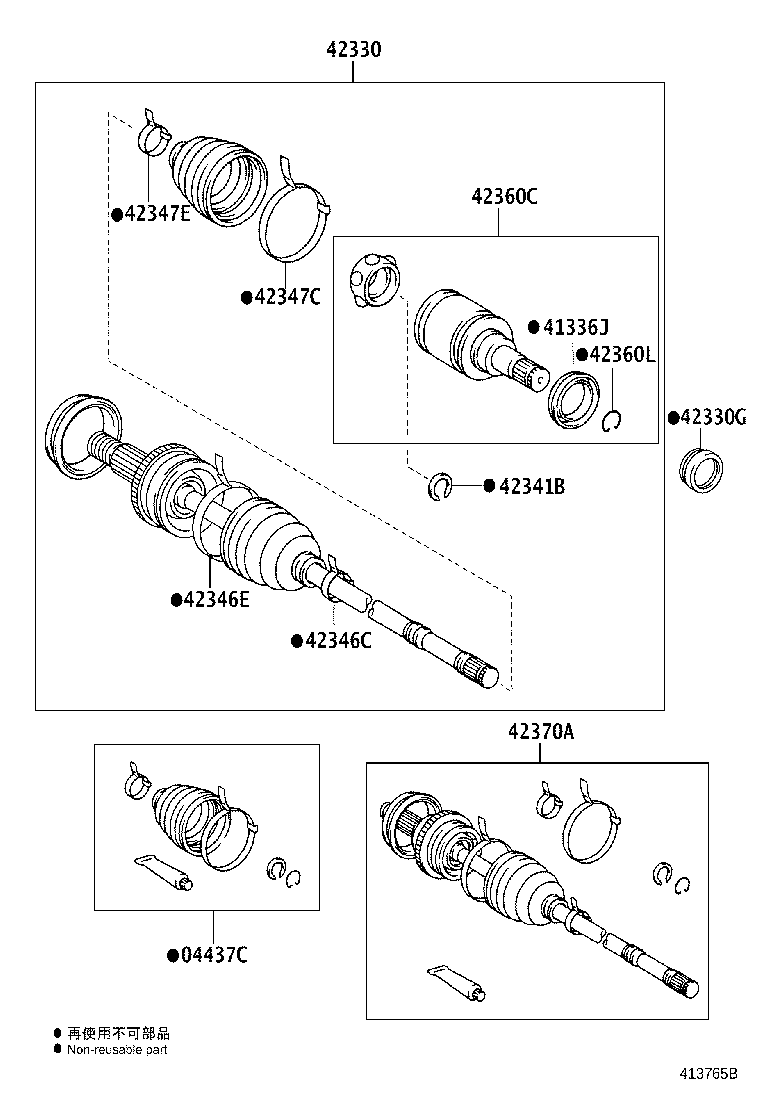

ILLUST NO. 1 OF 2(1207- )NCP145

Click highlighted areas on diagram

RH

diagram 04437C 41336J 42330 42330G 42341B 42346C 42346E 42347C 42347E 42360C 42360L 42370A
Part # Description Qty Price
04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH
04439-52050

NCP145..CBU

 1
04439-52051

NCP145..CBU

 1
41336J - COVER, REAR DRIVE SHAFT DUST, RH
41336-28050

NCP145..CBU

 1
42330 - SHAFT ASSY, REAR DRIVE, RH
42340-52011

NCP145..CBU

 1
42340-52010

NCP145..CBU

 1
42340-52012

NCP145..CBU

 1
42330G - OIL SEAL, REAR DRIVE SHAFT, RH
90311-37004

NCP145..CBU

 1
42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH)
90520-21020

NCP145..CBU

 1
43425-48040

NCP145..CBU

 1
42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42345-52270

NCP145..CBU

内径=24.3

 1
42345-52200

NCP145..CBU

内径=22.8

 1
42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R
42345-52190

NCP145..CBU

 1
42345-12280

NCP145..CBU

 1
42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42345-12120

NCP145..CBU

内径=74.3

 1
42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH
42345-12130

NCP145..CBU

 1
42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH
42360-52010

NCP145..CBU

 1
42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH
90520-19018

NCP145..CBU

 1
42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH
42370-59127

NCP145..CBU

 1
42370-59125

NCP145..CBU

 1
42370-59126

NCP145..CBU

 1

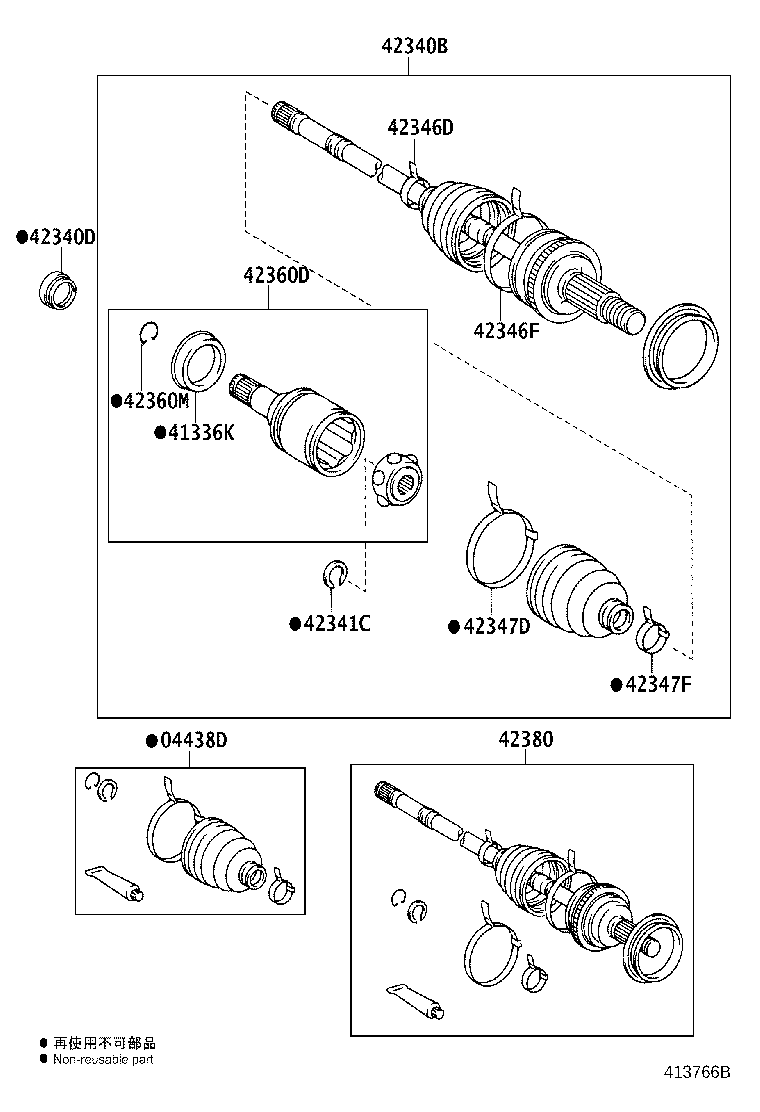

ILLUST NO. 1 OF 2(1207- )NCP145

Click highlighted areas on diagram

LH

diagram 04438D 41336K 42340B 42340D 42341C 42346D 42346F 42347D 42347F 42360D 42360M 42380
Part # Description Qty Price
04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT
04439-52051

NCP145..CBU

 1
04439-52050

NCP145..CBU

 1
41336K - COVER, REAR DRIVE SHAFT DUST, LH
41336-28050

NCP145..CBU

 1
42340B - SHAFT ASSY, REAR DRIVE, LH
42340-52010

NCP145..CBU

 1
42340-52012

NCP145..CBU

 1
42340-52011

NCP145..CBU

 1
42340D - OIL SEAL, REAR DRIVE SHAFT, LH
90311-37004

NCP145..CBU

 1
42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH)
90520-21020

NCP145..CBU

 1
43425-48040

NCP145..CBU

 1
42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42345-52270

NCP145..CBU

内径=24.3

 1
42345-52200

NCP145..CBU

内径=22.8

 1
42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L
42345-52190

NCP145..CBU

 1
42345-12280

NCP145..CBU

 1
42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42345-12120

NCP145..CBU

内径=74.3

 1
42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH
42345-12130

NCP145..CBU

 1
42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH
42360-52010

NCP145..CBU

 1
42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH
90520-19018

NCP145..CBU

 1
42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH
42370-59127

NCP145..CBU

 1
42370-59126

NCP145..CBU

 1
42370-59125

NCP145..CBU

 1

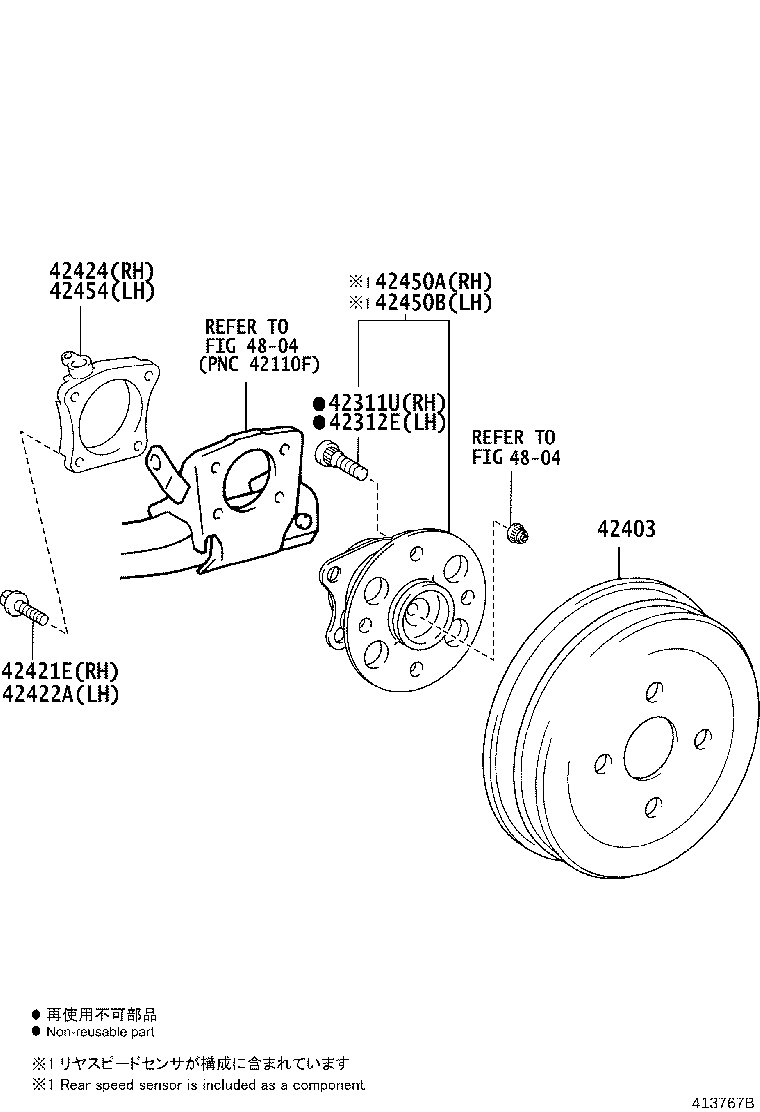

ILLUST NO. 2 OF 2(1207- )NCP145

Click highlighted areas on diagram

diagram 42311U 42312E 42403 42421E 42422A 42424 42450A 42450B 42454 4804 4804
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02049

NCP14#,NSP140..CBU

 4
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02049

NCP14#,NSP140..CBU

 4
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-52090

NCP14#,NSP140..CBU

 2
42421E - BOLT (FOR REAR AXLE BEARING CASE RH)
90105-12351

NCP145..CBU

 4
42422A - BOLT (FOR REAR AXLE BEARING CASE LH)
90105-12351

NCP145..CBU

 4
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-52020

NCP145..CBU

 1
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42410-52060

NCP145..CBU

 1
42410-52060

NCP145..CBU

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42410-52060

NCP145..CBU

 1
42410-52060

NCP145..CBU

 1
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42454-52020

NCP145..CBU

 1
Linked diagrams
4804
