NCP145-AEXXK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1207- )NCP145

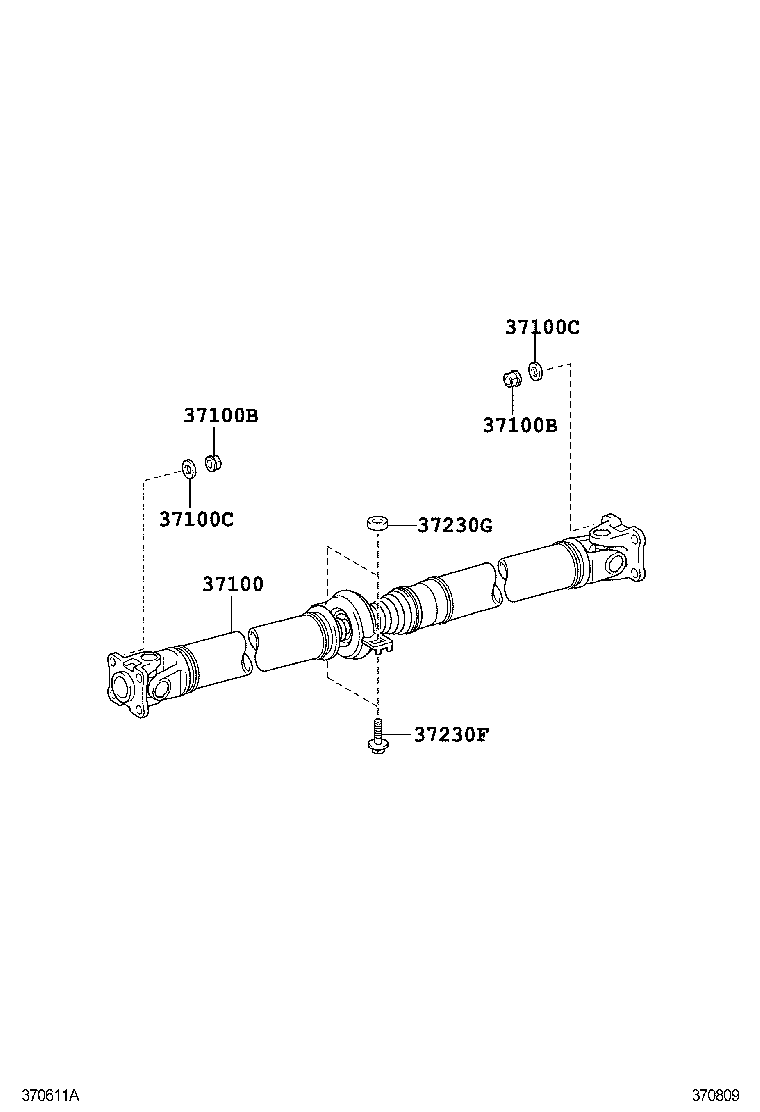

Click highlighted areas on diagram

diagram 37100 37100B 37100B 37100C 37100C 37230F 37230G
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-12660

NCP145..CBU

 1
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90179-08197

NCP145..CBU

 8
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90179-08197

NCP145..CBU

 8
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90201-08097

NCP145..CBU

 8
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90201-08097

NCP145..CBU

 8
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10444

NCP145..CBU

 2
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10081

NCP145..CBU

厚さ=4.5

 1
90201-10083

NCP145..CBU

厚さ=6.5

 1
90201-10084

NCP145..CBU

厚さ=9.0

 1
90201-10123

NCP145..CBU

厚さ=2.0

 1
90201-10085

NCP145..CBU

厚さ=11.0

 1
