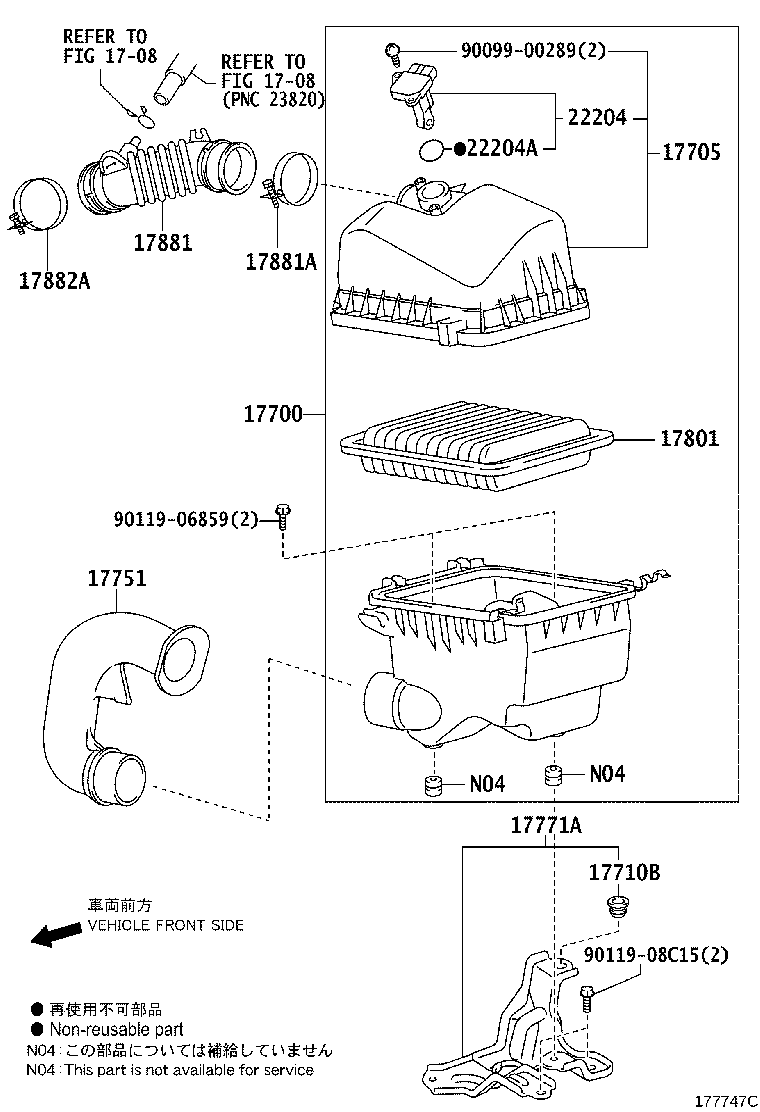

Toyota Porte/spade NCP145 AIR CLEANER

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-21120	1NZFE..NCP14#..CBU	07/2012 - 07/2015	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-21090	1NZFE..NCP14#..CBU	07/2012 - 07/2015	1
17710B - GROMMET
90480-18006	1NZFE..NCP14#..CBU	07/2012 - 07/2015	1
17751 - INLET, AIR CLEANER, NO.1
17751-21160	1NZFE..NCP145..CBU	07/2012 - 07/2015	1
17771A - BRACKET, AIR CLEANER
17771-21060	1NZFE..NCP14#..CBU	02/2015 - 07/2015	1
17771-21050	1NZFE..NCP14#..CBU	07/2012 - 01/2015	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-21050	1NZFE..NCP14#..CBU	07/2012 - 07/2015	1
17881 - HOSE, AIR CLEANER, NO.1
17880-21091	1NZFE..NCP145..CBU	07/2012 - 07/2015	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690	1N#..NCP14#,NSP140..CBU	07/2012 - 07/2015	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10690	1NZFE..NCP14#..CBU	07/2012 - 07/2015	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-22010	1NZFE..NCP14#..CBU (J)	07/2012 - 07/2015	1
22204-0C020	1NZFE..NCP14#..CBU (L)	07/2012 - 07/2015	1
22204A - RING, O(FOR INTAKE AIR FLOW METER)
90099-14141	1NZFE..NCP14#..CBU	07/2012 - 07/2015	1
Common parts
90099-00289
90119-06859
90119-08C15
Linked diagrams
1708

NCP145-AEXXK (2012)
