NCP145-AEXXK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015

Engine 1NZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1207- )1NZFE..NCP145

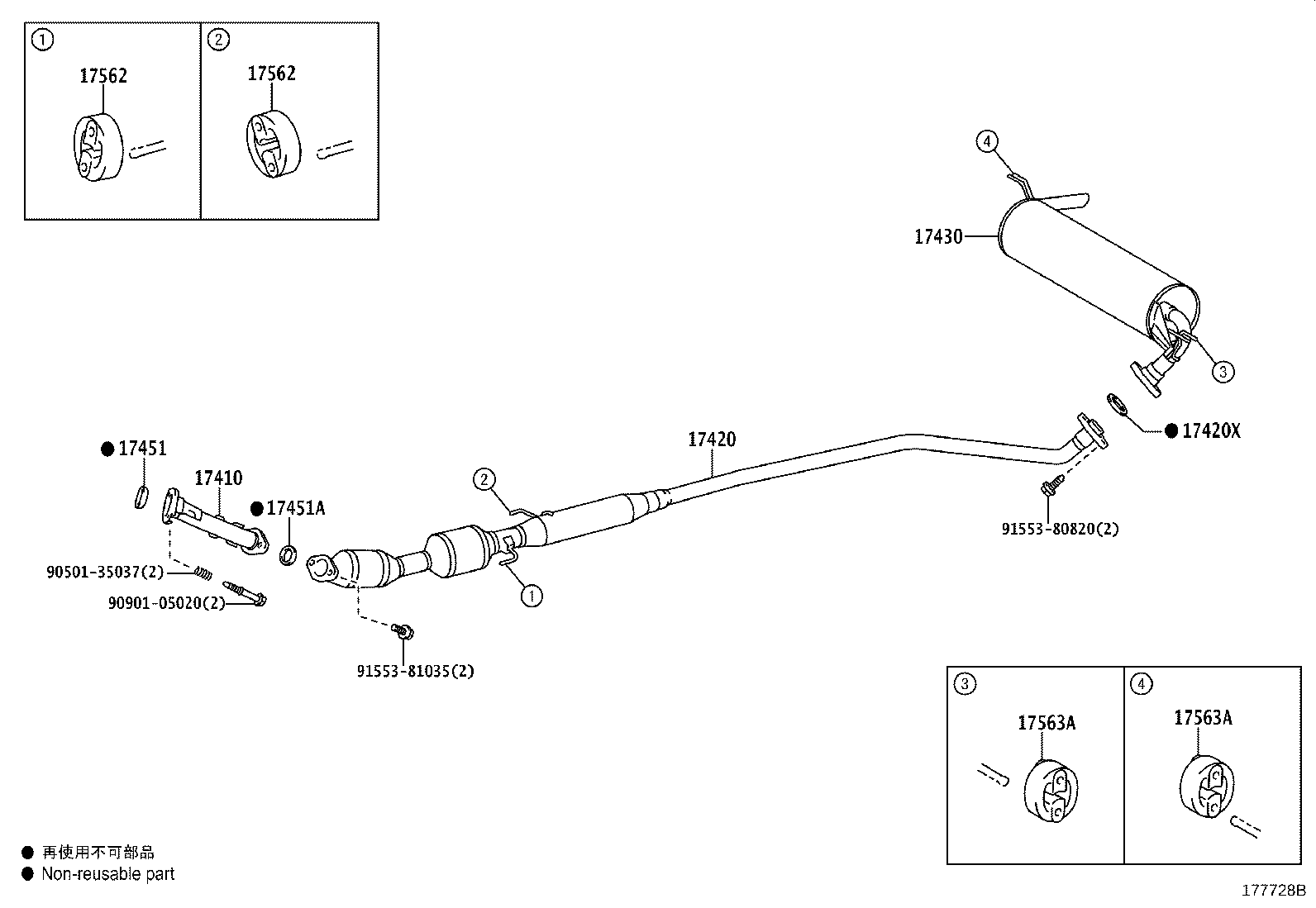

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-21840	1NZFE..NCP145..CBU	07/2012 - 07/2015	1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-21330	1NZFE..NCP145..CBU	07/2012 - 07/2015	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06039	1NZFE..NCP145..CBU	07/2012 - 07/2015	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-21800	1NZFE..NCP145..CBU	07/2012 - 07/2015	1
17451 - GASKET, EXHAUST PIPE
17451-21070	1N#..NCP14#,NSP140..CBU	07/2012 - 07/2015	1
17451A - GASKET, EXHAUST PIPE, NO.2
90917-06089	1NZFE..NCP145..CBU	07/2012 - 07/2015	1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-47010	1NZFE..NCP145..CBU	07/2012 - 07/2015	2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-47010	1NZFE..NCP145..CBU	07/2012 - 07/2015	2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-47010	1NZFE..NCP14#..CBU	07/2012 - 07/2015	2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-47010	1NZFE..NCP14#..CBU	07/2012 - 07/2015	2
Common parts
90501-35037
90901-05020
91553-80820
91553-81035
